Audio-Technica ATW-1701 System 10 Camera-Mount Wireless System with Body-Pack Transmitter

The Audio-Technica ATW-1701 System 10 Camera-Mount Wireless System is designed for high-fidelity audio capture in mobile applications. Ideal for video production, electronic news gathering, and other on-the-go uses, this system features a compact design and easy setup with reliable wireless performance. Operating in the 2.4 GHz range, it avoids TV interference and provides exceptional sound quality with 24-bit/48 kHz audio sampling.

Features

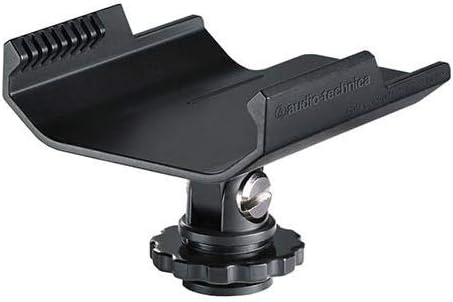

• Compact and Portable Design: Easily mountable on cameras, perfect for mobile audio applications.
• High-Fidelity Digital Wireless: Delivers clear audio quality with 24-bit/48 kHz sampling.
• Multiple Diversity Assurance: Features frequency, time, and space diversity to ensure reliable performance.
• Easy Setup: Instantaneous channel selection and sync for hassle-free operation.
• Wide Operating Range: Up to 30 meters (100 feet) radius in open environments without interference.
• Compatible with Various Microphones: Select a compatible microphone or cable with a cW-style locking 4-pin connector.

Specifications

• Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
• Frequency Response: 20 Hz to 20 kHz (depending on microphone type)
• Total Harmonic Distortion: <0.05% typical
• Operating Temperature Range: 0° C to +40° C (32° F to 104° F)
• Audio Sampling: 24 bits / 48 kHz
• Receiver Dimensions: 56.0 mm W x 91.4 mm H x 27.8 mm D

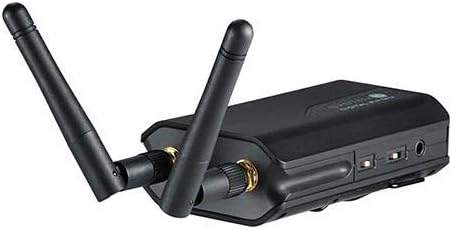

• Body Pack Dimensions: 70.2 mm W x 107.0 mm H x 24.9 mm D
• Handheld Transmitter Dimensions: 254.8 mm long, 50.0 mm diameter
• Receiver Weight: 105 grams (3.7 oz)
• Body Pack Weight: 100 grams (3.5 oz)
• Handheld Transmitter Weight: 280 grams (9.9 oz)
