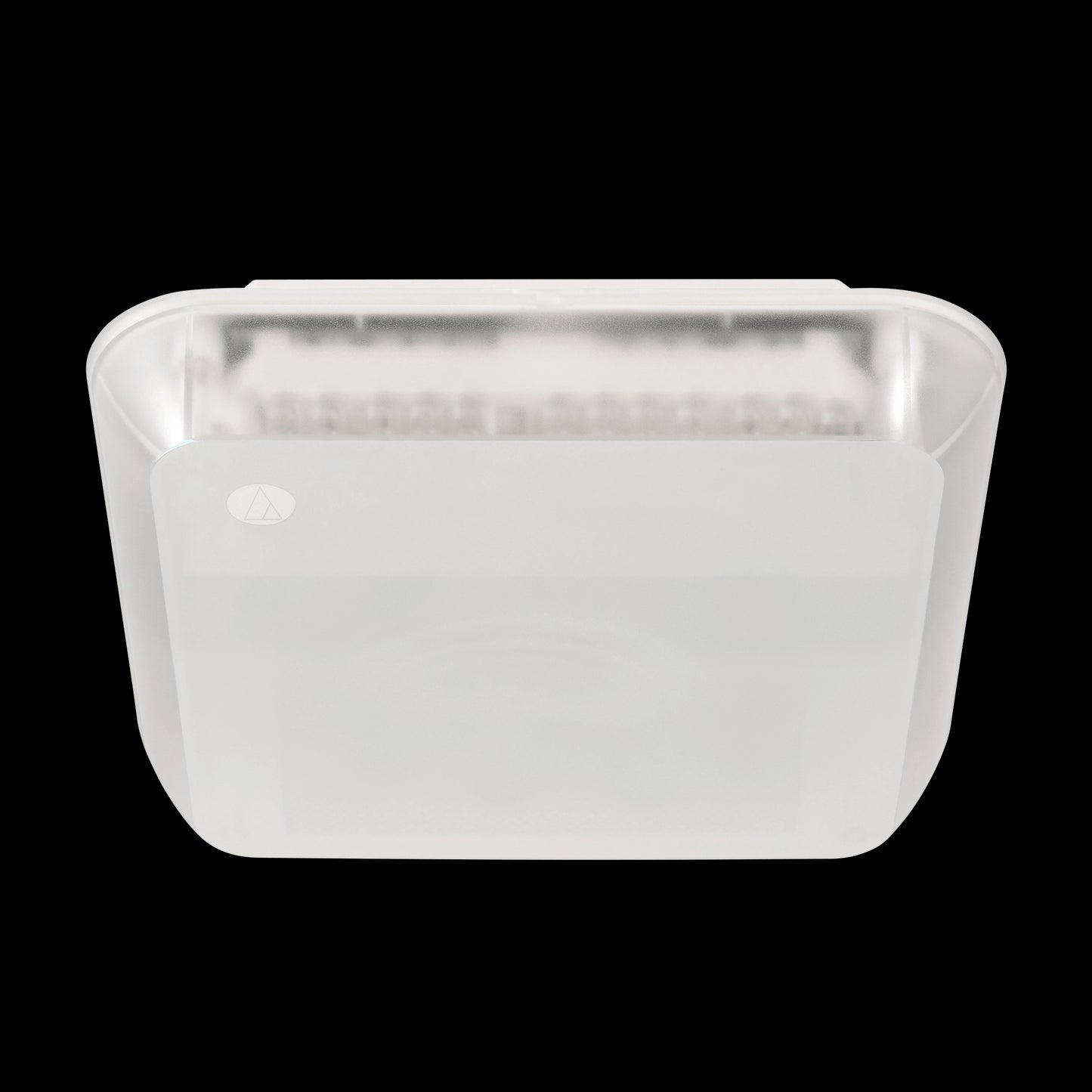

Audio-Technica ATUC-IRA Infrared Transmitter/Receiver Unit

The Audio-Technica ATUC-IRA Infrared Transmitter/Receiver Unit is a ceiling-mounted device designed for efficient reception and distribution of infrared signals in various settings, including academic institutions, corporate facilities, and conference spaces. With a maximum operating distance of 6 meters, it ensures reliable communication for both wired and wireless systems. Its unobtrusive white finish allows it to blend seamlessly with ceilings and walls, while an LED indicator provides clear visibility of power status.

Features

• Ceiling-Mount Design: Ideal for unobtrusive installation in various environments.
• Infrared Signal Reception: Capable of receiving and distributing signals from ATUC-IRDU infrared discussion units.

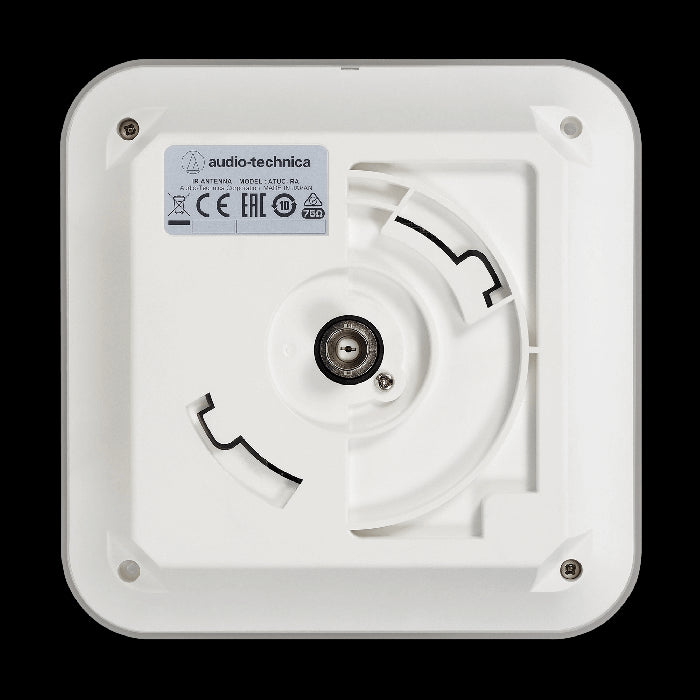

• BNC Connector: Equipped with a BNC jack for easy connection to the ATUC-IRCU infrared control unit.
• Wide Operating Range: Offers a maximum operating distance of 6 meters for flexible setup.
• Power Status Indicator: LED light clearly displays the power status for easy monitoring.

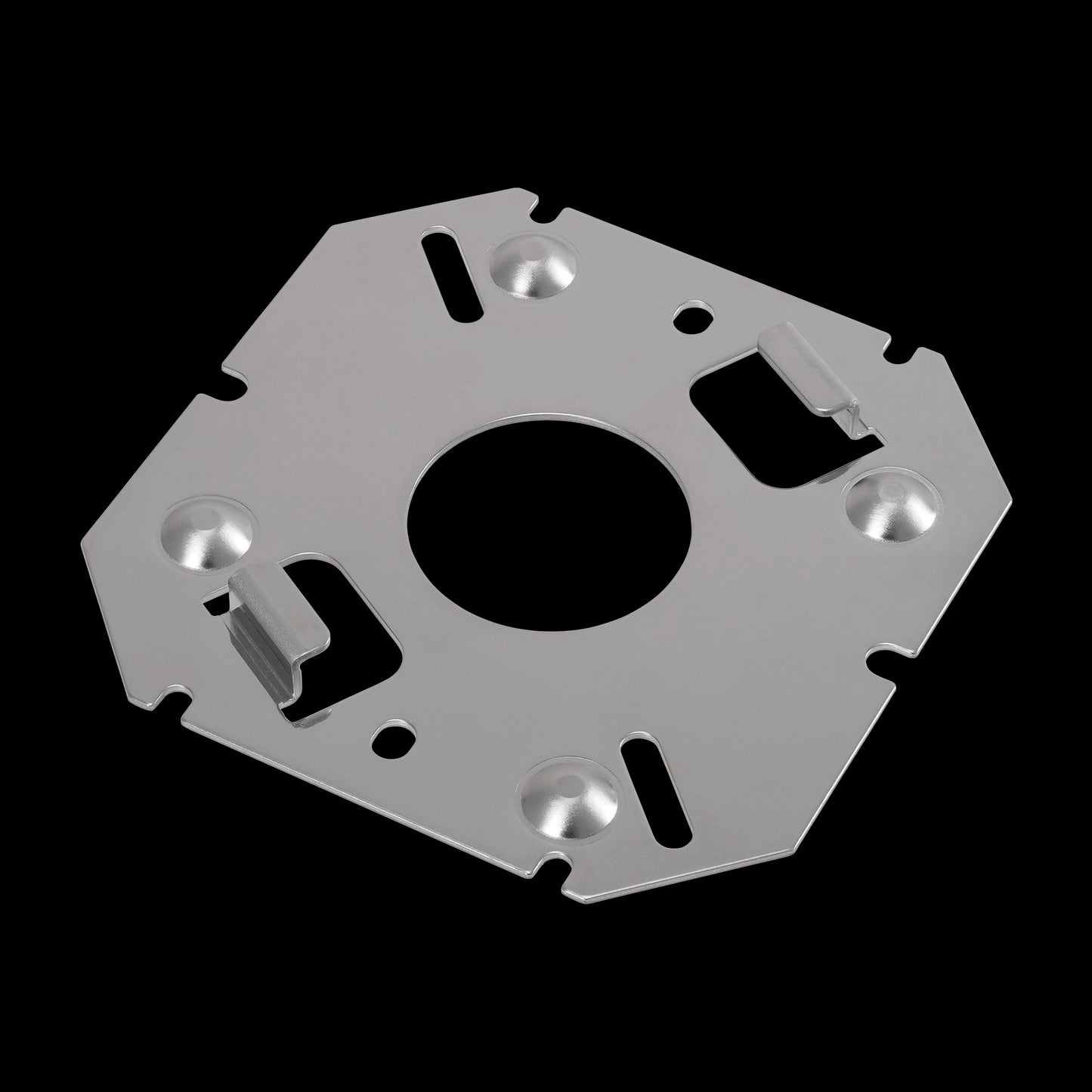

• Includes Mounting Accessories: Comes with a mounting bracket and screws for straightforward installation.

Specifications

• Operating Distance: Max. 6m
• Operating Temperature Range: 0 - 40°C
• Connections: BNC x 1
• Power Consumption: 4.0W
• Dimensions: 130mm x 35mm x 130mm
• Weight: Approx. 260g
• Infrared Bandwidth: 1MHz - 10MHz
• Modulation Method: FM
