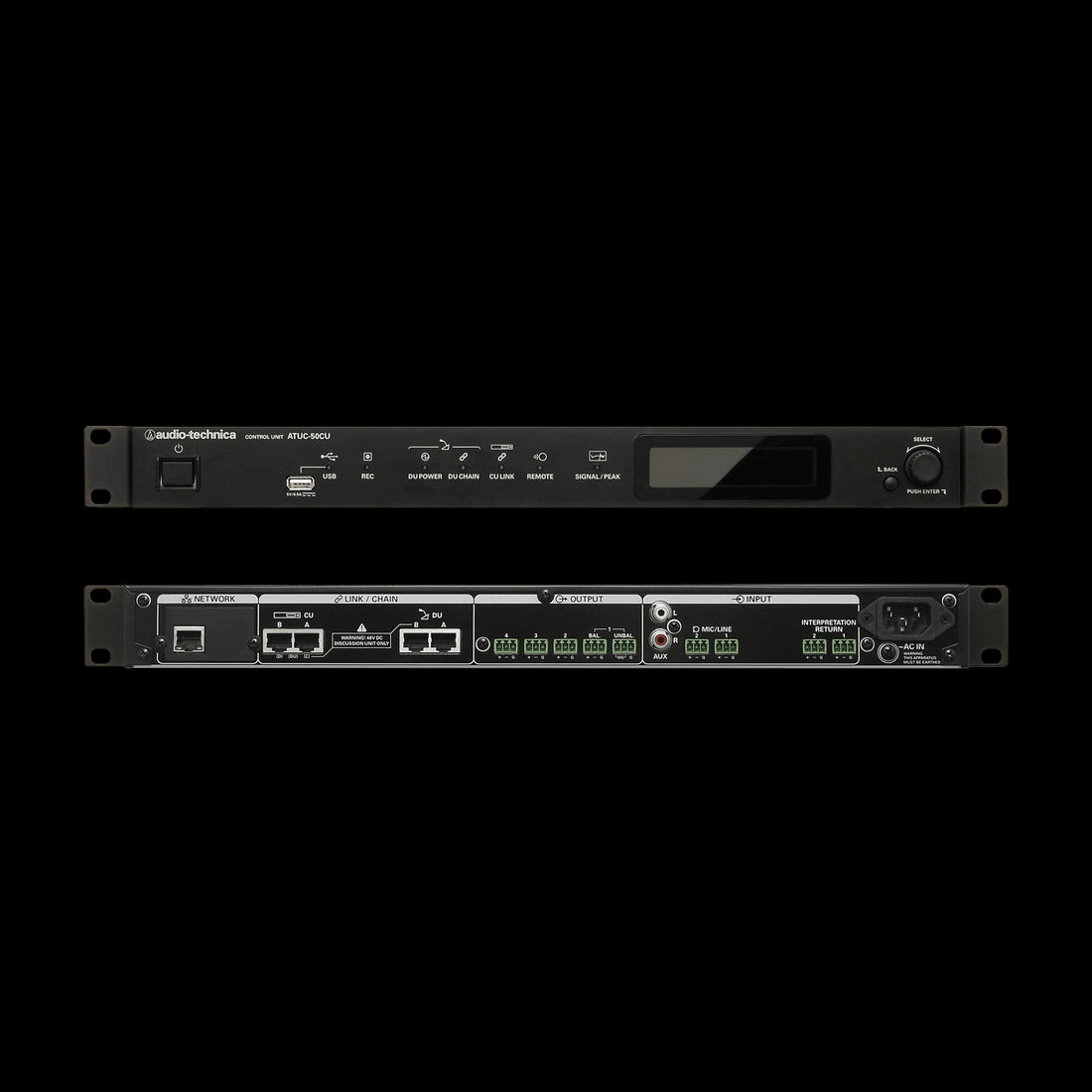

Audio-Technica ATUC-50CU Digital Discussion Control Unit

The Audio-Technica ATUC-50CU is a cutting-edge digital discussion control unit designed to enhance communication in various settings such as meeting rooms, classrooms, and councils. With its advanced 24-bit digital audio processing, the ATUC-50CU ensures crystal-clear sound quality and offers extensive features to manage discussions efficiently. It supports up to 100 discussion units and can be expanded to handle up to 300 units through cascading connections. The unit also includes a built-in recorder for WAV and MP3 formats, making it ideal for recording important discussions.

Features

• 24-bit/48 kHz Digital Signal Processing: Provides high-quality audio with minimal distortion.
• Supports Up to 100 Discussion Units: Ideal for large meetings and conferences.
• Cascading Capability: Link up to 3 units for a total of 300 discussion units.
• Three Conference Modes: Choose between Free Talk, Request to Talk, and Full Remote modes.
• Built-in 12-band Feedback Suppressor: Reduces unwanted feedback for clearer audio.
• Web Remote Control: Operate the unit via a web interface without the need for additional software.
• USB Recording: Record discussions in WAV or MP3 format directly to a USB storage device.
• Multiple Input Options: Includes two Mic/Line inputs, two AUX inputs, and two interpretation return inputs.

Specifications

• Dynamic Range: 110 dB A-weighted
• Frequency Response: +1.0, -2.0 dB, 20 Hz - 20 kHz
• Signal-to-Noise Ratio: 90 dB A-weighted
• Total Harmonic Distortion: Less than 0.03% @ 1 kHz
• Crosstalk at 1 kHz: Less than -80 dB
• Power Supply: AC 100V~240V, 50/60Hz
• Phantom Power: DC +48V
• Power Consumption: 20W ~ 175W (max.)
• Operating Temperature Range: 0-40°C
• Operating Humidity: 25-85%
• Dimensions: 482.6 mm x 331.6 mm x 44 mm
• Weight: 3.4 kg
• OLED Display: 20x2 Character type, Color: Yellow,
