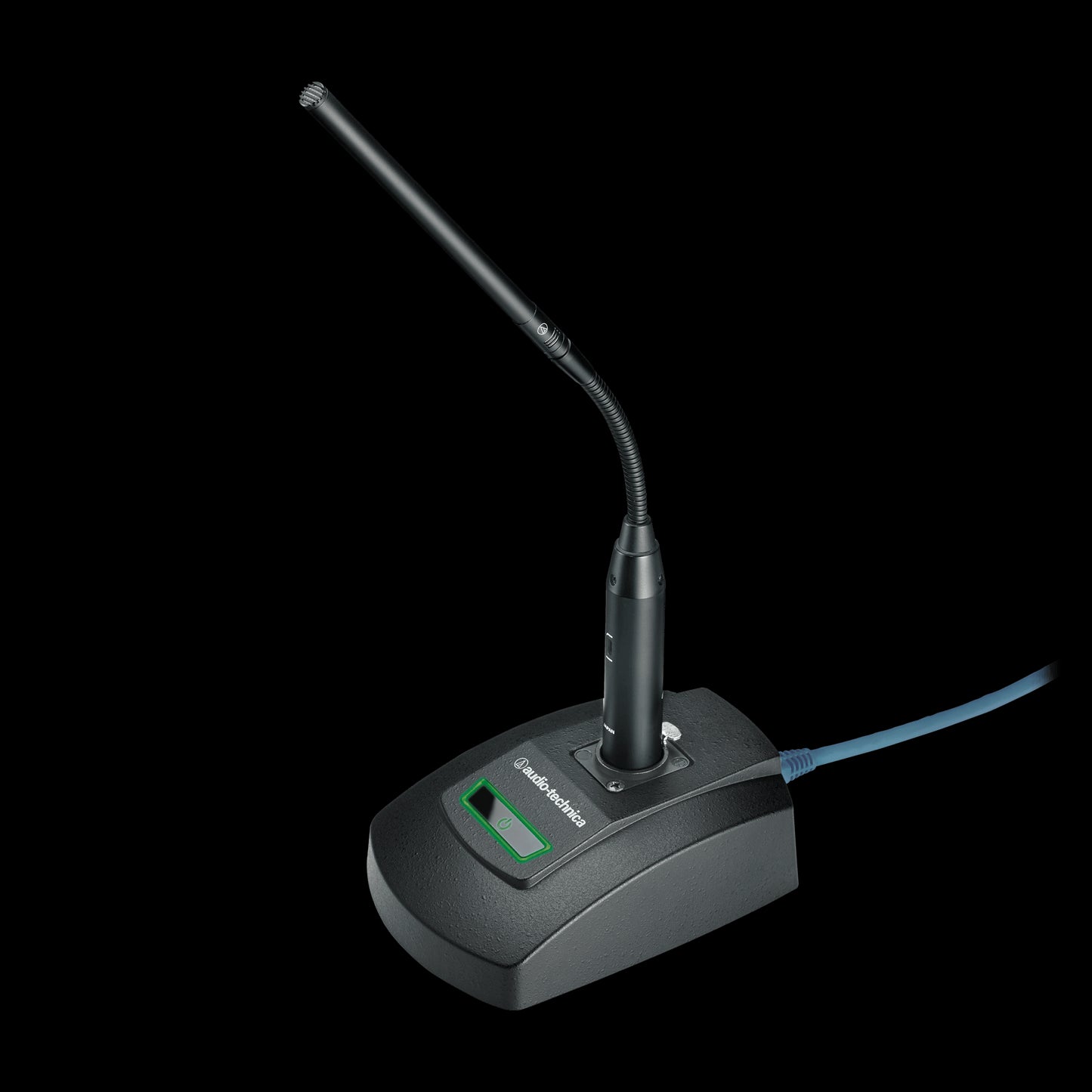

Audio-Technica ATND8677a Microphone Desk Stand with Dante Network Output

The Audio-Technica ATND8677a is a versatile microphone desk stand designed for professional audio applications. It integrates Dante™ technology, allowing for seamless connection to modern audio networks. Ideal for conferencing, sound reinforcement, and distance learning, it features a sturdy metal base, user-friendly controls, and advanced audio processing capabilities.

Features

• Dante Network Compatibility: Connects directly to the network via Ethernet, eliminating the need for expensive audio cables.
• Integrated User Switch: Touch-sensitive switch controls talk/mute functions in Local mode and triggers Dante-enabled devices in Remote mode.
• Heavy-Duty Construction: The die-cast metal base ensures stability and durability, minimizing surface vibration interference.
• Adjustable Gain Levels: Three-position gain selector (+30 dB, +40 dB, +50 dB) allows for easy adjustment to suit different voice levels.
• Low-Cut Filter: Integral UniSteep® filter provides low-frequency roll-off at 80 Hz to enhance sound clarity.
• LED Status Indicator: Red/green LED shows the microphone status for easy monitoring.
• Phantom Power Support: Provides 12V DC phantom power, switchable for flexible microphone compatibility.
• AES67 Compatibility: Plug-and-play support for AES67 networks, enhancing interoperability with various audio systems.
• Remote Control Features: Allows for remote adjustment of mic gain, low-cut filter, LED indicator, and phantom power.

Specifications

• Frequency Response: 20 - 20,000 Hz
• Low Frequency Roll Off: 80 Hz, 18 dB/octave
• Maximum Input Sound Level: -10 dBu @ +30 dB gain, -20 dBu @ +40 dB gain, -30 dBu @ +50 dB gain
• Signal-to-Noise Ratio: 68 dB, 1 kHz at 1 Pa
• Power Requirements: PoE IEEE802.3af standard (1.5W)
• Phantom Power Requirements: 12V DC
• Dimensions: 133.0 mm (length) x 93.8 mm (width) x 46.2 mm (height)
• Weight: 770 g

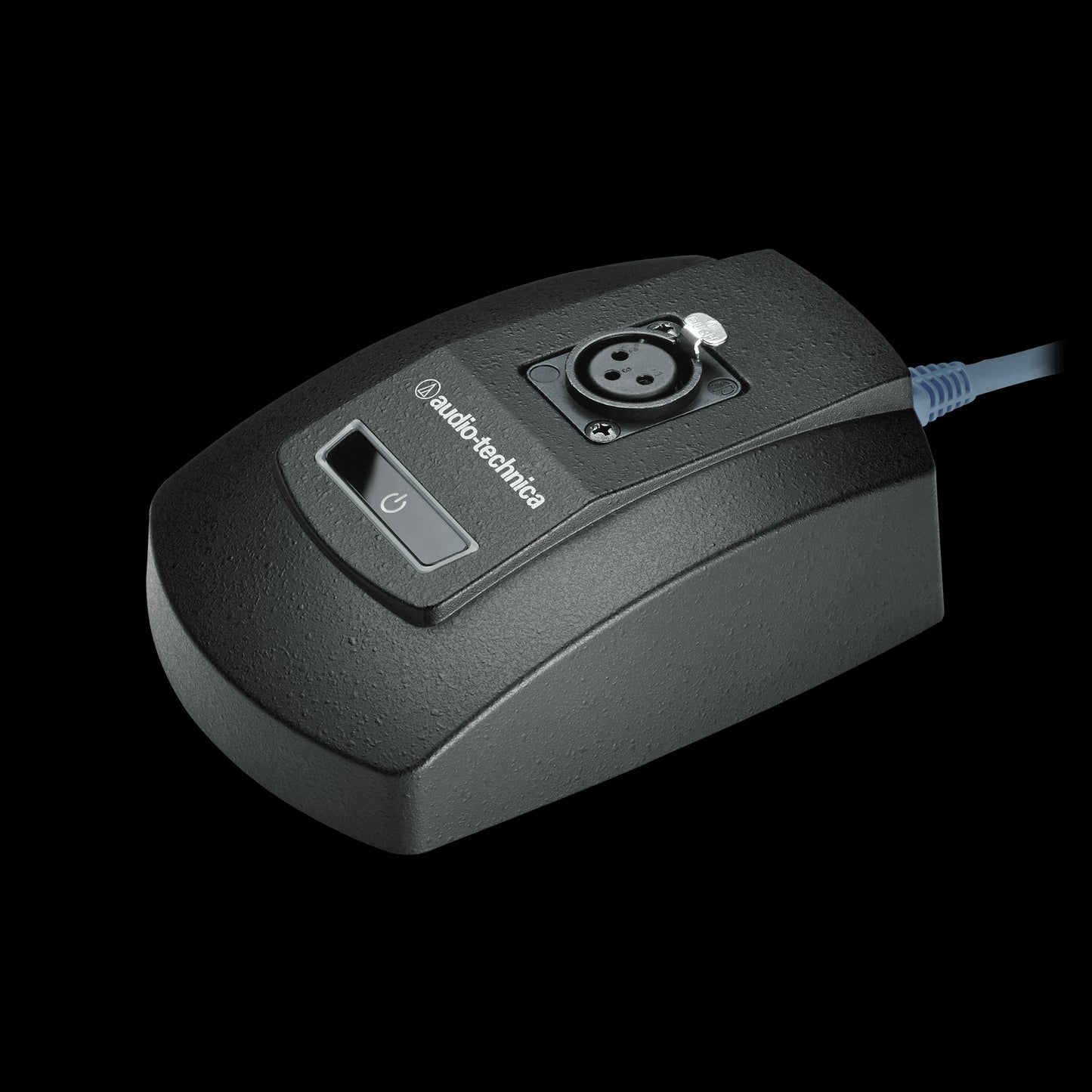

• Output Connector: 3-pin XLRF-type

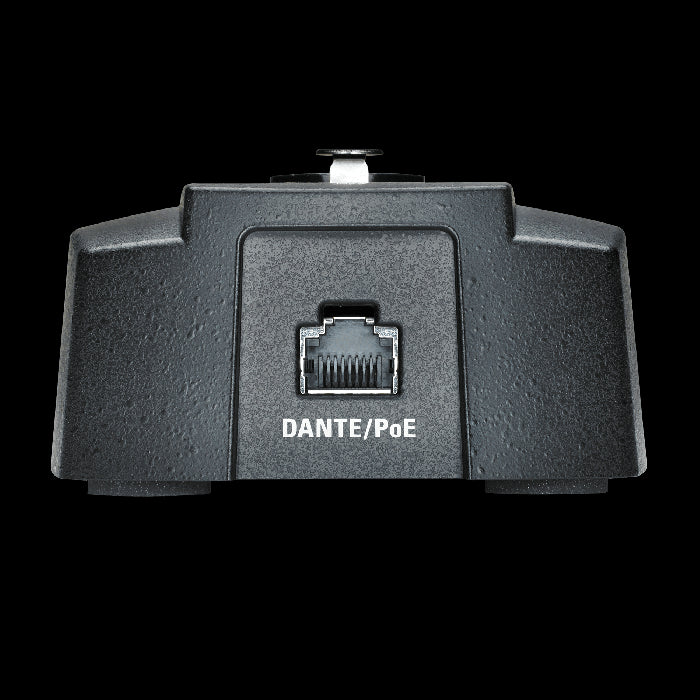

• Dante Network Connector: Single RJ45, recommended cable quality: Shielded CAT5 or CAT6, Transmission speed: 100 Mbps
