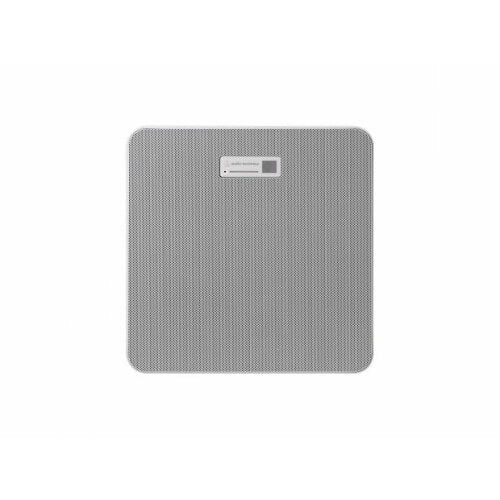

Audio-Technica ATND1061LK Beamforming Ceiling Array Microphone with AT-LINK

The Audio-Technica ATND1061LK Beamforming Ceiling Array Microphone is an advanced audio solution designed for conference rooms and meeting spaces. With its powerful onboard DSP, this microphone ensures clear and natural sound capture while minimizing background noise. Its user-friendly Digital Microphone Manager software allows for easy configuration of multiple pickup zones, making it ideal for various room sizes and layouts. The microphone features voice activity detection technology and supports flexible mounting options.

Features

• Beamforming Technology: Captures audio from designated zones while minimizing background noise.
• Powerful Onboard DSP: Includes automix, acoustic echo cancellation, noise reduction, automatic gain control, and 4-band EQ for optimal audio quality.
• User-Friendly Configuration: Easily configure microphone settings through the Digital Microphone Manager software.
• Multiple Pickup Zones: Six output channels can be configured with up to 32 user-defined microphone pickup zones.
• Voice Activity Detection: Proprietary technology that distinguishes between voice and unwanted noises, enhancing clarity.

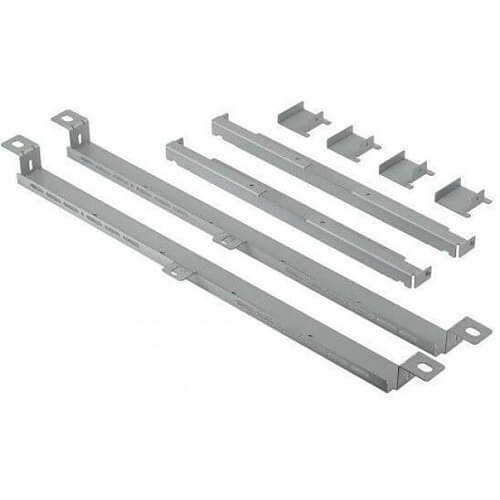

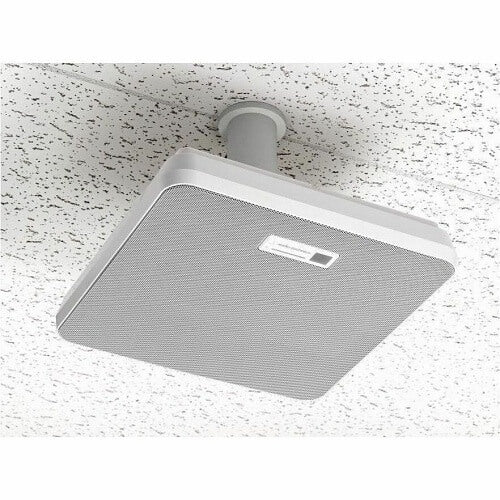

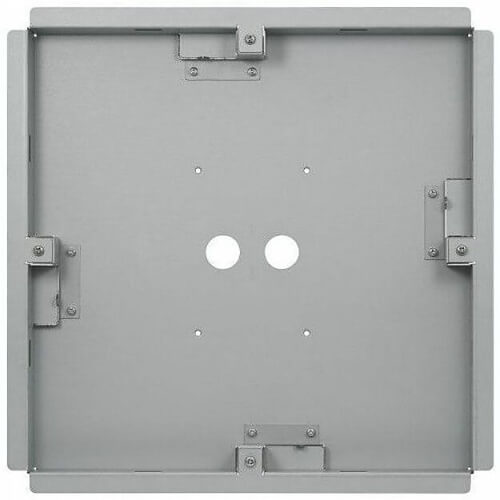

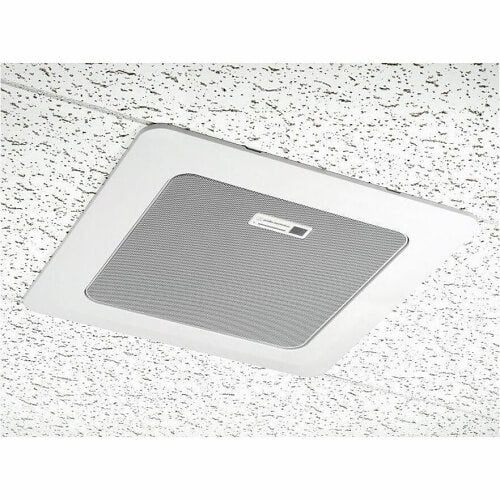

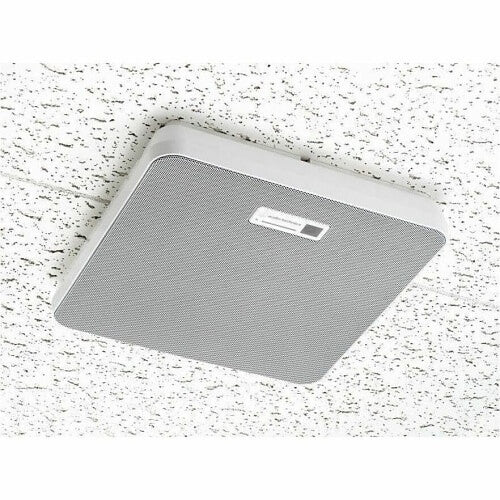

• Flexible Mounting Options: Can be flush or surface-mounted, or installed using a standard VESA mount.
• UL 2043 Compliance: Safe for installation in plenum spaces, ensuring versatile integration in various environments.
• Low-Reflective Finish: Matches most ceiling tiles, providing a discreet appearance.

Specifications

• Beam Width: 90 degrees
• Frequency Response: 60 Hz to 18,000 Hz
• Maximum Input Sound Level: 102 dBSPL
• Sensitivity: -8 dBFS (1 kHz, 94 dBSPL)
• Dynamic Range: 89 dB (A-weighted)
• Signal-to-Noise Ratio: 61.5 dB (A-weighted)
• Self-Noise: 25 dBSPL (A-weighted)
• Power Requirement: PoE (IEEE 802.3af Class 0)
• Power Consumption: Max. 7 W
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Dimensions: 227.5 mm (9.0”) x 227.5 mm (9.0”) x 30 mm (1.2”) (W x D x H)
• Weight: 1.25 kg (1250 g)
• Network Audio: AT-LINK: 100 Mbps
