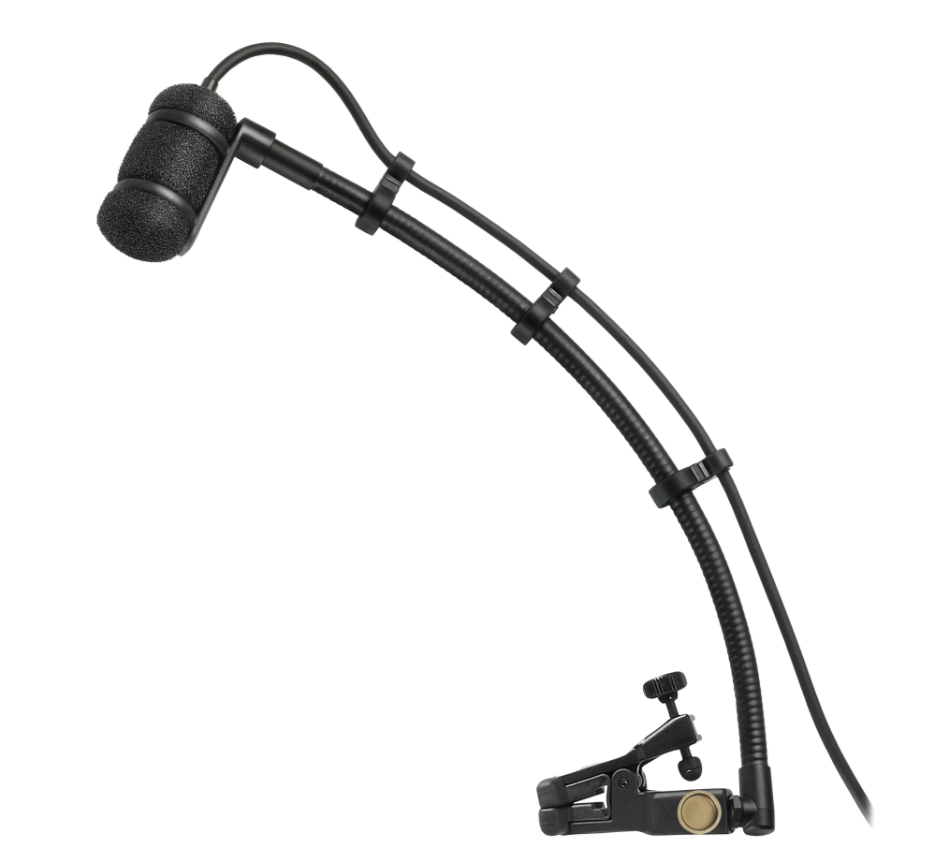

Audio-Technica ATM350UL - Long Universal Mount Cardioid Condenser Instrument Microphone

Overview

The Audio - Technica ATM350UL is a versatile cardioid condenser instrument microphone designed for use with brass, saxophone, and other instruments. This high - SPL microphone provides a clear, well - balanced response from any instrument, ensuring your performance is captured with precision. The included UniMount ® universal clip - on mount and 9 " gooseneck allow for secure attachment to the bell of your instrument, maintaining the microphone 's position even during aggressive play. The cardioid polar pattern isolates the instrument by reducing side and rear pickup, and the switchable 80 Hz high - pass filter on the in - line power module helps control undesired low - frequency noise. The system also includes a violin mount with hook - and - loop fastener and a protective carrying case for added convenience.

Features

• Low-profile mic design for minimum visibility
• Crisp, clear, well-balanced microphone response, even at high SPLs
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

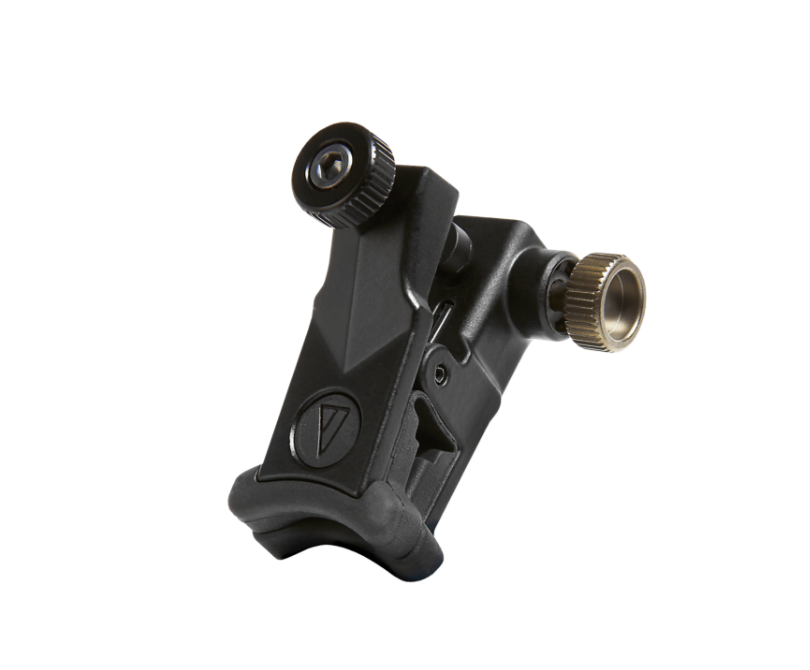

• UniMount® universal clip-on mount attaches securely to instrument bell and provides excellent shock resistance for the microphone

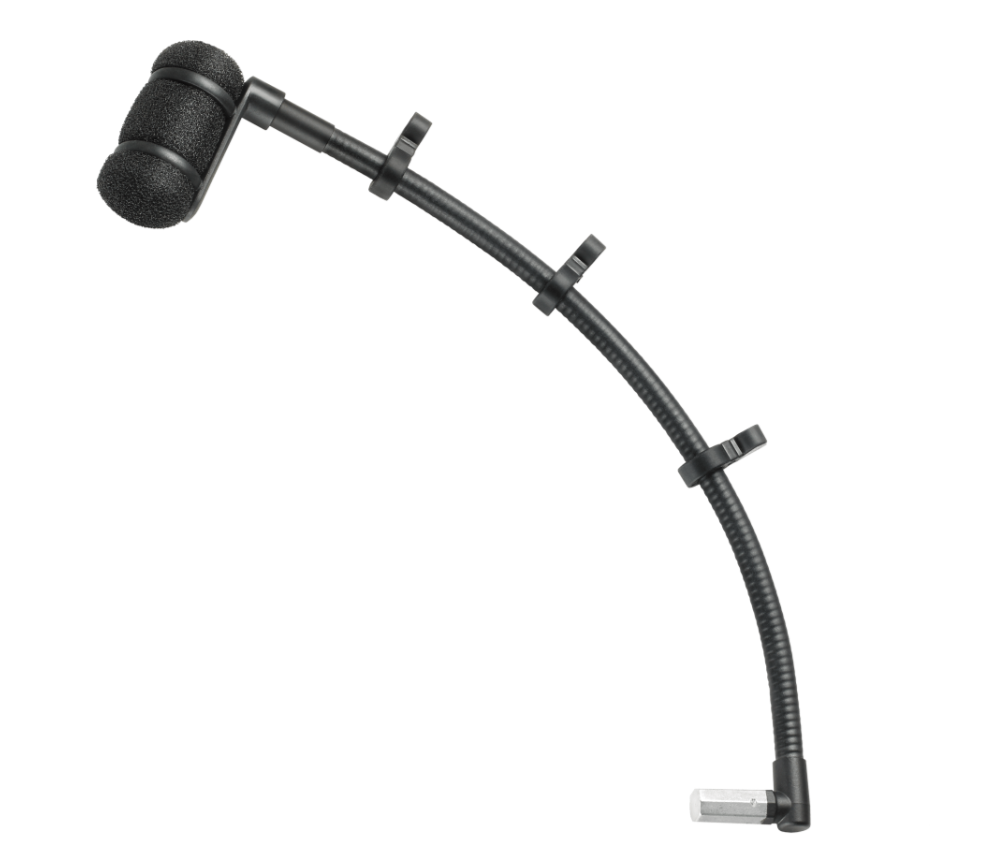

• Rugged UniMount® 9" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play
• In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
• Interchangeable elements available for hypercardioid and omnidirectional polar patterns
• Included violin mount with hook-and-loop fastener provides an additional mounting option

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 40 – 20,000 Hz
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: –49 dB (3.5 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 159 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: 130 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 65 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11– 52V DC, 3.5 mA typical
• Switches: Flat, roll-off
• Weight (Microphone): 14.5 g (0.5 oz)
• Weight (Power Module): 90 g (3.2 oz)
• Cable: 4.0 m (13.1') long, 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
• Dimensions (Microphone): 37.8 mm (1.49'') long, 12.2 mm (0.48'') maximum body diameter
• Dimensions (Power Module): 92 mm (3.62") long, 18.9 mm (0.74") diameter
• Output Connector (Power Module): Integral 3-pin XLRM-type
• Optional Interchangeable Elements: UE-H hypercardioid (100°); UE-O omnidirectional (360°)

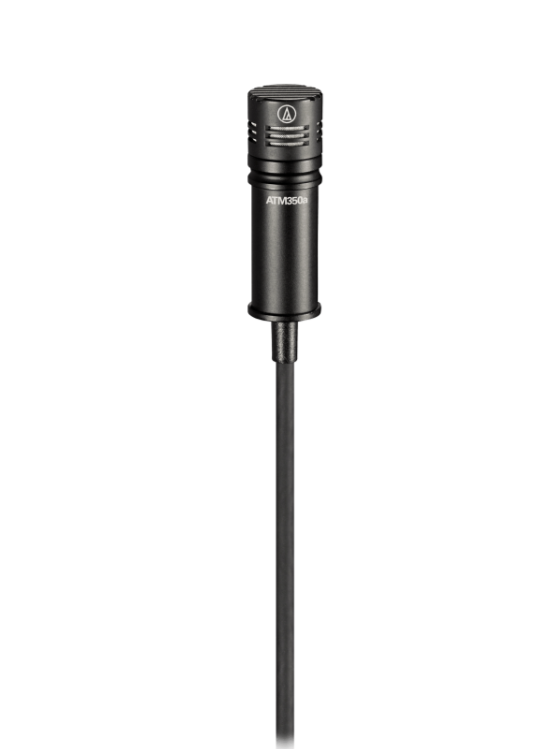

• Accessories Included: ATM350a cardioid condenser microphone; AT8543 power module; AT8491U UniMount® universal clip-on mount; AT8490L UniMount® 9" gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
