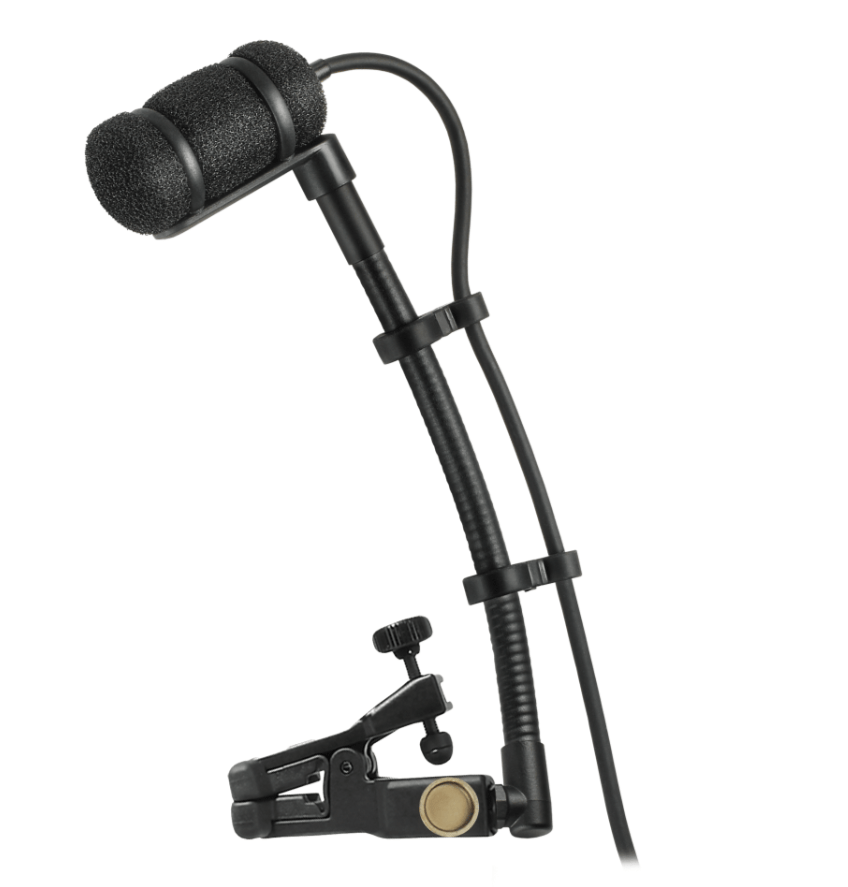

Audio-Technica ATM350U - Universal Mount Cardioid Condenser Instrument Microphone

Overview

The Audio - Technica ATM350U is a versatile cardioid condenser instrument microphone designed for use with brass, saxophone, and other instruments. This high - SPL mic provides a clear, well - balanced response from any instrument, making it ideal for both studio and live performances. The included UniMount ® mounting system ensures secure attachment and precise positioning, while the cardioid polar pattern reduces side and rear pickup, isolating the instrument for optimal sound quality.

Features

• Low-profile mic design: Ensures minimum visibility during performances.
• Crisp, clear, well-balanced response: Delivers high-quality sound even at high SPLs.
• Cardioid polar pattern: Reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.

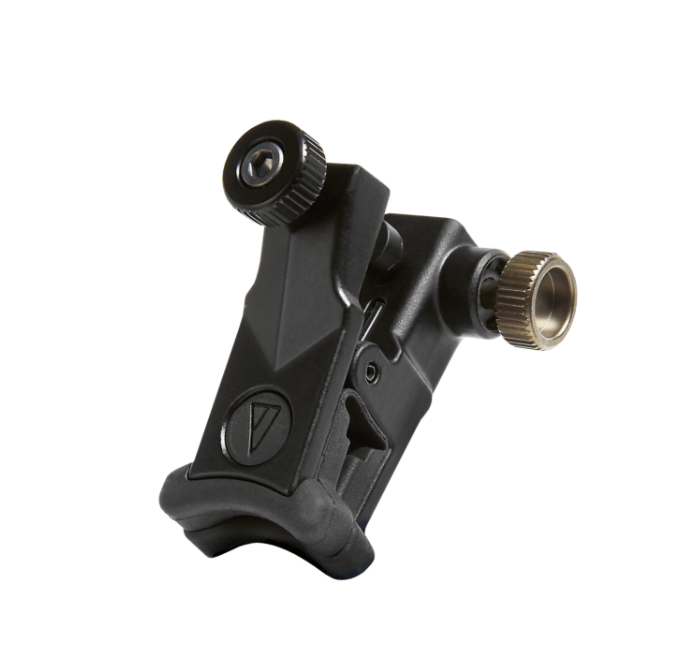

• UniMount® universal clip-on mount: Attaches securely to instrument bell and provides excellent shock resistance.

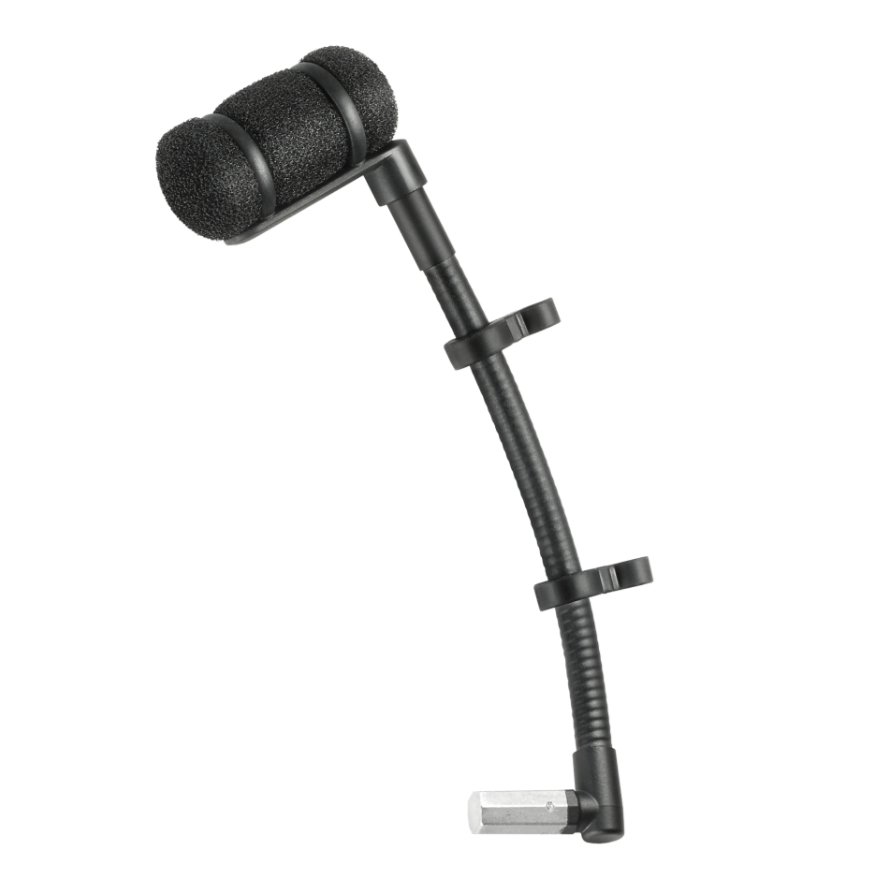

• Rugged UniMount® 5" gooseneck: Rigidly holds its shape, keeping the microphone accurately positioned even during aggressive play.
• Switchable 80 Hz high-pass filter: Included in the in-line power module to control undesired low-frequency noise.
• Interchangeable elements: Available for hypercardioid and omnidirectional polar patterns.
• Included violin mount: Provides an additional mounting option with a hook-and-loop fastener.

Specifications

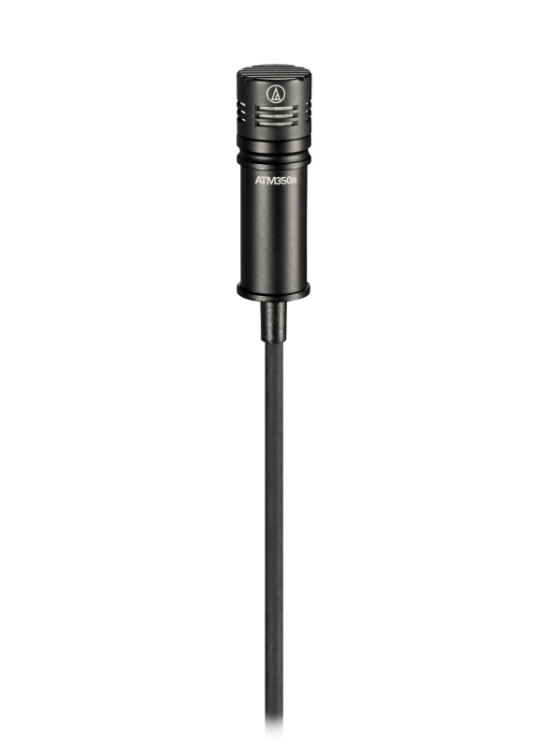

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 40 – 20,000 Hz
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: –49 dB (3.5 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 159 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: 130 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 65 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11–52V DC, 3.5 mA typical
• Switches: Flat, roll-off
• Weight (Microphone): 14.5 g (0.5 oz)
• Weight (Power Module): 90 g (3.2 oz)
• Cable: 4.0 m (13.1') long, 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
• Dimensions (Microphone): 37.8 mm (1.49'') long, 12.2 mm (0.48'') maximum body diameter
• Dimensions (Power Module): 92 mm (3.62") long, 18.9 mm (0.74") diameter
• Output Connector (Power Module): Integral 3-pin XLRM-type
• Optional Interchangeable Elements: UE-H hypercardioid (100°), UE-O omnidirectional (360°)
• Accessories Included: ATM350a cardioid condenser microphone, AT8543 power module, AT8491U UniMount® universal clip-on mount, AT8490 UniMount® 5" gooseneck, AT8468 violin mount (hook-and-loop fastener), protective carrying case
• Audio-Technica Case Style: M36
