Audio-Technica ATM350PL - Piano Mount Cardioid Condenser Microphone

Overview

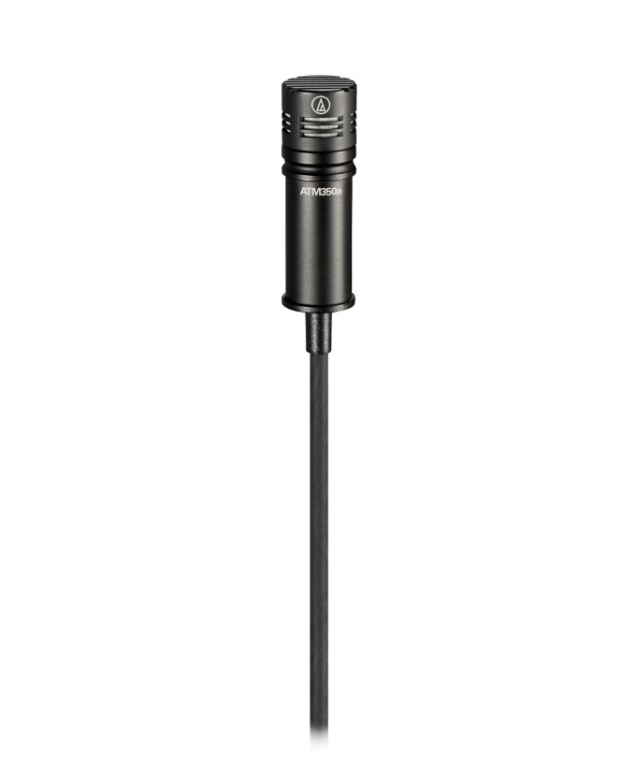

The Audio - Technica ATM350PL is a versatile cardioid condenser instrument microphone designed specifically for pianos. The UniMount ® mounting system provides a secure and flexible attachment to any metal portion of the piano. The ATM350a microphone delivers a clear, well - balanced response even at high sound pressure levels ( SPLs ). The cardioid polar pattern minimizes pickup from the sides and rear, ensuring excellent isolation of the desired sound source. The system also includes a switchable 80 Hz high - pass filter to control unwanted low - frequency noise, making it ideal for both live performances and studio recordings.

Features

• Low-profile mic design for minimum visibility
• Crisp, clear, well-balanced microphone response, even at high SPLs
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

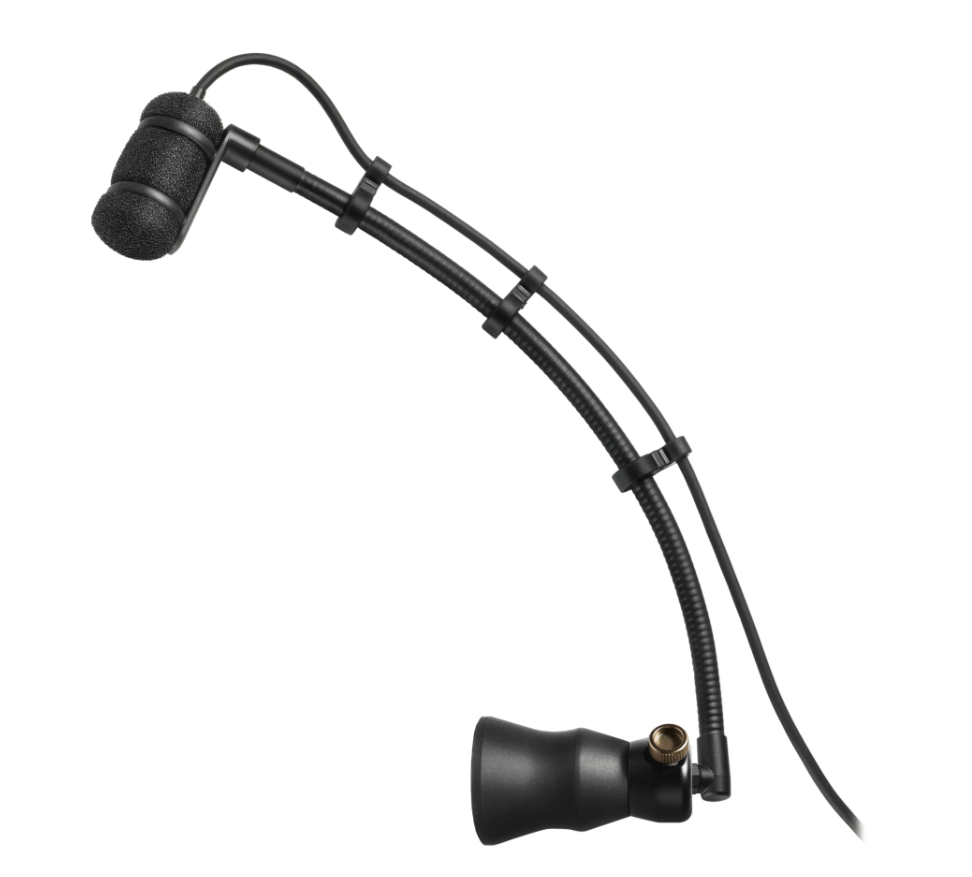

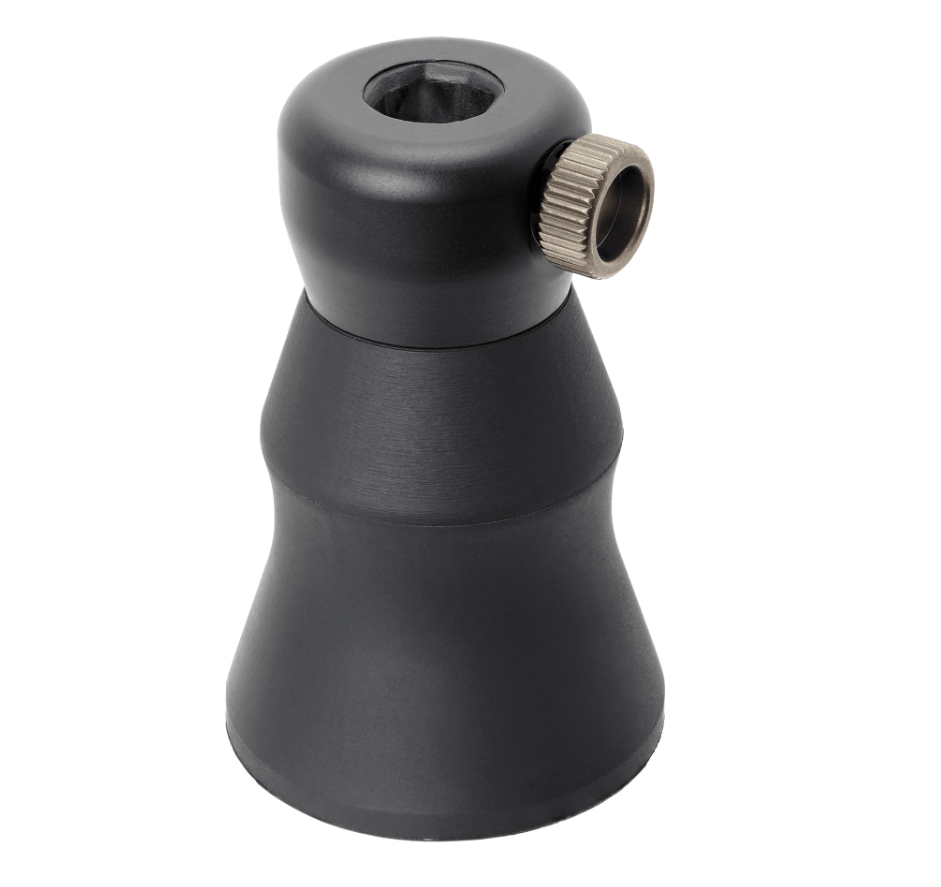

• UniMount® magnetic piano mount attaches securely to the frame or other metal part of the piano, providing excellent shock resistance for the microphone

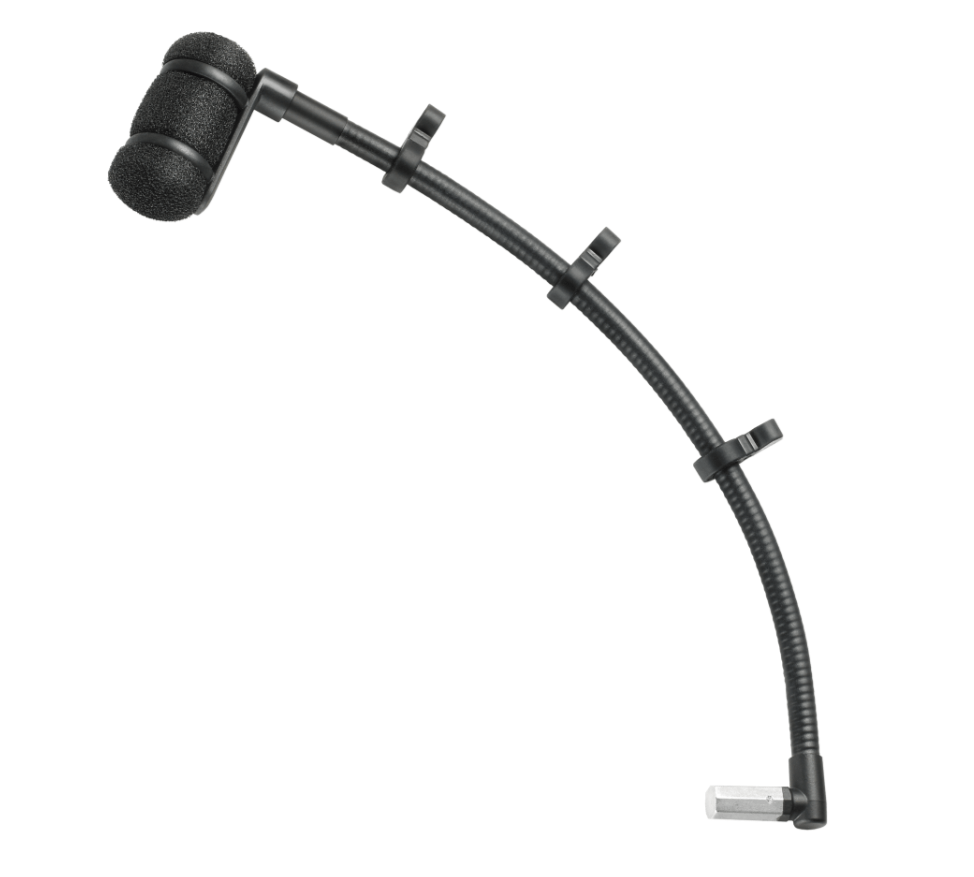

• Rugged UniMount® 9" gooseneck rigidly holds its shape, keeping the microphone accurately positioned even during aggressive play
• In-line power module equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
• Interchangeable elements available for hypercardioid and omnidirectional polar patterns
• Included violin mount with hook-and-loop fastener provides an additional mounting option
• Protective carrying case included for easy transport and storage

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 40 – 20,000 Hz
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: –49 dB (3.5 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 159 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: 130 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 65 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11–52V DC, 3.5 mA typical
• Switches: Flat, roll-off
• Weight (Microphone): 14.5 g (0.5 oz)
• Weight (Power Module): 90 g (3.2 oz)
• Cable: 4.0 m (13.1') long, 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
• Dimensions (Microphone): 37.8 mm (1.49'') long, 12.2 mm (0.48'') maximum body diameter
• Dimensions (Power Module): 92 mm (3.62") long, 18.9 mm (0.74") diameter
• Output Connector: Integral 3-pin XLRM-type
• Optional Interchangeable Elements: UE-H hypercardioid (100°); UE-O omnidirectional (360°)
• Accessories Included: ATM350a cardioid condenser microphone, AT8543 power module, AT8491P UniMount® magnetic piano mount, AT8490L UniMount® 9" gooseneck, AT8468 violin mount (hook-and-loop fastener), protective carrying case
• Audio-Technica Case Style: M36
