Audio-Technica ATM350D - Drum Mount Cardioid Condenser Microphone

Overview

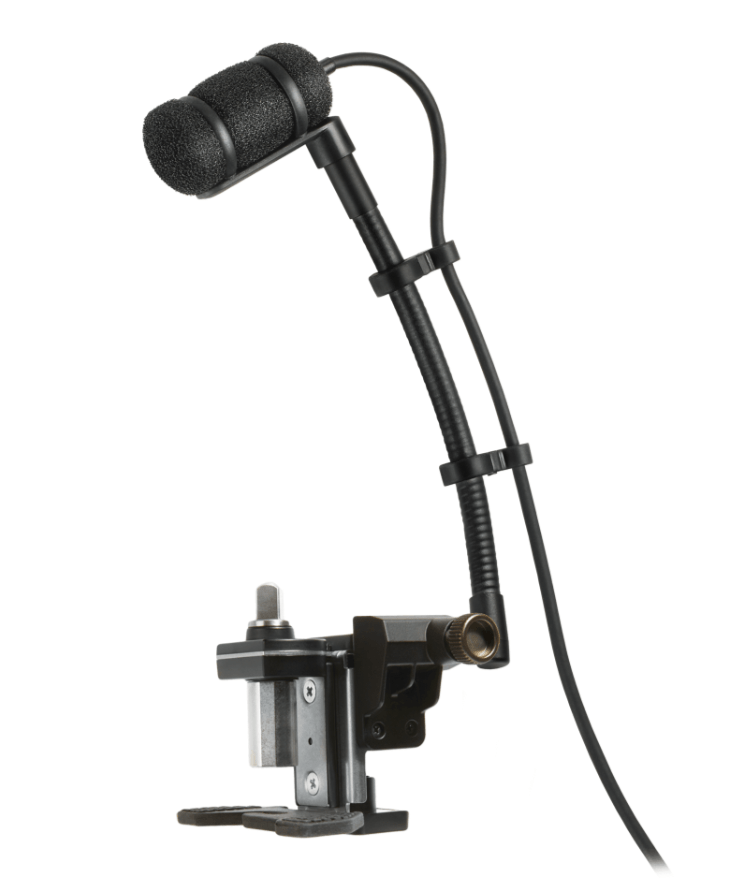

The Audio - Technica ATM350D is a high - quality cardioid condenser microphone designed specifically for use with drums. The UniMount ® mounting system provides the tools needed to perform with confidence, featuring a high - SPL mic that delivers a clear, well - balanced response from any instrument. The included AT8491D drum mount and AT8490 5 " gooseneck secure the mic to the drum, ensuring it stays in place even during aggressive play. The microphone 's cardioid polar pattern isolates the instrument by reducing side and rear pickup, while the switchable 80 Hz high - pass filter on the in - line power module helps control undesired low - frequency noise. The system also includes an AT8468 violin mount with hook - and - loop fastener and a protective carrying case.

Features

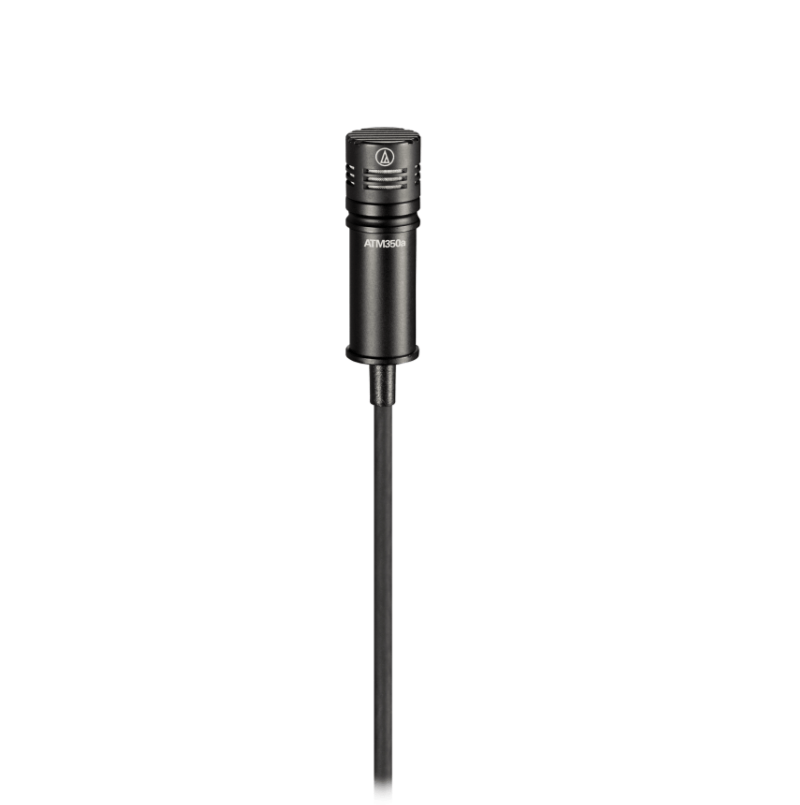

• Low-profile mic design for minimum visibility
• Crisp, clear, well-balanced microphone response, even at high SPLs
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source

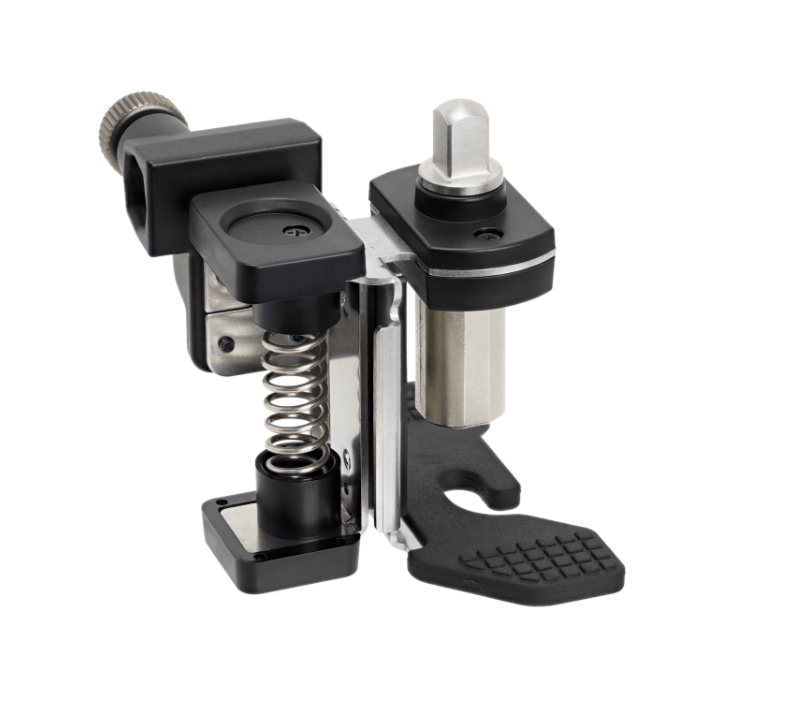

• UniMount® drum mount with unique spring-loaded mechanism attaches securely to a drum lug, providing excellent shock resistance for the microphone

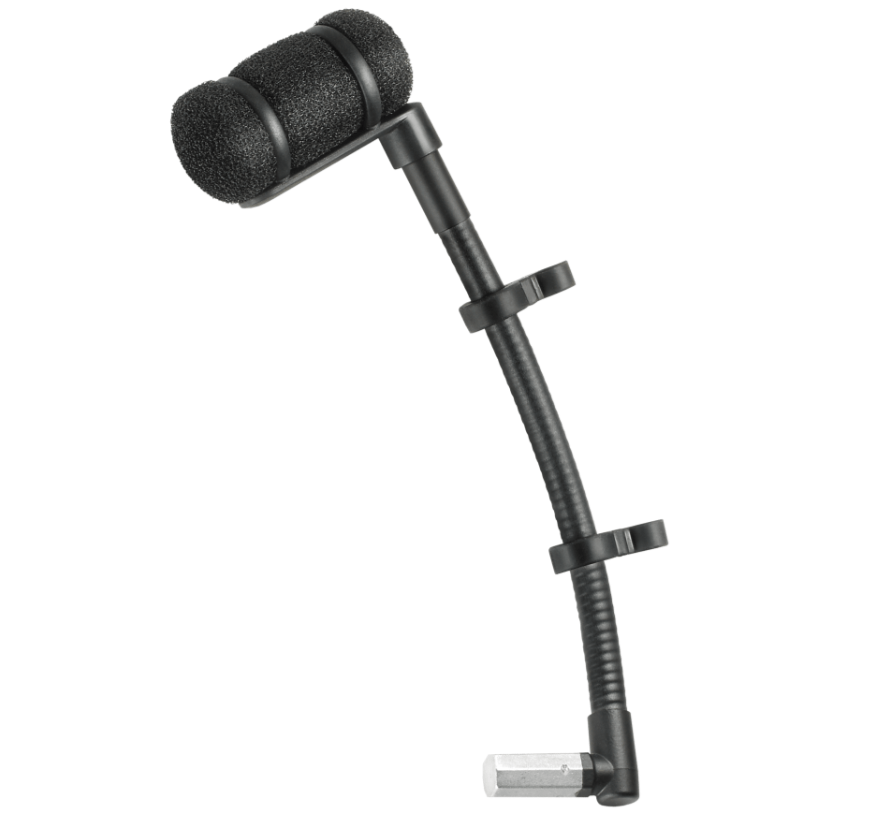

• Rugged UniMount® 5" gooseneck rigidly holds its shape, keeping the microphone accurately positioned even during aggressive play
• In-line power module equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
• Interchangeable elements available for hypercardioid and omnidirectional polar patterns
• Included violin mount with hook-and-loop fastener provides an additional mounting option

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 40 – 20,000 Hz
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: –49 dB (3.5 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 159 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: 130 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 65 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11– 52V DC, 3.5 mA typical
• Switches: Flat, roll-off
• Weight (Microphone): 14.5 g (0.5 oz)
• Weight (Power Module): 90 g (3.2 oz)
• Cable: 4.0 m (13.1') long, 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
• Dimensions (Microphone): 37.8 mm (1.49'') long, 12.2 mm (0.48'') maximum body diameter
• Dimensions (Power Module): 92 mm (3.62") long, 18.9 mm (0.74") diameter
• Output Connector (Power Module): Integral 3-pin XLRM-type
• Optional Interchangeable Elements: UE-H hypercardioid (100°); UE-O omnidirectional (360°)
• Accessories Included: ATM350a cardioid condenser microphone, AT8543 power module, AT8491D UniMount® drum mount, AT8490 UniMount® 5" gooseneck, AT8468 violin mount (hook-and-loop fastener), protective carrying case
