Audio-Technica AT951001340 - ATM350 Ta3F Connector Only

Overview

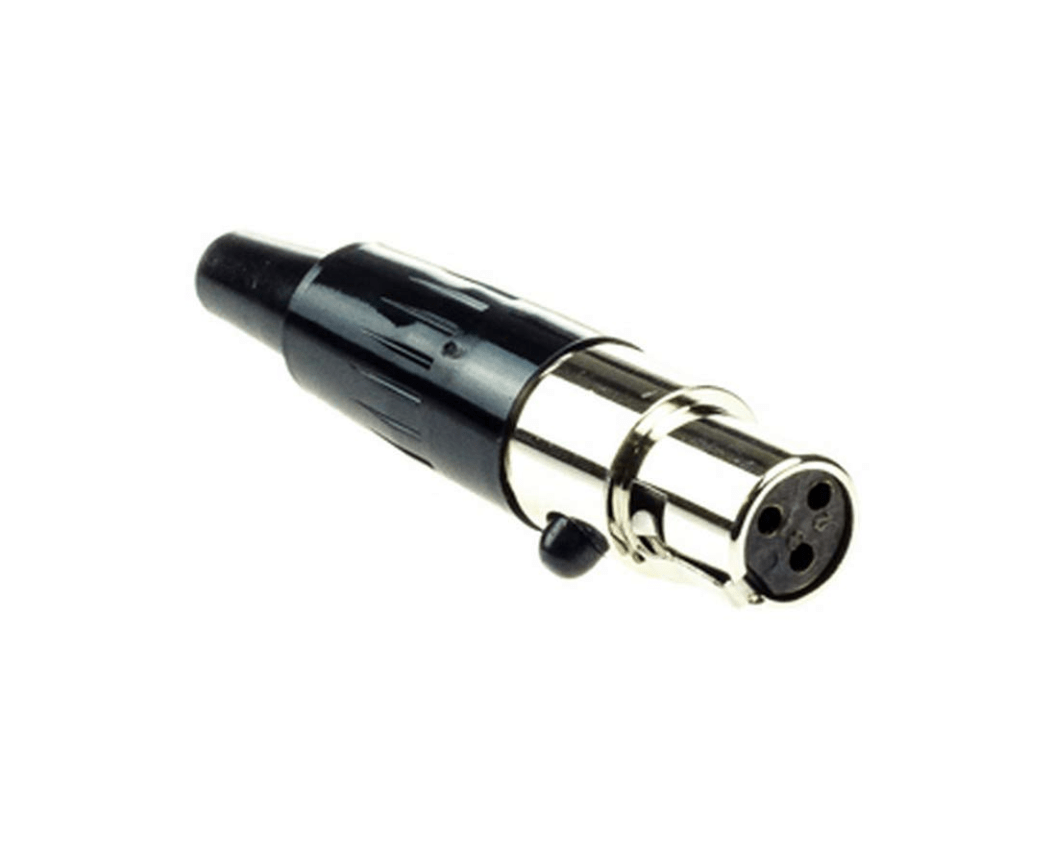

3-pin mini-XLR (TA3F) female connector, for terminating an electret mic for use with an Audio-Technica Power Module.

Features

• 3-pin mini-XLR (TA3F) female

Specifications

• Element: Fixed-charge back plate permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 40 - 20,000 Hz
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -49 dB (3.5 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: 122 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 67 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 3.5 mA typical
• Switches: Flat, roll-off
• Weight (Microphone): 14.5 g (0.5 oz)
• Weight (Power Module): 81.2 g (2.9 oz)
• Cable: 4.0 m (13.1') long, 3.2 mm (0.13") diameter, 2-conductor shielded cable with TA3F-type connector
• Dimensions (Microphone): 37.8 mm (1.49") long, 12.2 mm (0.48") diameter
• Dimensions (Power Module): 92.9 mm (3.66") long, 18.9 mm (0.74") diameter
• Output Connector (Power Module): Integral 3-pin XLRM-type
• Accessories Included: AT8542 power module, AT8418 UniMount® microphone instrument mount, AT8468 violin mount, soft protective pouch
