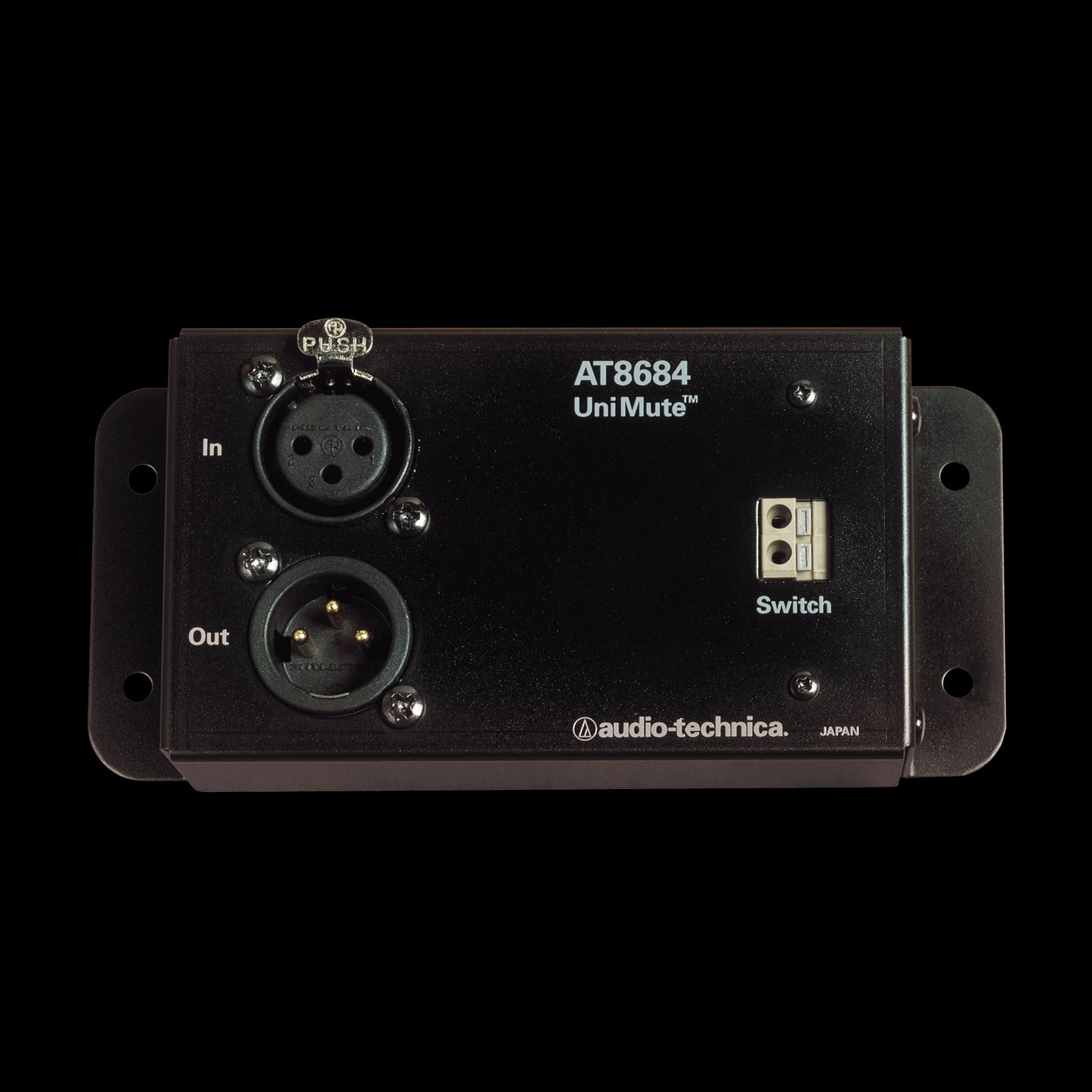

Audio-Technica AT8684 UniMute Microphone Attenuator with User-Definable Switch Function

The Audio-Technica AT8684 UniMute Microphone Attenuator is a versatile and user-friendly device designed for seamless integration into your audio setup. It allows for easy in-line switch installation, enabling various muting functions based on the external single-pole switch you supply. Ideal for applications such as push-to-talk, push-to-mute, and on/off control, it ensures flexibility and convenience for audio professionals.

Features

• User-Definable Switch Functionality: Customize the muting function according to the type of external switch used, allowing for on/off, push-to-talk, and push-to-mute configurations.
• Professional XLR-type Connectors: Ensures high-quality audio connections and compatibility with a wide range of microphones and mixers.
• Rugged Steel Housing: Provides durability and protection for reliable performance in various environments.
• Phantom Power Compatibility: Supports 24-48V DC phantom power, permitting phantom voltage to pass through to the microphone.
• Compact Design: Easily installed in-line at the mixer input or near the microphone, making it suitable for various setups.

Specifications

• Input Impedance: 5,300 ohms
• Output Impedance: 500 ohms
• Maximum Gain: Unity (0 dB), ±0/-1.5 dB
• Frequency Response: 20 Hz to 20 kHz
• Input Attenuation: 57 dB at 1 kHz
• Power Supply: Phantom Power 24-48V DC, 2-4 mA typical
• Dimensions: 130.0 mm (W) x 60.0 mm (D) x 44.0 mm (H)
• Weight: 0.25 kg
