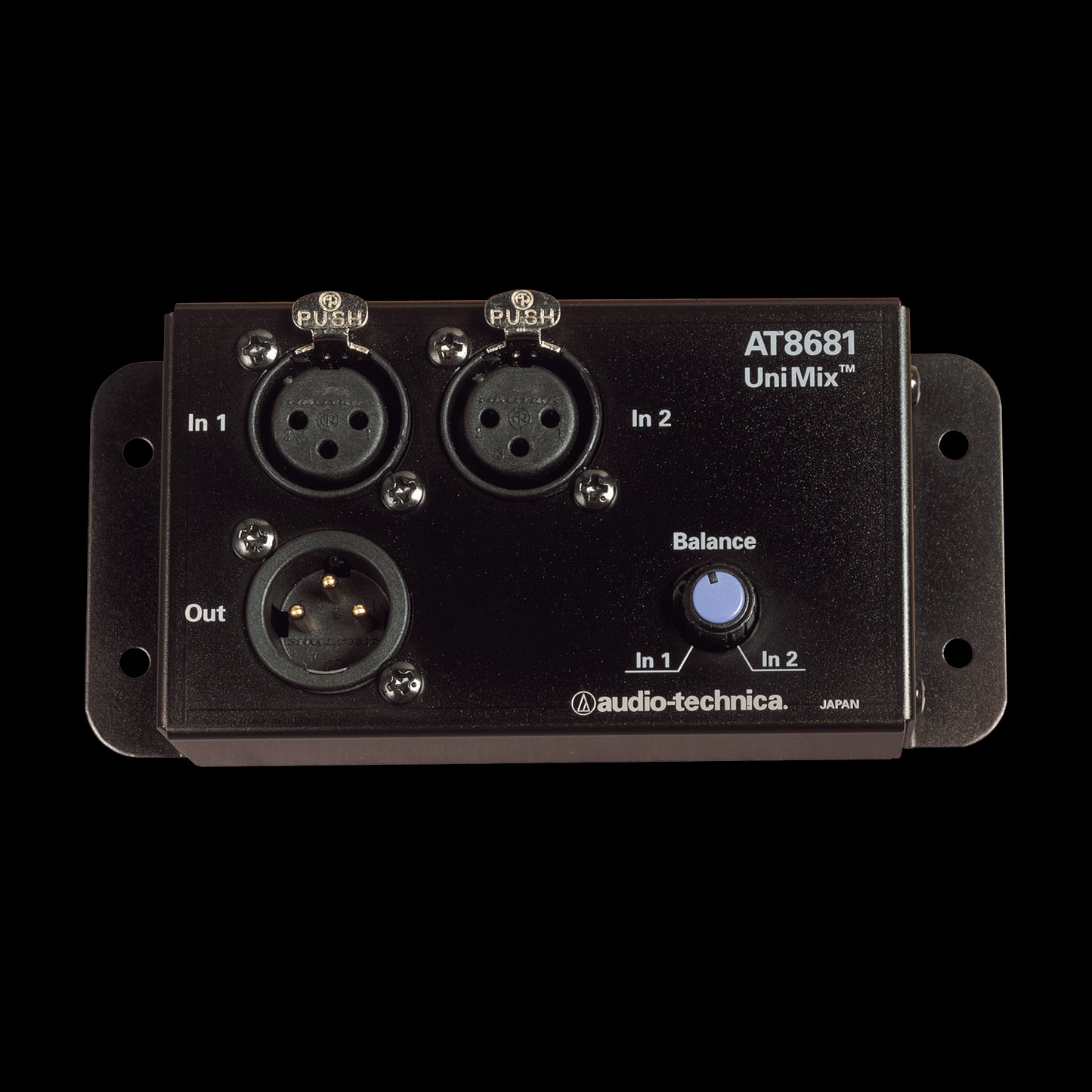

Audio-Technica AT8681 UniMix 2-to-1 Microphone Combiner with Balance Control

The Audio-Technica AT8681 UniMix 2-to-1 Microphone Combiner is a professional audio solution that allows you to combine the output from two microphones into a single channel. Featuring a balance control that attenuates each microphone by 6 dB at midpoint, this combiner is ideal for enhancing audio mixing in various settings. Its robust design ensures durability, while phantom power support makes it compatible with a wide range of microphones.

Features

• Dual Microphone Input: Combines the output from two microphones into one channel for streamlined audio mixing.
• Balance Control: Attenuates each microphone signal by 6 dB at the midpoint, allowing for precise audio adjustments.
• Professional Connectors: Equipped with XLR-type input/output connectors for reliable performance and easy integration.
• Phantom Power Compatibility: Operates with 24-48V DC phantom power, ensuring compatibility with most professional microphones.
• Durable Construction: Rugged steel housing designed to withstand the demands of professional use.
• Compact Size: Easy to install in-line at the mixer input or near the microphone, providing flexibility in setup.

Specifications

• Input Impedance: 10,000 ohms
• Output Impedance: 250 ohms
• Maximum Gain: Unity (0 dB), +0/-1.5 dB
• Frequency Response: 20 - 20,000 Hz
• Input Attenuation: 33 dB at 1 kHz
• Power Supply: Phantom Power 24-48V DC, 2-4 mA typical
• Dimensions: 130.0 mm W x 60.0 mm D x 44.0 mm H
• Weight: 0.25 kg
