Audio-Technica AT8015 - Line & Gradient Condenser Microphone

Overview

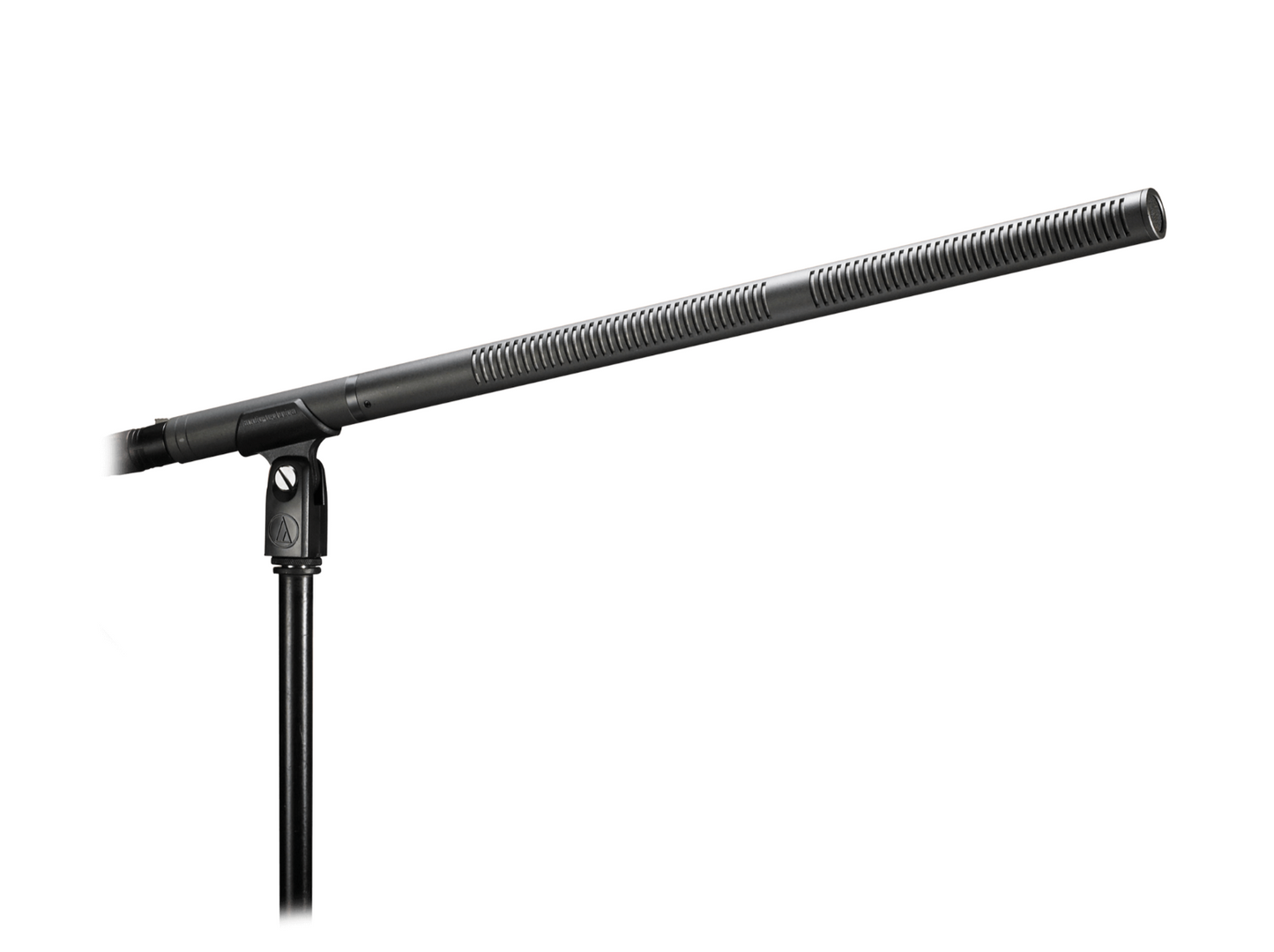

The Audio-Technica AT8015 is a premium line and gradient condenser microphone designed for video production and broadcast ( ENG / EFP ) audio acquisition. It offers a narrow acceptance angle for long - distance sound pickup, coupled with excellent sound rejection from the sides and rear. The switchable low - frequency roll - off reduces ambient noise, room reverberation, and mechanically coupled vibrations, making it ideal for capturing clear audio in various environments. Whether powered by battery or phantom power, the AT8015 ensures consistent performance and reliability.

Features

• Narrow Acceptance Angle: Ideal for long-distance sound pickup.
• Excellent Sound Rejection: Minimizes noise from the sides and rear.
• Switchable Low-Frequency Roll-Off: Reduces ambient noise and room reverberation.
• Battery or Phantom Power Operation: Flexible power options for various setups.
• RoHS Compliant: Free from hazardous substances as per EU directives.

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Line + gradient
• Frequency Response: 40-20,000 Hz
• Low Frequency Roll Off: 80 Hz, 18 dB/octave
• Open Circuit Sensitivity: Phantom: –38 dB (12.5 mV) re 1V at 1 Pa, Battery: –39 dB (11.2 mV) re 1V at 1 Pa
• Maximum Input Sound Level: Phantom: 132 dB SPL, 1 kHz at 1% T.H.D., Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: Phantom: 110 dB, 1 kHz at Max SPL, Battery: 98 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 72 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical
• Battery Type: 1.5V AA/UM3
• Battery Current/Life: 0.4 mA / 1200 hours typical (alkaline)
• Switches: Flat, roll-off
• Weight: 195 g (6.9 oz)
• Dimensions: 460.0 mm (18.11") long, 21.0 mm (0.83") diameter
• Output Connector: Integral 3-pin XLRM-type

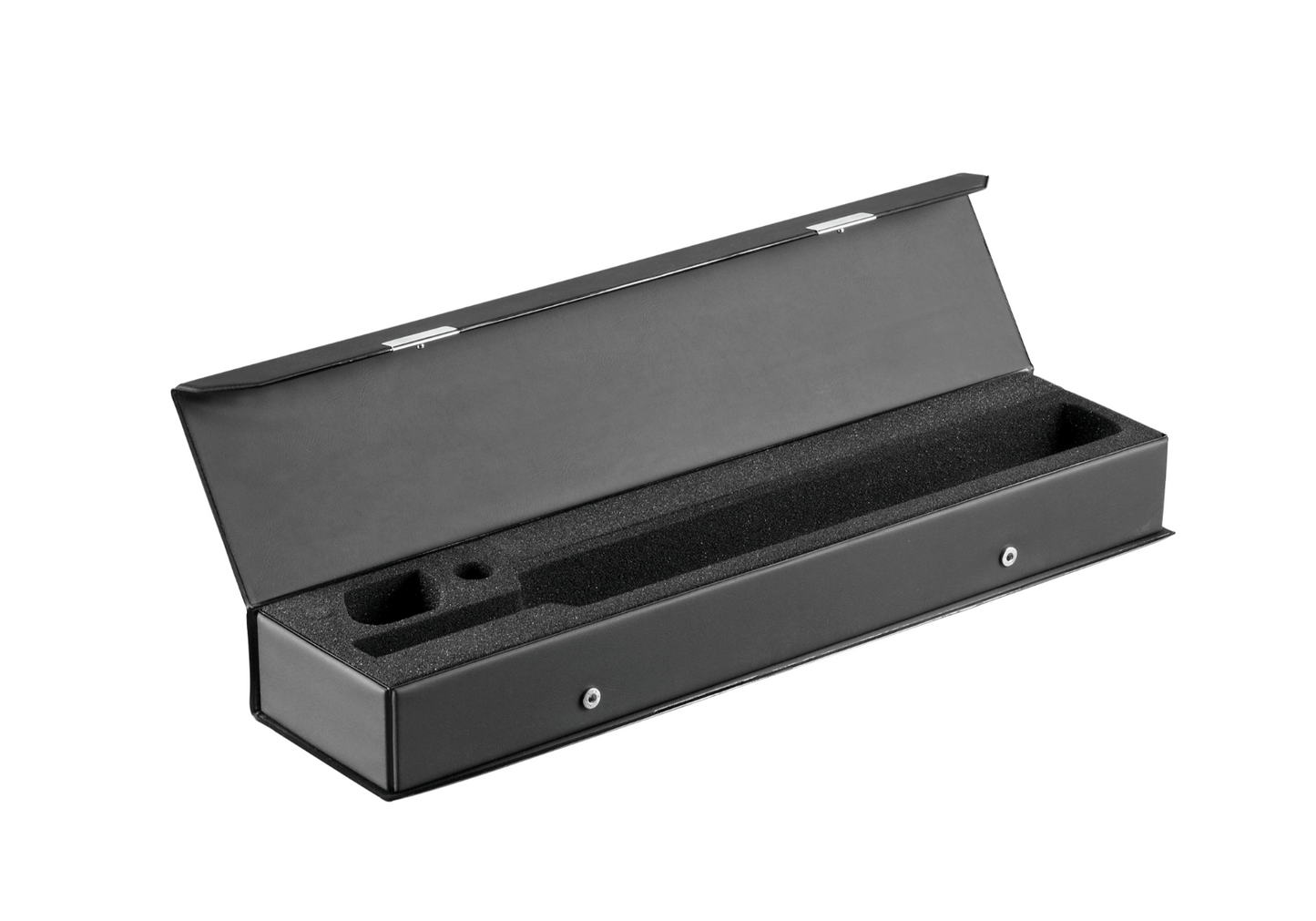

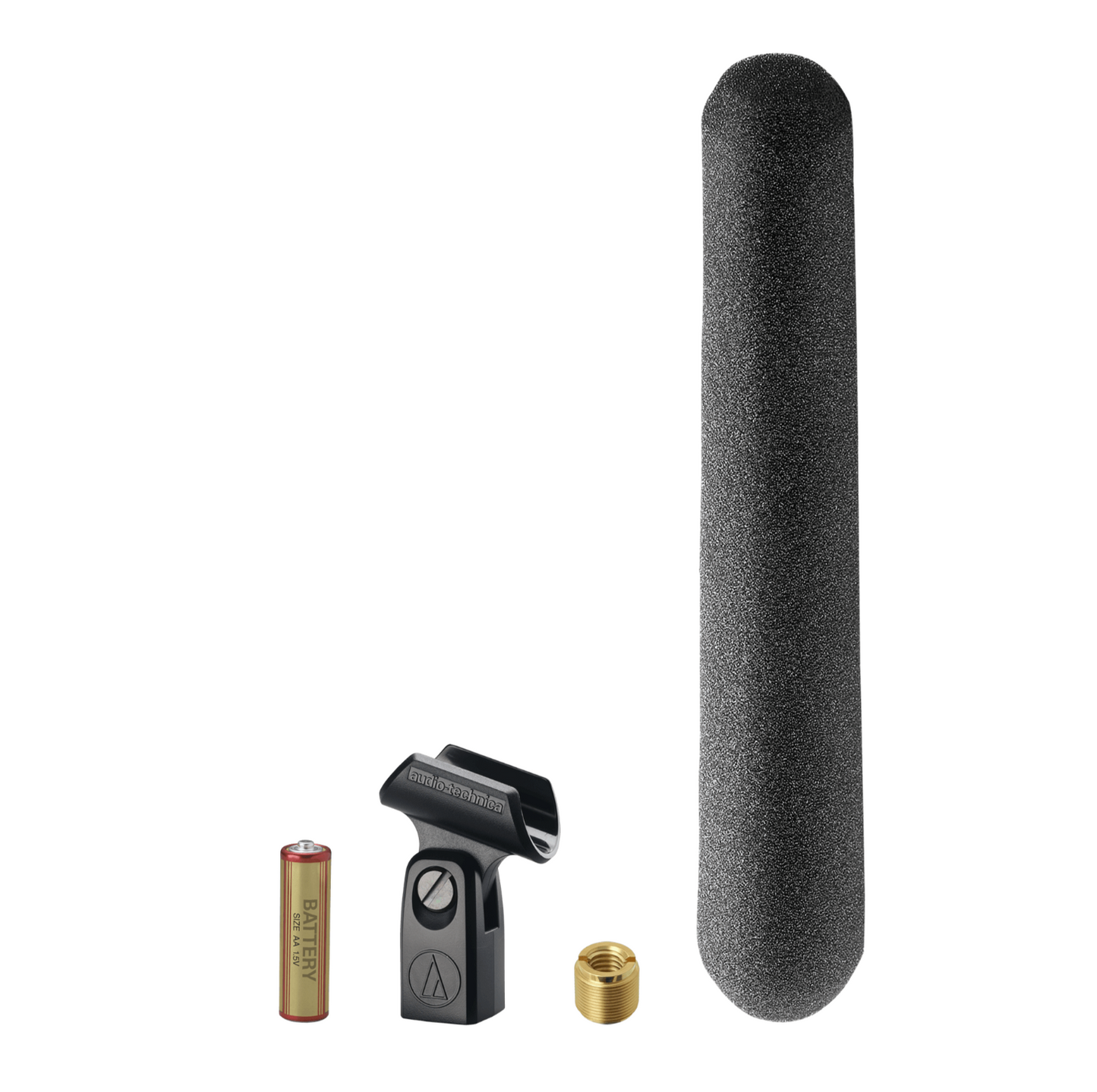

• Accessories Included: AT8405a stand clamp for 5/8"-27 threaded stands, 5/8"-27 to 3/8"-16 threaded adapter, AT8135 windscreen, battery, protective carrying case
• Audio-Technica Case Style: SG3
