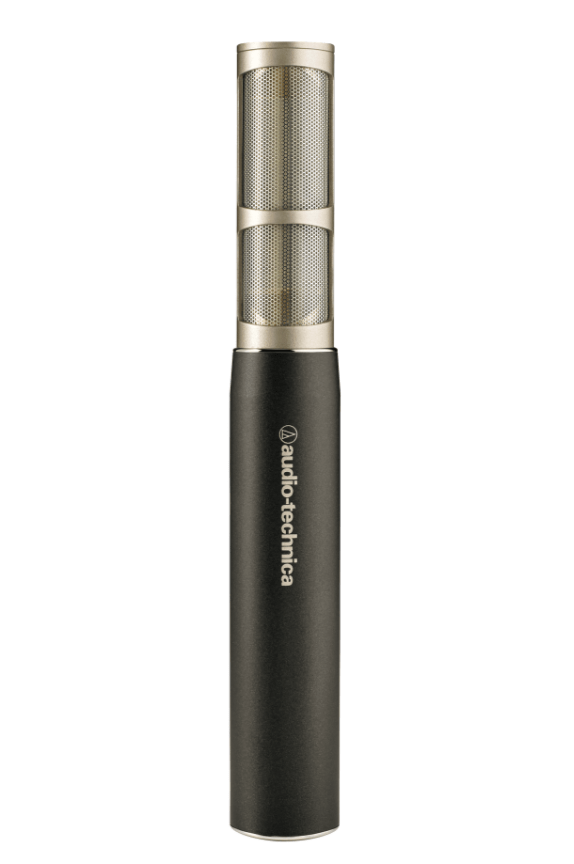

Audio-Technica AT5045 - Pencil Design Premier Studio Microphone

 Overview

The AT5045 is Audio-Technica’s premier studio condenser instrument microphone, providing pure and realistic sound quality for a variety of acoustic instruments. Despite its compact stick-design, the AT5045 features more diaphragm surface area than most traditional large diaphragm side-address microphones. Its discrete components are carefully selected for optimized performance, and the transformer-coupled output ensures a smooth sonic character. The AT5045 also boasts exceptionally low noise and high-SPL capability.

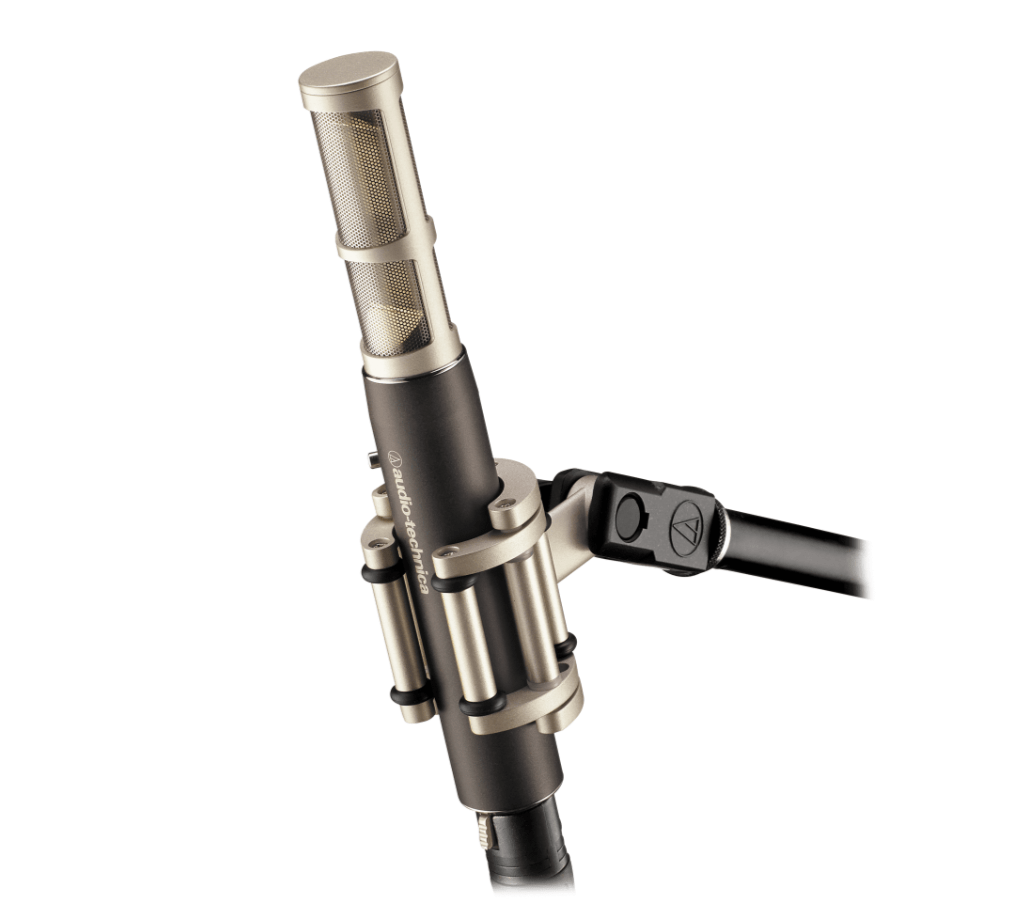

Each AT5045 microphone is hand-built and inspected for 100% quality control. The microphone is housed in elegant aluminum and brass, providing durability and low reflectivity. The advanced internal shock mounting system decouples the capsule from the microphone body, offering superior vibration isolation. Additionally, the AT5045 comes with an innovative isolation clamp for secure mounting and effective dampening of mechanical noise. It is available as a single microphone (AT5045) or as a stereo pair (AT5045P), and includes a custom hard-shell carrying case for protection.

Features

• Studio instrument microphone available as a single mic or stereo pair
• Premier condenser instrument microphone with a large-diaphragm, side-address design in a stick-type body
• More diaphragm surface area than most traditional large diaphragm side-address microphones
• Discrete components carefully selected for optimized performance
• Transformer-coupled output for smooth sonic character
• Exceptionally low noise with high-SPL capability
• Hand-built and inspected for 100% quality control
• Advanced internal shock mounting decouples the capsule from the microphone body
• Elegant, durable housing of aluminum and brass

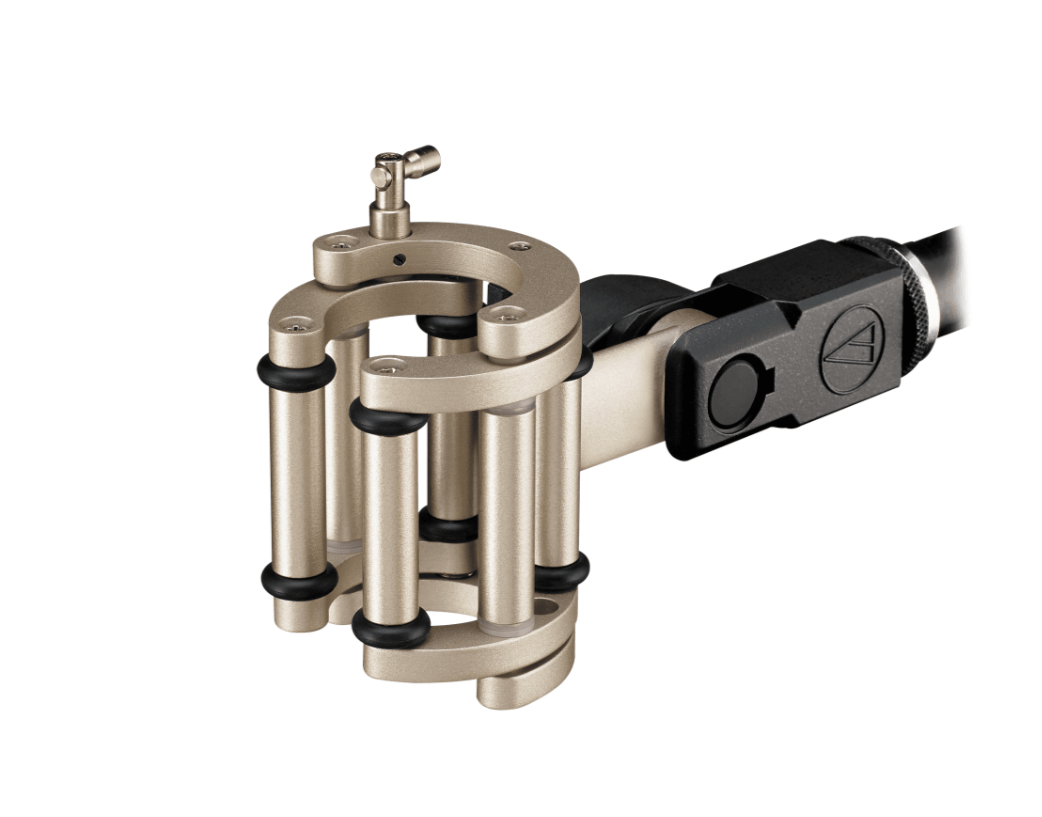

• Innovative isolation clamp for secure mounting and effective dampening of unwanted mechanical noise

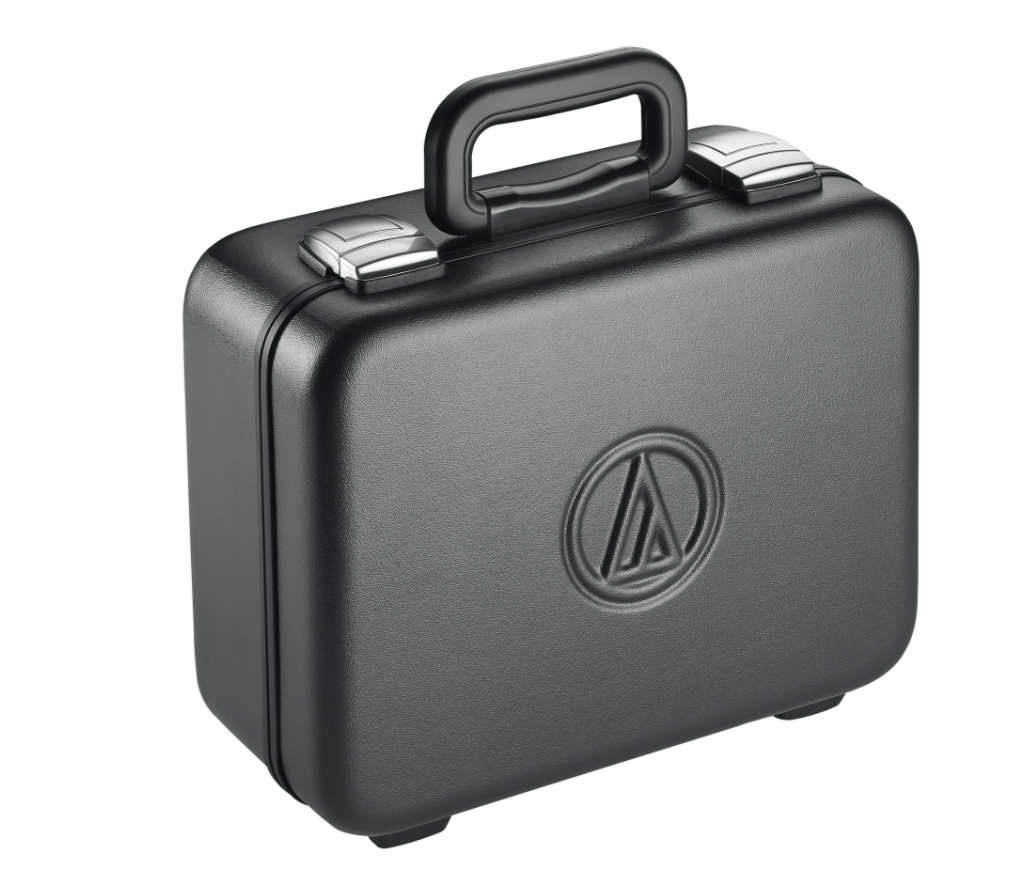

• Custom hard-shell carrying case with die-cut foam compartments for one or two microphones

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 20 - 20,000 Hz
• Open Circuit Sensitivity: -35 dB (17.7 mV) re 1V at 1 Pa*
• Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.
• Noise: 8 dB SPL
• Dynamic Range: 141 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 86 dB, 1 kHz at 1 Pa*
• Phantom Power Requirements: 48V DC, 1.4 mA typical
• Weight: 197 g
• Dimensions: 177 mm long, 25.0 mm maximum body diameter
• Output Connector: Integral 3-pin XLRM-type
• Included Accessories: AT8481 isolation clamp for 5/8"-27 threaded stands; AT8165 windscreen; protective carrying case
