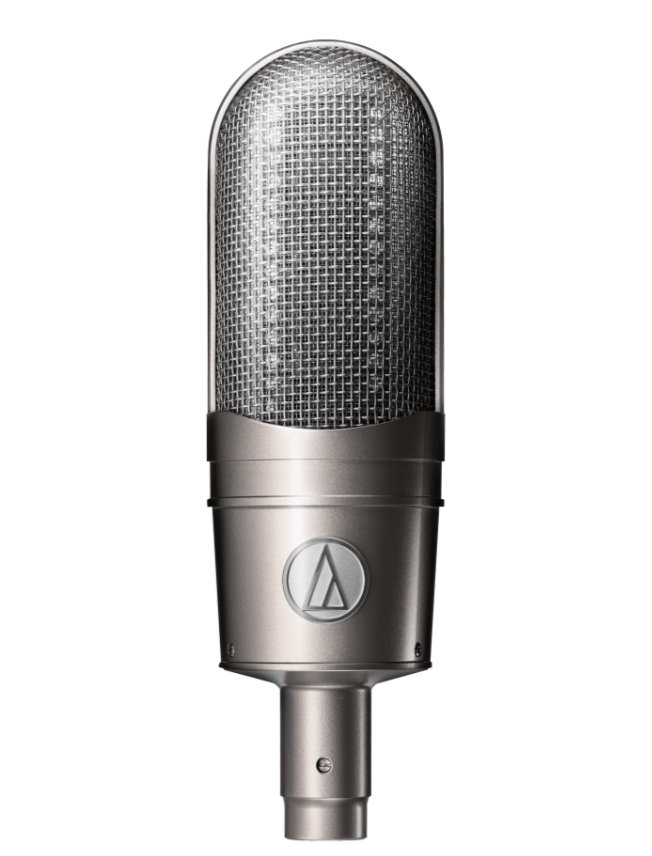

Audio-Technica AT4080 - Bidirectional Active Ribbon Microphone with Shock Mount

 Overview

The AT4080 offers the coveted ribbon microphone sound with a robust build that overcomes the fragility and low output traditionally associated with ribbon mics. This microphone features Audio-Technica’s proprietary MicroLinear™ ribbon imprint for enhanced durability and an innovative dual ribbon construction for increased sensitivity. Equipped with powerful N50 rare earth magnets, the AT4080 provides a high output level. The classic bidirectional (figure-of-eight) polar pattern captures sound equally from the front and back, while the ultra-fine mesh protects the ribbon from damage. The microphone’s acoustic baffle system and large output transformer ensure natural low-frequency response and extended dynamic range.

Features

• Smooth, Warm Sound: Delivers the natural audio reproduction of a classic ribbon microphone.
• Proprietary MicroLinear™ Ribbon Imprint: Enhances durability by protecting the ribbons from lateral flexing and distortion.
• Dual Ribbon Construction: Increases sensitivity for detailed sound capture.
• Powerful N50 Rare Earth Magnets: Provide high output level.
• Ultra-Fine Mesh: Protects against ribbon damage.
• Bidirectional Polar Pattern: Picks up sound equally from the front and back, ideal for capturing ambient sound.
• High-SPL Capability: Handles high sound pressure levels, making it suitable for loud sound sources.
• Extended Frequency Response: Ensures natural and detailed audio reproduction.
• Acoustic Baffle System: Provides natural low-frequency response and extended dynamic range.
• Handmade Production: Each microphone is meticulously handcrafted, including ribbon corrugation, imprint, and assembly.
• Phantom-Powered Active Electronics: Provide stable impedance and higher output for maximum compatibility with microphone preamplifiers.

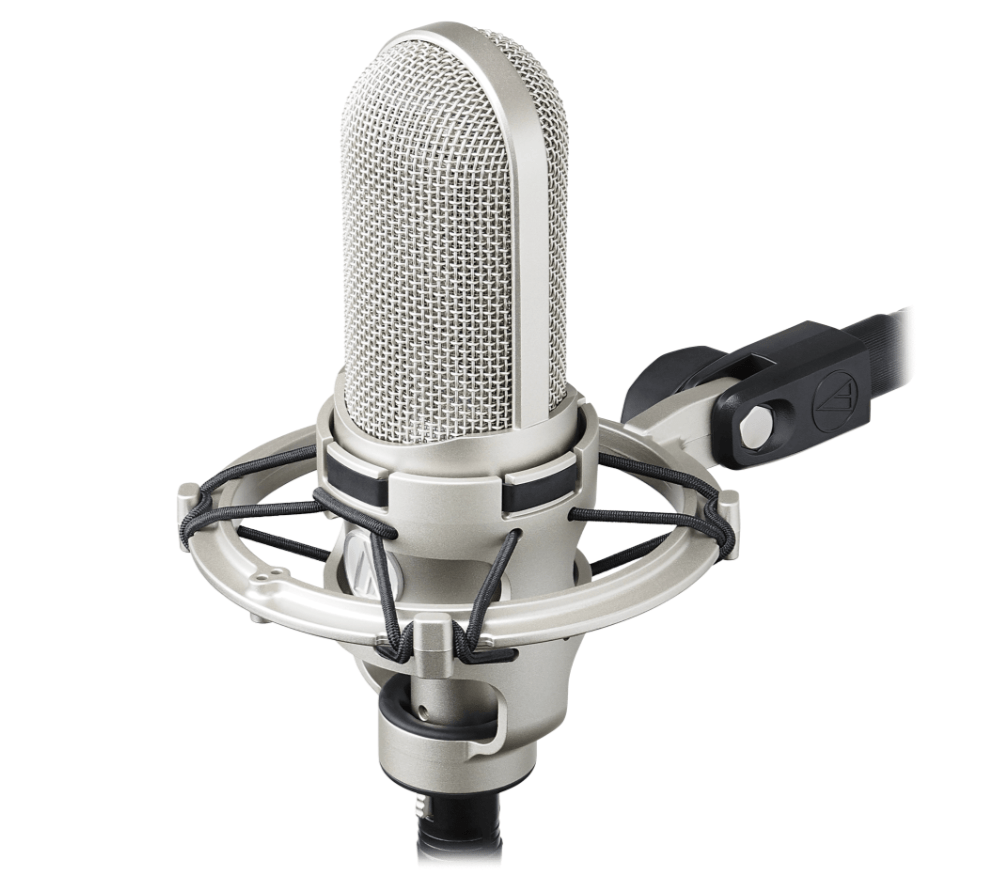

• Custom Shock Mount: Offers superior isolation to reduce handling noise.
• METAlliance Certified: Ensures high performance and reliability in professional settings.

Specifications

• Element: Ribbon
• Polar Pattern: Figure-of-eight
• Frequency Response: 20 - 18,000 Hz
• Open Circuit Sensitivity: -39 dB (11.2 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 150 dB SPL, 1 kHz at 1% T.H.D.
• Noise: 22 dB SPL
• Dynamic Range: 128 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 72 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 3.0 mA typical
• Weight: 474g
• Dimensions: 177.5 mm (6.99") long, 53.4 mm (2.10") maximum body diameter
• Output Connector: Integral 3-pin XLRM-type

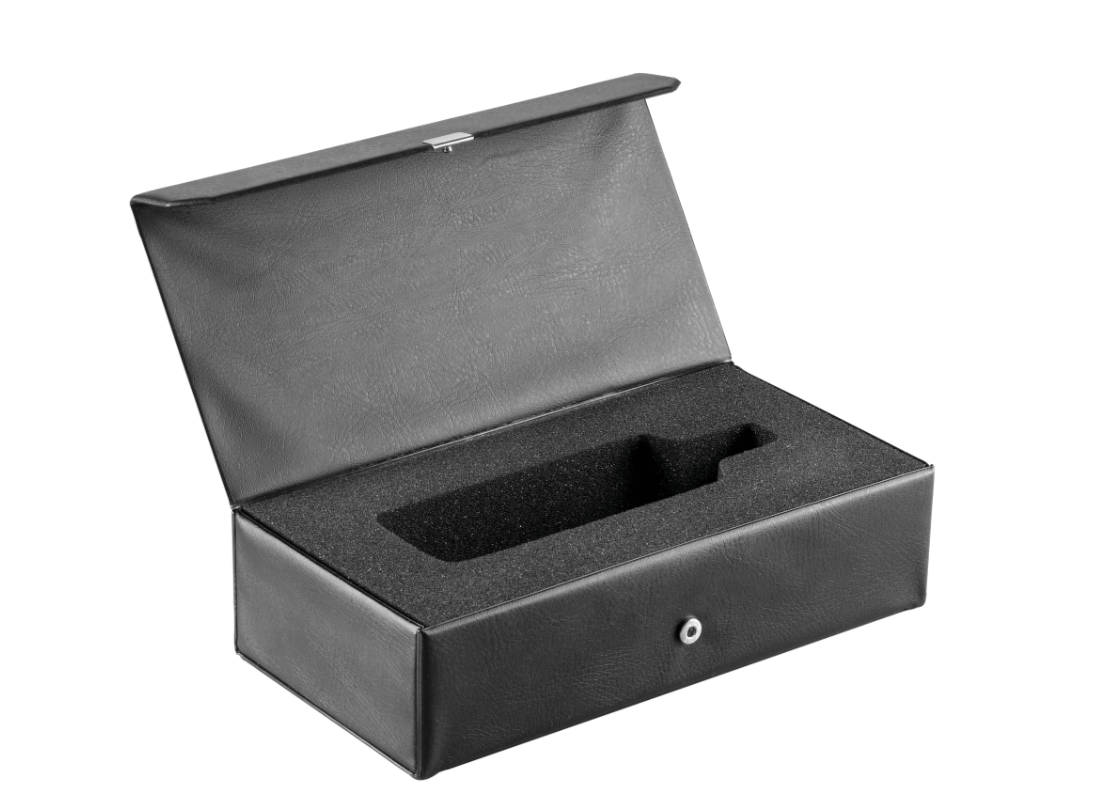

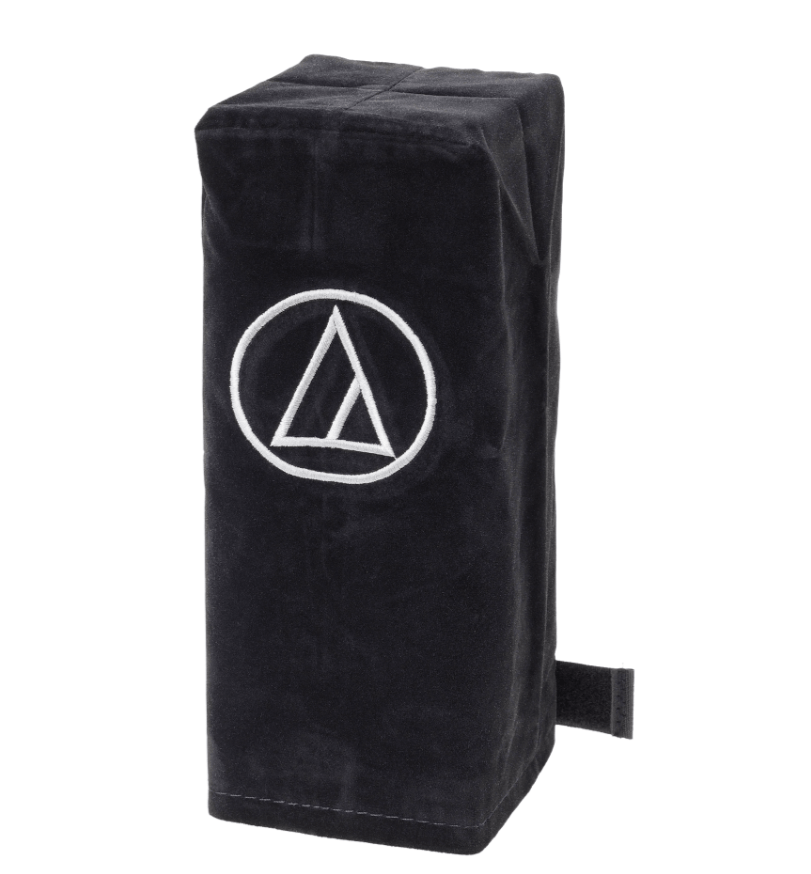

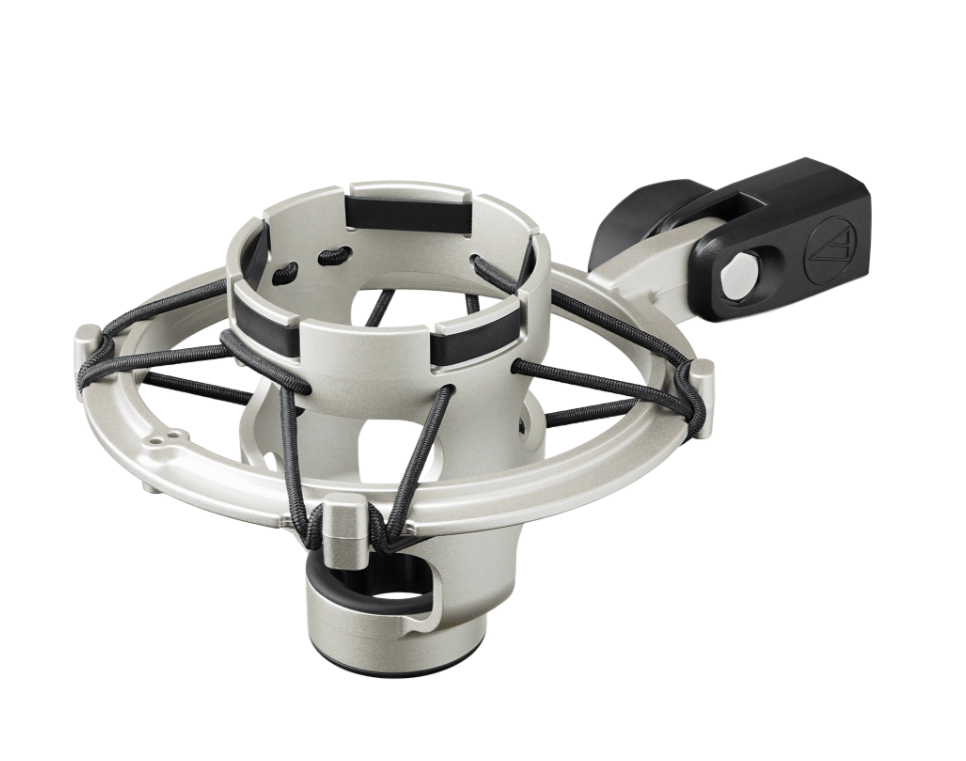

• Accessories Included: AT8449aSV shock mount for 5/8"-27 threaded stands, microphone dust cover, protective carrying case
