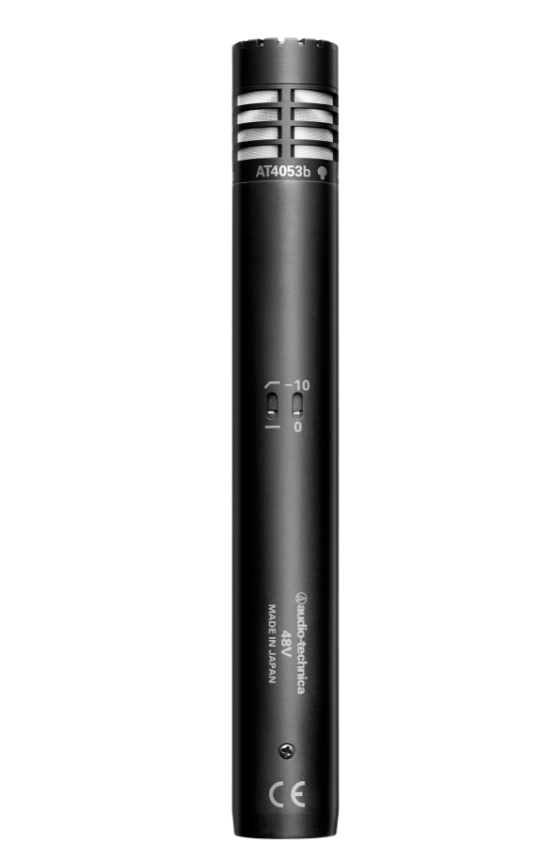

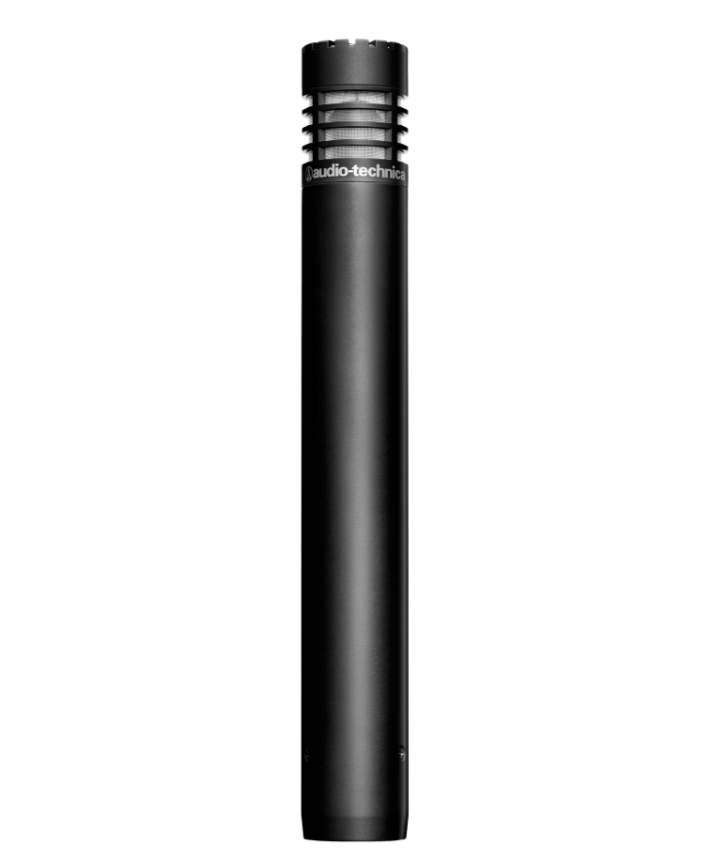

Audio-Technica AT4053B - Hypercardioid Condenser Modular Microphone

Overview

The AT4053b features a hypercardioid polar pattern that reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source. Its direct-coupled, balanced output ensures a clean signal even under high-output conditions, while the transformerless circuitry virtually eliminates low-frequency distortion. This microphone is RoHS-compliant, adhering to the EU directive on the reduction of hazardous substances, making it environmentally friendly as well. The AT4053b consists of two modular subassemblies: the AT4900b-48 body and the AT4053b-EL hypercardioid head capsule, both of which are available separately. Additional interchangeable capsules in omnidirectional (AT4049b-EL) and cardioid (AT4051b-EL) are also available.

Features

• Hypercardioid Polar Pattern: Reduces pickup of sounds from the sides and rear, providing excellent isolation of the sound source.
• Direct-Coupled Balanced Output: Ensures a clean signal even under high-output conditions, free from the distortion associated with conventional transformer-coupled outputs.
• Transformerless Circuitry: Virtually eliminates low-frequency distortion and provides superior transient response.
• Switchable 80 Hz Hi-Pass Filter and 10 dB Pad: Enhances versatility for various recording environments.
• Rugged Construction: Turned-brass housing ensures durability and long-lasting performance.
• RoHS-Compliant: Free from all substances specified in the EU directive on the reduction of hazardous substances.
• Modular Design: Consists of the AT4900b-48 body and AT4053b-EL hypercardioid head capsule, with additional interchangeable capsules available.

Specifications

• Element: Externally polarized (DC bias) capacitor
• Polar Pattern: Hypercardioid
• Frequency Response: 20 - 20,000 Hz
• Low Frequency Roll Off: 80 Hz, 18 dB/octave
• Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
• Dynamic Range: 129 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 78 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 4.8 mA typical
• Switches: Flat, roll-off; 10 dB pad (nominal)
• Weight: 127g
• Dimensions: 155.0 mm (6.10") long, 21.0 mm (0.83") maximum body diameter
• Output Connector: Integral 3-pin XLRM-type

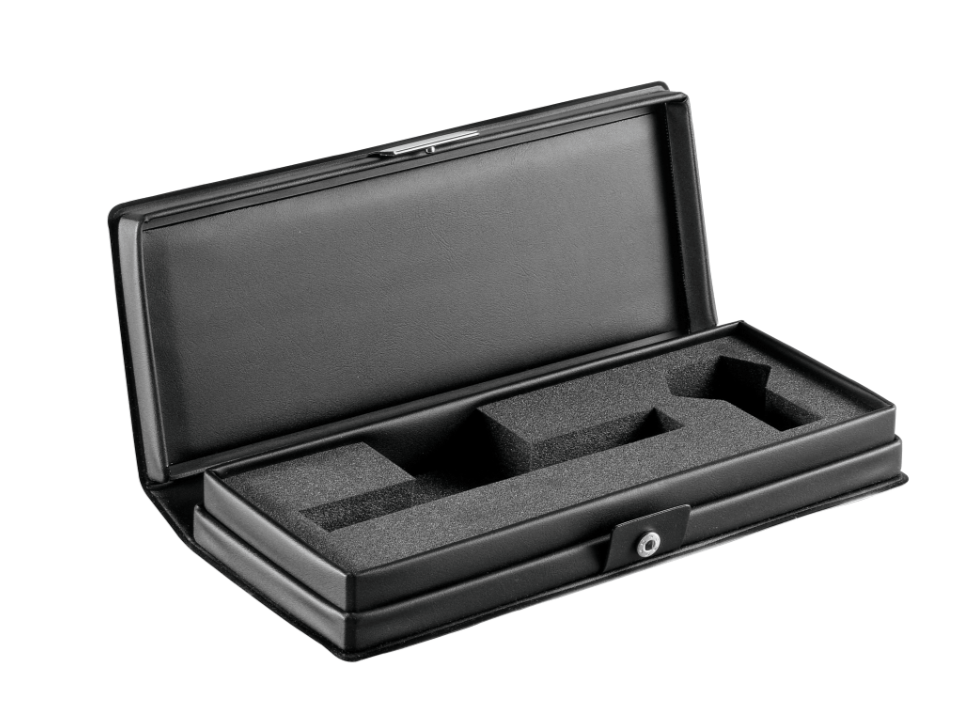

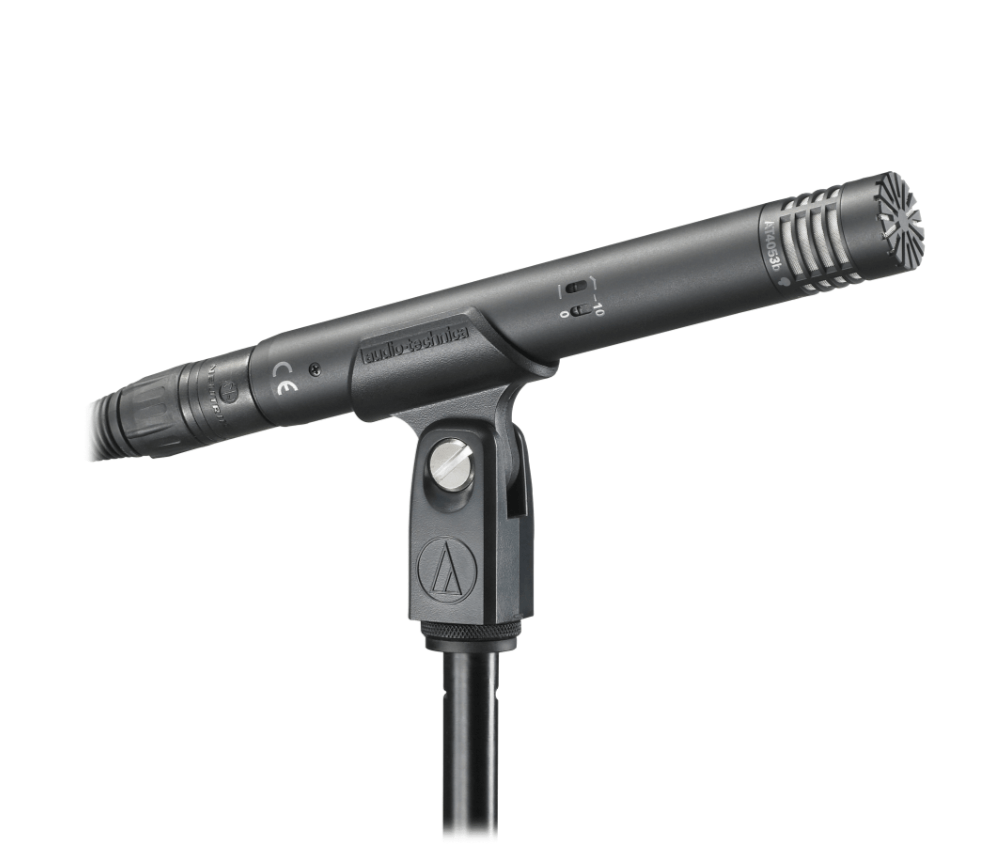

• Accessories Included: AT8405a stand clamp for 5/8"-27 threaded stands, windscreen, protective carrying case
