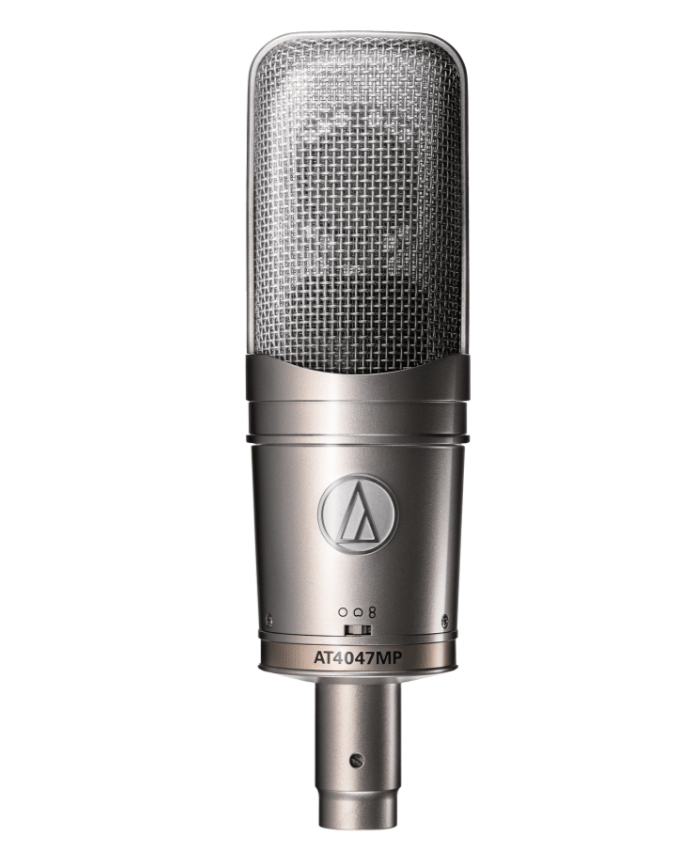

Audio-Technica AT4047MP - Multi-Pattern Condenser Large Diaphragm Microphone

Overview

The AT4047MP features a transformer-coupled output and a specially tuned element, providing sonic characteristics reminiscent of early F.E.T. studio microphone designs. Its dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range, while the precision-machined, nickel-plated brass acoustic element baffle enhances element stability and sensitivity. The microphone's open acoustical environment minimizes unwanted internal reflections, and its vintage silver-matte finish adds a classic touch. Certified by the METAlliance, the AT4047MP ensures high performance in any professional setting.

Features

• Three Switchable Polar Patterns: Cardioid, omnidirectional, and figure-of-eight for versatile recording options.
• Vintage Sound Quality: Transformer-coupled output and specially tuned element for classic F.E.T. studio microphone characteristics.
• Exceptionally Low Self-Noise: Ideal for high-quality recordings with minimal interference.
• Wide Dynamic Range and High SPL Capability: Handles a variety of recording scenarios with ease.
• Dual-Diaphragm Capsule Design: Maintains precise polar pattern definition across the full frequency range.
• Precision-Machined Acoustic Element Baffle: Enhances element stability and sensitivity.
• Open Acoustical Environment: Minimizes unwanted internal reflections.

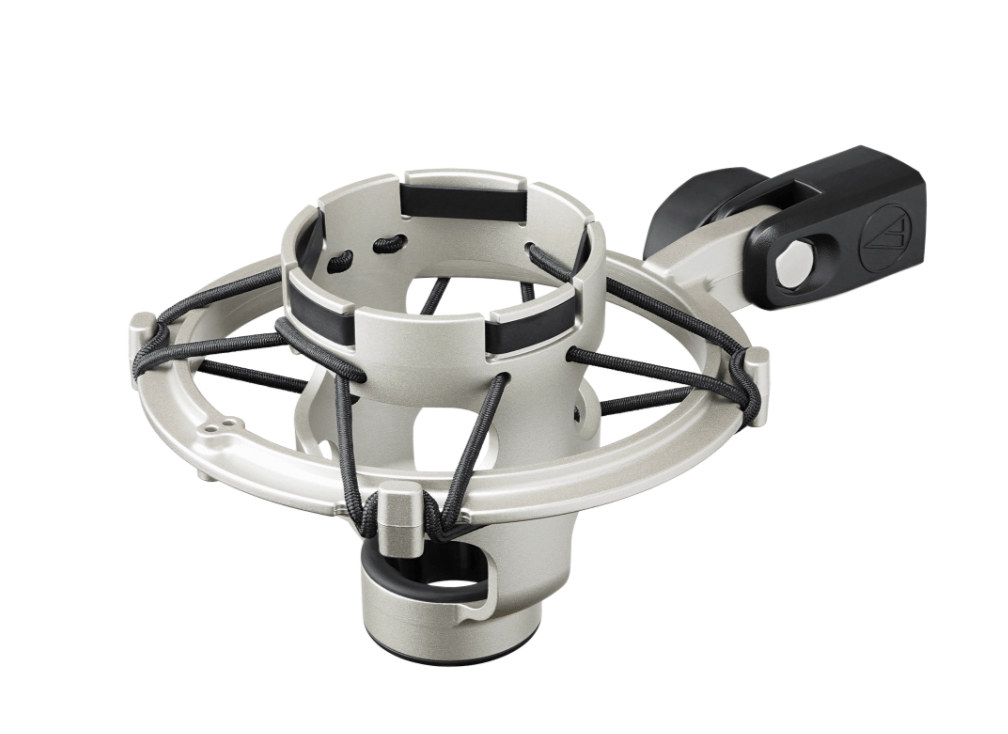

• Custom Shock Mount: Provides superior isolation and reduces handling noise.
• Integral 80 Hz High-Pass Filter and 10 dB Pad: Increases versatility for different recording environments.
• METAlliance Certified: Ensures high performance and reliability in professional settings.
• Vintage Silver-Matte Finish: Classic look with modern performance.

Specifications

• Element: Externally-polarized (DC bias) condenser
• Polar Pattern: Cardioid, Omnidirectional, Figure-of-eight, Multi-pattern
• Frequency Response: 20 - 18,000 Hz
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -42 dB (7.9 mV), re 1V at 1 Pa
• Maximum Input Sound Level: 155 dB SPL, 1 kHz at 1% T.H.D.; 165 dB SPL, with 10 dB pad (nominal)
• Noise: 14 dB
• Dynamic Range: 141 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 80 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 3.4 mA typical
• Switches: Polar selection; Flat, roll-off; 10 dB pad (nominal)
• Weight: 524g
• Dimensions: 188.0 mm (7.40") long, 53.4 mm (2.10") maximum body diameter
• Output Connector: Integral 3-pin XLRM-type

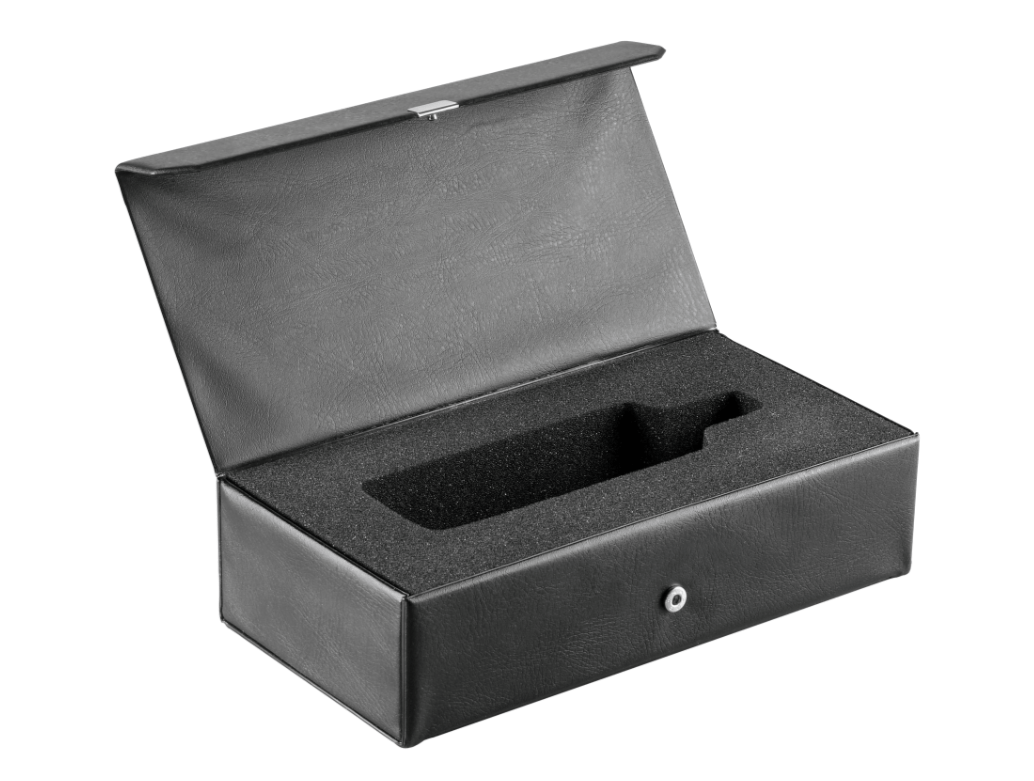

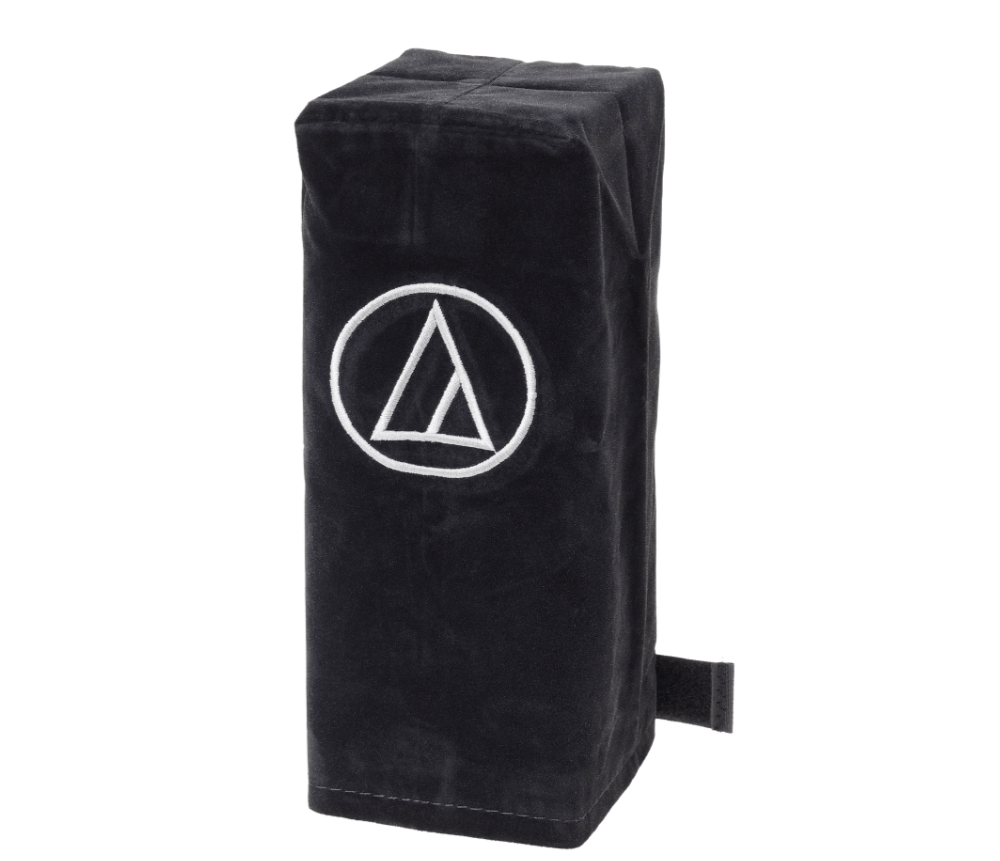

• Accessories Included: AT8449aSV shock mount for 5/8"-27 threaded stands, microphone dust cover, protective carrying case
