Audio-Technica AT4022 - Omnidirectional Condenser Pencil Microphone

 Overview

The AT4022 is a low-profile omnidirectional condenser microphone designed for high-performance recording in both studio and live settings. Its omnidirectional polar pattern captures sound uniformly from all directions, providing maximum ambient pickup and freedom from proximity effect. This microphone is equipped with a low-mass diaphragm that enhances transient response and reduces mechanical noise transfer, making it ideal for recording a wide range of acoustic instruments. With features like a switchable 80 Hz hi-pass filter and a 10 dB pad, the AT4022 is a versatile and reliable choice for professional audio applications.

Features

• Omnidirectional Polar Pattern: Captures sound uniformly from all directions, preserving the natural ambiance of the recording environment.
• Flat and Extended Frequency Response: Ensures accurate audio reproduction across a wide range of frequencies.
• High SPL Handling: Supports up to 156dB SPL with the attenuator, suitable for loud sound sources.
• Low-Mass Diaphragm: Improves transient response and minimizes handling and mechanical noise transfer.
• Switchable 80 Hz Hi-Pass Filter: Reduces low-frequency noise and rumble.
• 10dB Switchable Attenuator: Enhances versatility for various recording scenarios.
• Low Self-Noise: Perfectly suited for digital recording equipment, providing clear and detailed audio.
• Rugged Construction: Durable design ideal for both studio and live applications.
• Exceptional Low-Frequency Reproduction: Captures rich and detailed low-frequency sounds.

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20 - 20,000 Hz
• Low Frequency Roll Off: 80 Hz, 18 dB/octave
• Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL, with 10 dB pad (nominal)
• Dynamic Range: 133 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 81 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 3.0 mA typical
• Weight: 124g
• Dimensions: 144.0 mm (5.67") long, 21.0 mm (0.83") maximum body diameter
• Output Connector: Integral 3-pin XLRM-type

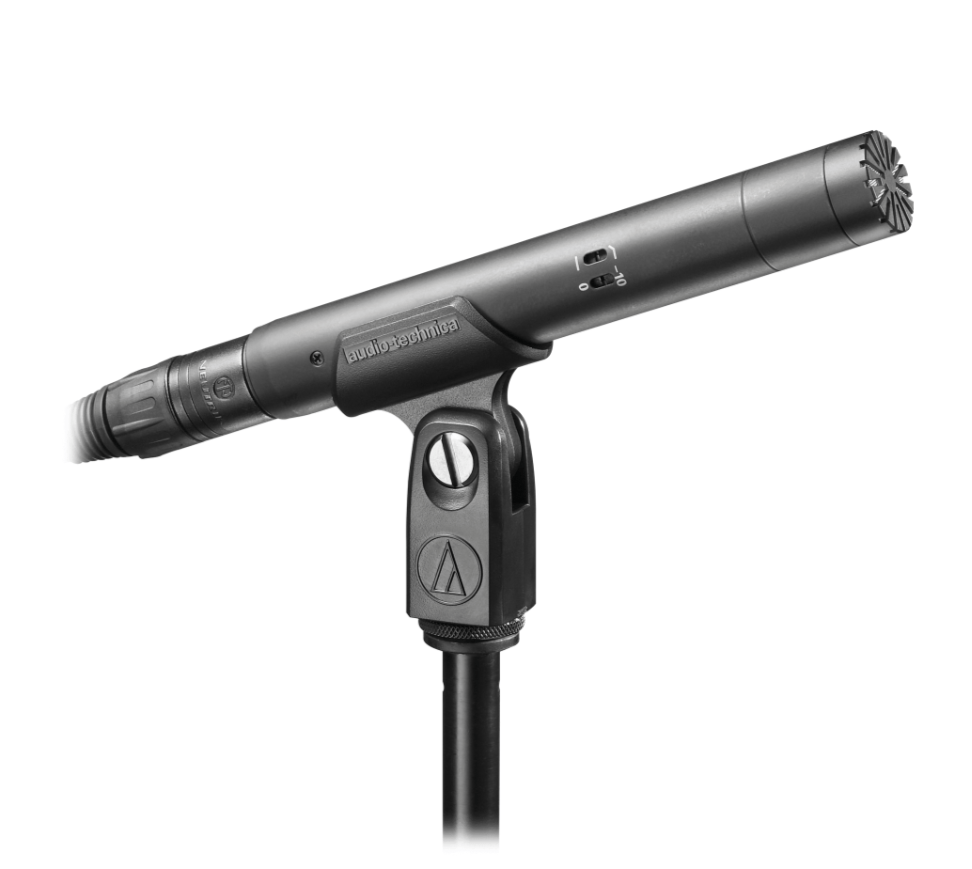

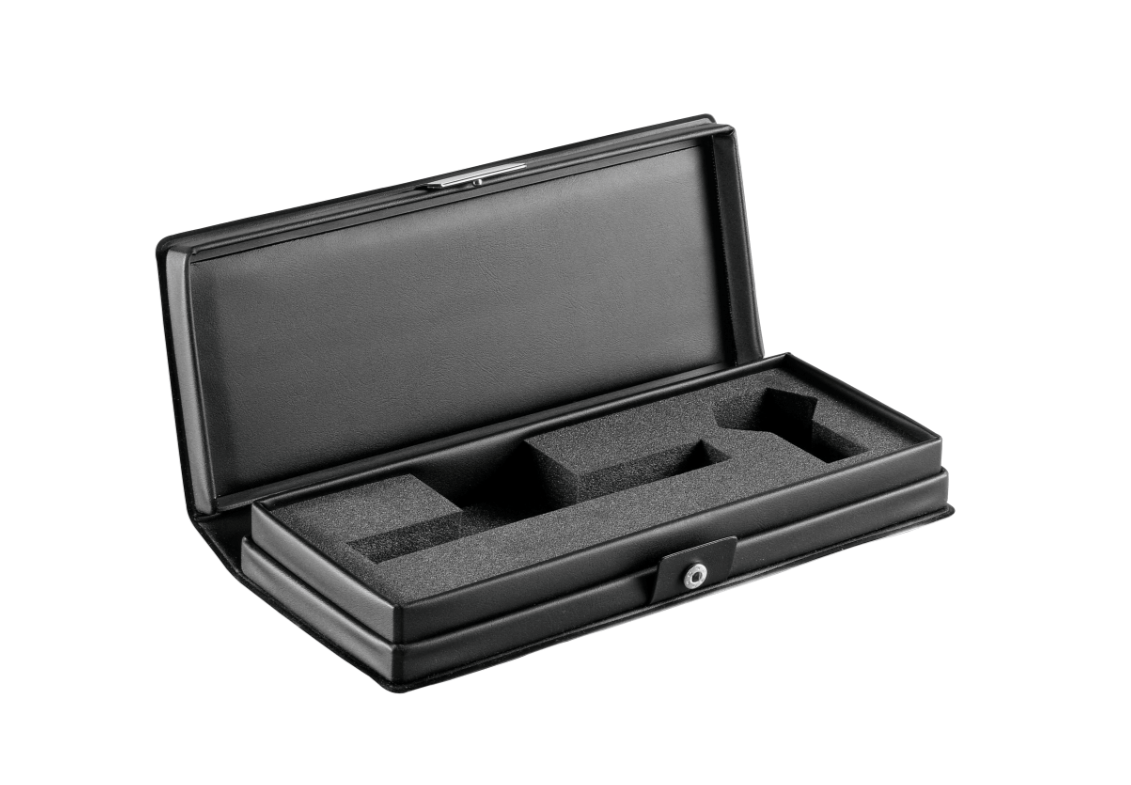

• Accessories Included: AT8405a stand clamp for 5/8"-27 threaded stands, windscreen, protective carrying case
