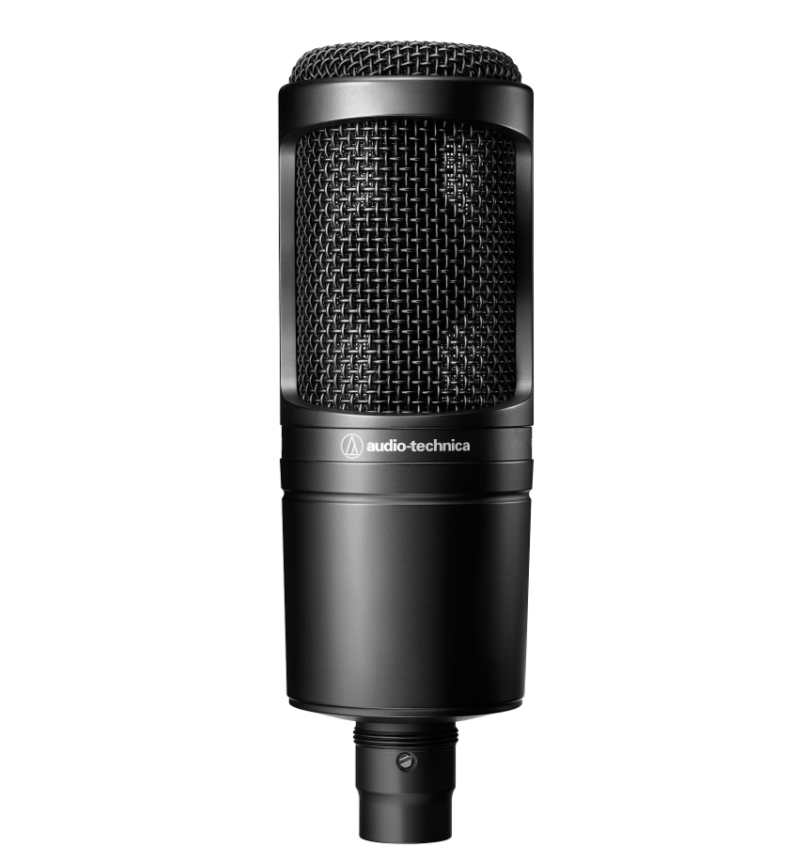

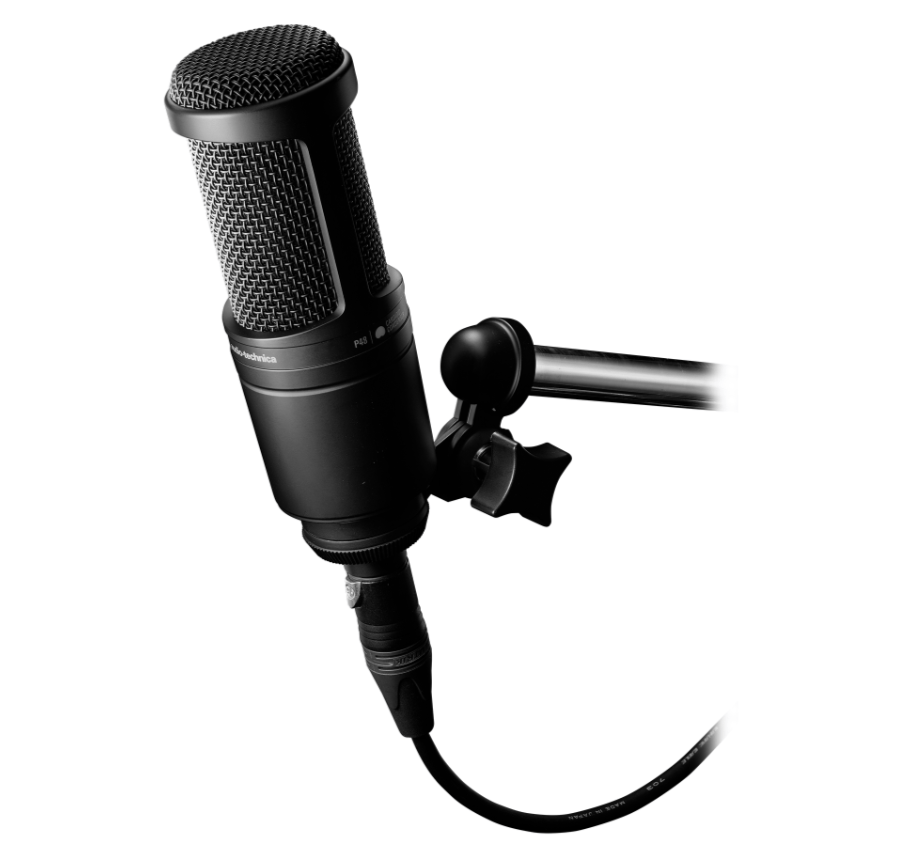

Audio-Technica AT2020 - Cardioid Condenser Large Diaphragm Microphone

Overview

The AT2020 features a cardioid polar pattern that captures sound in a heart-shaped pattern, improving isolation of the desired sound source for rich and accurate recordings. This condenser microphone uses a delicate diaphragm that requires phantom power via an XLR cable (sold separately) to capture every nuance of your instrument or voice in crisp detail. Developed with over half a century of Japanese audio engineering expertise, the AT2020 is designed to bring professional-level audio capturing to anyone wanting to explore sound recording.

High-Quality Audio

The AT2020 excels in handling high sound pressure levels (SPL) and offers a wide dynamic range, making it versatile for various recording applications. Whether you are recording voiceovers, podcasts, singing vocals, or live instruments, the AT2020 delivers exceptional performance at a budget-friendly price.

Features

• Cardioid Polar Pattern: Captures sound in front of the microphone while reducing pickup from the sides and rear, improving isolation of the desired sound source.
• Extended Frequency Response: 20 - 20,000 Hz, ideal for capturing a wide range of sounds.
• High SPL Handling: Can handle loud sound sources without distortion, making it versatile for different recording scenarios.
• Custom-Engineered Diaphragm: Provides extended frequency response and superior transient response for detailed audio capture.
• Rugged Construction: Durable design ensures reliable performance for years of use.

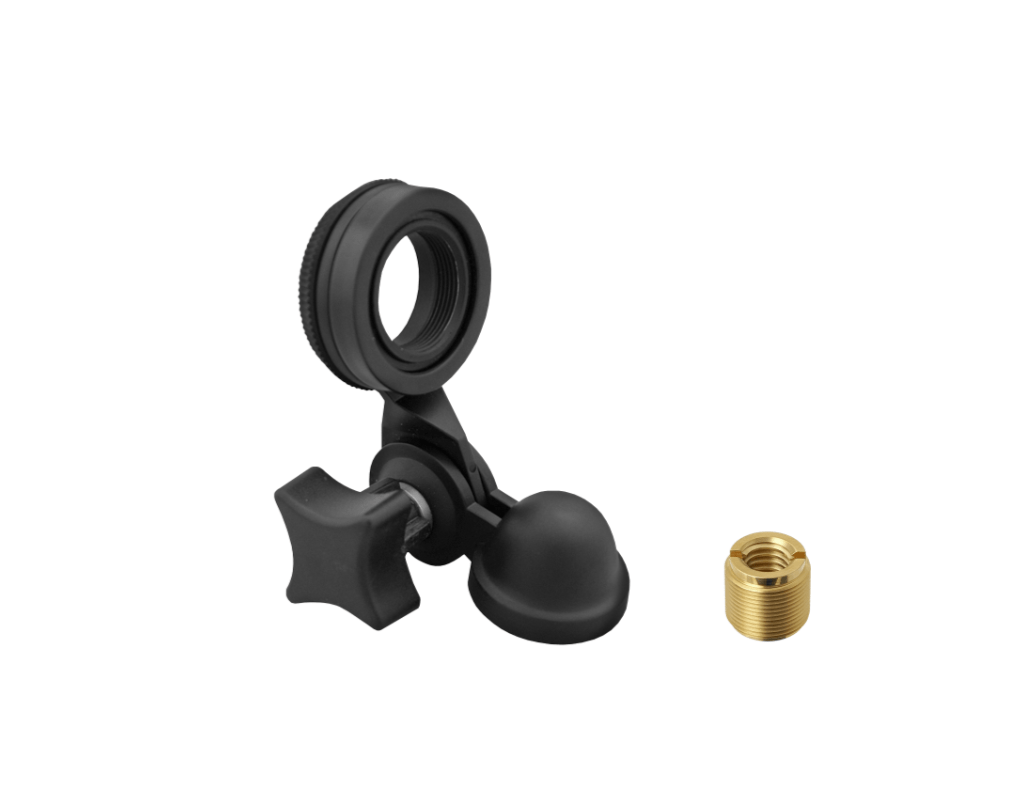

• Pivoting Threaded Stand Mount: Attaches securely for easy and precise microphone placement.

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 20 - 20,000 Hz
• Open Circuit Sensitivity: -37 dB (14.1 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 144 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: 124 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 74 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 2 mA typical
• Weight: 345g
• Dimensions: 162.0 mm (6.38") long, 52.0 mm (2.05") maximum body diameter
• Output Connector: Integral 3-pin XLRM-type

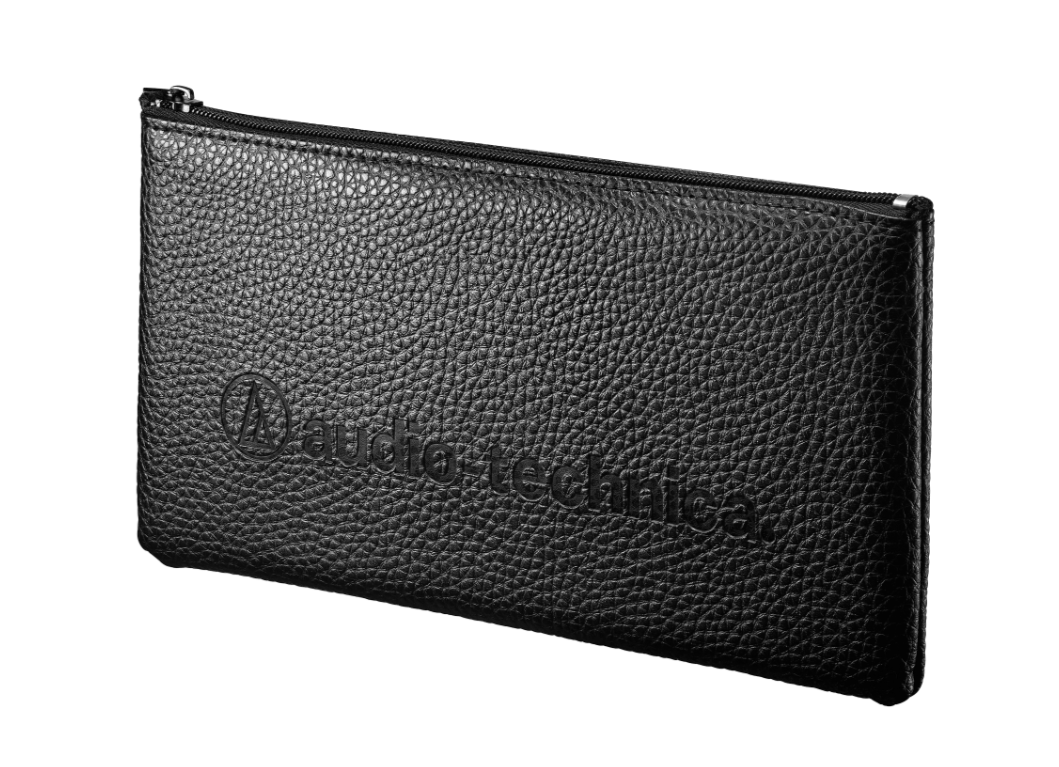

• Accessories Included: Stand mount for 5/8"-27 threaded stands, 5/8"-27 to 3/8"-16 threaded adapter, soft protective pouch
