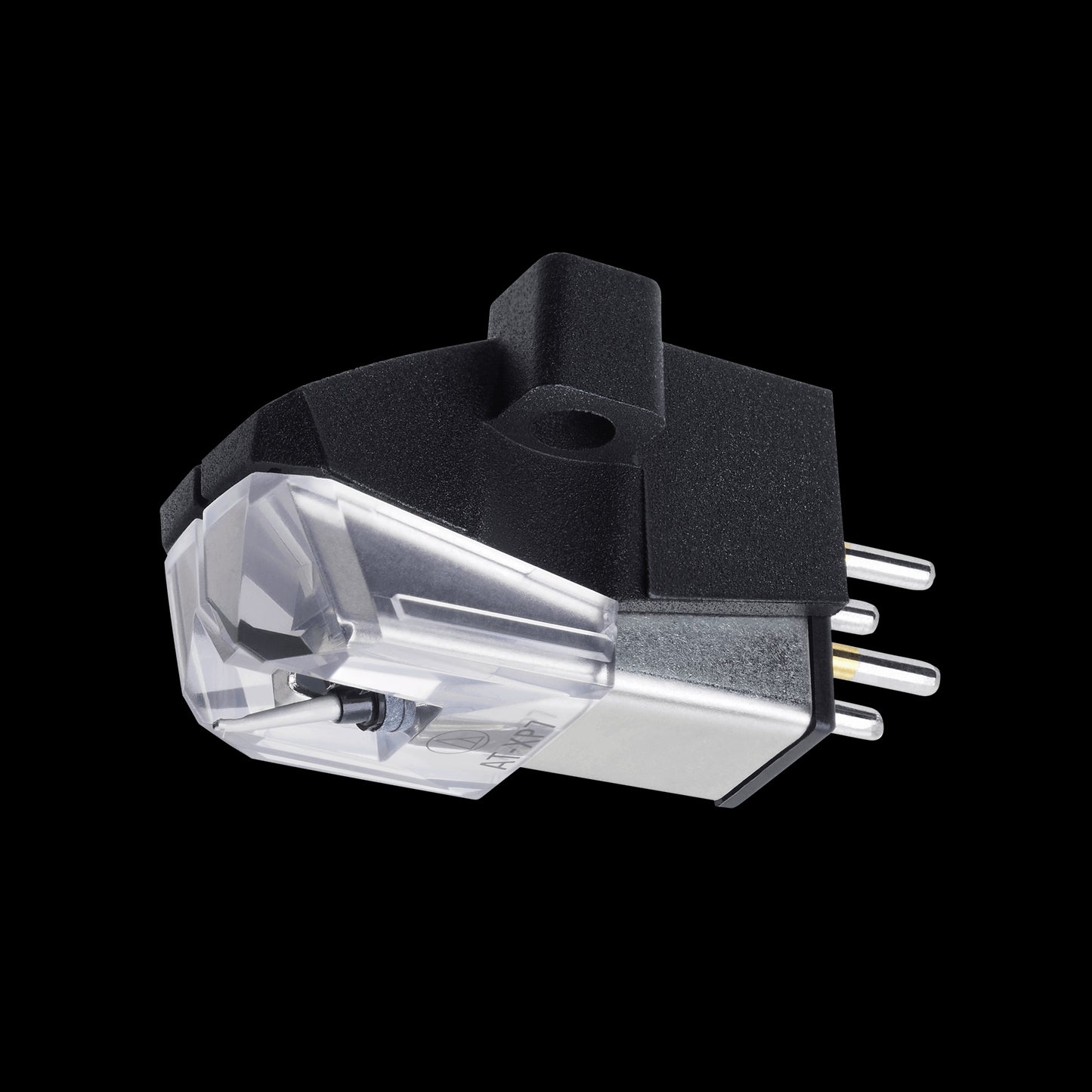

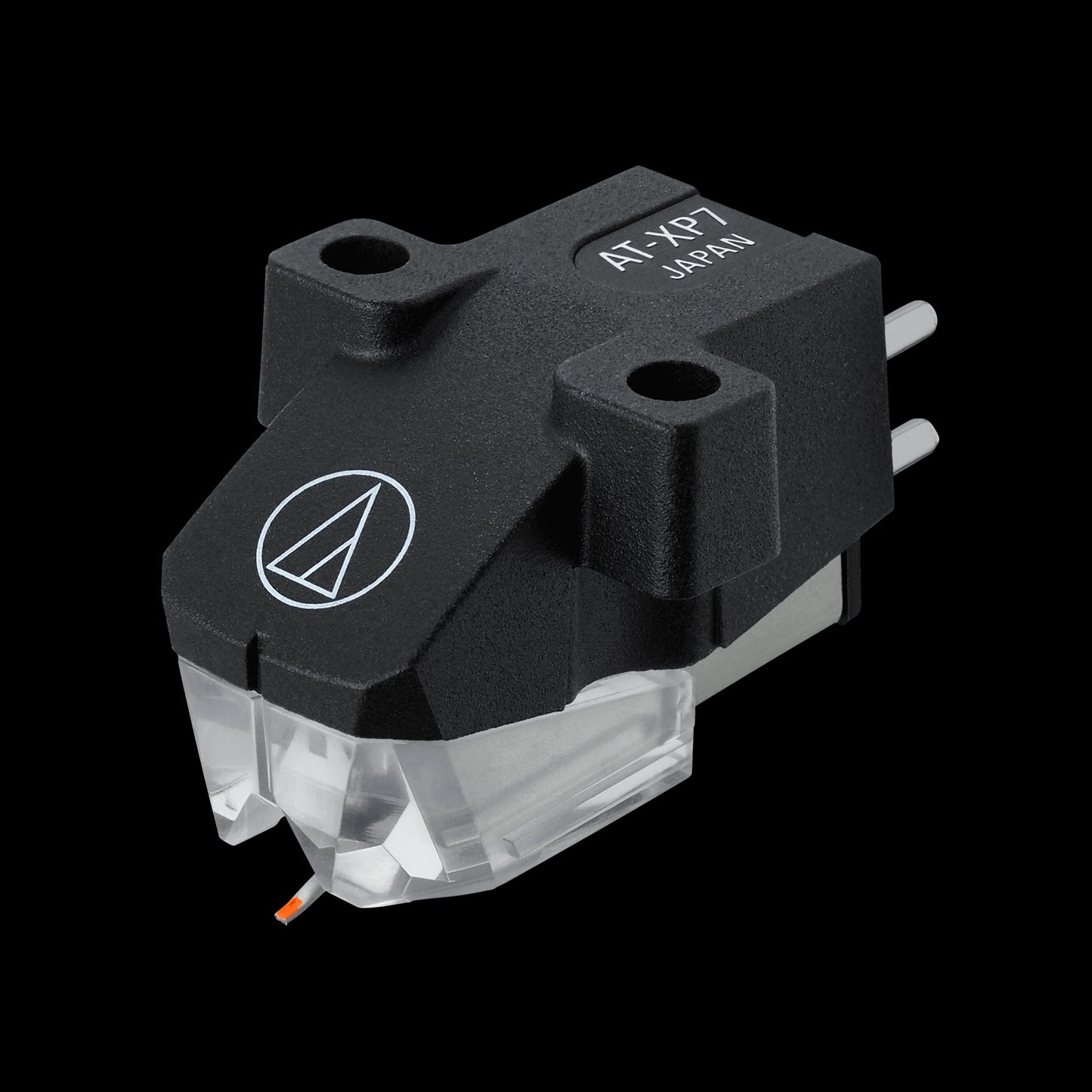

Audio-Technica AT-XP7 Audiophile DJ Cartridge with Elliptical Stylus and Aluminum Tapered Pipe Cantilever

The Audio-Technica AT-XP7 is a premium DJ cartridge designed for audiophiles and professional DJs alike. With its robust polyphenylene sulfide (PPS) and glass fiber body, this cartridge offers exceptional durability and performance. It features a 0.3 x 0.7 mil elliptical stylus that accurately tracks record grooves, delivering outstanding audio reproduction. The AT-XP7 ensures a powerful output level of 6.0 mV, making it perfect for high-energy DJ performances. Its aluminum tapered pipe cantilever provides enhanced tracking stability and visibility, ensuring that you can focus on your mix without compromising sound quality.

Features

• High Output Level: 6.0 mV output for powerful sound delivery.
• Elliptical Stylus: 0.3 x 0.7 mil bonded stylus for precise tracking.
• Durable Construction: Made with a polyphenylene sulfide (PPS) and glass fiber body for long-lasting performance.
• Aluminum Tapered Cantilever: Enhances tracking stability and visibility of the stylus tip.
• Wide Frequency Response: Covers a range of 20 Hz to 20 kHz for rich audio fidelity.
• Adjustable Tracking Force: 2.0 to 4.0 g with a standard of 3.0 g, allowing for customization based on user preference.
• Half-Inch Mounting: Standard mounting feature compatible with most turntables.

Specifications

• Frequency Response: 20 - 20,000 Hz
• Channel Separation: 22 dB at 1 kHz
• Vertical Tracking Angle: 20°
• Vertical Tracking Force: 2.0 - 4.0 g (3.0 g standard)
• Stylus Construction: Bonded round shank
• Recommended Load Impedance: 47,000 ohms
• Coil Inductance: 1.0 H (1 kHz)
• DC Resistance: 990 ohms
• Output Channel Balance: 2.0 dB (1 kHz)
• Static Compliance: 20 x 10^-6 cm/dyne
• Dynamic Compliance: 8.0 x 10^-6 cm/dyne (100 Hz)
• Mounting: Half-inch
• Dimensions: 17.2 mm H x 17.8 mm W x 28.3 mm D
• Weight: 6.2 g
• Replacement Stylus: ATN-XP7
