Audio-Technica AT-XP5/H Audiophile DJ Cartridge with Elliptical Stylus, Carbon Fiber-Reinforced ABS Cantilever, and AT-HS6BK Headshell

The Audio-Technica AT-XP5/H is a premium audiophile DJ cartridge designed for vinyl enthusiasts and professional DJs alike. It features a dual moving magnet design that delivers high-fidelity sound with exceptional clarity and detail. The cartridge is equipped with an elliptical stylus that tracks the grooves of vinyl records with precision, resulting in improved frequency response and reduced distortion. The durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure reliable performance, making this cartridge ideal for both stage and club use. Pre-mounted on the AT-HS6BK headshell, the AT-XP5/H is easy to install and compatible with a variety of turntables.

Features

• High-Fidelity Sound: Dual moving magnet construction provides a rich and detailed sound experience.

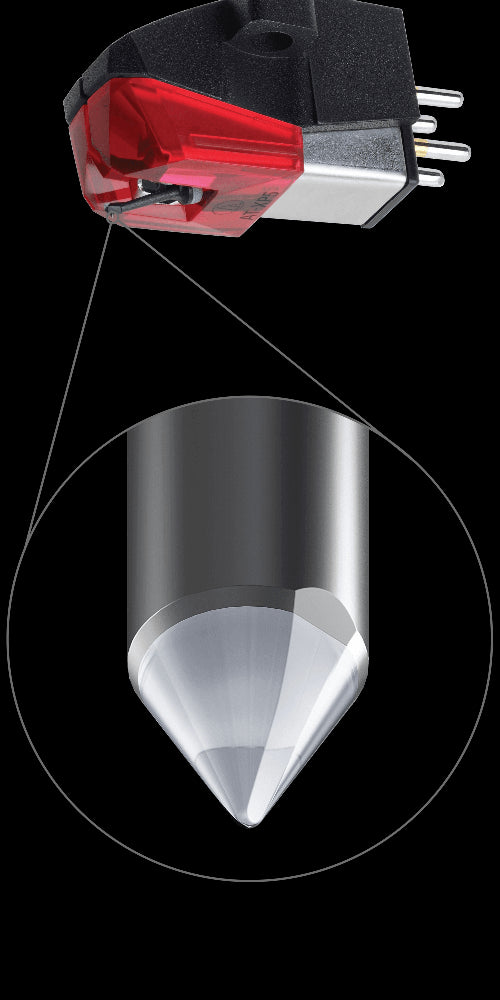

• Elliptical Stylus: The 0.3 x 0.7 mil elliptical bonded stylus tip tracks grooves with greater precision compared to conical styluses.
• Carbon Fiber-Reinforced Cantilever: Ensures durability and precise tracking for high-quality playback.
• Wide Frequency Response: Delivers sound frequencies from 20 Hz to 18 000 kHz, catering to a broad range of audio.
• Universal Mounting: Compatible with half-inch mount systems, making it versatile for various turntables.

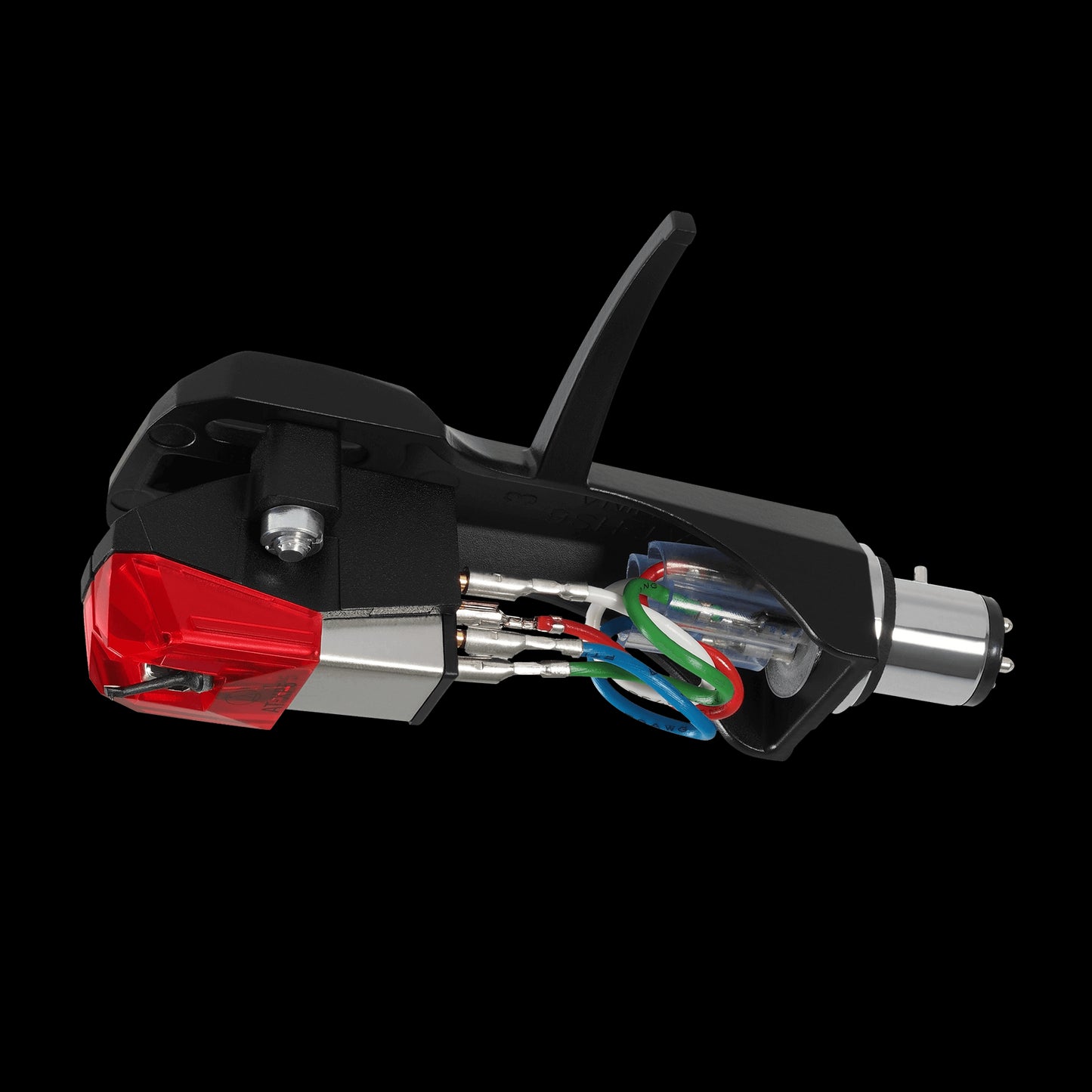

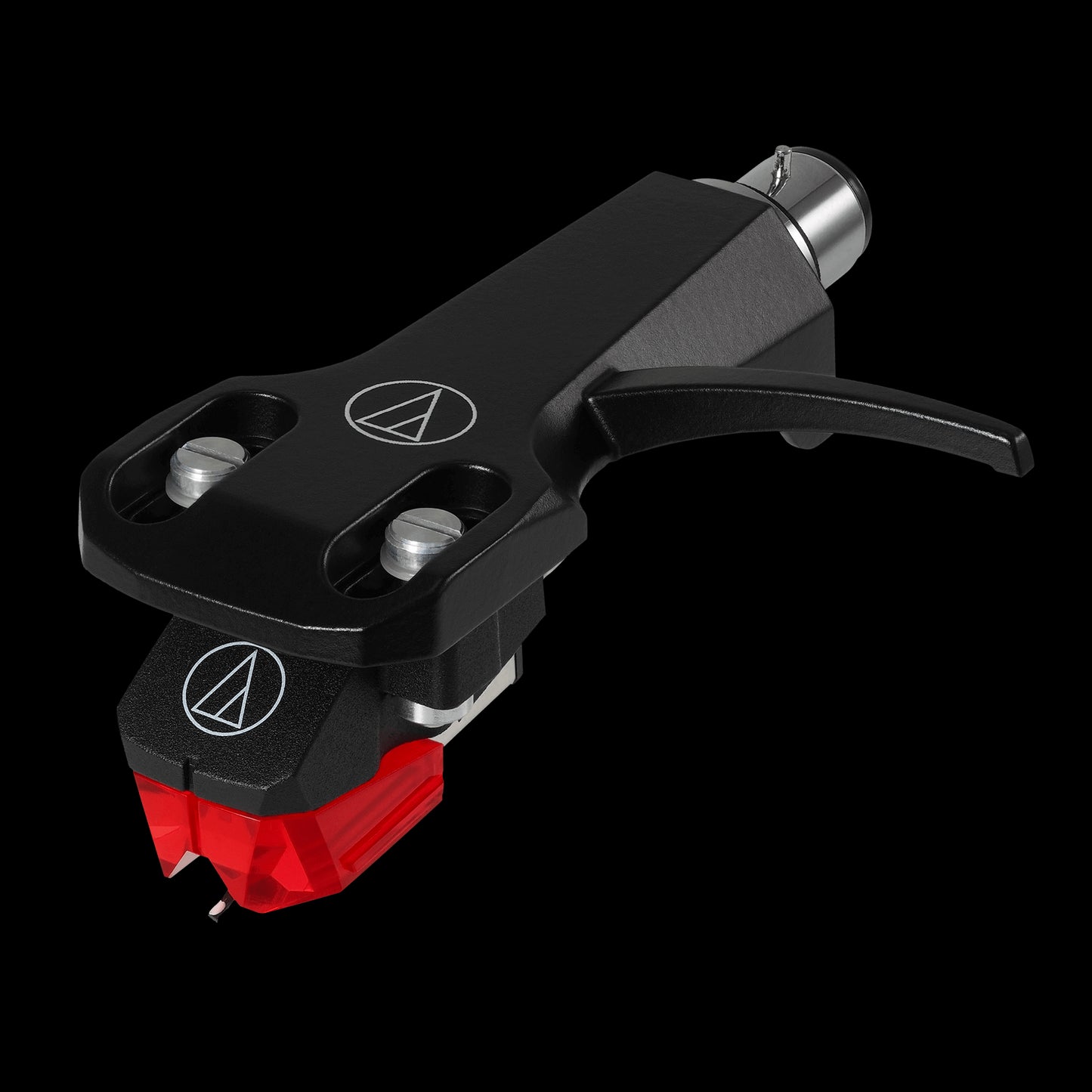

• Easy Installation: Comes pre-mounted on the AT-HS6BK headshell for quick and straightforward setup.
• Durable Design: Built to withstand the rigors of DJ performance while maintaining audio quality.

Specifications

• Frequency Response: 20 - 18,000 Hz
• Channel Separation: 20 dB (1 kHz)
• Vertical Tracking Angle: 20 degrees
• Vertical Tracking Force: 2.0 to 4.0 g (3.0 g standard)
• Stylus Construction: Bonded round shank
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 6.7 k ohms (1 kHz)
• DC Resistance: 990 ohms
• Coil Inductance: 1.0 H (1 kHz)
• Output Voltage: 5.5 mV (1 kHz, 5 cm/sec)
• Output Channel Balance: 2.0 dB (1 kHz)
• Stylus Shape: 0.3 x 0.7 mil elliptical
• Cantilever: Carbon fiber-reinforced ABS
• Static Compliance: 20 x 10 – 6 cm / dyne
• Dynamic Compliance: 6.0 x 10 – 6 cm / dyne (100 Hz)
• Mounting: Half-inch
• Cartridge Weight: 15.6 g
• Dimensions: 21.2 mm (H) x 21.4 mm (W) x 62.4 mm (D)
• Recommended Load Capacitance: 100 to 200 pF
• Replacement Stylus: ATN-XP5
