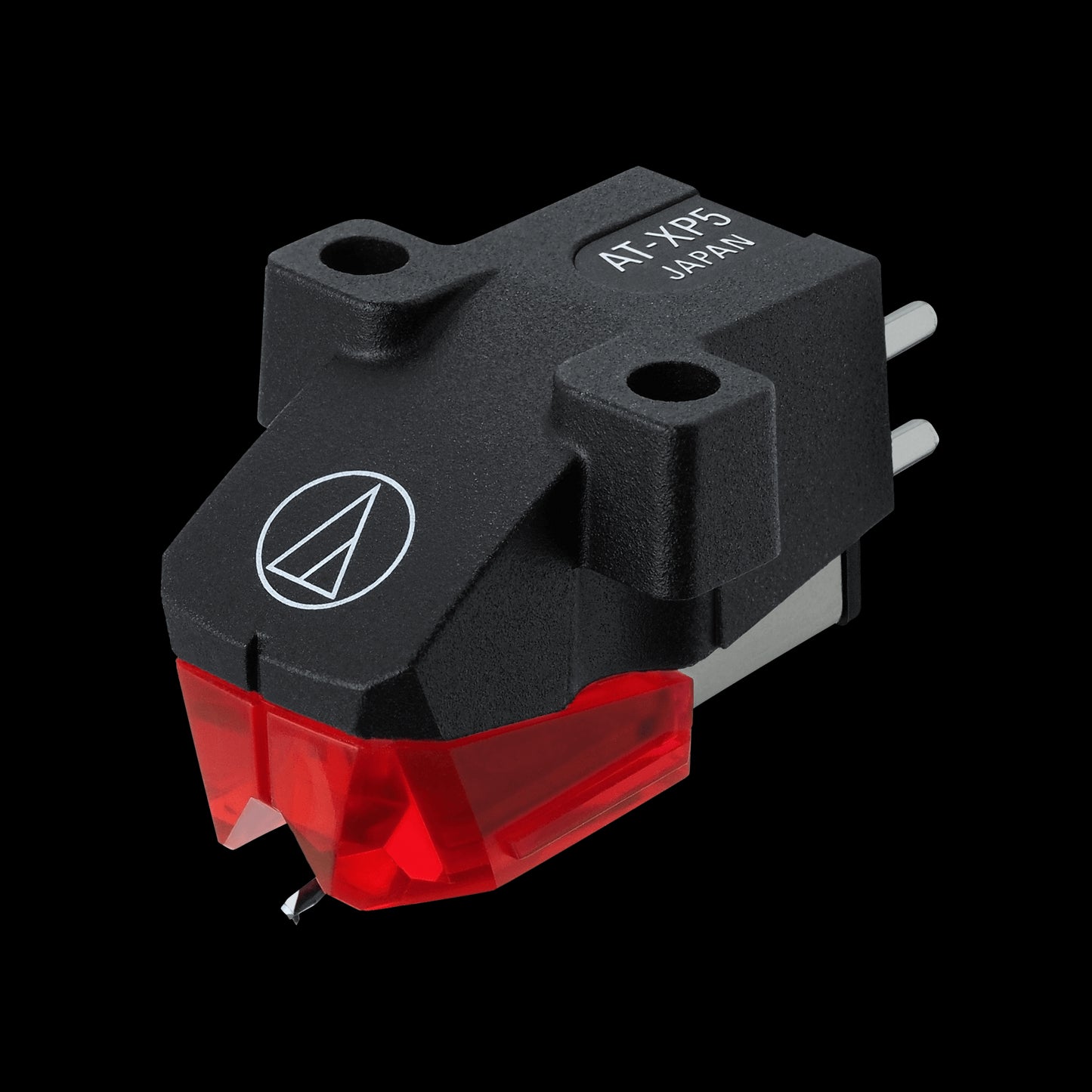

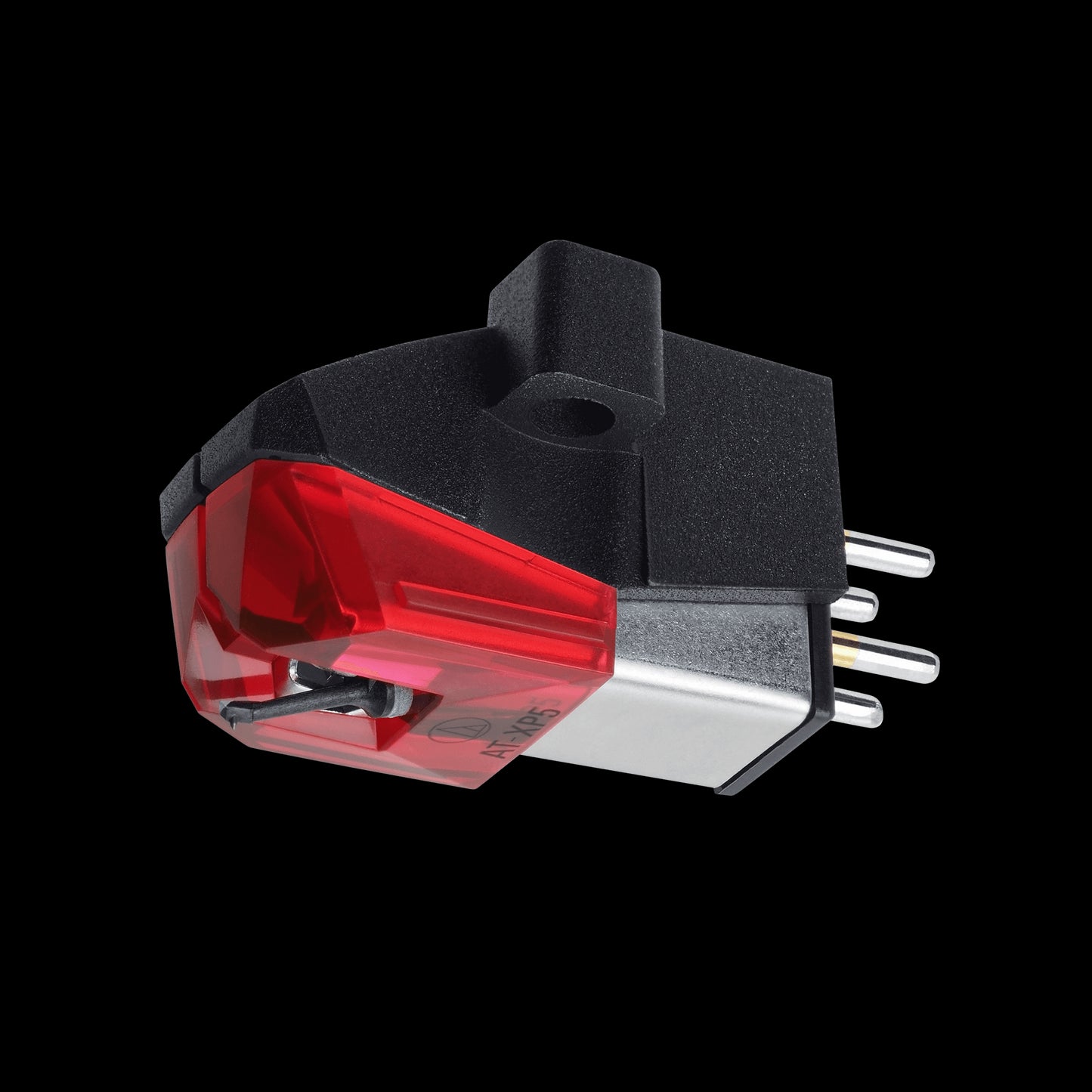

Audio-Technica AT-XP5 Audiophile DJ Cartridge with Elliptical Stylus and Carbon Fiber-Reinforced ABS Cantilever

The Audio-Technica AT-XP5 is a high-performance DJ cartridge designed to meet the rigorous demands of professional DJs. Featuring a dual moving magnet design, it delivers exceptional sound quality with a powerful output of 5.5 mV. Its elliptical stylus shape ensures precise tracking of the record groove, providing outstanding audio reproduction. The cartridge is constructed with a carbon fiber-reinforced ABS cantilever for enhanced durability and stability, making it ideal for both live performances and studio use.

Features

• Dual Moving Magnet Design: Offers excellent sound quality and performance for DJs.
• High Output Level: 5.5 mV output voltage ensures powerful sound delivery.
• Elliptical Stylus: 0.3 x 0.7 mil elliptical stylus shape for precise tracking and audio fidelity.
• Carbon Fiber-Reinforced ABS Cantilever: Enhances durability and stability during use.
• Wide Frequency Response: 20 Hz to 18 kHz, ensuring clarity across the audio spectrum.
• Vertical Tracking Force: Adjustable tracking force of 2.0 to 4.0 grams, with a standard setting of 3.0 grams.
• Easy Installation: Comes with all necessary accessories for hassle-free setup.

Specifications

• Frequency Response: 20 - 18,000 Hz
• Channel Separation: 20 dB at 1 kHz
• Vertical Tracking Angle: 20°
• Recommended Load Impedance: 47,000 ohms
• Coil Inductance: 1.0 H (1 kHz)
• Output Channel Balance: 2.0 dB
• Static Compliance: 20 x 10^-6 cm/dyne
• Dynamic Compliance: 6.0 x 10^-6 cm/dyne (100 Hz)
• Mounting: Half-inch
• Dimensions: 17.2 mm (H) x 17.8 mm (W) x 28.3 mm (D)
• Weight: 6.2 g
