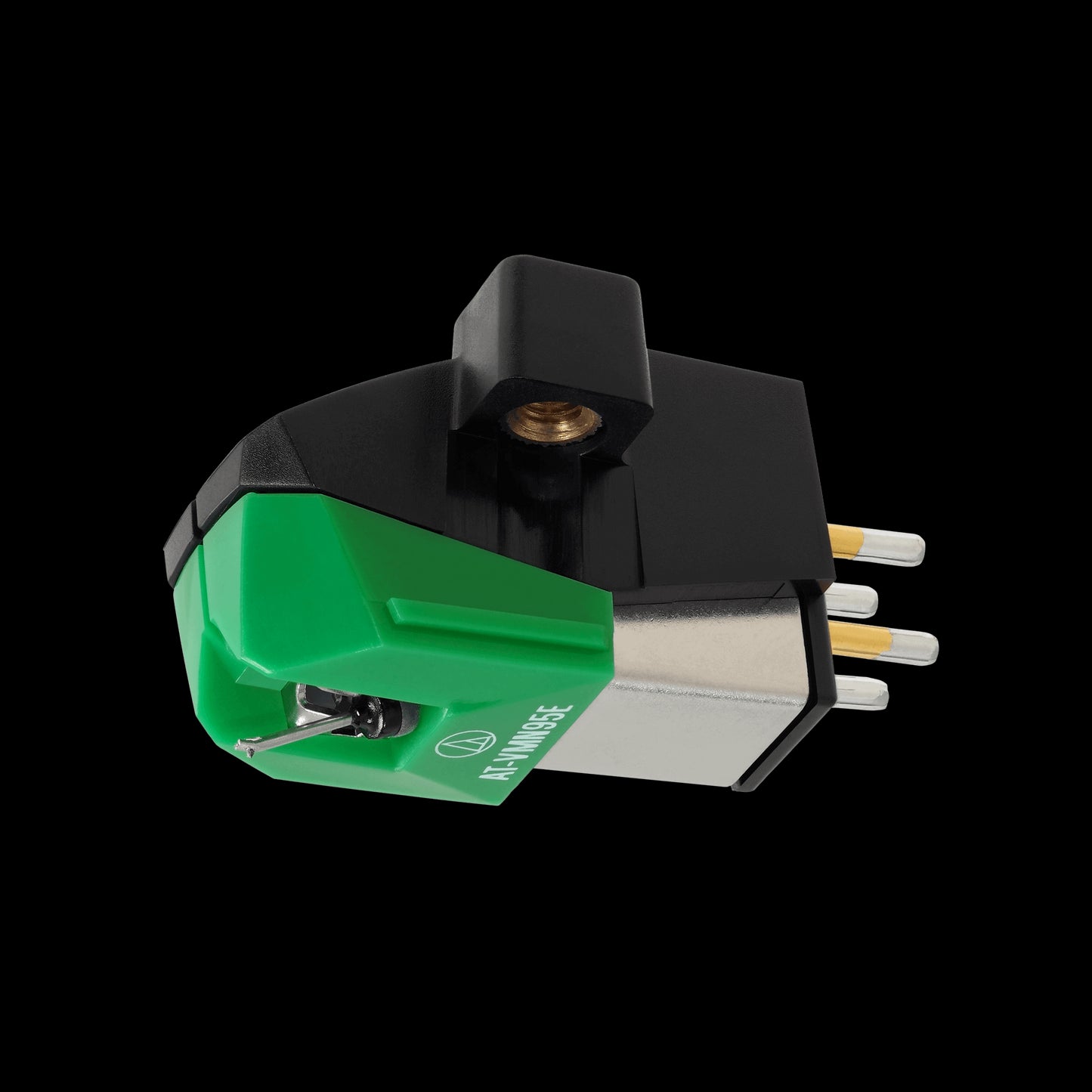

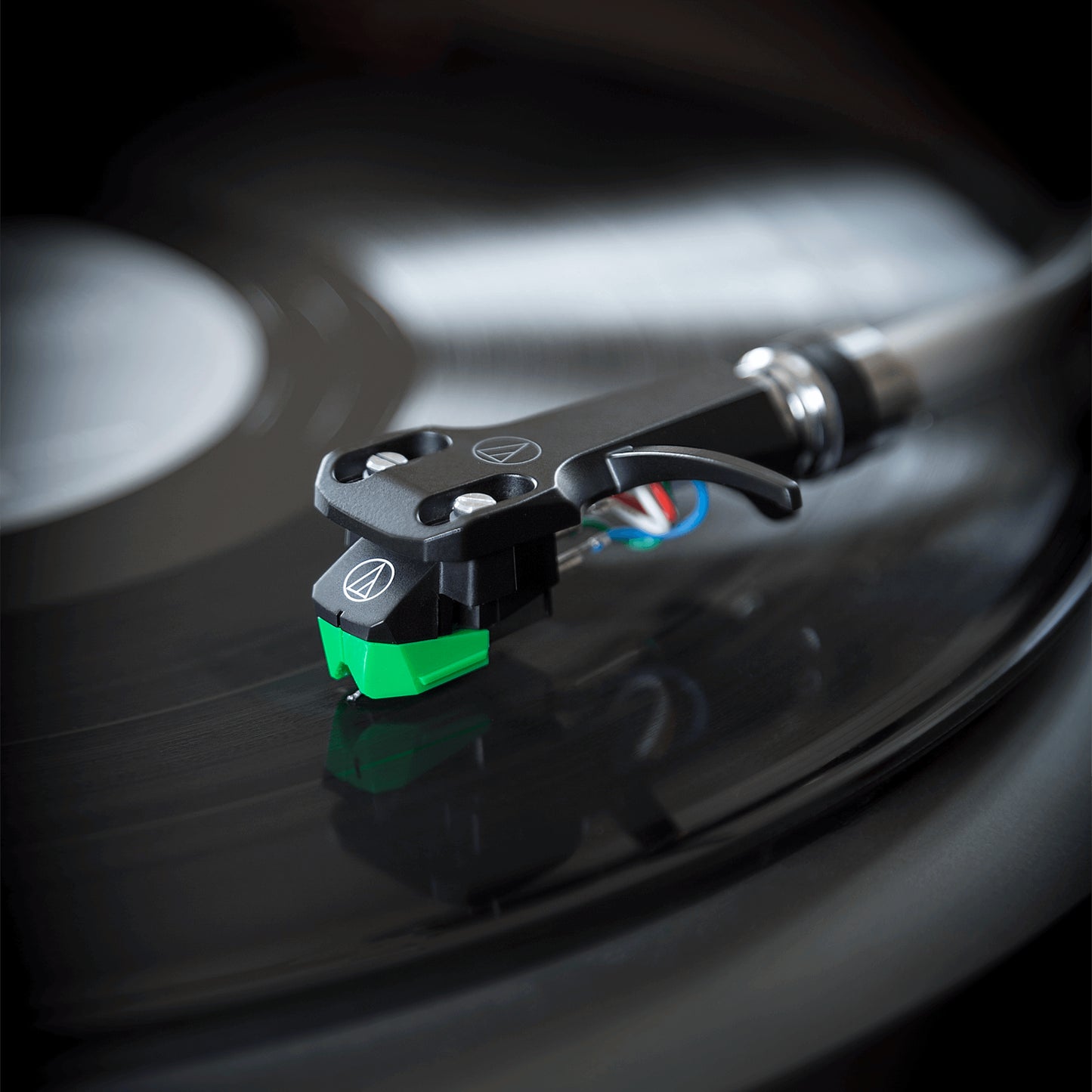

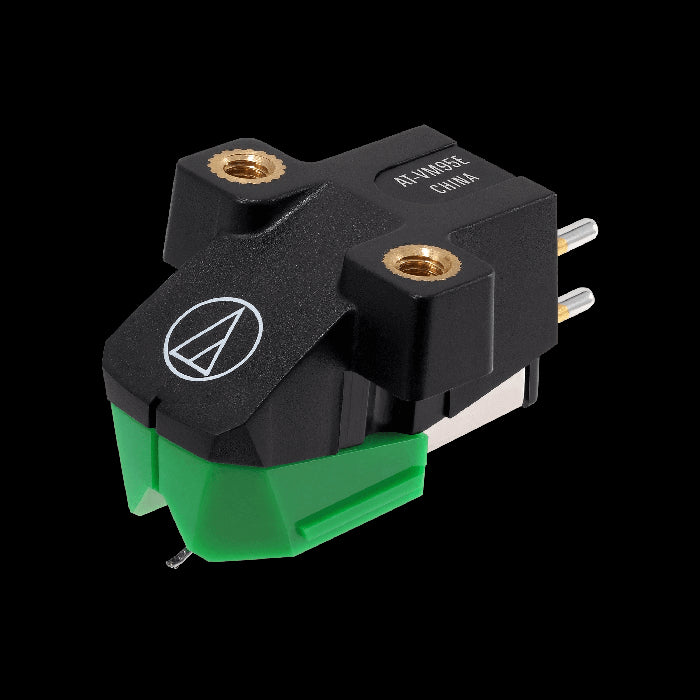

Audio-Technica AT-VM95E Cartridge with Elliptical Stylus

The Audio-Technica AT-VM95E is a high-performance dual moving magnet cartridge featuring a 0.3 x 0.7 mil elliptical stylus, designed for half-inch mount turntables. This cartridge delivers an impressive output level of 4.0 mV, ensuring high fidelity playback with excellent tonal quality. Its durable low-resonance housing and threaded inserts allow for easy installation, while the interchangeable stylus system offers flexibility for future upgrades.

Features

• Dual Moving Magnet Design: Provides superior sound quality and performance.
• Elliptical Stylus: 0.3 x 0.7 mil shape for improved tracking and reduced distortion.
• High Output Voltage: Delivers 4.0 mV output for strong signal levels.
• Easy Installation: Threaded inserts allow for mounting with just two screws, no nuts required.
• Interchangeable Stylus: Compatible with all VM95 Series stylus assemblies for versatile upgrades.
• Durable Construction: Low-resonance polymer housing minimizes unwanted vibrations.

Specifications

• Frequency Response: 20 - 22,000 Hz
• Channel Separation: 20 dB at 1 kHz
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8 - 2.2 g (2.0 g standard)
• Stylus Construction: Bonded round shank
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 3.3 k ohms (1 kHz)
• DC Resistance: 485 ohms
• Output Channel Balance: 2.0 dB (1 kHz)
• Static Compliance: 17 x 10^-6 cm/dyne
• Dynamic Compliance: 7 x 10^-6 cm/dyne (100 Hz)
• Cartridge Weight: 6.1 g
• Dimensions: 17.2 mm (H) x 18.9 mm (W) x 28.3 mm (D)
• Replacement Stylus: AT-VMN95E
