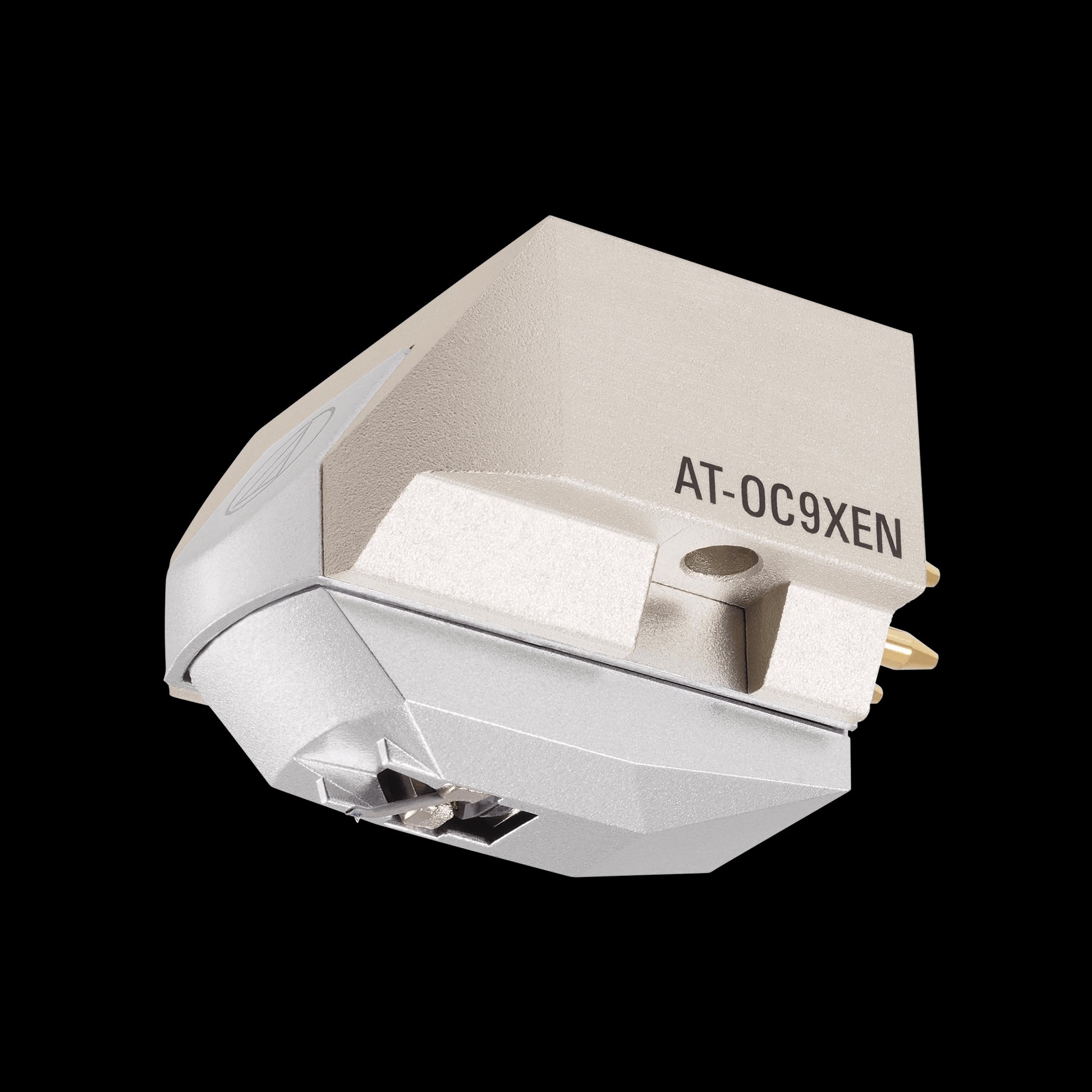

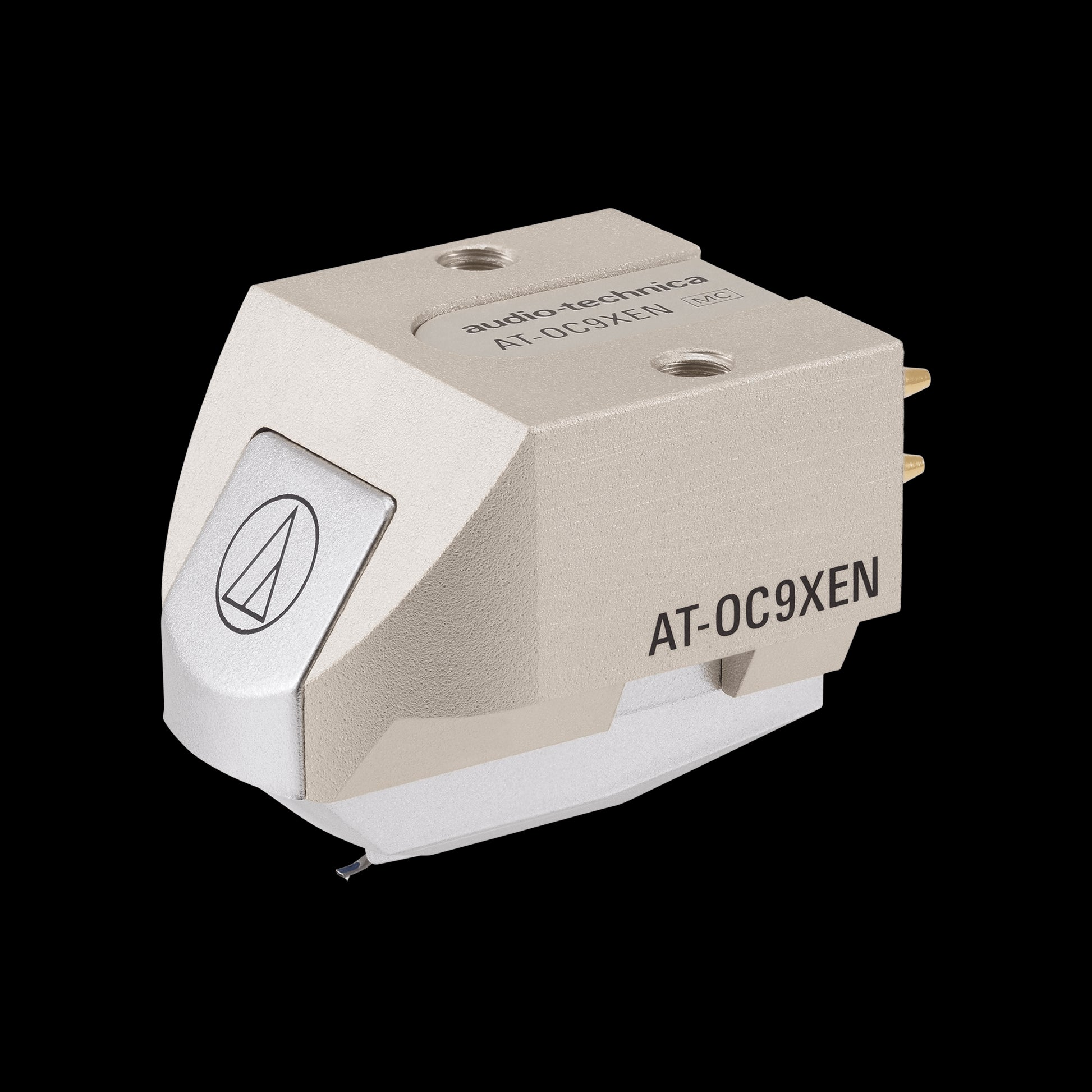

Audio-Technica AT-OC9XEN Dual Moving Coil Cartridge with Elliptical Nude Stylus

The Audio-Technica AT-OC9XEN Dual Moving Coil cartridge is engineered to deliver superior audio performance with exceptional channel separation. Featuring Pure Copper by Ohno Continuous Casting (PCOCC) coils, a rigid aluminum body, and a low-mass nude elliptical stylus, it ensures minimal distortion and accurate tracking of record grooves. This cartridge is an ideal choice for audiophiles seeking high-fidelity sound reproduction.

Features

• Outstanding Channel Separation: Designed to provide superior separation between audio channels for a clearer soundstage.
• High-Quality PCOCC Coils: Utilizes Pure Copper by Ohno Continuous Casting coils for enhanced audio transmission and reduced distortion.
• Rigid Aluminum Body: Constructed to minimize resonance and improve overall sound quality.
• Nude Elliptical Stylus: Features a low-mass nude elliptical stylus that accurately tracks the record groove, ensuring high fidelity.

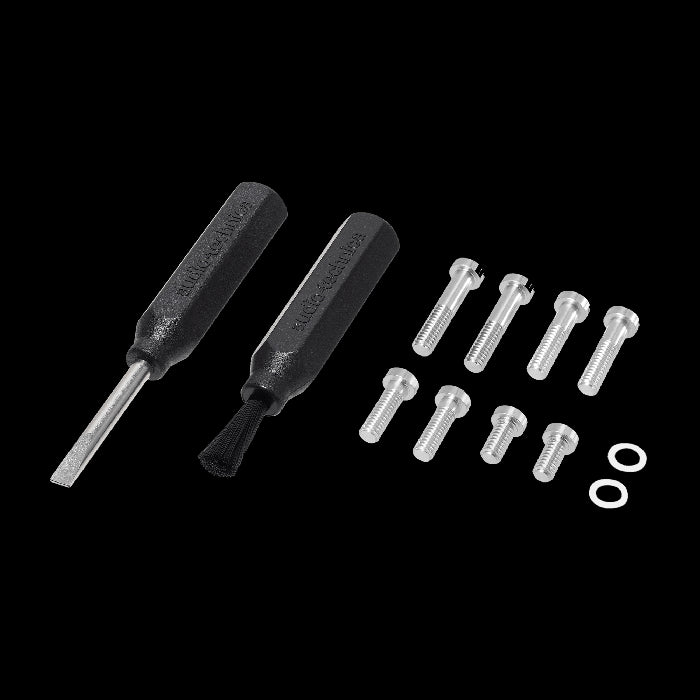

• Easy Installation: Pre-threaded cartridge body allows for simple mounting to headshells or tonearms with just two screws.
• Non-Field Replaceable Stylus: Stylus assembly is not field-replaceable, but Audio-Technica offers a Moving Coil Exchange Program for servicing.

Specifications

• Frequency Response: 20 Hz - 30 kHz
• Channel Separation: 25 dB (1 kHz)
• Vertical Tracking Angle: 20°
• Vertical Tracking Force: 1.8 - 2.2 g (2.0 g standard)
• Stylus Shape: Elliptical nude
• Coil Impedance: 12 ohms (1 kHz)
• Output Voltage: 0.35 mV (at 1 kHz, 5 cm/sec)
• Cartridge Weight: 7.6 g
• Dimensions: 17.3 mm (H) x 16.8 mm (W) x 25.7 mm (D)
• Body Material: Aluminum
