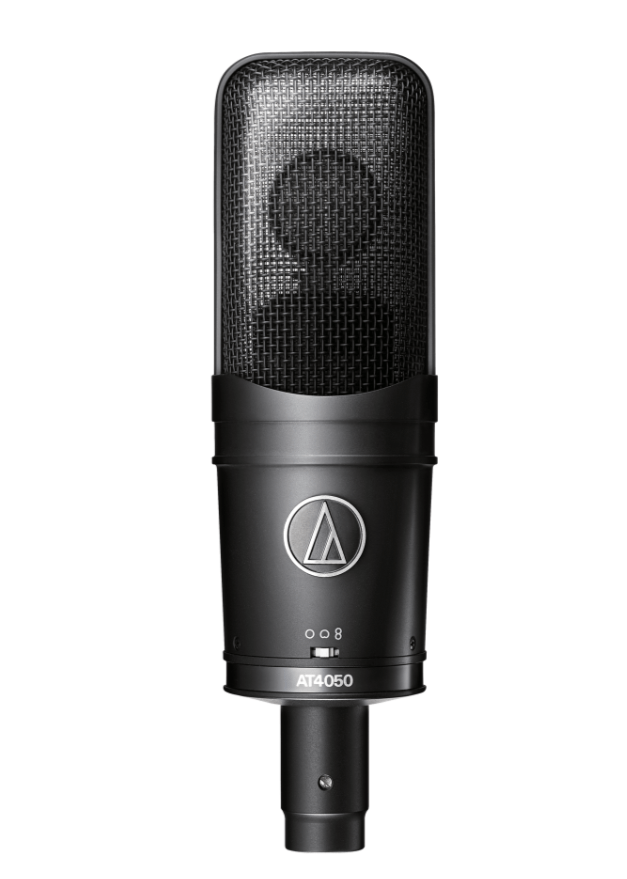

Audio-Technica AT-4050 - Multi-pattern Condenser Side-Address Microphone

 Overview

The AT4050 is Audio-Technica’s classic studio condenser vocal microphone, offering clean, crisp, and accurate sound reproduction. Its large diaphragm and dual-diaphragm capsule design ensure precise polar pattern definition and consistent performance. The microphone's switchable polar patterns—cardioid, omnidirectional, and figure-of-eight—provide versatility for various recording scenarios. Hand-assembled and inspected for quality control, the AT4050 is perfect for capturing vocals, piano, strings, drum overheads, guitar amps, and more.

Features

• Versatile Polar Patterns: Switchable between cardioid, omnidirectional, and figure-of-eight for diverse recording options.
• Clean, Crisp, and Accurate Sound: Transparent upper/mid frequencies and rich low-end qualities for detailed audio capture.
• Dual-Diaphragm Capsule: Maintains precise polar pattern definition across the full frequency range.
• Transformerless Circuitry: Virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients.
• Rugged and Durable: Built to withstand extended use in both studio and live environments.
• High SPL Handling: Can handle high sound pressure levels, making it suitable for loud sound sources.
• Switchable 80 Hz Hi-Pass Filter and 10 dB Pad: Enhances versatility for different recording settings.

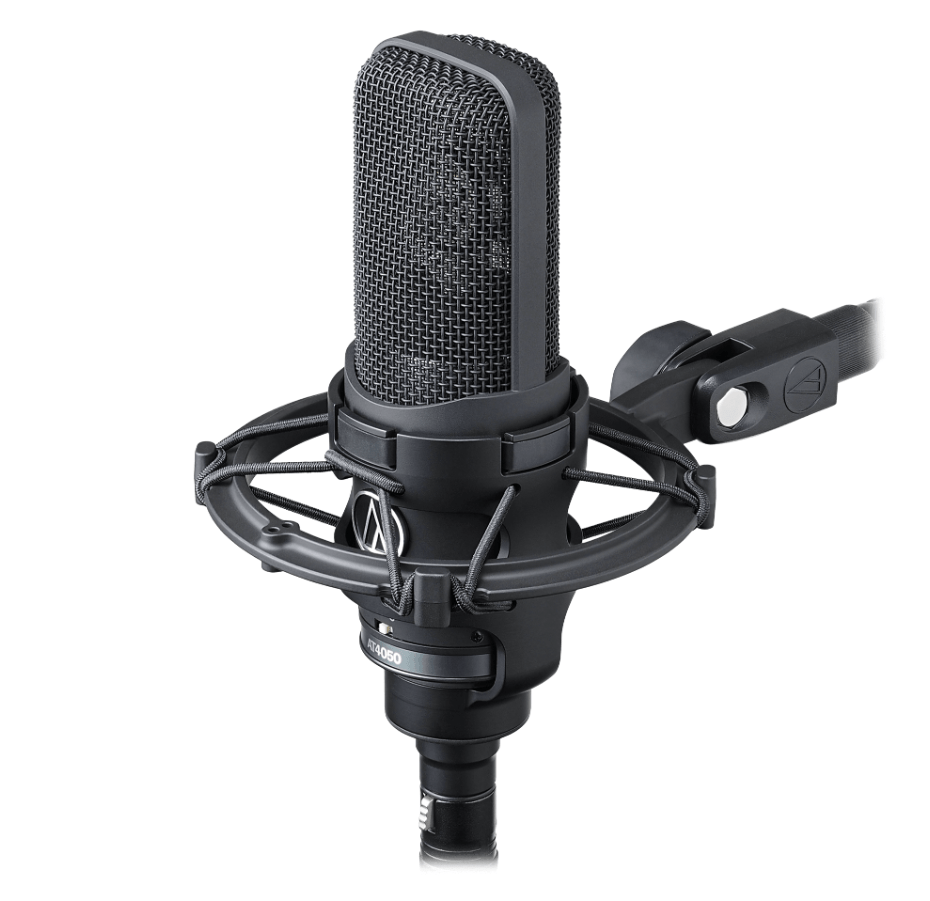

• Custom Shock Mount: Provides superior isolation, reducing noise, shock, and vibration.
• Hand-Assembled: Ensures 100% quality control for reliable performance.

Specifications

• Element: Externally-polarized (DC bias) condenser
• Polar Pattern: Cardioid, Omnidirectional, Figure-of-eight, Multi-pattern
• Frequency Response: 20 - 18,000 Hz
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -36 dB (15.8 mV), re 1V at 1 Pa
• Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)
• Dynamic Range: 132 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 77 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 4.2 mA typical
• Weight: 510g
• Dimensions: 188.0 mm (7.40") long, 53.4 mm (2.10") maximum body diameter

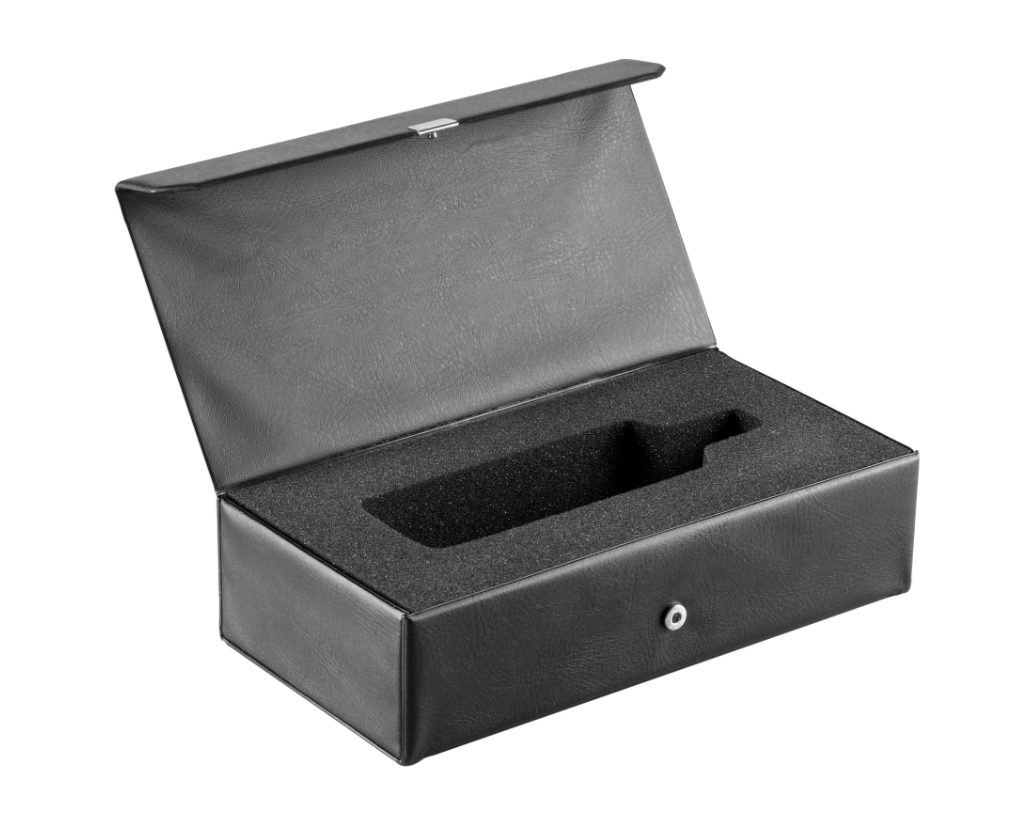

• Accessories Included: AT8449a shock mount for 5/8"-27 threaded stands, protective carrying case
