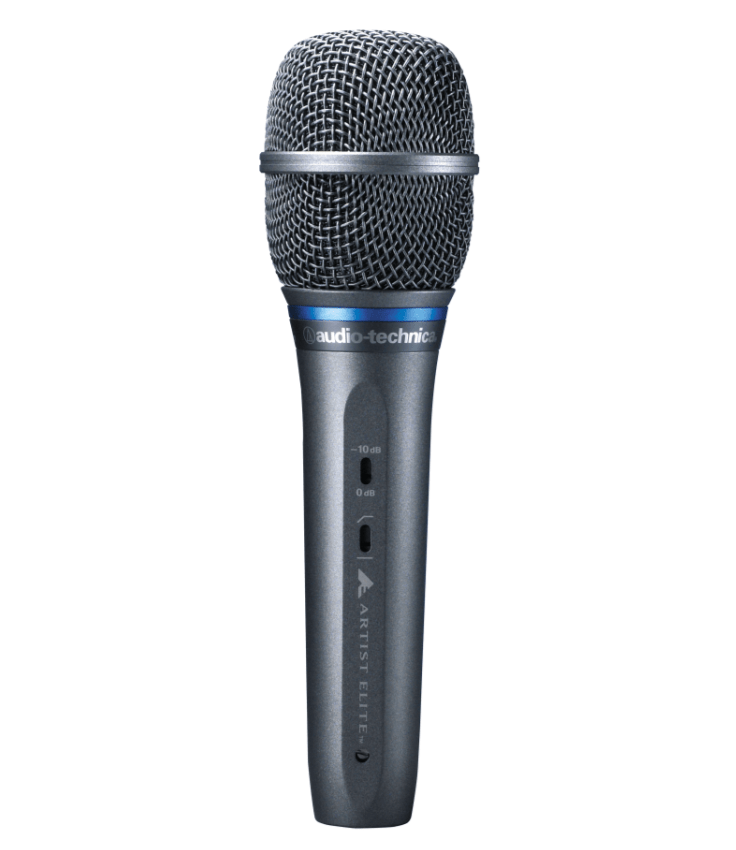

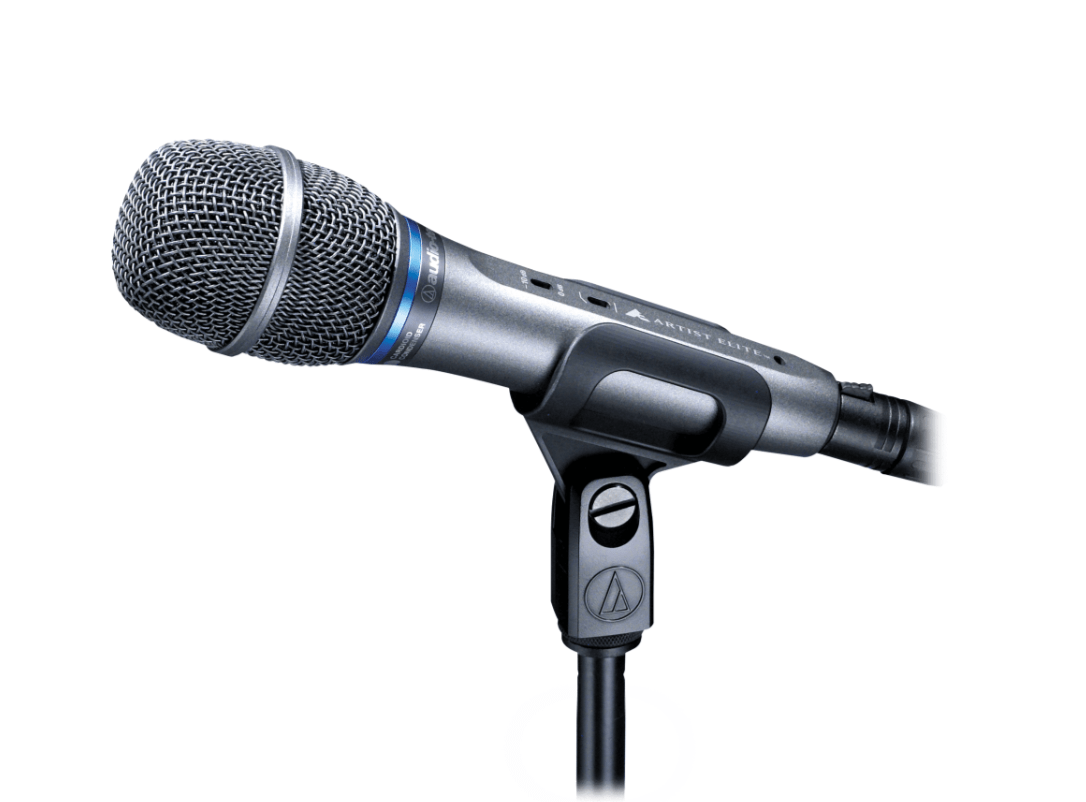

Audio-Technica AE5400 - Cardioid Condenser Vocal Microphone

Overview

The Audio - Technica AE5400 Cardioid Condenser Handheld Vocal Microphone is the ultimate vocal performance instrument, delivering pristine sound quality demanded by the most discriminating microphone users. Featuring the same large - diaphragm element as the renowned AT4050 studio microphone, the AE5400 ensures it captures every nuance with natural, accurate response. Superior anti - shock engineering minimizes handling noise, while the multi - stage grille design offers excellent protection against plosives and sibilance without compromising high - frequency clarity. Its robust design ensures enduring dependability on the road, making it ideal for concert stages, broadcast, and houses of worship.

Features

• Pristine Sound Quality: Delivers clear and natural sound demanded by top vocalists.
• Same Element as AT4050 Studio Microphone: Ensures accurate and detailed sound capture.
• Superior Anti-Shock Engineering: Minimizes handling noise for quiet performance.
• Multi-Stage Grille Design: Offers excellent protection against plosives and sibilance.
• Cardioid Polar Pattern: Reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.
• Custom Transformer: Isolates against noise and RF interference, contributing to smooth linear sound quality.
• Integral 80 Hz HPF Switch and 10 dB Pad: Provides flexibility for different sound environments.
• Robust Design: Ensures durability and reliability for touring and live performances.

Specifications

• Element: Externally polarized (DC Bias) condenser
• Polar Pattern: Cardioid
• Frequency Response: 20-20,000 Hz
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -40 dB (10.0 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 147 dB SPL, 1 kHz at 1% T.H.D.; 157 dB SPL, with 10 dB pad (nominal)
• Noise: 14 dB SPL
• Dynamic Range: 133 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 80 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 4 mA typical
• Switches: High-pass filter; 10 dB pad (nominal)
• Weight: 330 g
• Dimensions: 179.0 mm long, 50.0 mm head diameter, 33.0 mm to 22.0 mm tapered body diameter
• Output Connector: Integral 3-pin XLRM-type

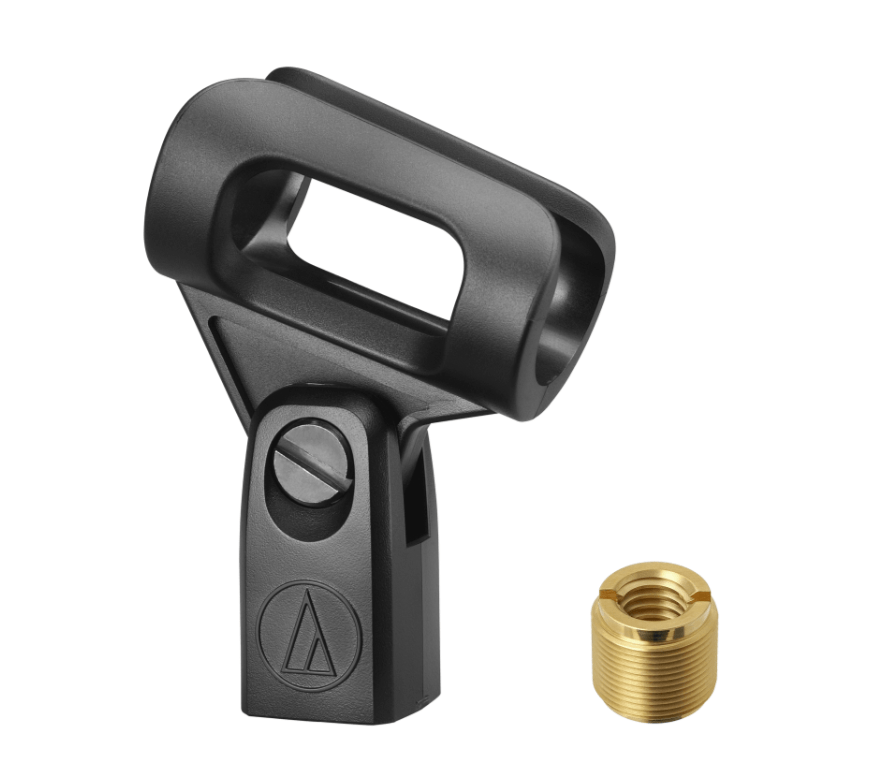

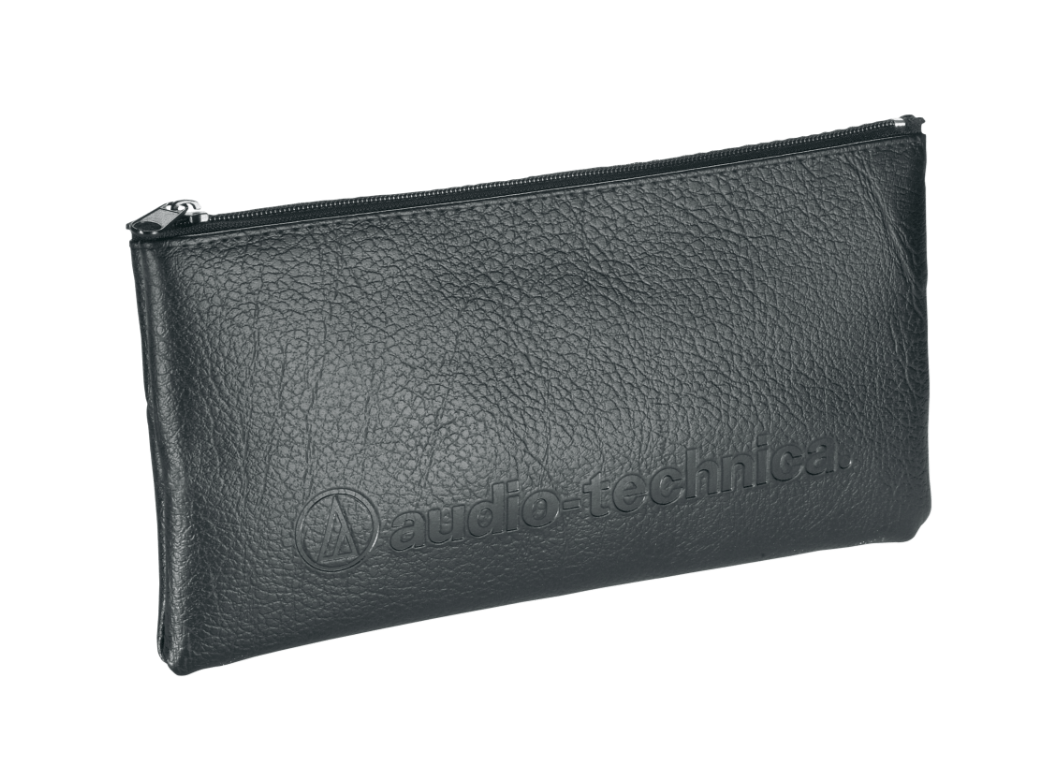

• Accessories Included: AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
• Audio-Technica Case Style: T4
