Audac WaveDynamics quad-channel power amplifier 4 x 1250W

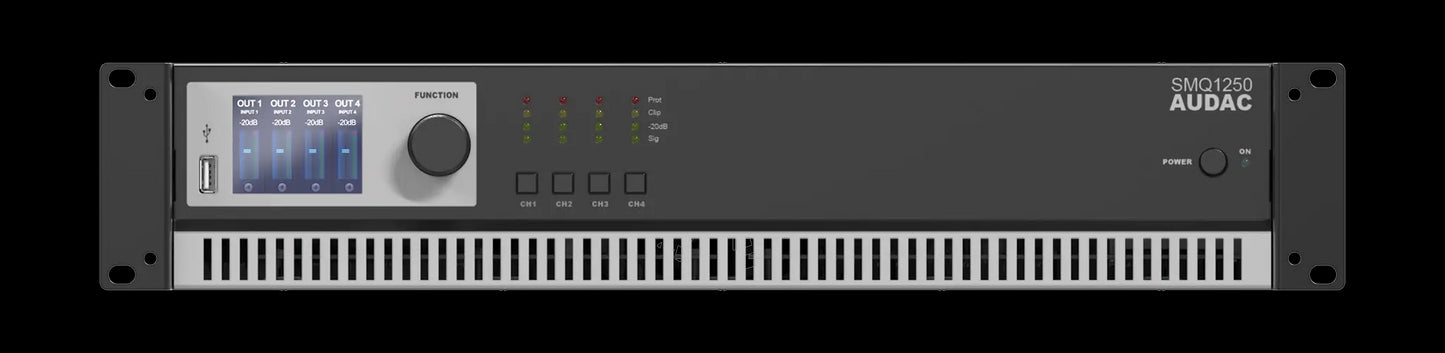

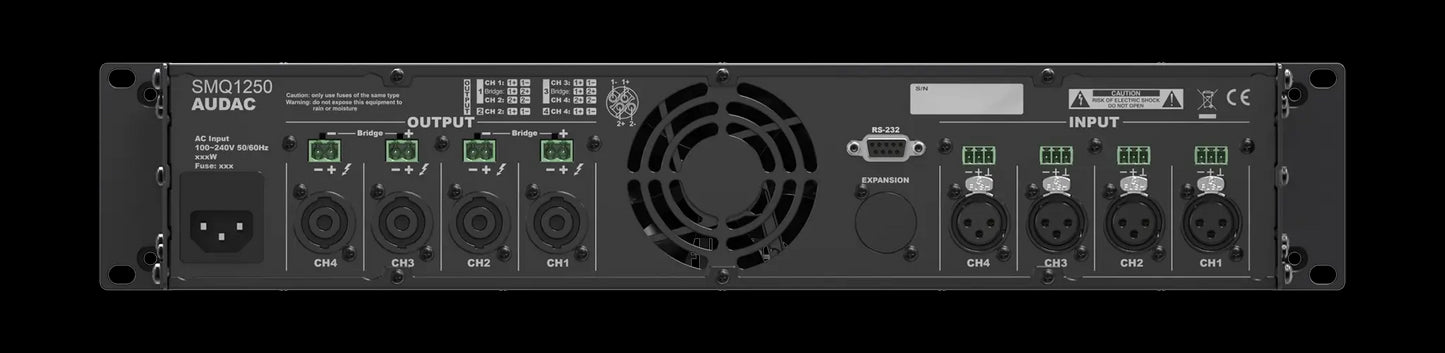

The Audac WaveDynamics SMQ1250 is a high-performance quad-channel power amplifier delivering 4 x 1250W at 4Ω, designed for both fixed and mobile audio installations. With advanced DSP capabilities, intuitive controls, and robust protection features, it ensures optimal sound quality and system reliability.

Features

• Quad-Channel Amplification: Delivers powerful audio performance with 4 x 1250W output at 4Ω, ideal for diverse applications.
• WaveDynamics™ DSP Processor: Offers advanced signal processing capabilities for superior audio management.
• User-Friendly Interface: 2.5" LCD display with intuitive controls for easy configuration and monitoring.
• Customizable Equalization: 7-band parametric equalizer with adjustable frequencies and Q-factor for tailored sound.
• Multiple Filter Options: Includes Butterworth, Bessel, and Linkwitz-Riley filters for precise audio tuning.
• Flexible Input Selection: Input matrix allows easy routing and configuration of audio sources.
• Dante™ Compatibility: Optional Dante™ interface for high-quality audio transmission over Ethernet.
• Robust Loudspeaker Protection: Features output power limiter and customizable maximum output settings to prevent speaker damage.
• Dual-Level Access Control: User and administrator levels for secure configuration management.
• Lightweight and Efficient: Class-D technology and switching mode power supply ensure portability and energy efficiency.

Specifications

• RMS Power Output @ 4Ω: 4 x 1250W
• RMS Power Output @ 8Ω: 4 x 630W
• Bridge Power Output @ 8Ω: 2 x 2500W
• Frequency Response: 20 Hz - 20 kHz (± 3 dB)
• Signal-to-Noise Ratio: > 95 dB
• Total Harmonic Distortion (THD+N) @ 1 kHz: < 0.05%
• Crosstalk @ 1 kHz: > 70 dB
• Cooling: Temperature controlled fan
• Operating Temperature: 0° ~ 40° @ 95% Humidity
• Power Supply: 220 ~ 240 V AC / 50 ~ 60 Hz
• Dimensions (W x H x D): 480 x 88 x 420 mm
• Weight: 9.75 kg
• Mounting: 19" rack mountable, 2 HE
