AUDAC SMQ500 WaveDynamics™ Quad-Channel Power Amplifier 4 x 500W

The AUDAC SMQ500 is a cutting-edge quad-channel power amplifier that delivers 4 x 500W of robust audio amplification, ideal for both fixed and mobile audio installations. Featuring WaveDynamics™ DSP technology and an intuitive 2.5” LCD display, this amplifier offers unparalleled control over your audio experience, with customizable configurations for optimal sound performance.

Features

• Quad-Channel Output: Provides 4 x 500W at 4Ω, ensuring powerful audio delivery.
• WaveDynamics™ DSP Technology: Advanced digital signal processing for superior sound quality and management.

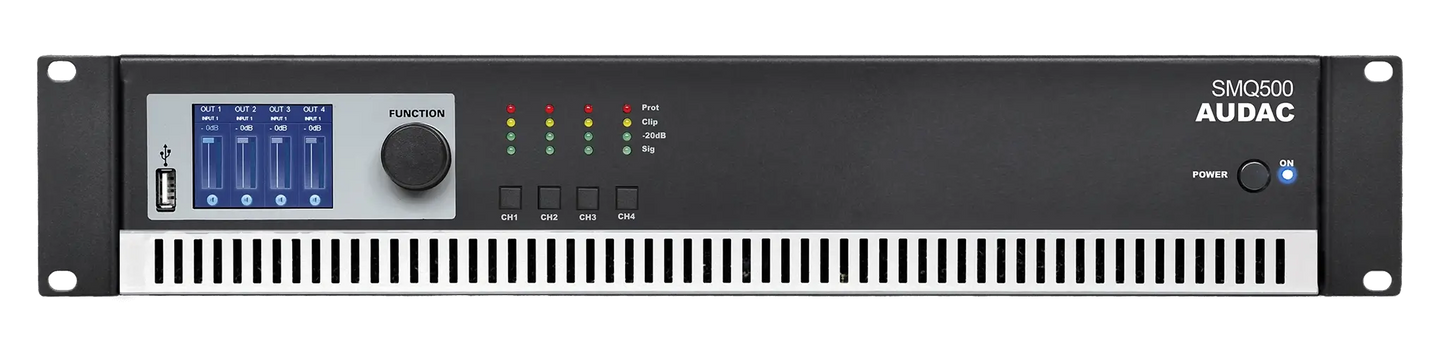

• User-Friendly Interface: 2.5” LCD display with intuitive controls for easy configuration.
• Flexible Acoustics Management: Optimizable with Butterworth, Bessel, and Linkwitz-Riley filters, along with a 7-band equalizer.
• Custom Configuration: Allows for user and administrator access levels with password or USB-key protection.
• Loudspeaker Protection: Output power limiter prevents damage to connected speakers.

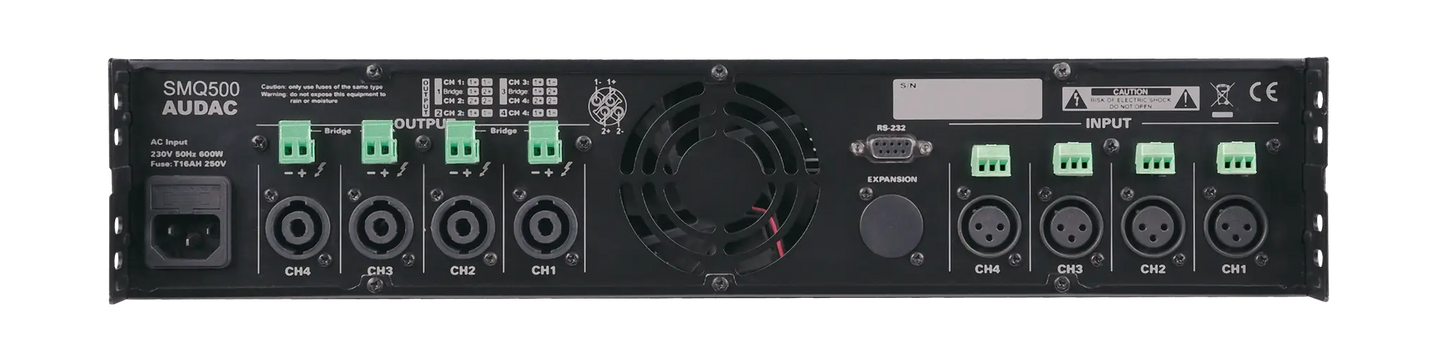

• Input Selection Matrix: Supports XLR and terminal block connections for versatile input options.
• Dante™ Interface Ready: Optional expansion for low-latency, high-quality audio over Ethernet.

Specifications

• RMS Power @ 4Ω Stereo: 4 x 500W
• RMS Power @ 8Ω Stereo: 4 x 300W
• RMS Power @ 8Ω Bridge: 2 x 1000W
• Frequency Response: 20 Hz - 20 kHz (± 3 dB)
• Signal to Noise Ratio: > 95 dB
• Total Harmonic Distortion (THD+N) @ 1 kHz: < 0.05% (1/2 Rated Power)
• Crosstalk @ 1 kHz: > 70 dB
• Technology: Class-D
• Input Sensitivity: -19.5 dB ~ 27 dB
• Input Impedance: 10 kΩ balanced
• Output Connector: Speakon compatible & 2-pin Euro Terminal Block (5.08 mm)
• Protection: Overheating, overload, signal limiting, and loudspeaker power limiter
• Operating Temperature: 0° ~ 40° @ 95% Humidity
