Audac Sixteen-channel Class-D amplifier 16 x 60W

The Audac DPA616 is a professional-grade sixteen-channel Class-D amplifier, engineered to deliver exceptional audio performance for multi-zone audio distribution systems. With a power output of 60 Watts per channel at 4 Ohms, and the ability to bridge channels for up to 120 Watts at 8 Ohms, this amplifier is perfect for installations requiring robust sound in various environments such as bars, restaurants, and corporate settings. Its straightforward design, featuring essential controls and connections, ensures ease of use and installation, making it an ideal choice for both professionals and enthusiasts.

Features

• High Power Output: Delivers 60W per channel at 4 Ohms, and 120W when bridged at 8 Ohms.

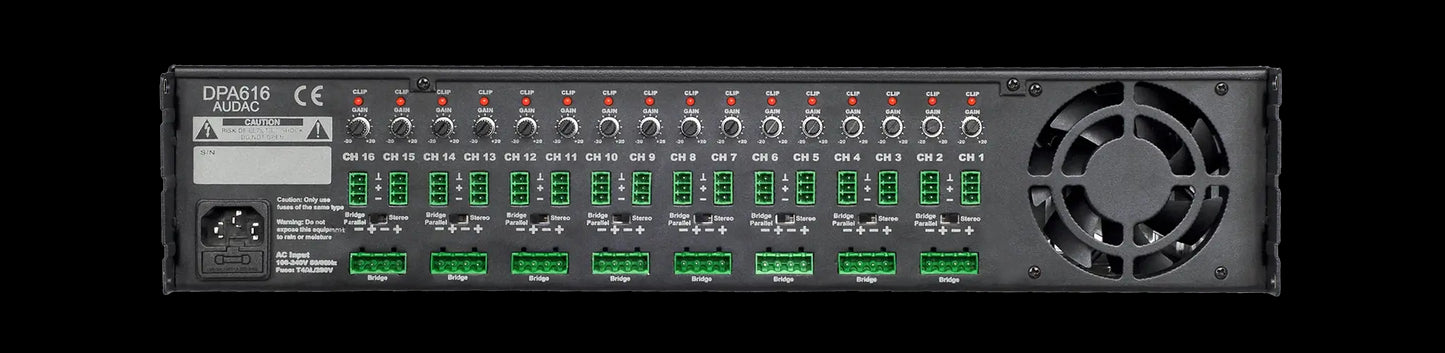

• Simple Installation: Designed with 3-pin Terminal block connectors for balanced input signals and 4-pin connectors for outputs, facilitating easy setup.
• Individual Gain Control: Each channel is equipped with a separate gain control potentiometer for precise audio management.
• Bridging Capability: Features stereo/bridge & parallel switches for flexible channel linking, reducing cable clutter.
• Built-in Protection Circuit: Safeguards against DC malfunction, short circuits, overheating, and overload, ensuring reliable operation.
• Compact Design: Housed in a double rack space, steel 19” rack mount chassis, suitable for professional environments.
• Wide Frequency Response: Operates effectively from 20 Hz to 20 kHz, providing clear and detailed audio reproduction.
• Low Total Harmonic Distortion: Maintains sound integrity with THD+N levels below 0.1% at 1 kHz.

Specifications

• Power Handling @ 4 Ω Stereo: 16 x 60 W
• Power Handling @ 8 Ω Bridge: 8 x 120 W
• Power Handling @ 8 Ω Stereo: 16 x 30 W
• Frequency Response: 20 Hz - 20 kHz (± 3 dB)
• Signal-to-Noise Ratio: > 100 dB
• Total Harmonic Distortion + Noise: < 0.1% at 1 kHz
• Input Sensitivity: -20 dB ~ +20 dB
• Input Connector: 3-pin Euro Terminal Block (Pitch - 3.81 mm)
• Output Connector: 4-pin Euro Terminal Block (Pitch - 5.08 mm)
• Power Supply: Switching mode, 100 ~ 240 V AC / 50 ~ 60 Hz
• Operating Temperature: 0° ~ 40° @ 95% Humidity
• Dimensions: 482 x 88 x 322 mm (W x H x D)
• Weight: 8.2 kg
• Construction: Steel
• Colour: Black
