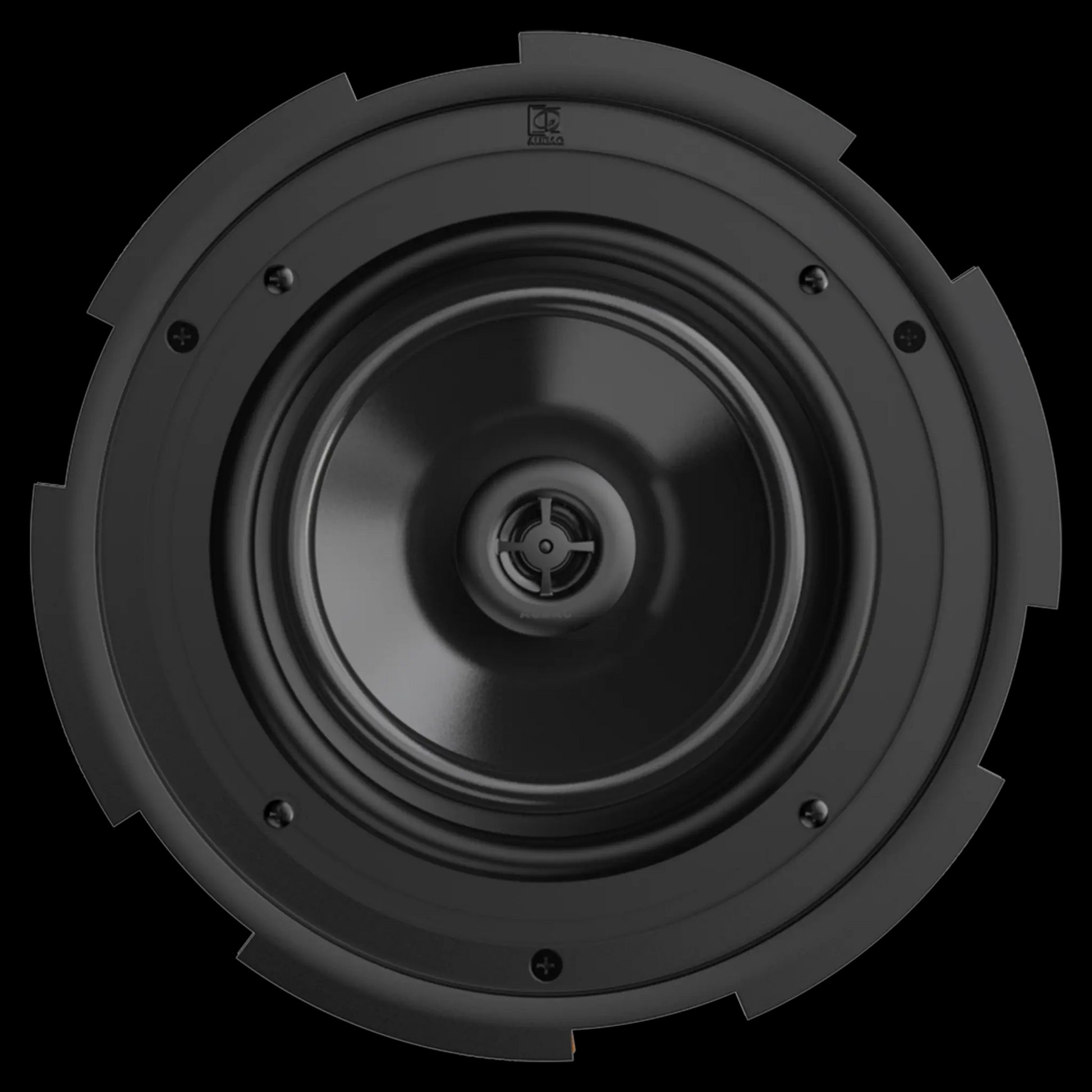

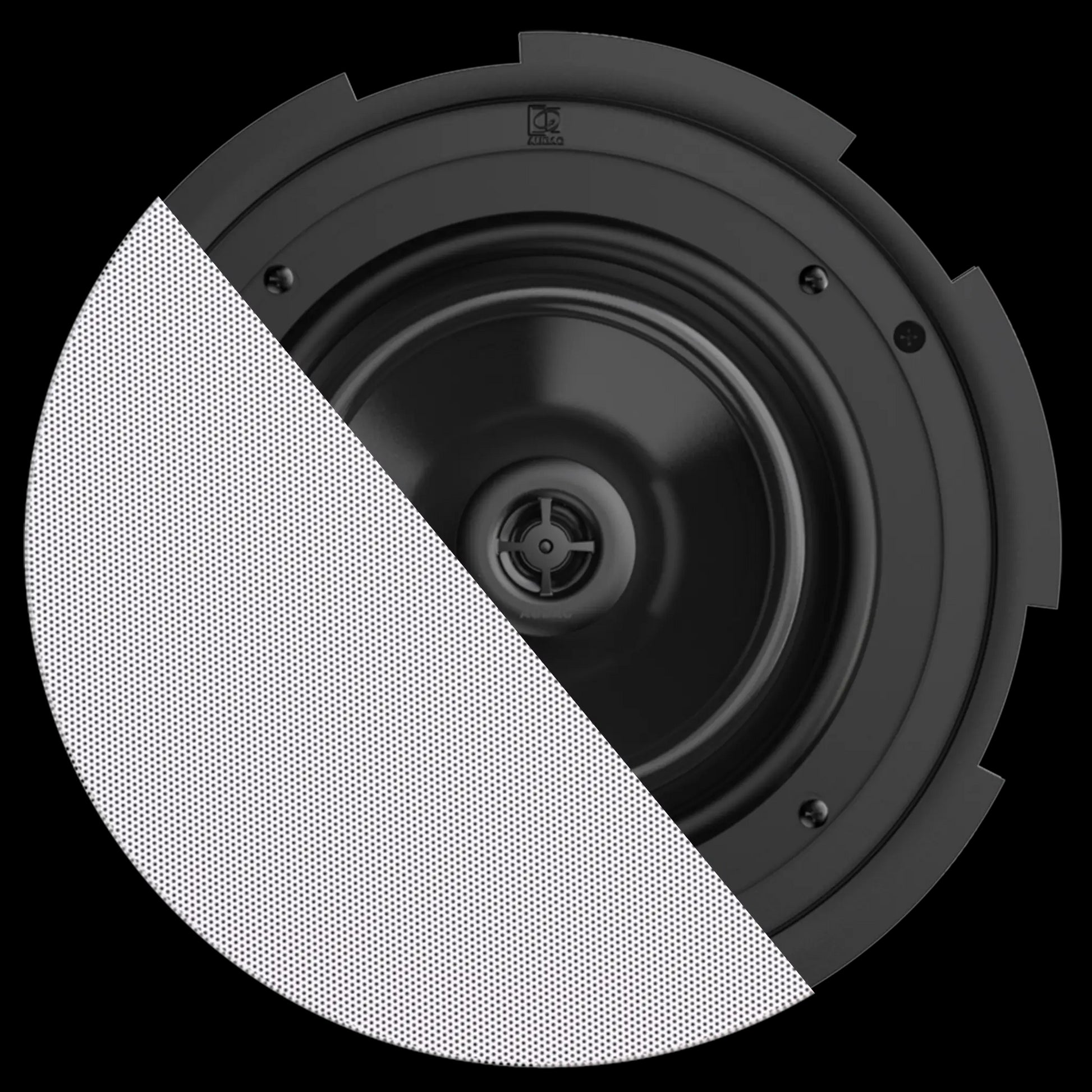

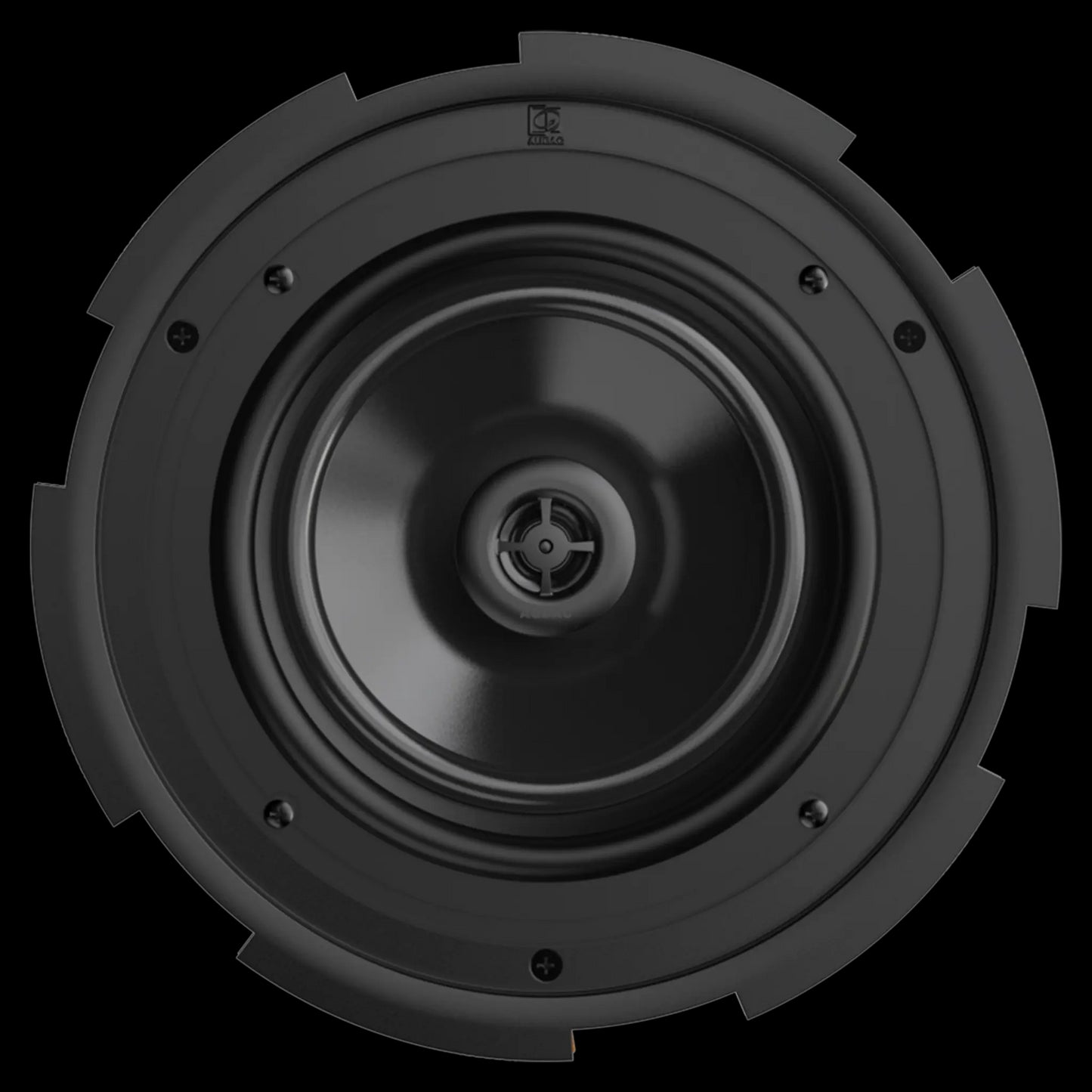

Audac QuickFit 2-way 8" ceiling speaker with TwistFix grill White version, 8Ohm & 24 Watt @ 100V (RAL9016)

The Audac QuickFit 2-way 8" ceiling speaker is engineered for exceptional sound clarity and musical performance. With its innovative TwistFix grill design, it seamlessly integrates into any ceiling, providing a clean aesthetic while ensuring easy installation. This speaker is perfect for both commercial and residential applications, delivering high-quality audio with low distortion across a wide frequency range.

Features

• Coaxial 2-way design: Ensures exceptional intelligibility and musical performance.
• TwistFix™ Grill: Offers a borderless and seamless transition from grill to ceiling, enhancing aesthetic appeal.
• QuickFit™ Installation System: Facilitates easy and secure mounting, ensuring lifetime stability for installers.
• High-quality drivers: Features an 8" polypropylene cone woofer and a 1" Mylar tweeter for excellent off-axis performance.
• Multi-tapping 100V line transformer: Provides flexibility with tappings for 24W, 12W, 6W, and bypass connections for 8 Ohm and 16 Ohm.
• Wide frequency response: Delivers sound from 40 Hz to 20 kHz with low distortion and smooth frequency response.
• High sensitivity: Rated at 89 dB (1W/1m), ensuring loud and clear sound output.

Specifications

• Peak Power Handling: 160 W
• Program Power Handling: 80 W
• RMS/AES Power Handling: 40 W
• Sound Pressure Level (Max @ 1m): 105 dB @ 100 V
• Frequency Response (± 3 dB): 40 Hz - 20 kHz
• Impedance: 8 Ω
• Dispersion: Conical 140°
• Cut-out Measurement: 9.57" (Ø)
• Dimensions: 10.63" x 3.23" (Ø x D)
• Weight: 1.75 kg
• Operating Temperature: -20 °C to 60 °C
• Construction Material: ABS

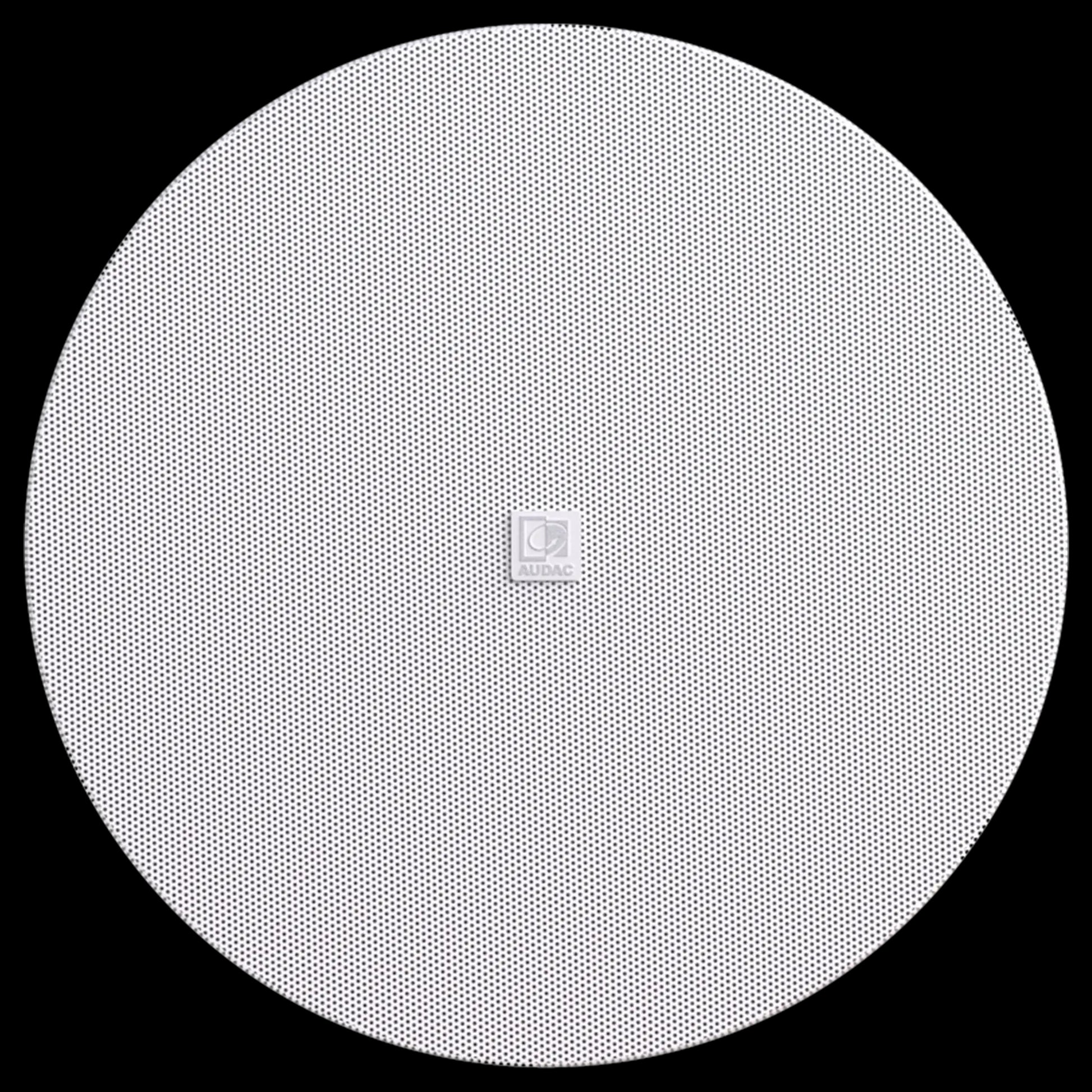

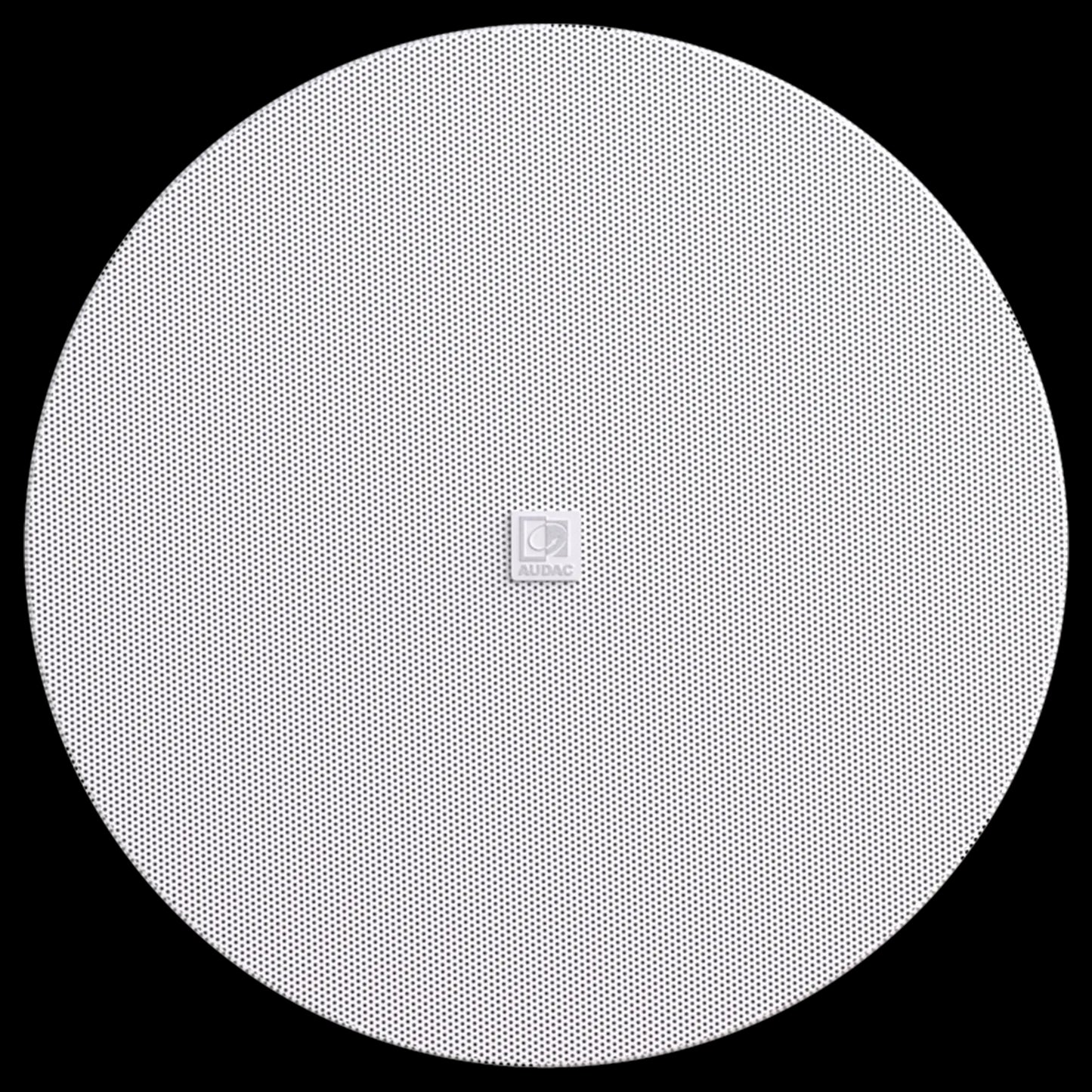

• Front Finish: Twist-Fix™ borderless finely perforated steel grill
