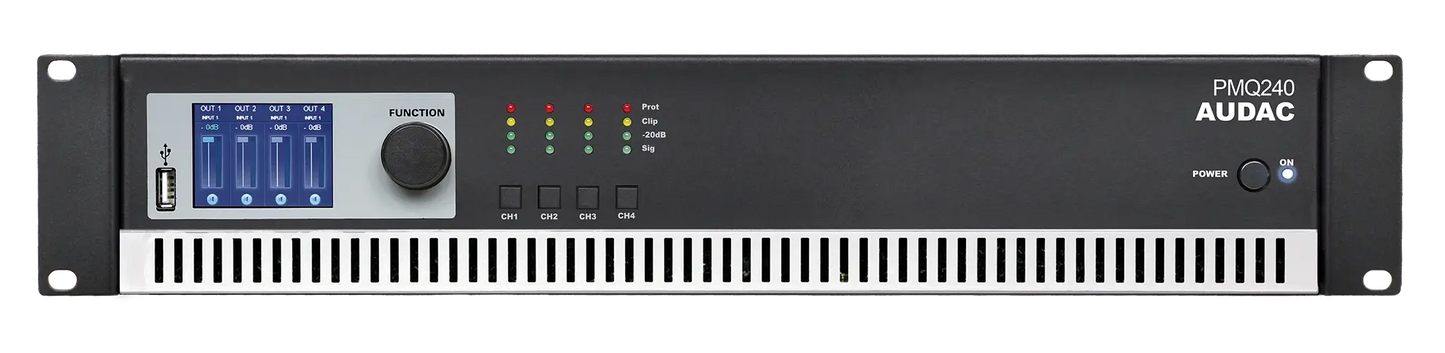

AUDAC PMQ240: 4x240W Quad-Channel 70/100V Power

The AUDAC PMQ240 is a professional quad-channel power amplifier designed for 70/100V public address applications. With an output power of 240 Watts per channel, this Class-D amplifier features advanced WaveDynamics™ DSP technology, ensuring premium sound quality and flexibility for various installations. The intuitive 2.5” LCD display allows for easy configuration, while its extensive input options and robust protection mechanisms make it ideal for commercial settings.

Features

• Quad-Channel Design: Provides four independent channels with 240W output each.
• WaveDynamics™ Technology: Advanced DSP processing for optimal sound management.
• User-Friendly Interface: 2.5” LCD display for easy navigation and configuration.
• Flexible Configuration: Channels configurable for 70V or 100V systems.
• Comprehensive Protection: Features include DC short circuit, over heating, over load, and signal limiting.

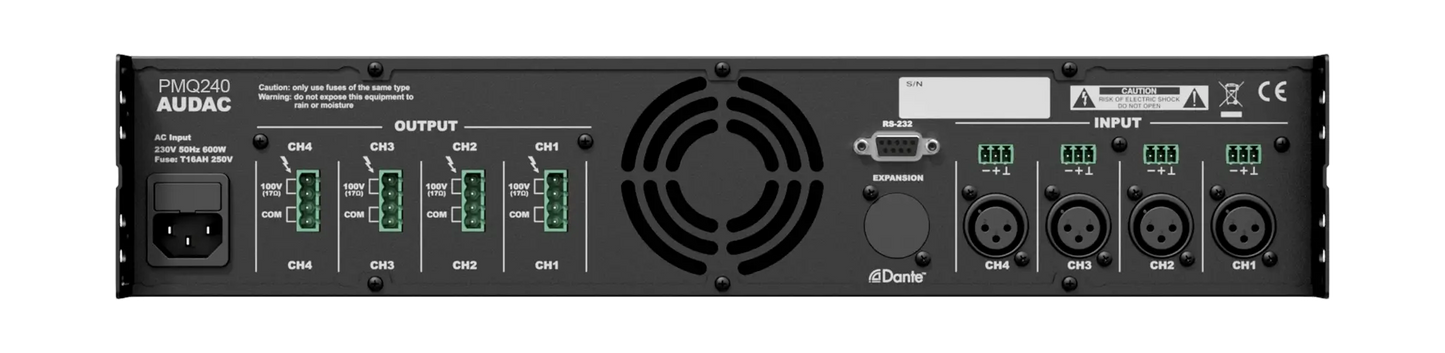

• Multiple Input Options: XLR and terminal block connections for versatile integration.
• Dante™ Compatibility: Optional network interface for low latency, high-quality audio transmission.

Specifications

• RMS Power @ 100V: 4 x 240W
• RMS Power @ 8 Ohm: 4 x 240W
• Frequency Response: 50 Hz - 20 kHz
• Signal to Noise Ratio: > 95 dB
• THD+N (@ 1 kHz): < 0.05% (1/2 Rated Power)
• Crosstalk (@ 1 kHz): > 70 dB
• Technology: Class-D
• Power Supply: Switching mode
• Operating Voltage: 230 ~ 240V AC / 50 ~ 60 Hz
• Input Sensitivity: -30 dB ~ +5 dB
• Input Impedance: 10 kΩ balanced
• Cooling: Temperature controlled fan
• Dimensions (W x H x D): 482 x 88 x 420 mm
• Weight: 8.05 kg
