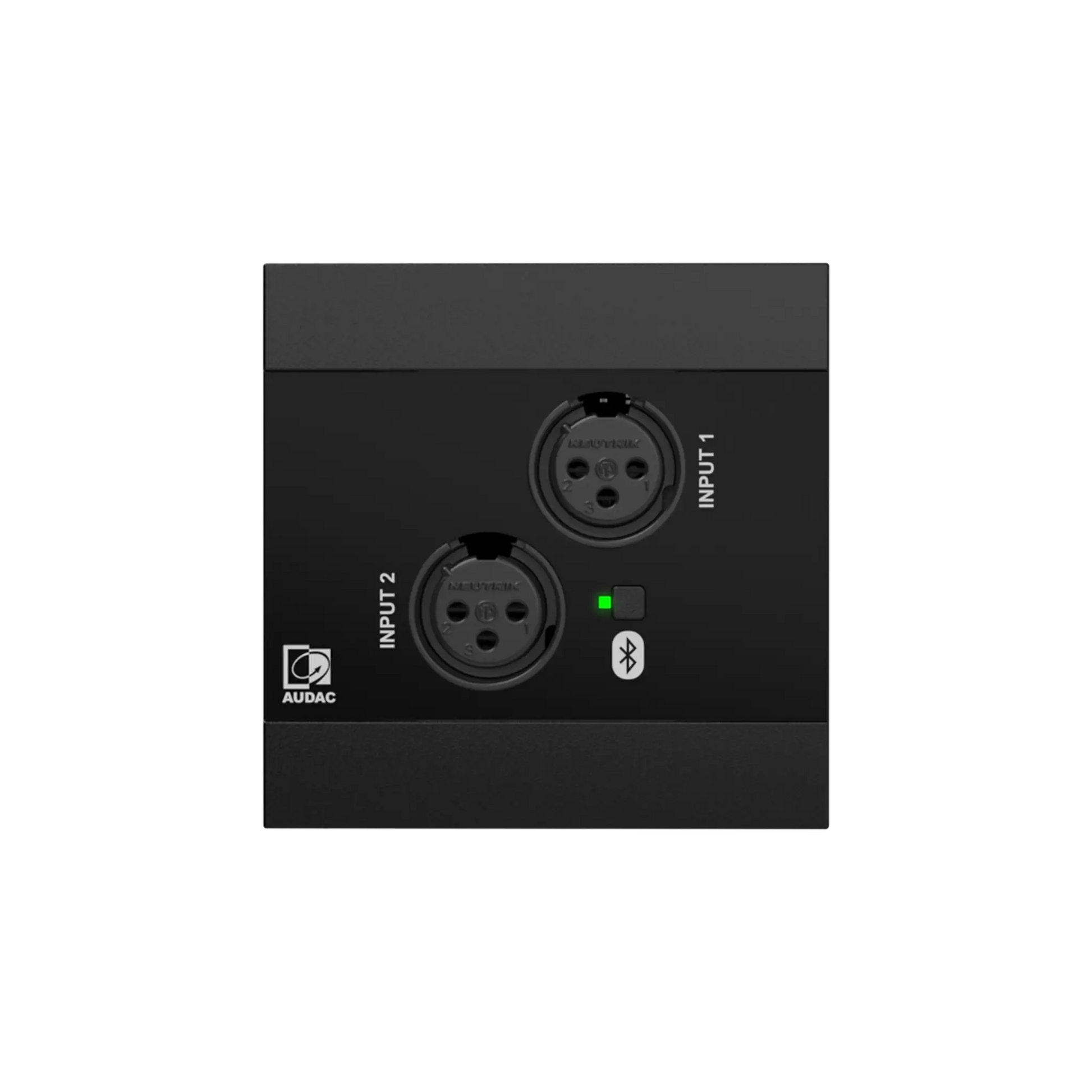

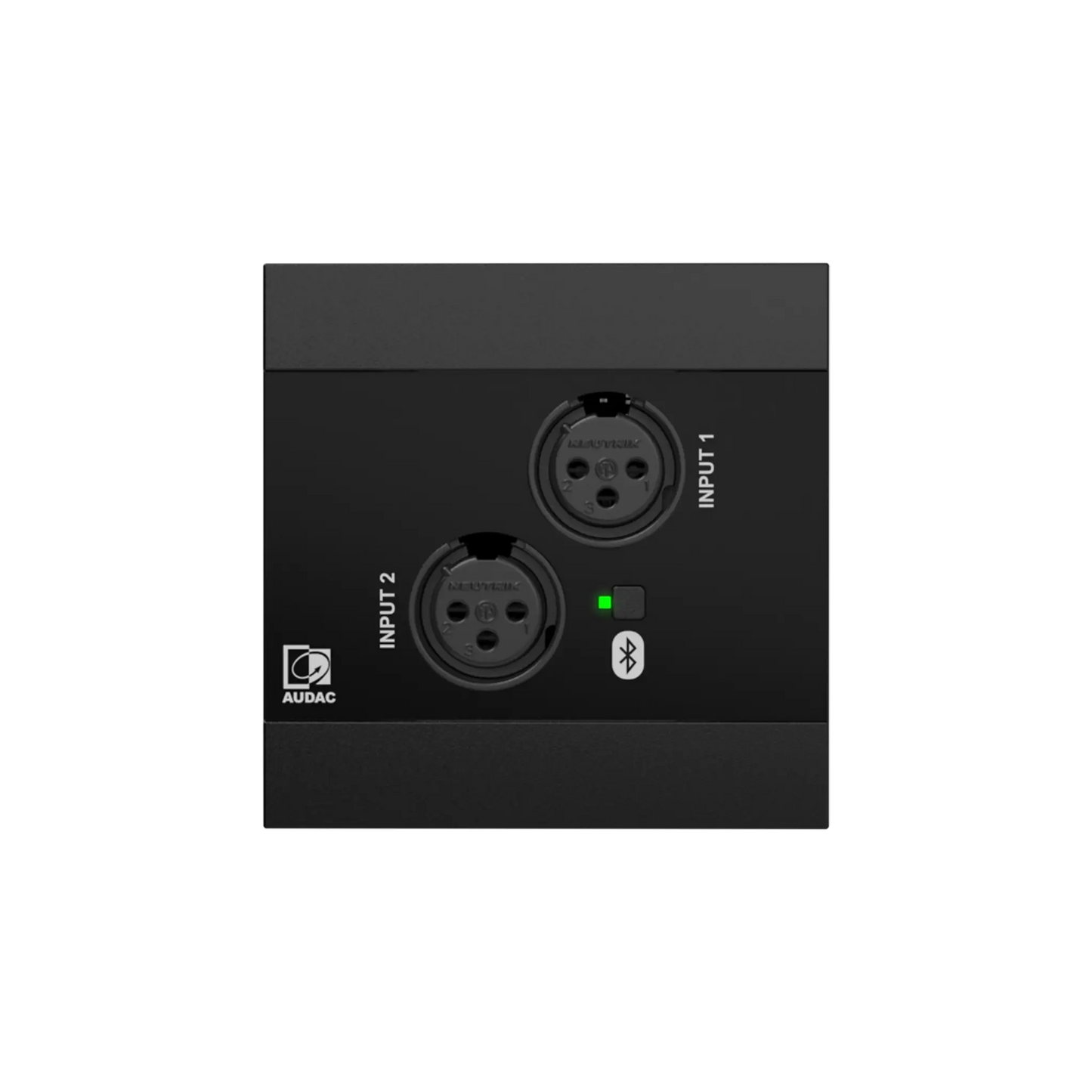

AUDAC NWP220 Network Input Panel: 2 XLR + Bluetooth, Black

The AUDAC NWP220 is a state-of-the-art Dante™/AES67 network input panel featuring two XLR input connectors and an integrated Bluetooth receiver, designed for seamless audio signal transmission in professional audio networks. This versatile unit allows switching between line-level and microphone-level audio signals, and supports phantom power (+48 V DC) for condenser microphones. With integrated DSP functions such as EQ and automatic gain control, the NWP220 can be configured through the AUDAC Touch™ app, ensuring optimal sound quality and user-friendly operation.

Features

• Dual XLR Inputs: Equipped with 2 x XLR female connectors for versatile audio input options.
• Integrated Bluetooth Receiver: Allows wireless audio streaming directly to the panel.
• Dante™/AES67 Compatibility: Ensures seamless integration into existing audio networks.
• Phantom Power Support: Provides +48 V DC to power condenser microphones.
• Advanced DSP Functions: Includes equalization and automatic gain control for enhanced audio processing.
• Power over Ethernet (PoE): Simplifies installation by utilizing a single network cable for power and data.
• Elegant Design: Features a high-quality fingerprint-resistant glass front panel for a sleek appearance.
• EU Installation Compatibility: Fits standard EU-style in-wall boxes, suitable for solid and hollow walls.

Specifications

• Inputs: 2 x XLR female (in)
• Bluetooth Version: 4.2
• Power Supply: PoE powered (IEEE 802.3at)
• Dimensions: 80 x 80 mm (W x H)
• Construction: ABS plastic
• Front Finish: Elegant glass panel
• Colors Available: Black (RAL9005), White (RAL9003)
