Audac Mini stereo amplifier 2 x 15W

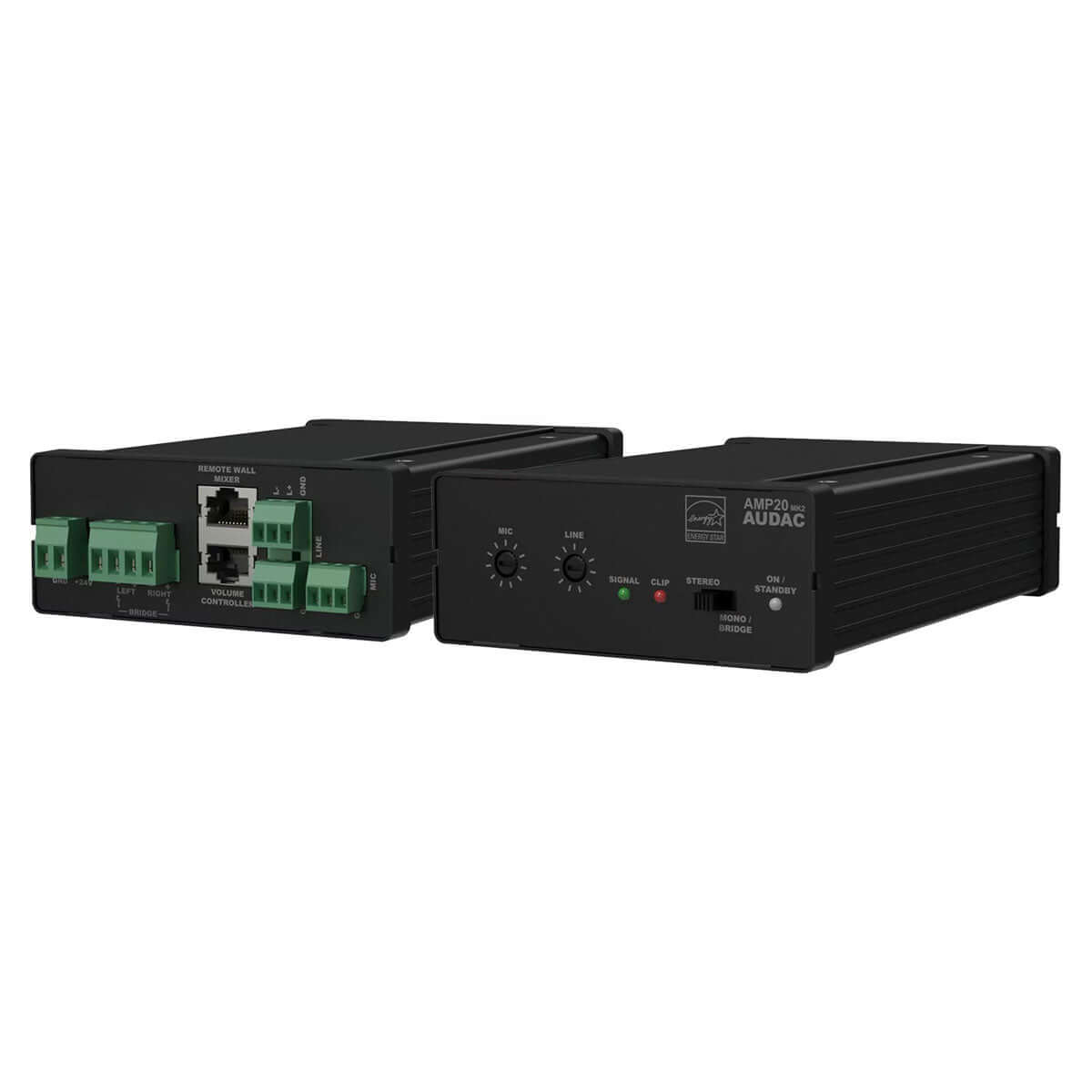

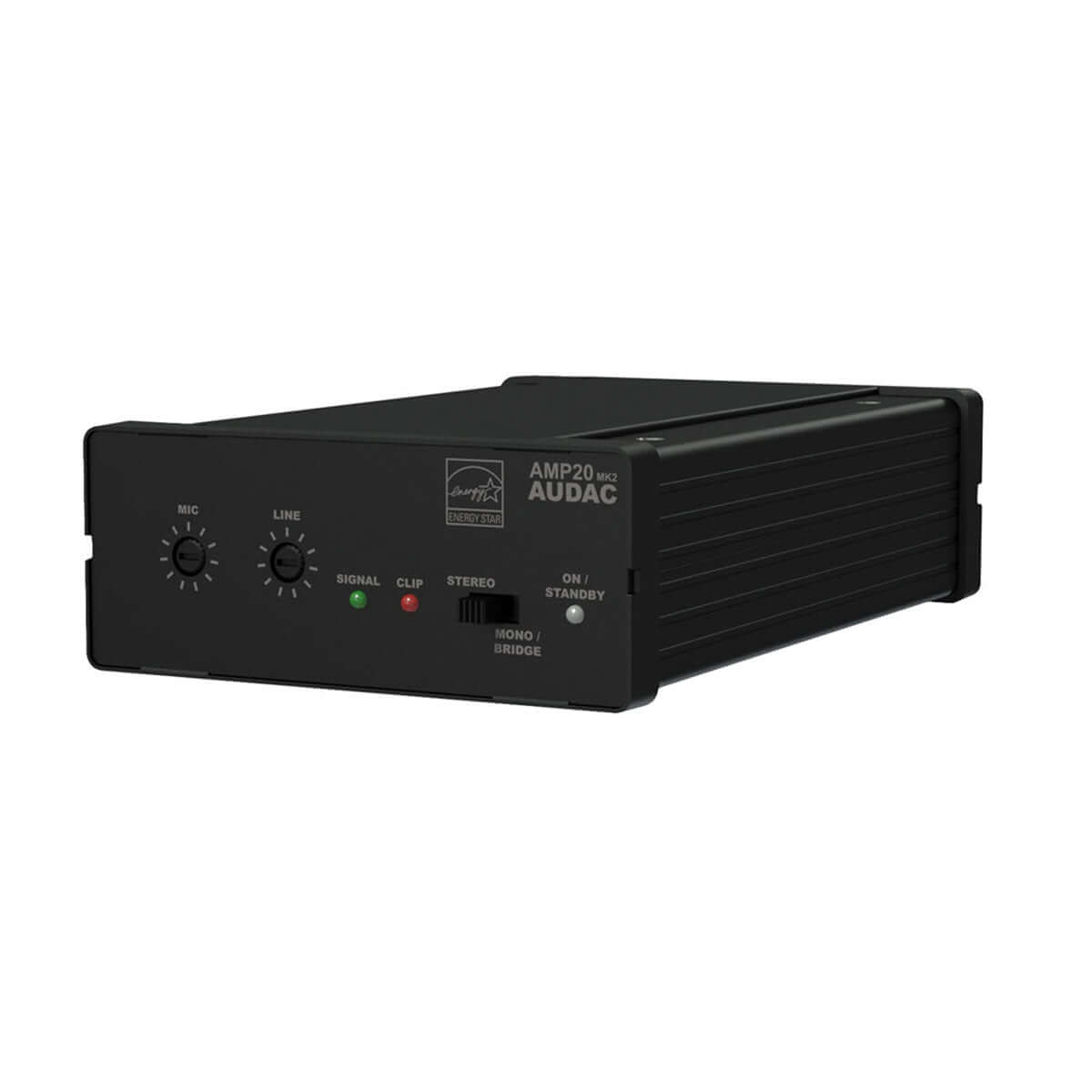

The Audac AMP20 is a compact and efficient mini stereo power amplifier designed to deliver high-quality audio in spaces where only a small number of speakers are required. With a power rating of 2 x 15 Watts, it is ideal for classrooms, offices, and meeting rooms, providing an economical solution for audio amplification. Its compact design allows for discreet installation, making it suitable for placement in closets, false ceilings, or under desks. The amplifier features a balanced stereo line input and a microphone input, perfect for use with projection screens and video sources. It also includes gain control for music and speech balance, bridging capabilities for increased output power, and supports remote volume control.

Features

• Compact Design: Perfect for discreet installation in tight spaces such as closets or under desks.
• High Efficiency: Class-D technology ensures low energy consumption while delivering powerful audio output.
• Flexible Inputs: Includes a stereo balanced line input and a balanced microphone input for versatile audio applications.
• Gain Control: Two potentiometers allow for precise adjustment of sensitivity and balance between music and speech.
• Bridging Capability: A switch allows for bridging output channels to obtain a single channel with merged output power.
• Remote Control Options: Compatible with remote wall mixers and volume controllers for convenient local mixing and volume adjustments.
• Energy Efficient: Compliant with Energy Star 3.0 standards, ensuring minimal power consumption.
• Versatile Applications: Ideal for use in bars, restaurants, educational settings, and corporate environments.

Specifications

• Power Handling @ 4 Ω Stereo: 2 x 15 W
• Power Handling @ 8 Ω Stereo: 2 x 7.5 W
• Power Handling @ 8 Ω Bridge: 30 W
• Input Type: 1 x Stereo Balanced Line
• Input Connector: 2 x 3-pin Euro Terminal Block (Pitch - 3.81 mm)
• Input Impedance: 20 kΩ
• Microphone Input Impedance: 47 kΩ
• Microphone Input Sensitivity: -50 dBV ~ -18 dBV
• Output Type: 1 x Stereo Loudspeaker
• Output Connector: 4-pin Euro Terminal Block (Pitch - 5.08 mm)
• Total Harmonic Distortion + Noise (@ 1 kHz): < 0.1%
• Signal-to-Noise Ratio: > 95 dB
• Power Consumption (Standby): 0.8 W
• Power Supply: 24V DC (PSD241 included)
• Cooling: Convection cooled
• Dimensions: 108 x 44 x 165 mm (W x H x D)
• Weight: 0.800 kg
