AUDAC LUNA-U: Flexible, Scalable Audio Matrix Processor Solution

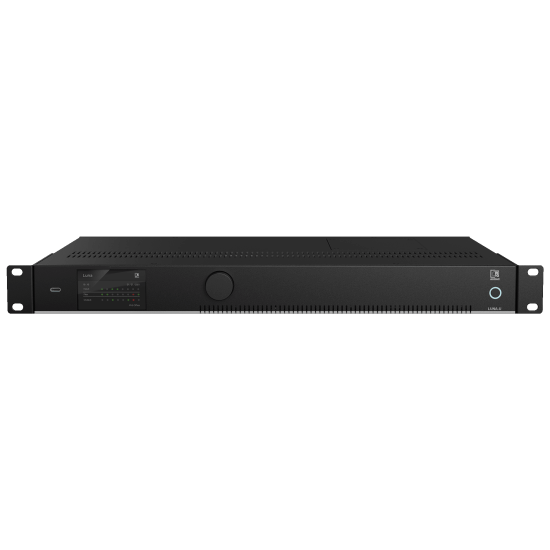

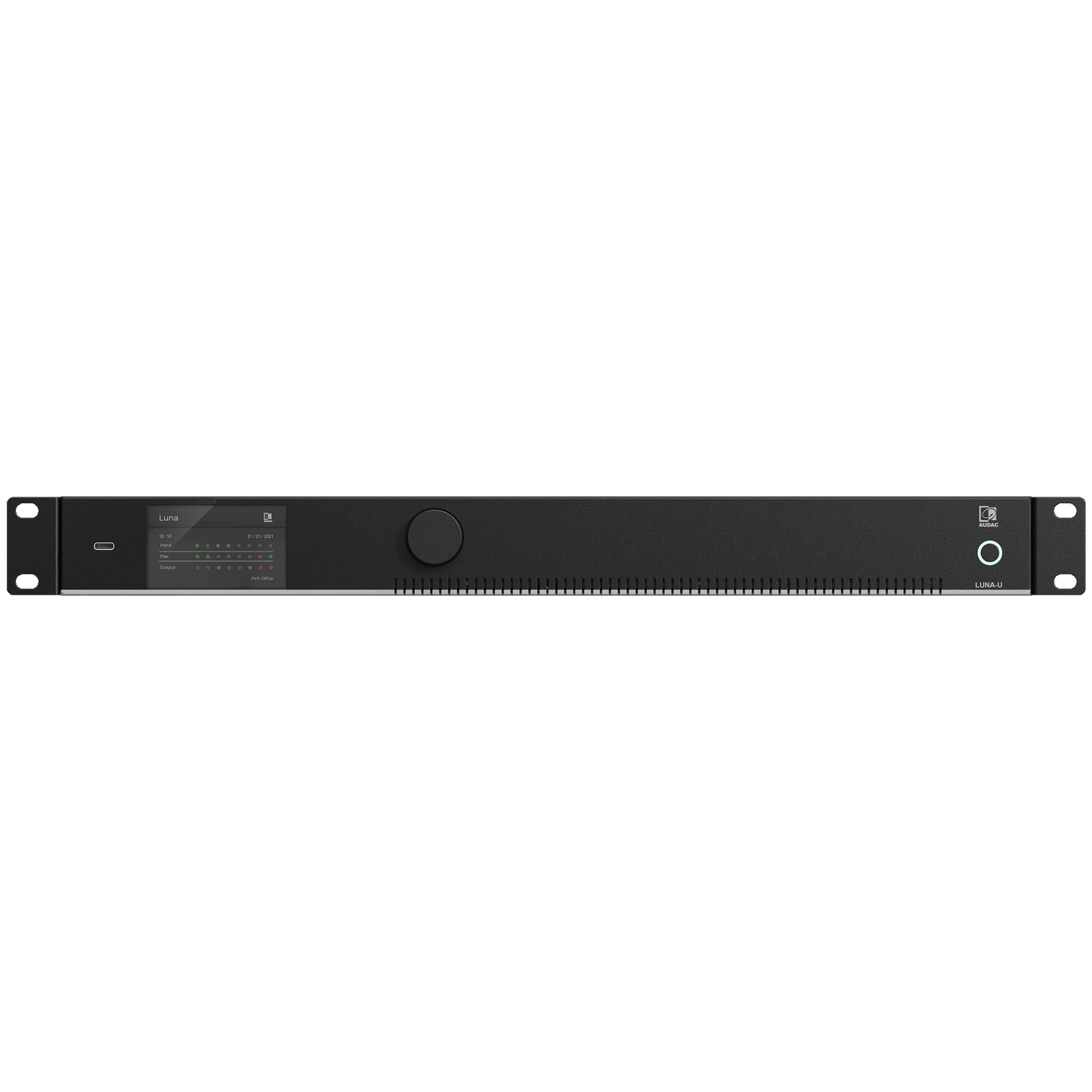

The AUDAC LUNA-U is the next-generation audio matrix processor designed for flexible and scalable audio distribution, catering to medium-sized to large enterprise solutions. With its powerful dual SHARC DSPs and 32-bit ADC and DAC converters, it delivers superior sound quality and low latency for extensive signal processing. The processor features 12 Mic/Line inputs and 8 line level outputs, along with the capability to expand up to 32 Dante™/AES67 I/O channels through a single Ethernet port.

Features

• Highly Flexible Architecture: Fully adjustable mapping of the signal path to any of the 32 mono or 16 stereo zones.
• Powerful DSP Resources: Unique processing features available on all input channels, output channels, and zones.
• Integration with Dante™/AES67: Supports up to 32 channels, allowing seamless integration with compatible audio over IP devices.
• User-Friendly Control: Managed via AUDAC Touch™, providing a simplified design and control platform for system management.
• Versatile Connectivity: Includes RS-232 and RS-485 for third-party control options.

Specifications

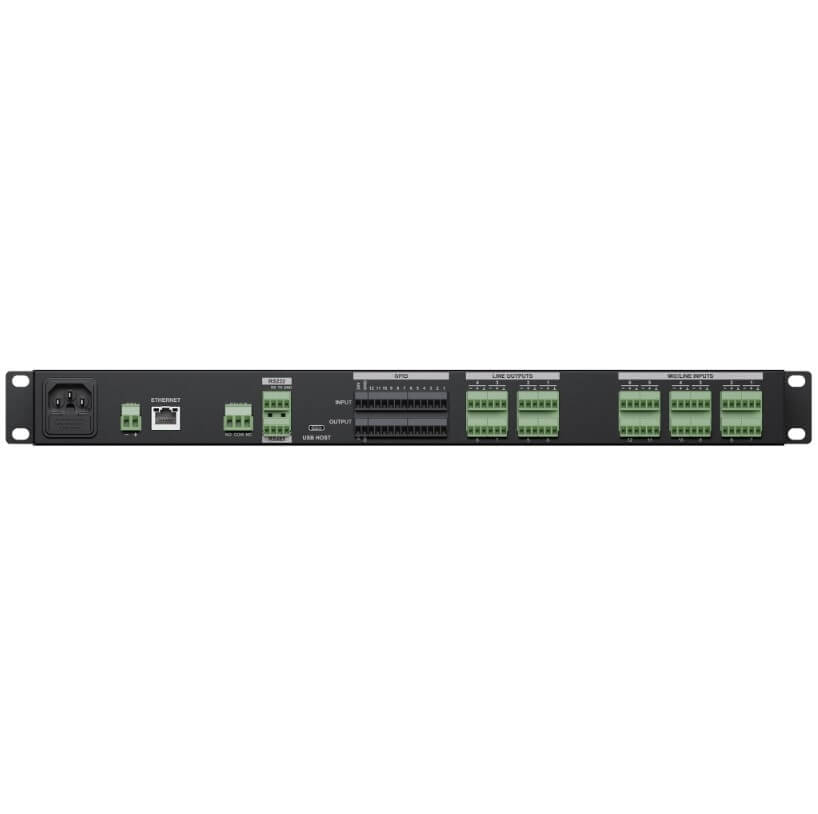

• Inputs: 12 Mic/Line inputs, 12 GPIO inputs, USB inputs (Type C)
• Outputs: 8 Line outputs, 12 GPIO outputs
• Network Audio I/O: Up to 32x32 Dante™/AES67 channels with optional extension card
• Zones: 32 Mono or 16 Stereo flexible zones
• DSP Processor: Dual core SHARC
• Power Supply: 100 ~ 240 V AC / 50 ~ 60 Hz, 24 V DC
• Dimensions: 482 x 44 x 335 mm (W x H x D)
• Colour: Black
