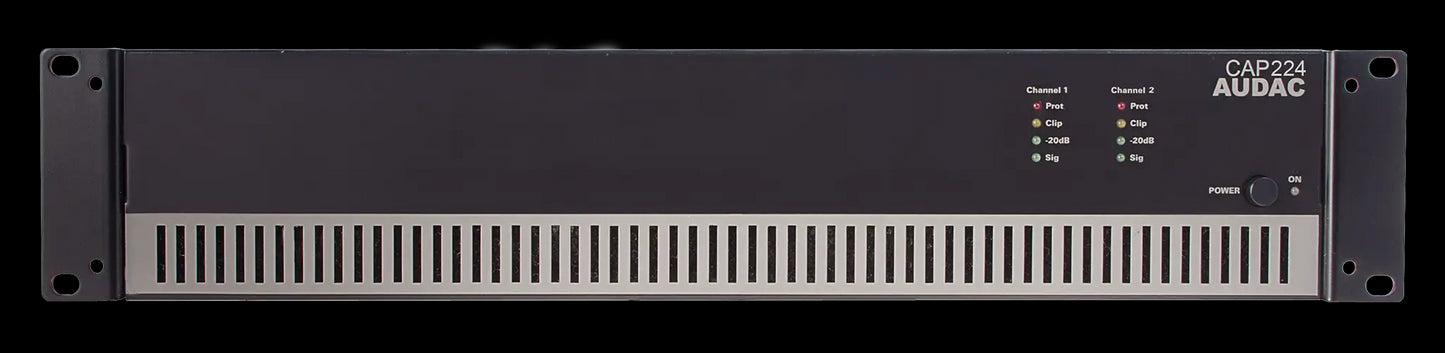

Audac Dual-channel power amplifier 2 x 240W 100V

The Audac CAP224 is a robust dual-channel power amplifier designed for professional audio applications, delivering 2 x 240W output power. Ideal for multi-zone audio distribution systems, it offers high efficiency, reliability, and ease of use with essential controls for seamless installation.

Features

• Dual-channel design: Provides 240W output per channel, suitable for multi-zone audio systems.
• Class-D amplifier technology: Ensures high efficiency and low power consumption.
• Built-in protection circuit: Safeguards against DC malfunction, short circuits, overheating, and overloads.
• Temperature-controlled fan: Maintains optimal operating temperature while minimizing noise.
• Easy installation: Designed with essential controls and sturdy 19" rack-mountable housing.

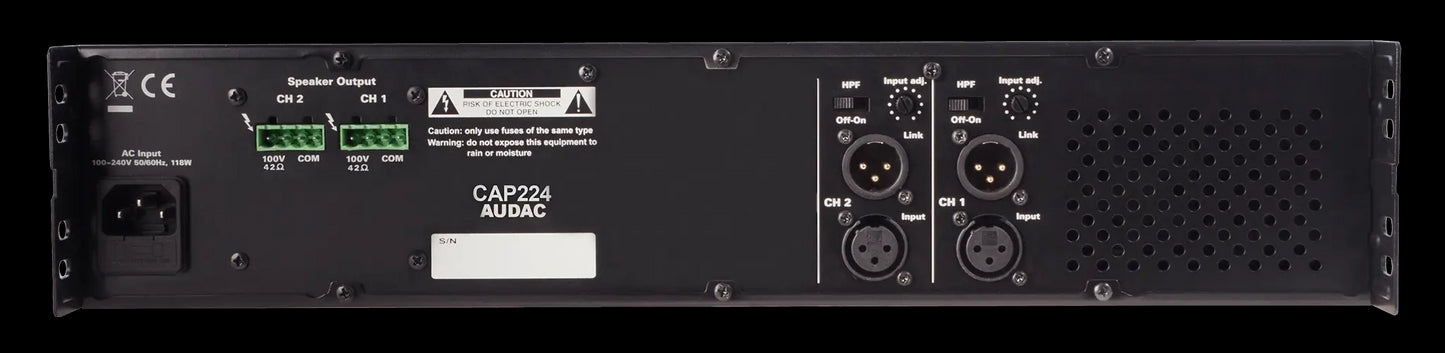

• Balanced XLR inputs: Ensures high-quality audio connections and link outputs for additional amplifiers.
• High-pass filter switch: Allows for customizable audio performance tailored to specific environments.
• Gain adjustment potentiometer: Provides fine-tuning of audio levels for each channel.

Specifications

• RMS/AES power handling: 2 x 240 W
• Frequency Response (± 3 dB): 50 Hz - 22 kHz
• Signal / Noise Ratio: > 100 dB
• Total Harmonic Distortion + Noise (THD+N) @ 1 kHz: < 0.3% (1/2 Rated Power)
• Crosstalk @ 1 kHz: < 80 dB
• Input Sensitivity: -0.5 dB ~ 10.5 dB
• Impedance: 10 kΩ balanced
• Output Voltage / Impedance: 100 V / 42 Ω
• Cooling: Temperature controlled fan
• Operating Temperature: 0° ~ 40° @ 95% Humidity
• Dimensions: 482 x 88 x 420 mm (W x H x D)
• Weight: 7.2 kg
• Construction: Steel
• Colour: Black
