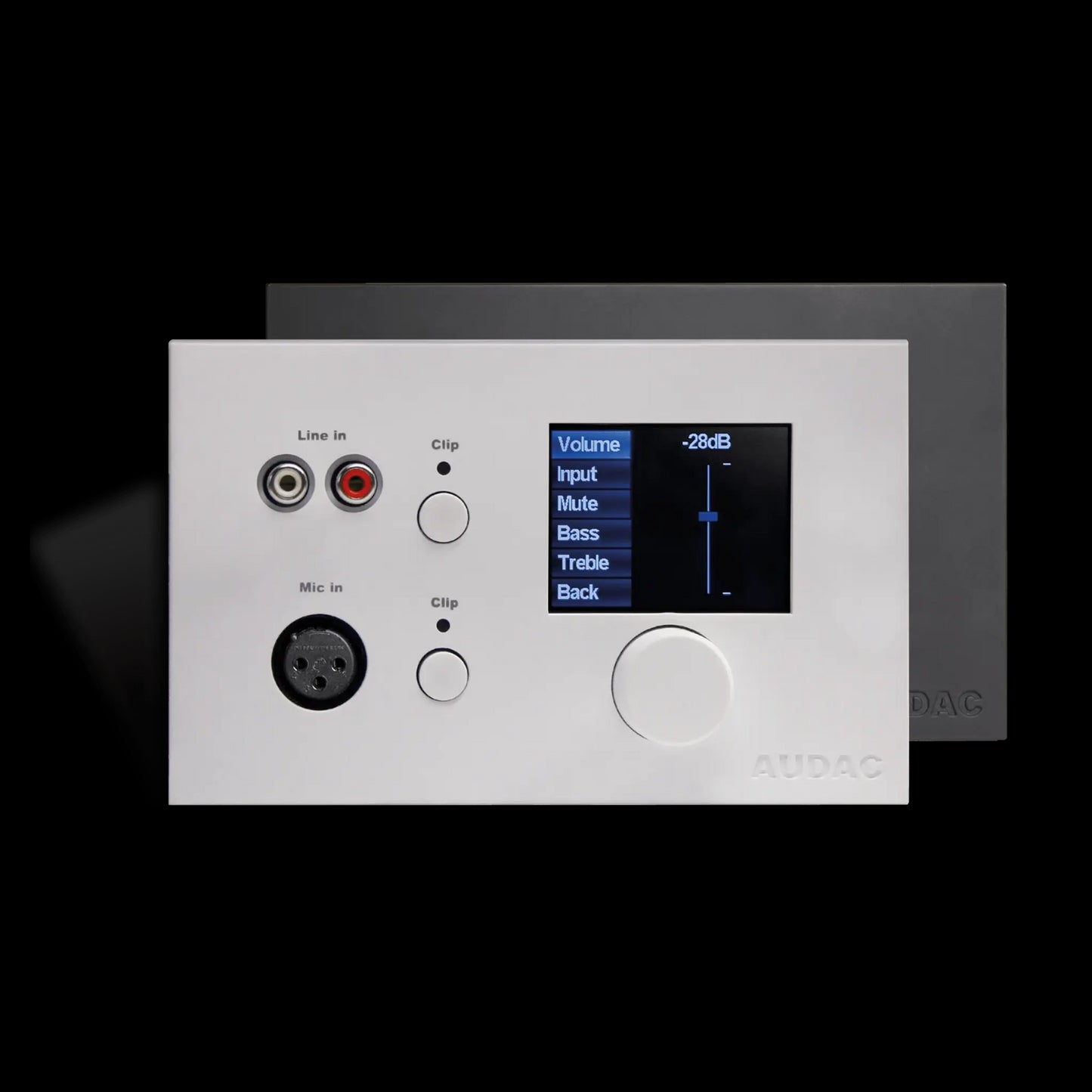

Audac Digital all-in-one wall panel White version

The Audac DW5066 Digital all-in-one wall panel is a versatile controller designed for multi-zone digital audio matrix systems and multimedia digital audio mixers. It features a user-friendly interface with a 2.5" graphical LCD display, allowing for easy audio source selection, volume control, and mixing presets. The panel includes inputs for both line and microphone, enabling seamless integration of various audio sources, making it ideal for bars, restaurants, hotels, and corporate environments.

Features

• Multi-Zone Control: Designed for controlling multiple zones in digital audio systems.
• User-Friendly Interface: A 2.5" graphical LCD display for easy navigation and control.
• Versatile Audio Inputs: Connects to various audio sources including CD players and microphones.
• Phantom Power Support: Provides 15V phantom power for condenser microphones.
• Local Mixing Capabilities: Allows local mixing of line and microphone inputs with dedicated potentiometers.
• Long Distance Connectivity: Supports UTP CAT6 cabling for distances up to 300 meters, expandable to 600 meters with repeaters.
• Compact Design: Flush mountable with minimal built-in depth, suitable for various installation environments.

Specifications

• Control Interface: RS-485
• Digital Audio Output: S/PDIF
• Line Input Type: 1 x Stereo Unbalanced Line via RCA Connector
• Microphone Input Type: 1 x Balanced Microphone via XLR Female Connector
• Phantom Power: 15 V DC (software enabling)
• Cabling: UTP CAT 6 (Up to 300 meters)
• Display Type: 2.5” Graphical Full colour
• Connectors: 8-pin Euro Terminal Block
• Dimensions: 152.5 x 94 x 45 mm (W x H x D)
• Built-in Depth: 37 mm
• Weight: 0.21 kg
• Construction Material: ABS
• Available Colors: White (RAL9010)
