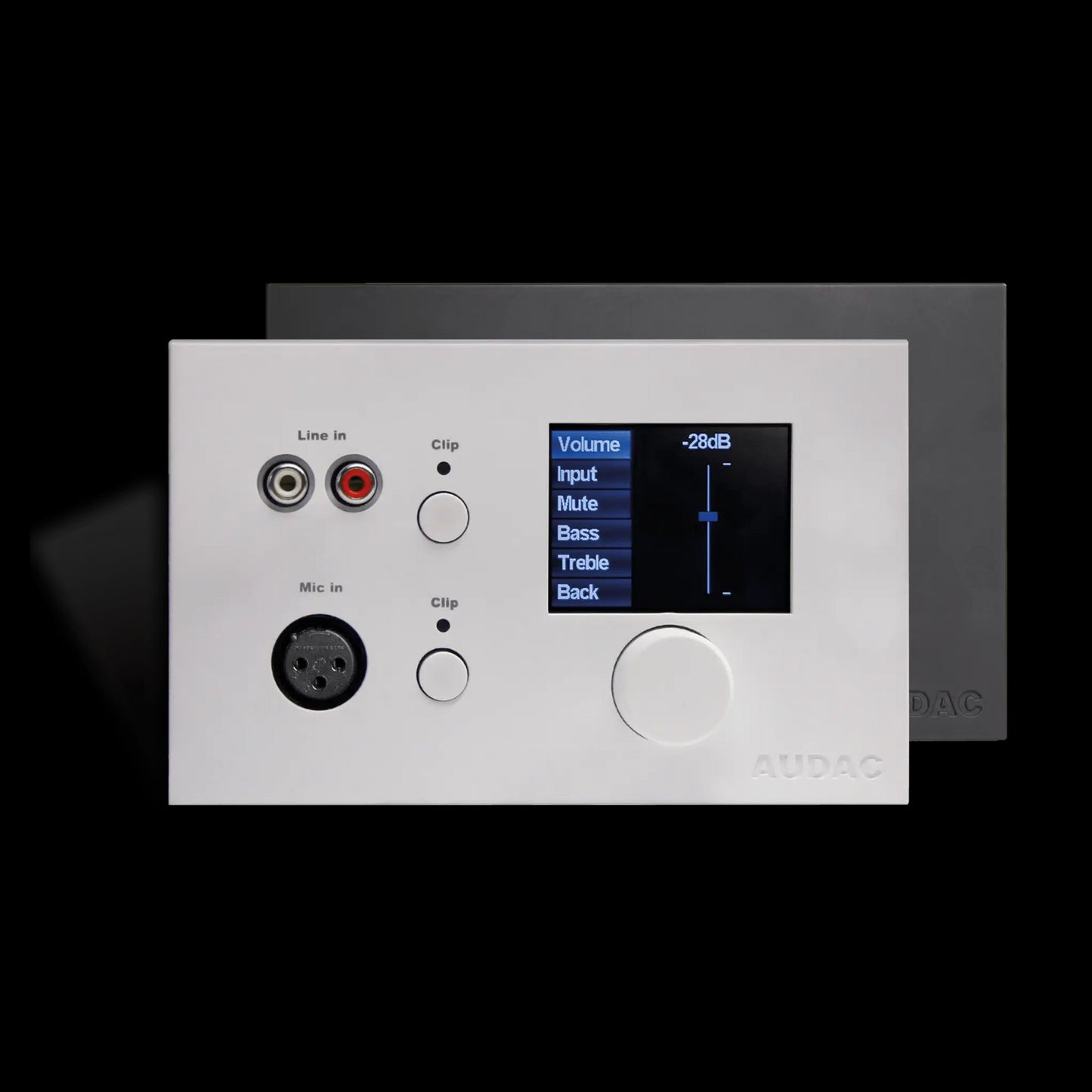

Audac Digital all-in-one wall panel Black version

The Audac DW5066 is a versatile digital all-in-one wall panel controller designed for multi-zone digital audio matrix systems and multimedia digital audio mixers. With its user-friendly interface, it allows for seamless audio source selection, volume control, and mixing presets activation. The panel is equipped with a graphical LCD display and supports various audio inputs including local line and microphone connections, making it ideal for applications in bars, restaurants, hotels, and corporate environments.

Features

• Multi-Zone Control: Manage audio across multiple zones with ease.
• User-Friendly Interface: A 2.5" graphical LCD display for intuitive operation.
• Versatile Input Options: Connect CD players, MP3 players, or microphones through RCA and XLR connectors.
• Phantom Power: Provides 15V DC phantom power for condenser microphones, enabling high-quality audio capture.
• Local Mixing: Mix line and microphone inputs locally using push-lock potentiometers.
• Extended Cabling: Supports up to 300 meters using UTP CAT6 cabling, extendable to 600 meters with repeaters.
• Compact Design: Flush mountable with a built-in depth of only 1.46 inches.

Specifications

• Dimensions: 153 x 94 x 45 mm (W x H x D)
• Weight: 0.21 kg
• Construction Material: ABS
• Display Type: 2.5" Graphical Full Colour
• Input Types: 1 x Stereo Unbalanced Line (RCA), 1 x Balanced Microphone (XLR)
• Output Type: Local line output from microphone input
• Phantom Power: 15 V DC (software enabling)
• Cabling: UTP CAT 6 (up to 300 meters)
