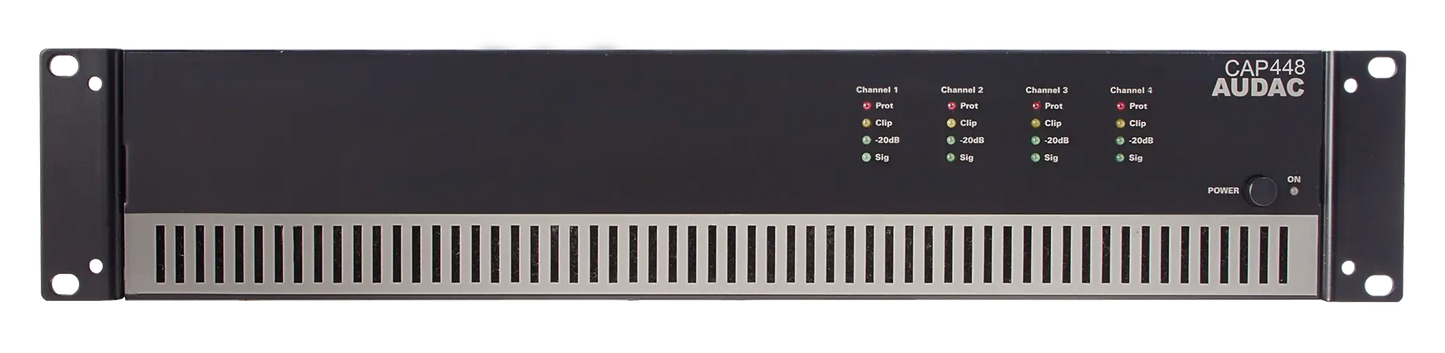

AUDAC CAP448 Quad-Channel Power Amplifier 4 x 480W 100V

The AUDAC CAP448 is a high-performance quad-channel power amplifier designed for professional audio applications. With an impressive output power of 480 Watts per channel, it is ideal for multi-zone audio distribution systems, providing flexibility and reliability in various environments such as corporate settings, retail stores, and public venues. The amplifier utilizes advanced Class-D technology, ensuring high efficiency and minimal heat generation, complemented by a temperature-controlled fan for optimal performance. Its straightforward design features balanced XLR input connectors, link output connectors for cascading multiple amplifiers, and individual gain adjustments for each channel, making installation and operation simple and efficient.

Features

• Quad-Channel Design: Four independent channels with 480W output each for versatile audio distribution.
• Class-D Amplifier Technology: High efficiency and low heat generation for reliable performance.
• Temperature Controlled Fan: Ensures optimal operating conditions and prevents overheating.
• Built-in Protection Circuit: Safeguards against DC malfunction, short circuits, and overloads.

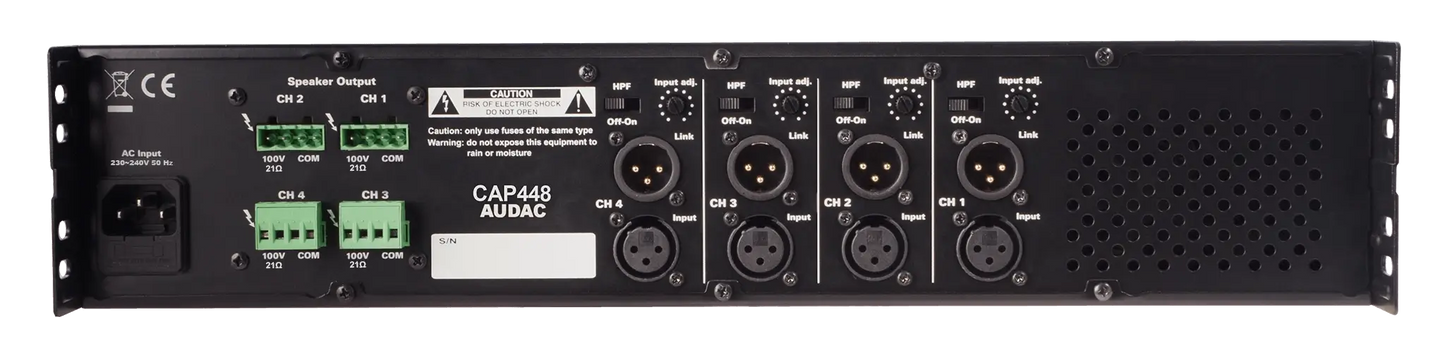

• Flexible Connectivity: Balanced XLR inputs and link outputs for easy integration with other audio equipment.
• High-Pass Filter Switch: 400 Hz filter for enhanced audio clarity.
• Gain Adjustment Potentiometer: Individual gain control for each channel.
• 19” Rack Mountable: Compact design fits into standard rack spaces for convenient setup.

Specifications

• RMS Power Handling: 4 x 480 W
• Frequency Response: 50 Hz - 22 kHz (± 3 dB)
• Signal to Noise Ratio: > 100 dB
• Total Harmonic Distortion + Noise (THD+N) @ 1 kHz: < 0.3% (1/2 Rated Power)
• Crosstalk @ 1 kHz: < 80 dB
• Cooling: Temperature controlled fan
• Operating Temperature: 0° ~ 40° @ 95% Humidity
• Power Supply: 230 ~ 240 V AC / 50 Hz
• Dimensions: 482 x 88 x 420 mm (W x H x D)
• Weight: 8.85 kg
• Mounting: 19” (2 HE)
• Construction: Steel
• Color: Black
