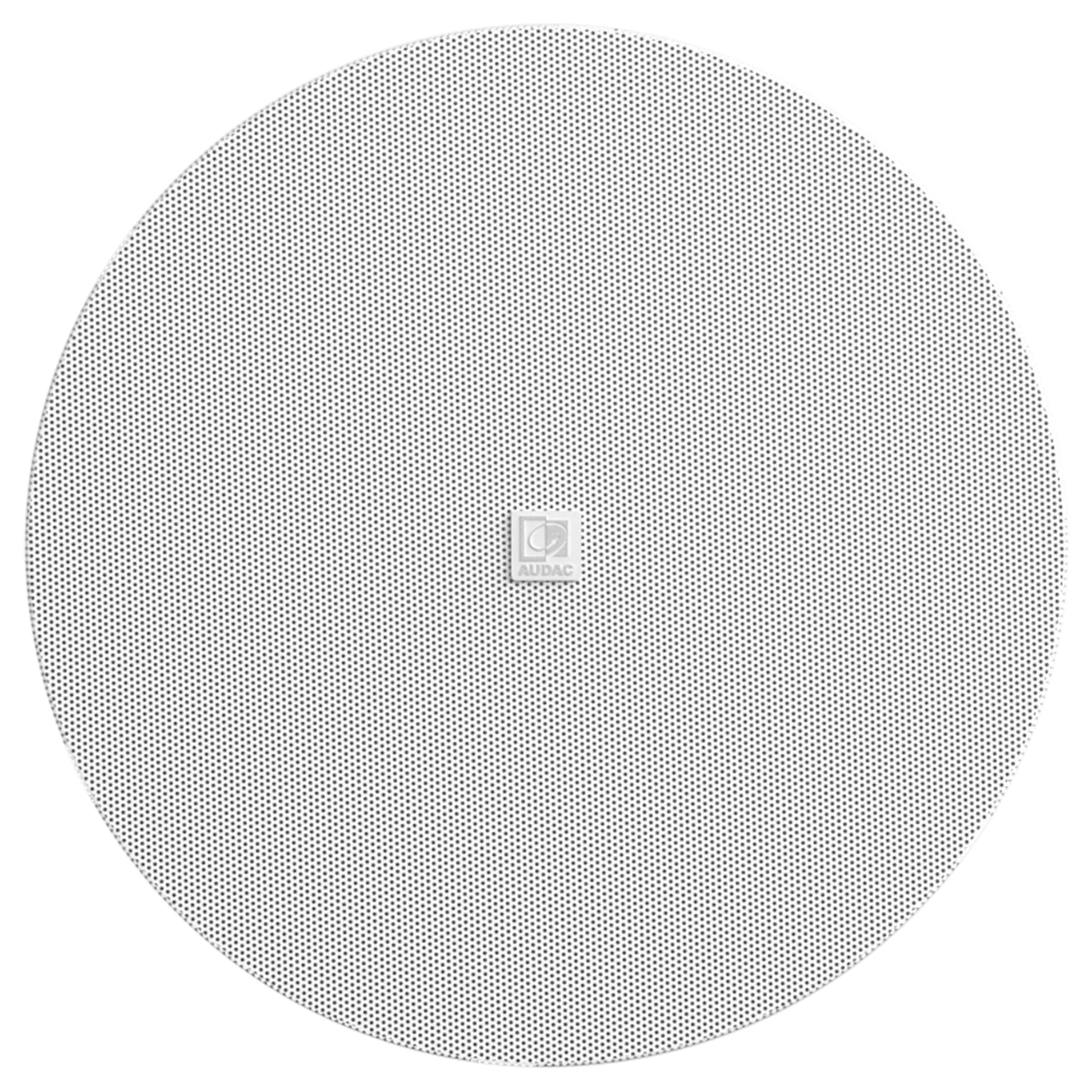

AUDAC CALI660 6.5" White Ceiling Speaker with Twist-Fix Grill

The AUDAC CALI660 is a premium 2-way ceiling speaker designed for superior audio performance in demanding environments. Featuring a 6.5" cone driver and a coaxially mounted 1" soft dome tweeter with a phase plug, it delivers excellent off-axis performance up to 145°. With a robust metal rear-dome construction, it handles continuous power of 60 Watts (RMS) and peaks at 120 Watts, making it ideal for both commercial and residential applications. The innovative SafeLatch™ mounting system ensures quick and secure installation, while the TwistFix™ grill design allows for easy access and maintenance.

Features

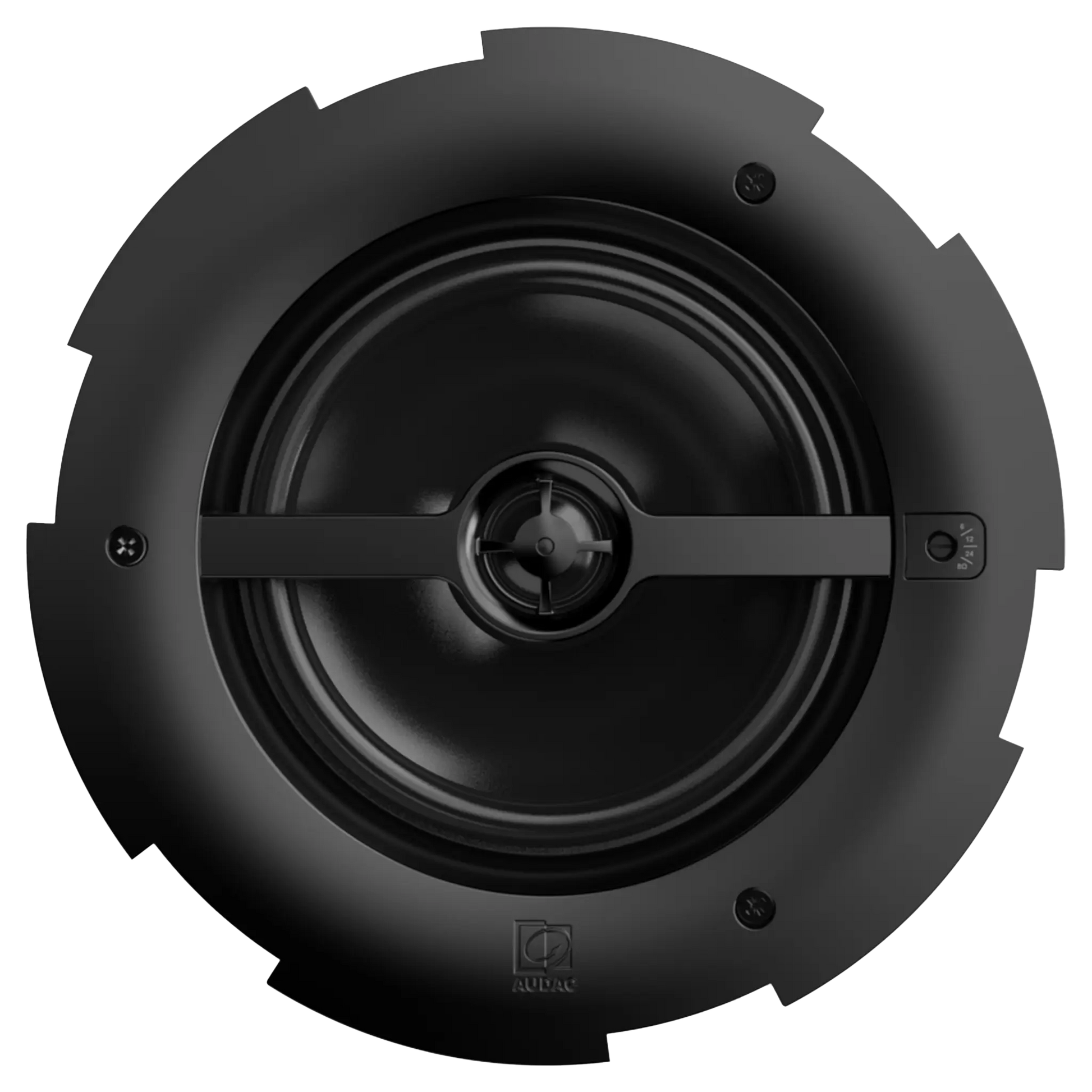

• 2-Way Configuration: Combines a 6.5" cone driver with a 1" soft dome tweeter for exceptional sound quality.
• Excellent Off-Axis Performance: Phase plug design allows for performance up to 145° off-axis.
• High Power Handling: Continuous power handling of 60 Watts RMS and peak power of 120 Watts.
• Versatile Tappings: Rotary switch for 70/100V line transformer with tappings for 60W, 30W, 15W, and an 8 Ohm bypass connection.

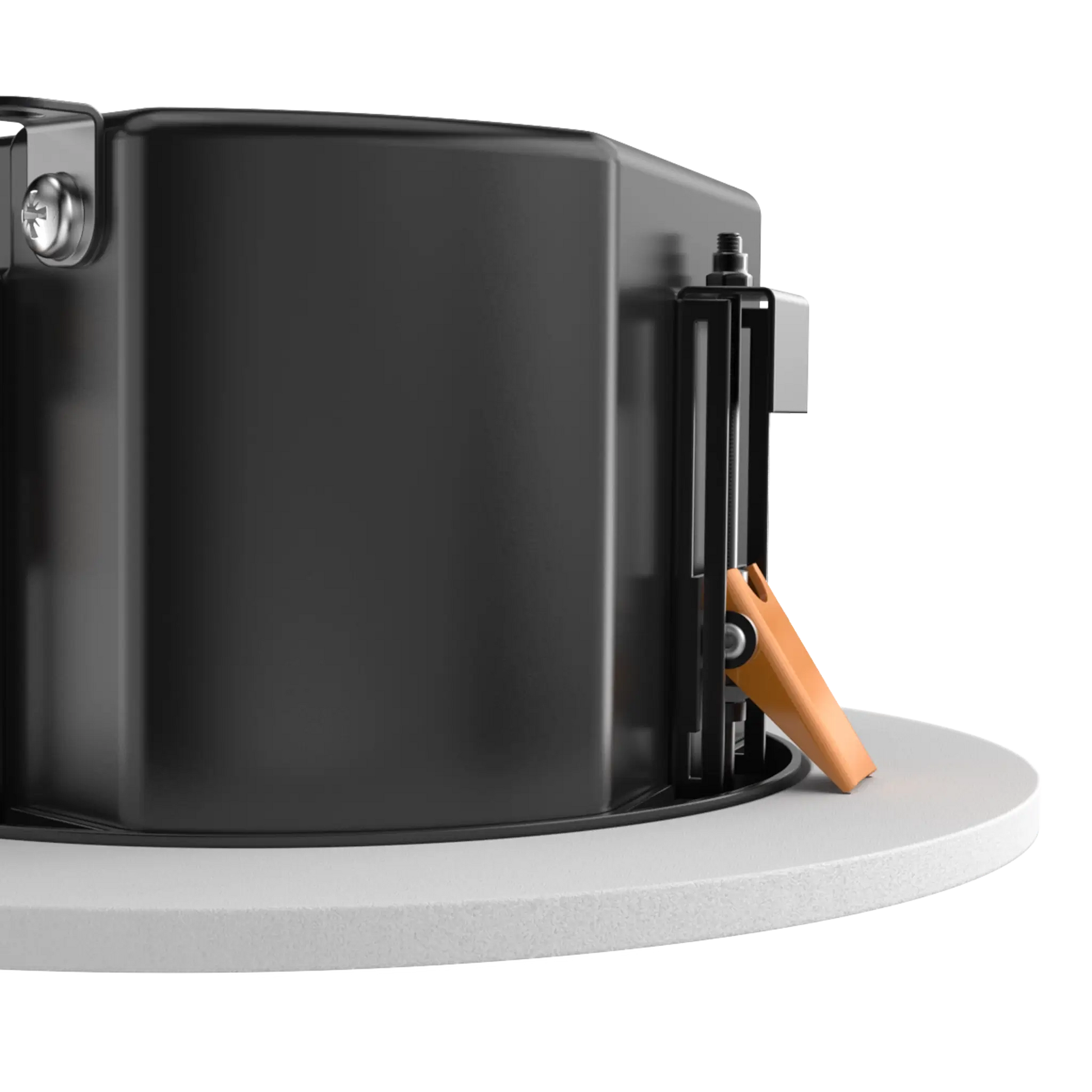

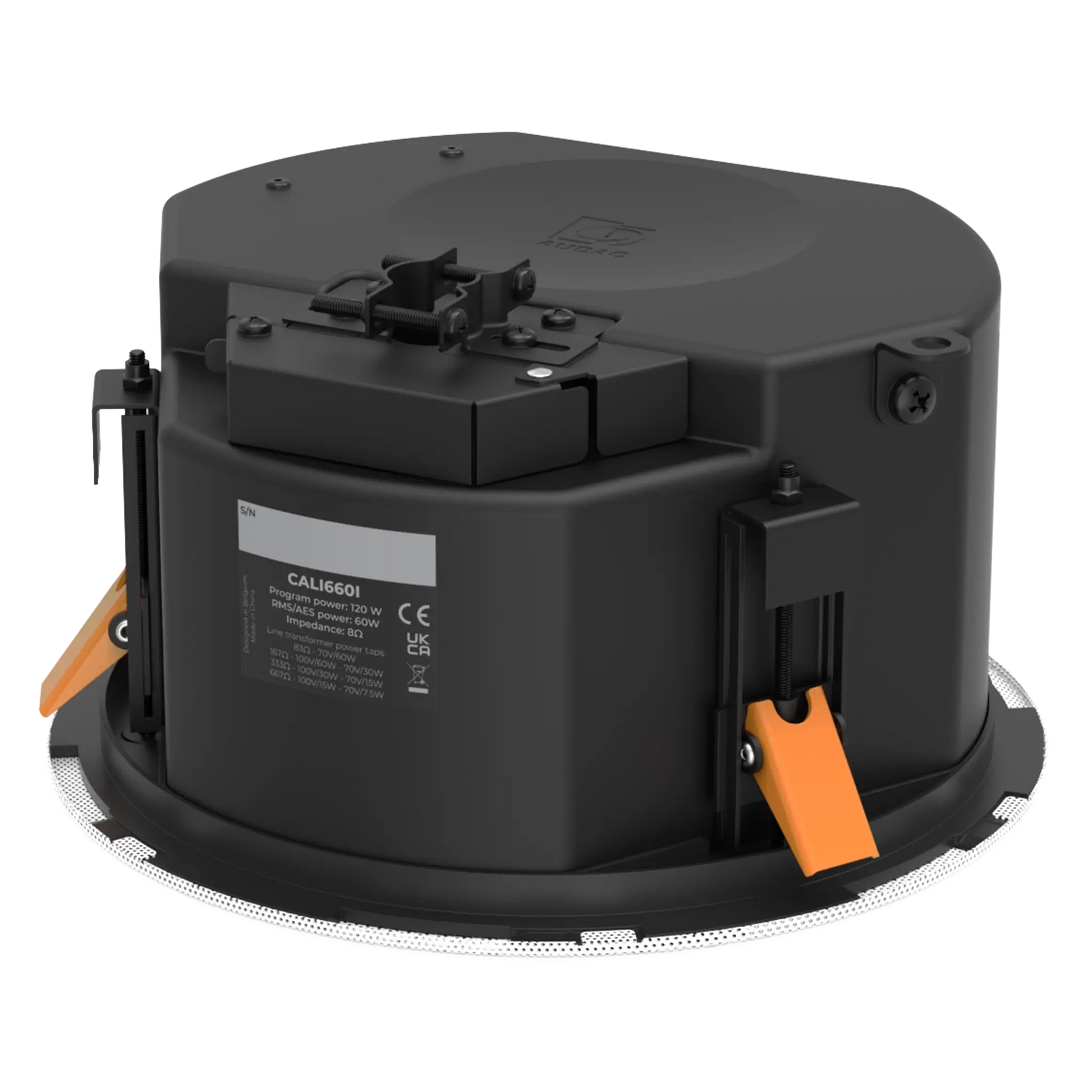

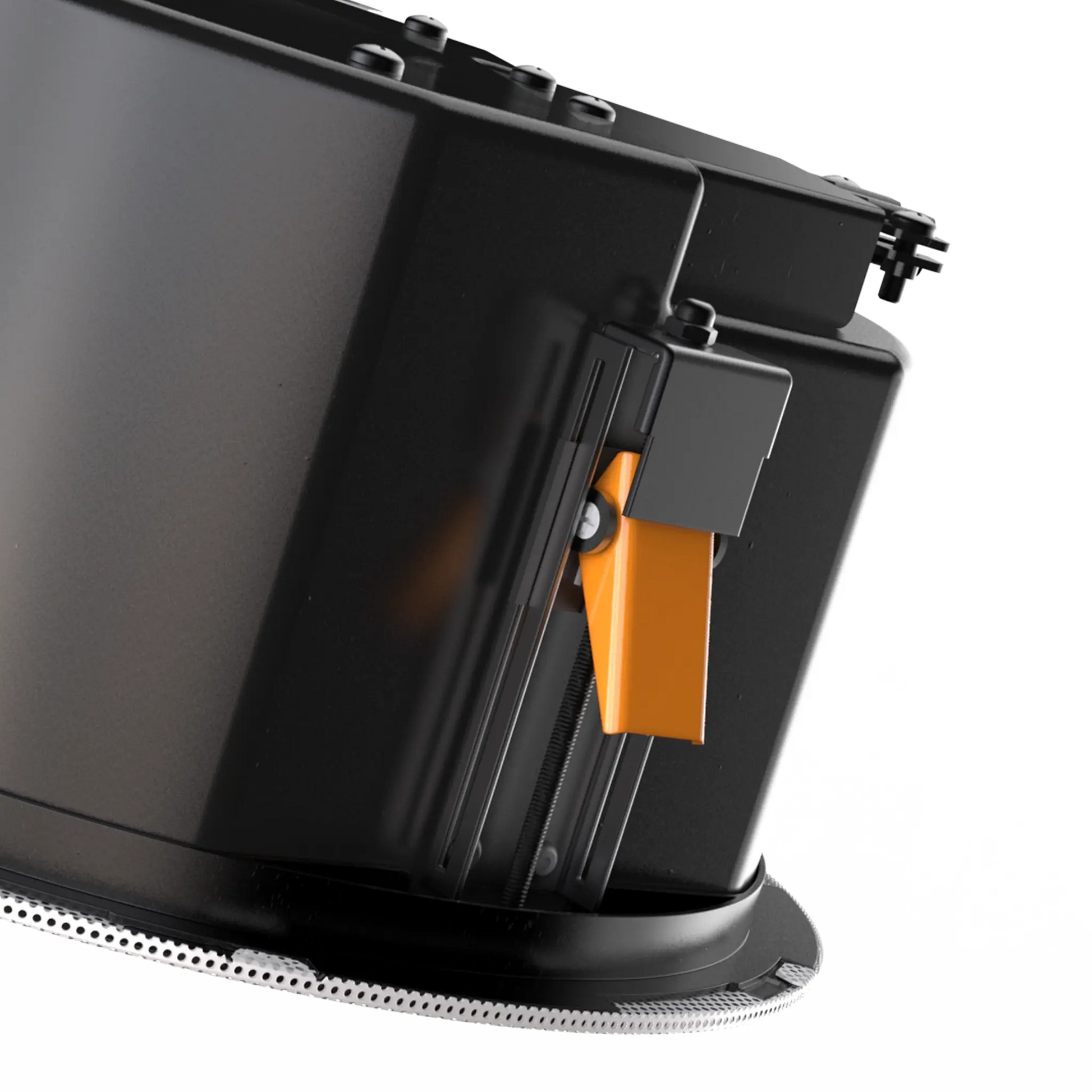

• Quick Installation: Patented SafeLatch™ system for easy mounting and secure fixation.

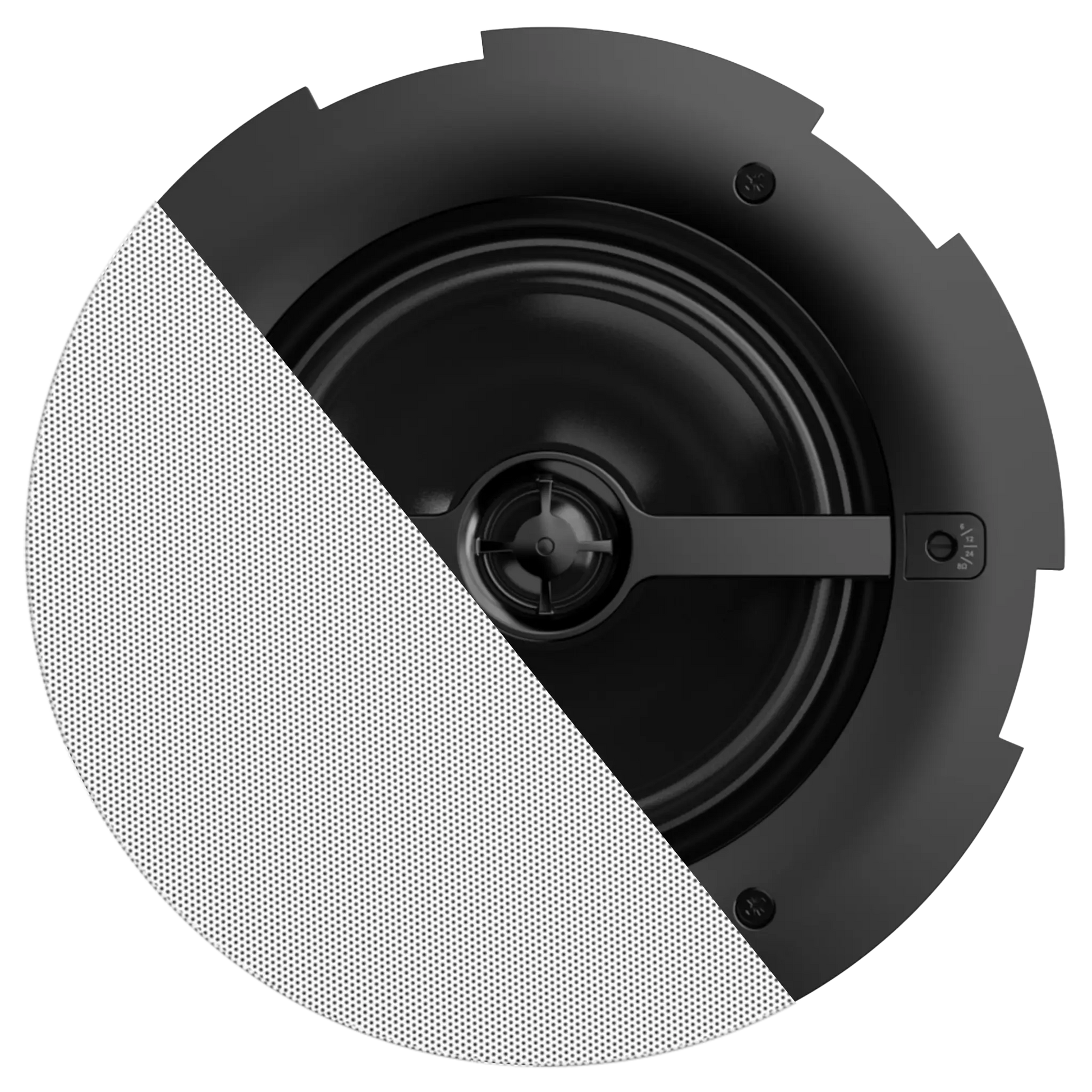

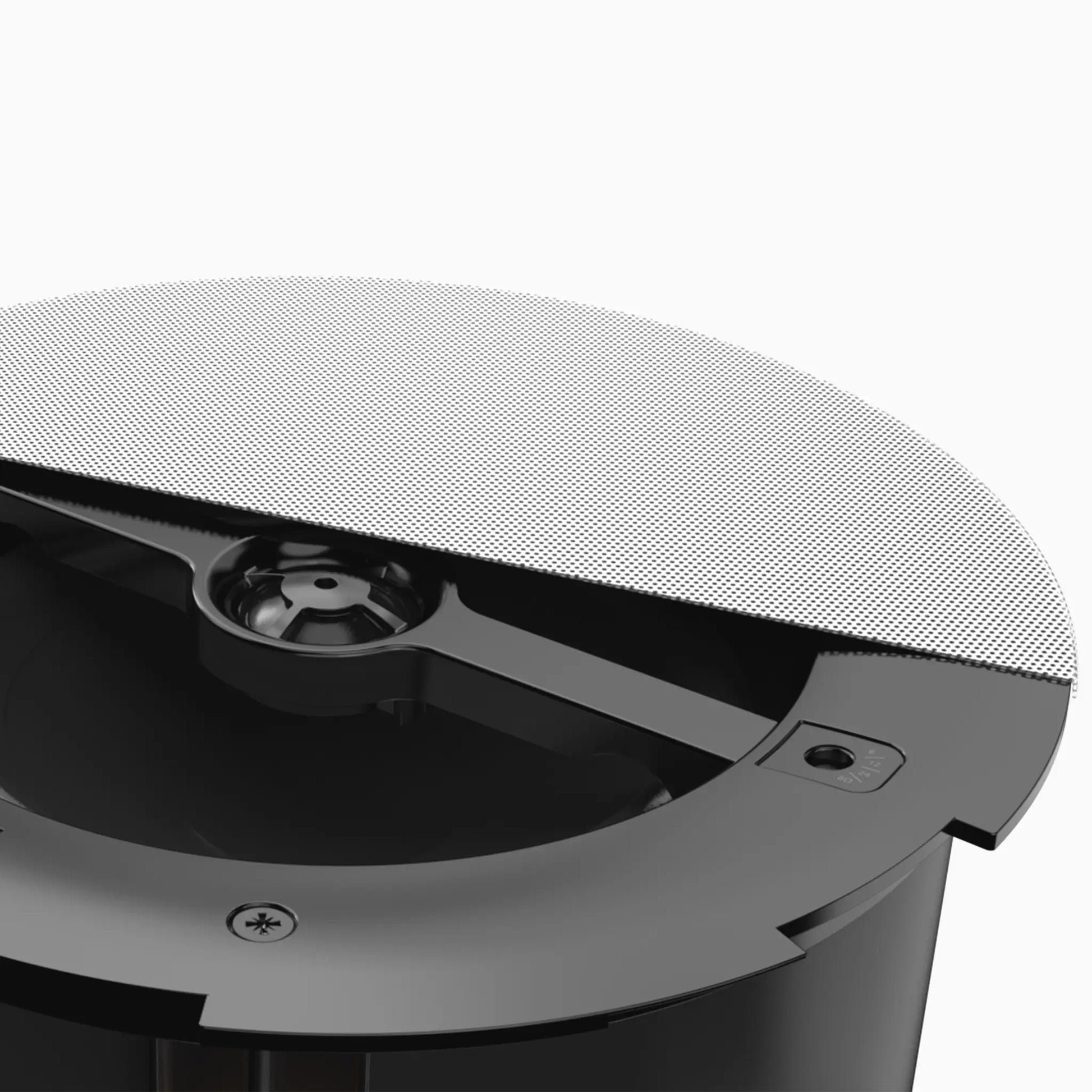

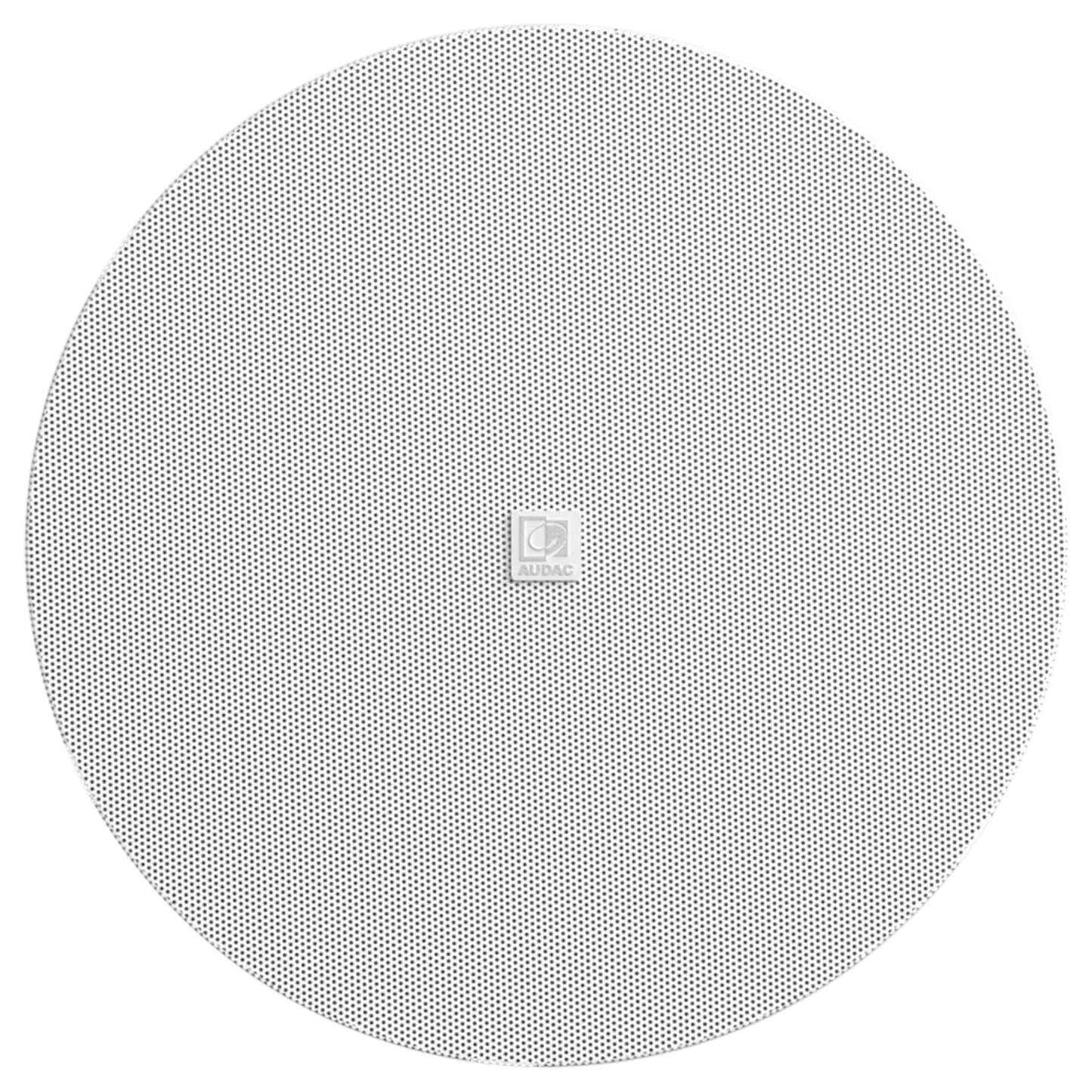

• Unique TwistFix™ Grill: Allows for fast grill assembly and stable mounting.
• Shallow Built-In Depth: Only 120 mm depth, suitable for various ceiling types.

Specifications

• Peak Power Handling: 240 W
• Program Power Handling: 120 W
• RMS Power Handling: 60 W
• Sound Pressure (Max. W/1m): 106 dB @ 100 V
• Sensitivity (1W/1m): 87 dB
• Frequency Response (± 3 dB): 90 Hz - 20 kHz
• Frequency Range (-10 dB): 70 Hz - 20 kHz
• Dispersion: Conical 145°
• Speaker Type: 2-way coaxial

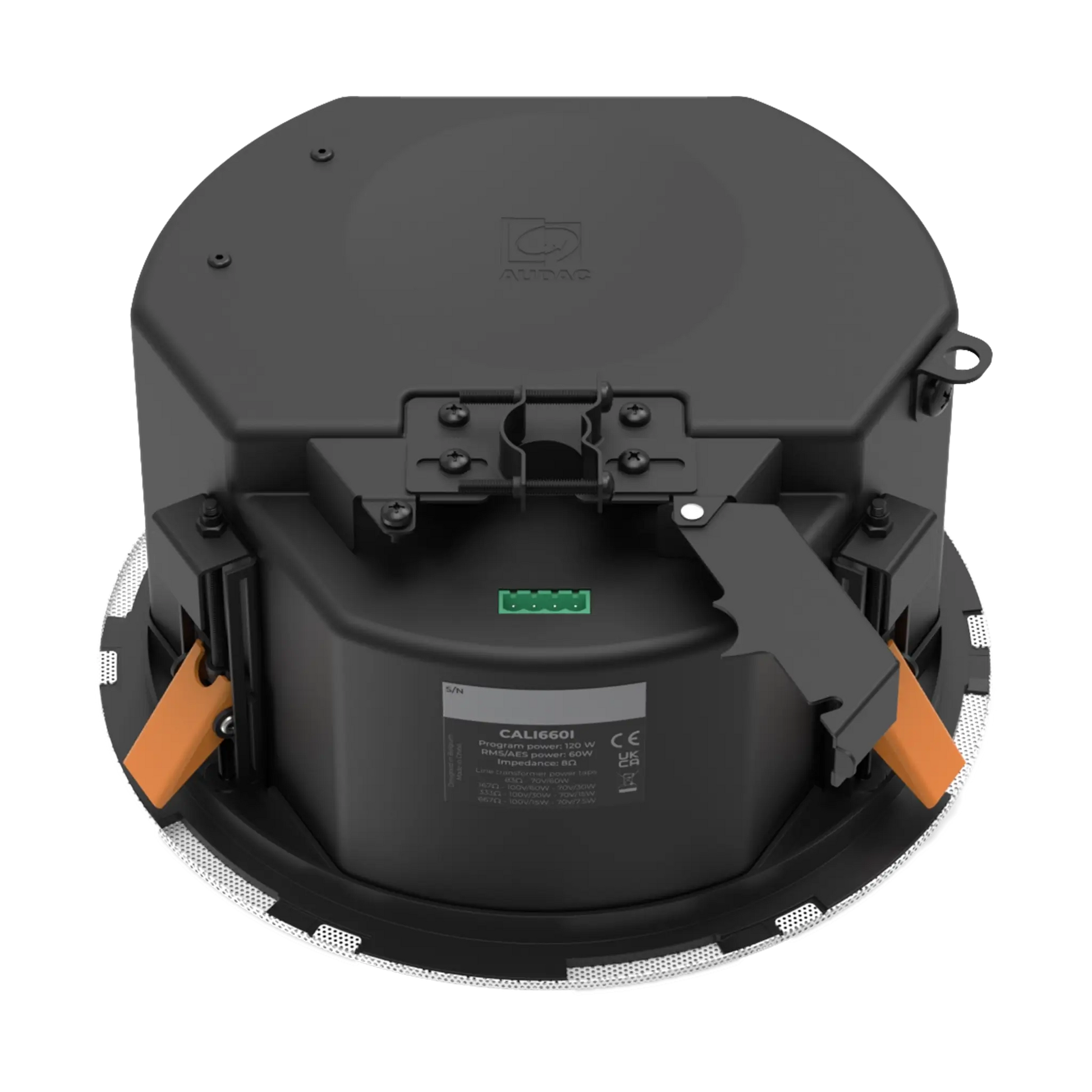

• Connection: Pluggable terminal block connector with link-through
• Cut-Out Measurement: 220 mm (Ø)
• Dimensions: 242 x 120 mm (Ø x D)
• Built-In Depth: 120 mm
• Operating Temperature: -20 °C ~ 60 °C
• Construction: ABS and powder coated steel
• Weight: 3.42 kg
