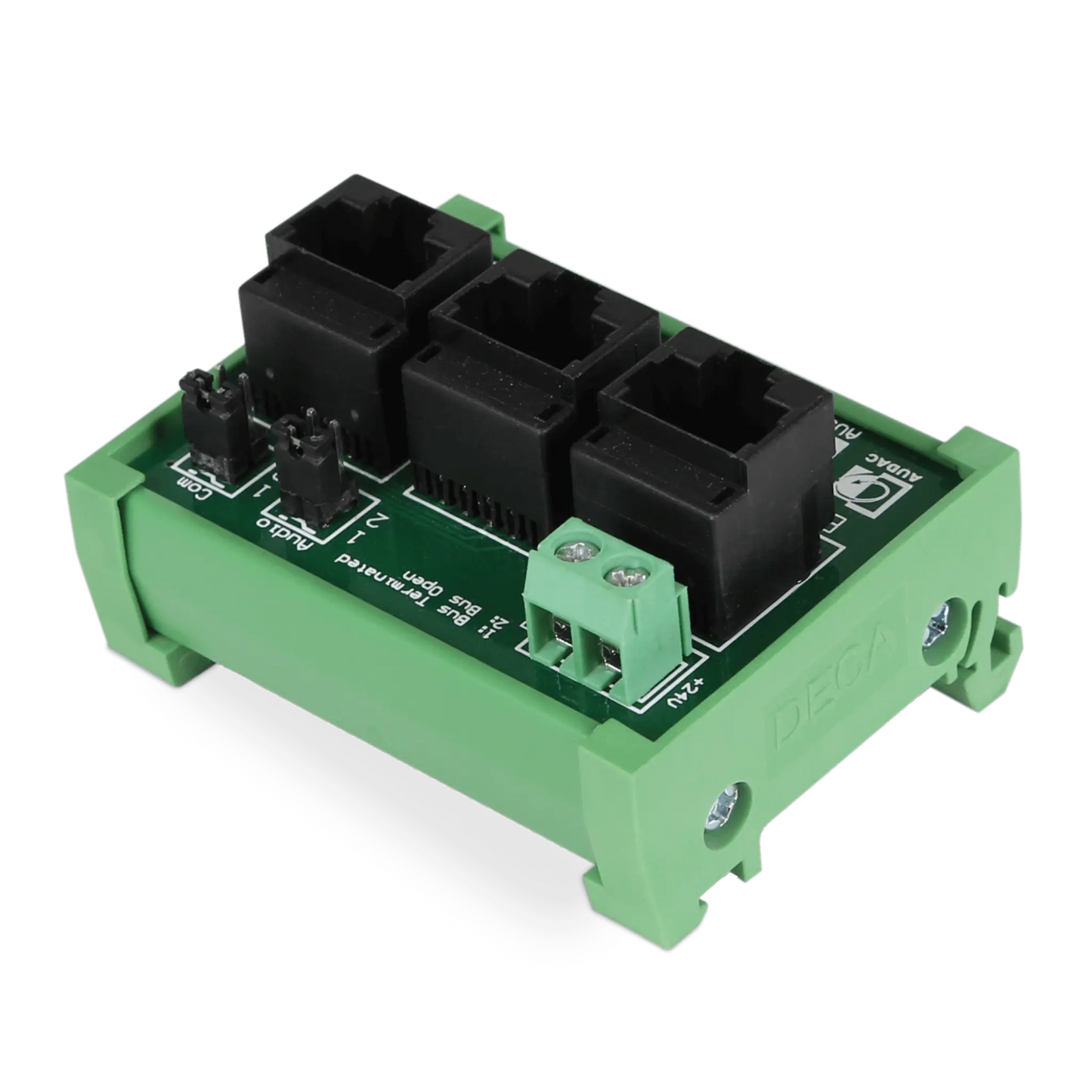

AUDAC ARJ03P Junction Box - RJ45 Splitter for Data and Power Use

The AUDAC ARJ03P Junction Box is a versatile RJ45 splitter designed for connecting and splitting twisted pair based databus systems. Ideal for expanding communication and audio transfer buses, it allows multiple input and output devices to connect through a single peripheral port on a matrix system. The junction box features three RJ45 connectors, including 'BUS IN', 'BUS OUT', and a connector for remote modules. It also includes termination jumpers for clear communication and audio transfer, ensuring optimal performance even over long cable lengths.

Features

• RJ45 Splitter: Connects and splits twisted pair databus systems with ease.
• Multiple Connectors: Includes 'BUS IN', 'BUS OUT', and a connection for remote input/output modules.
• Termination Jumpers: Ensures communication and audio pairs are terminated at 120 Ohm for clear signals.
• External Power Supply: Features a terminal block to connect a +24 V DC power supply for long cable runs.
• Durable Design: Constructed from unbreakable plastic, suitable for mounting on Mini DIN rails.

Specifications

• Dimensions: 61 x 48 x 40 mm (W x H x D)
• Weight: 0.043 kg
• Mounting: Mini DIN rail
• Connectors: 3 x RJ45, 2-pin Euro Terminal Block (Power supply)
• Color: Green
• Power Supply: +24 V DC
