Audac All-in-one wall panel for MTX White version

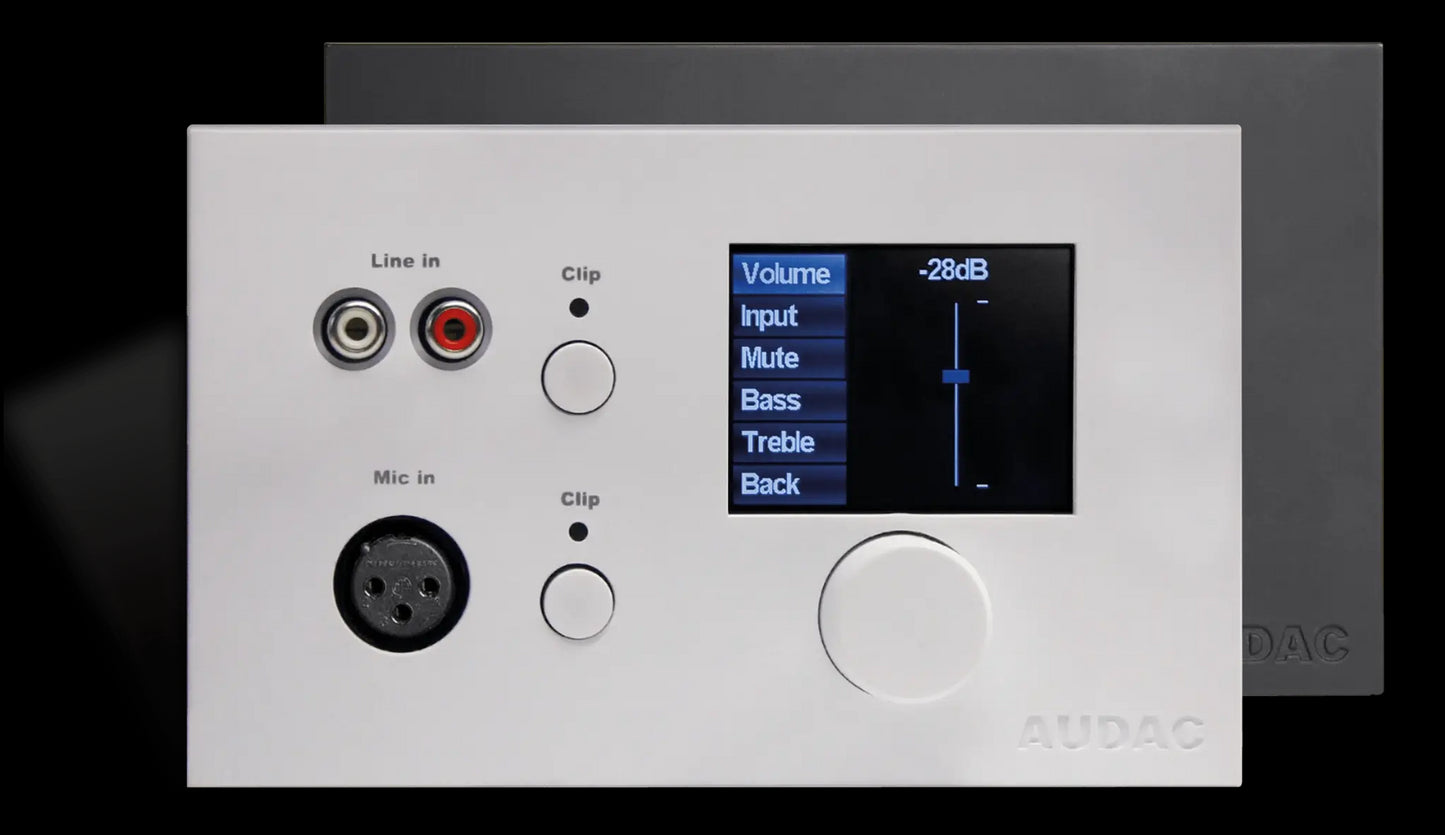

The Audac MWX65 is a versatile all-in-one wall panel controller designed for seamless integration with AUDAC MTX series multi-zone audio matrix systems. This elegantly designed white version allows users to effortlessly manage audio inputs and volume levels across various zones. Featuring a user-friendly 2.5” graphical display and a rotatable push-dial for intuitive control, the MWX65 makes audio management simple and efficient. It supports both line and microphone level inputs, making it ideal for environments such as bars, restaurants, hotels, and corporate settings.

Features

• Multi-Zone Control: Manage input signals and volume for one zone while connecting additional local sources.
• User-Friendly Interface: The 2.5” graphical display and rotatable push-dial simplify operation and enhance user experience.
• Versatile Connectivity: Includes XLR and RCA connectors for microphone and line inputs, allowing for flexible audio source integration.
• Phantom Power Support: Provides 12V phantom power for microphones, configurable via software.
• Robust Construction: Made from durable ABS material, ensuring longevity in various environments.
• Efficient Wiring: Utilizes standard UTP CAT5 cabling for control and audio signal transfer, with a power supply for the wall panel.

Specifications

• Control Protocol: RS-485
• Audio Transfer: Analogue differential (Dual mono)
• Phantom Power: 12 V DC (software enabling)
• Cabling: CAT5 (up to 300 meters)
• Display Type: 2.5” Graphical Full Colour
• Power Consumption: 1.8 W - 75 mA / 24 V
• Connector Type: 8-pin Euro Terminal Block
• Unbalanced Stereo Input Sensitivity: -12 dBV ~ 12 dBV
• Unbalanced Stereo Input THD+N (@ 1 kHz): < 0.05 %
• Balanced Microphone Input Sensitivity: -50 dBV ~ -15 dBV
• Balanced Microphone Input THD+N (@ 1 kHz): < 0.1%
• Dimensions: 153 x 94 x 45 mm (W x H x D)
• Built-in Depth: 37 mm
• Weight: 0.21 kg
• Material: ABS
• Available Colors: Black (RAL9005), White (RAL9010)
