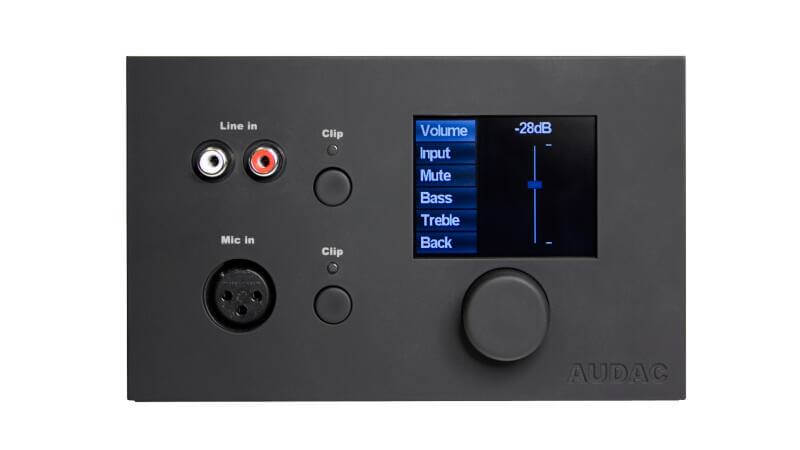

Audac All-in-one wall panel for MTX Black version

The Audac MWX65 is a sophisticated all-in-one wall panel controller designed to seamlessly integrate with AUDAC's MTX series multi-zone audio matrix systems. It provides comprehensive control over audio input signals and volume for a designated zone, featuring both line and microphone level inputs. The intuitive rotatable push-dial allows for easy input selection, volume adjustments, and two-band tone control, all displayed on a user-friendly 2.5” graphical display. With robust connectivity options, including RCA and XLR inputs, and the ability to provide phantom power, this wall panel is ideal for various applications in bars, restaurants, hotels, and corporate environments.

Features

• Multi-Zone Control: Designed for use with AUDAC MTX series systems to manage audio across multiple zones.
• User-Friendly Interface: 2.5” graphical display and a versatile rotatable push-dial for easy control.
• Multiple Inputs: Supports both line (RCA) and microphone (XLR) inputs, allowing for local music sources and announcements.
• Phantom Power: Provides 12V phantom power for microphones, configurable via software.
• Long Distance Cabling: Utilizes standard UTP CAT5 cabling for distances up to 300 meters, ensuring reliable audio and control signal transfer.
• Compact Design: Flush mountable with a sleek ABS construction available in black or white.

Specifications

• Control Protocol: RS-485
• Audio Transfer Type: Analogue differential (Dual mono)
• Inputs: 1 x Unbalanced Stereo (RCA), 1 x Balanced Microphone (XLR)
• Power Consumption: 1.8 W - 75 mA / 24 V
• Dimensions: 152 x 94 x 45 mm (6.024 x 3.70 x 1.77 inches)
• Weight: 0.21 kg (0.46 lb)
• Construction Material: ABS
• Signal-to-Noise Ratio: 85 dB (RCA), 75 dB (XLR)
• Total Harmonic Distortion + Noise: < 0.05% (RCA), < 0.1% (XLR)
