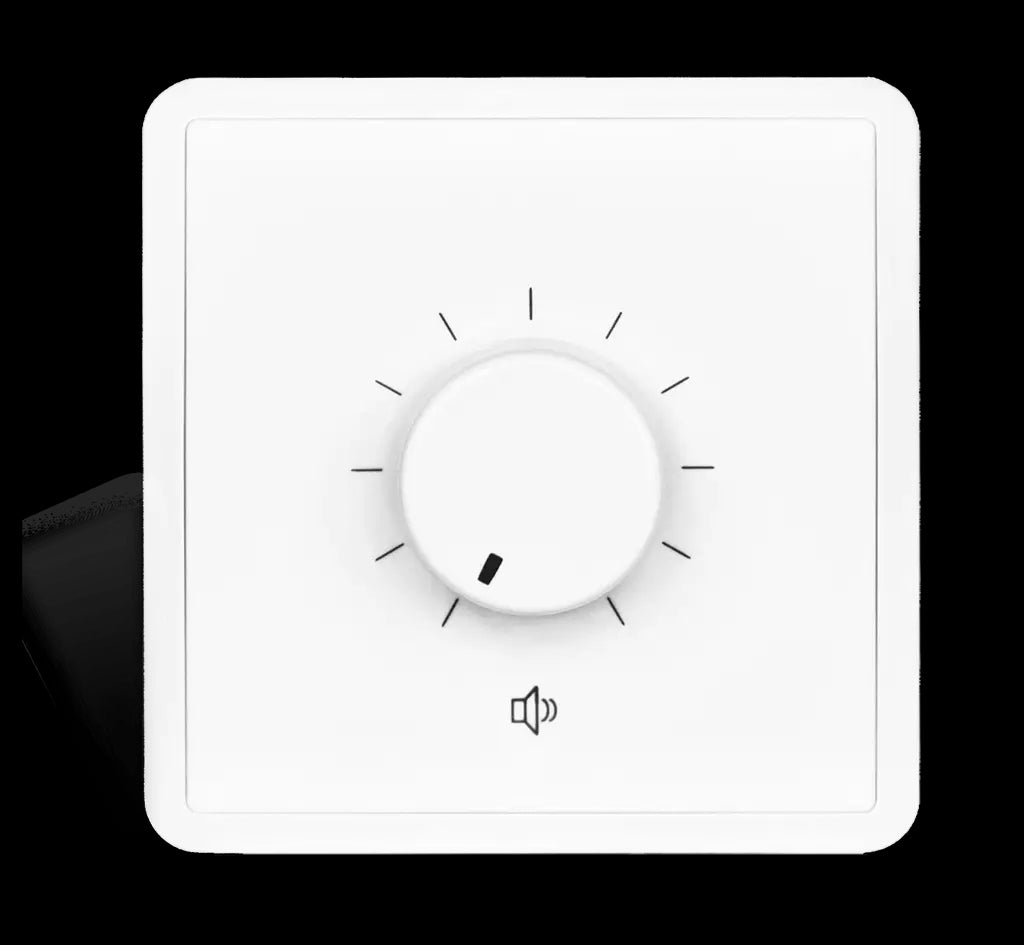

Audac 100V volume controller 20W 80 x 80 mm 100v wall volume controller

The Audac VC3022 is a robust 100V wall volume controller designed for both industrial and residential applications. With a sleek design and constructed from durable ABS material, this volume controller allows for seamless adjustment of sound levels in 11 steps of 3 dB, ensuring optimal audio control in various environments. Its integrated 24V relay feature ensures that crucial announcements can always be heard clearly, even in priority situations. The VC3022 is easy to install with screw terminal block connections, and optional flush or surface mount boxes are available for enhanced versatility.

Features

• Adjustable Volume Control: Allows volume adjustment in 11 steps of 3 dB for precise sound management.
• Durable Construction: Made from sturdy ABS material, suitable for both industrial and home environments.
• Integrated Priority Relay: Ensures that important messages are clearly heard at maximum volume during priority situations.

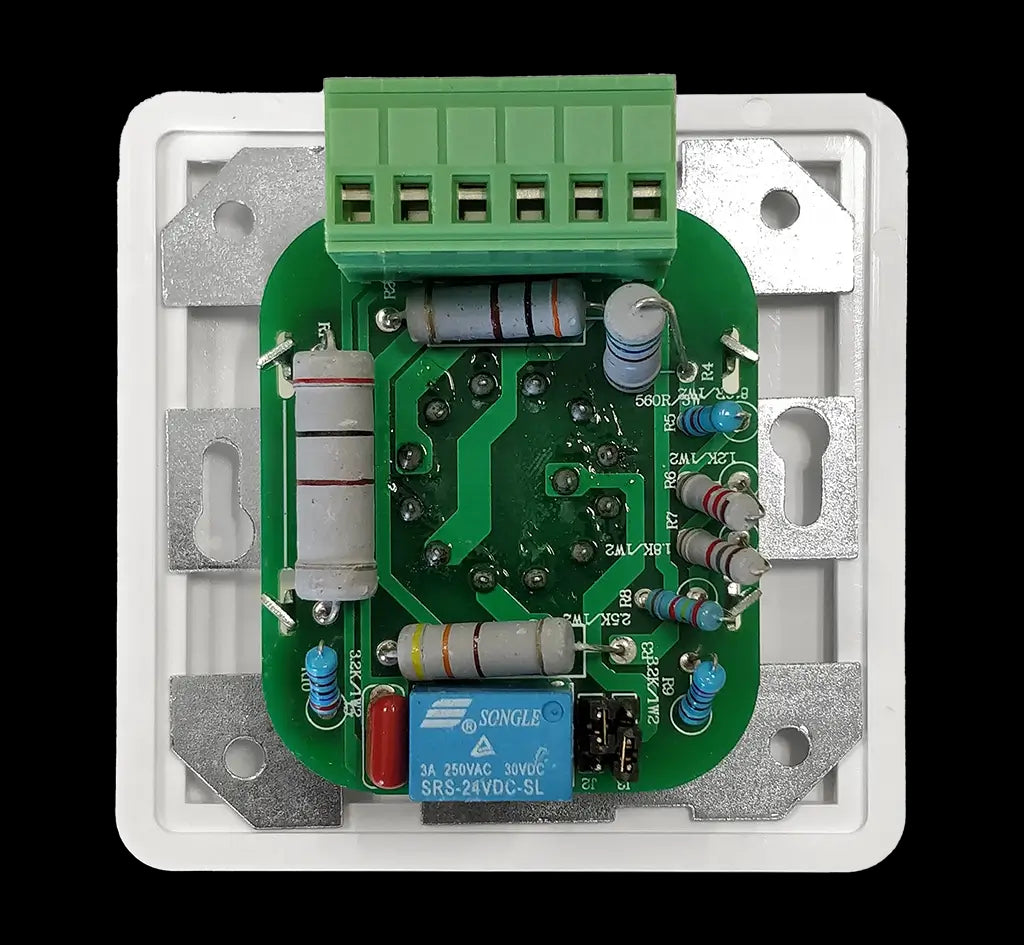

• Easy Installation: Features screw terminal blocks for simple connections.
• Sleek Design: Compact dimensions and modern aesthetics fit well in any setting.
• Optional Mounting Accessories: Compatible with WB3102/FS flush mount and WB3102/SW surface mount wall boxes.

Specifications

• Peak Power Handling: 40 W
• Program Power Handling: 20 W
• Max. Operation Voltage: 100 V
• Attenuation Steps: 11 x 3 dB
• Priority Relay: 24 V / 25 mA
• Dimensions (W x H x D): 80 x 80 x 50 mm
• Built-in Depth: 46 mm
• Weight: 0.1 kg
• Construction Material: ABS
• Colour: White
