Atlona Velocity 8-Button Keypad Controller for AV Control Systems

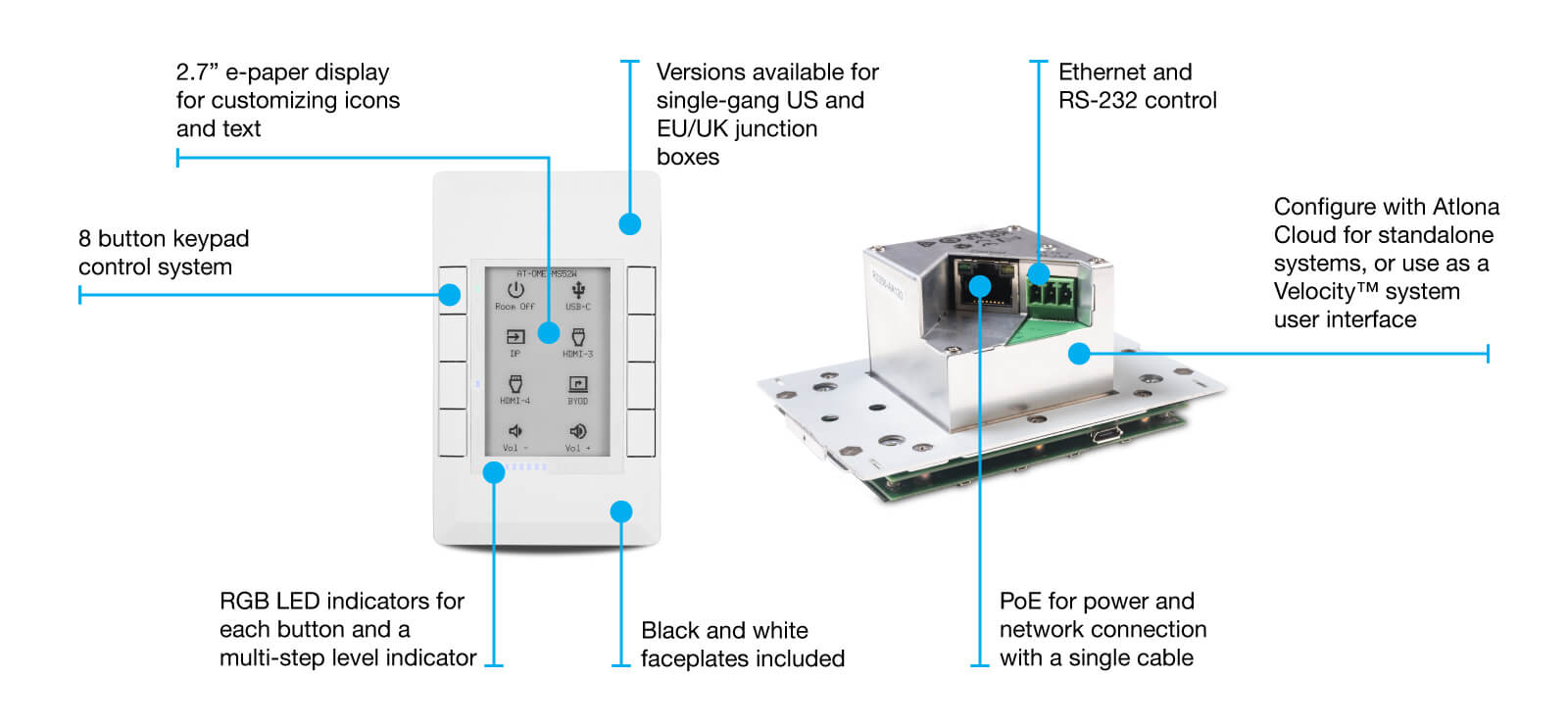

The Atlona AT-VKP-8E is a powerful 8-button IP-based keypad controller designed for controlling up to 10 devices in a single room. Featuring a customizable 2.7" electronic paper (e-paper) display, it allows for dynamic changes in icons and text, making it ideal for classrooms and meeting rooms with simple AV setups. The device supports Power over Ethernet (PoE) for easy installation and comes with both black and white faceplates for versatile aesthetics. With robust feedback through RGB LED indicators and a multi-step level indicator, it provides users with clear operational status.

Features

• 8-Button Control: Manage display power, source input, volume levels, and other system functions with ease.
• Customizable E-Paper Display: 2.7" high contrast display (264 x 172 resolution) allows for dynamic icon and text changes.
• IP-Based Connectivity: Control devices over the network with support for DHCP, static addressing, and various protocols.
• RS-232 Port: Enables control of legacy devices such as projectors and switchers.
• Power over Ethernet (PoE): Simplifies installation by providing power and data through a single cable.

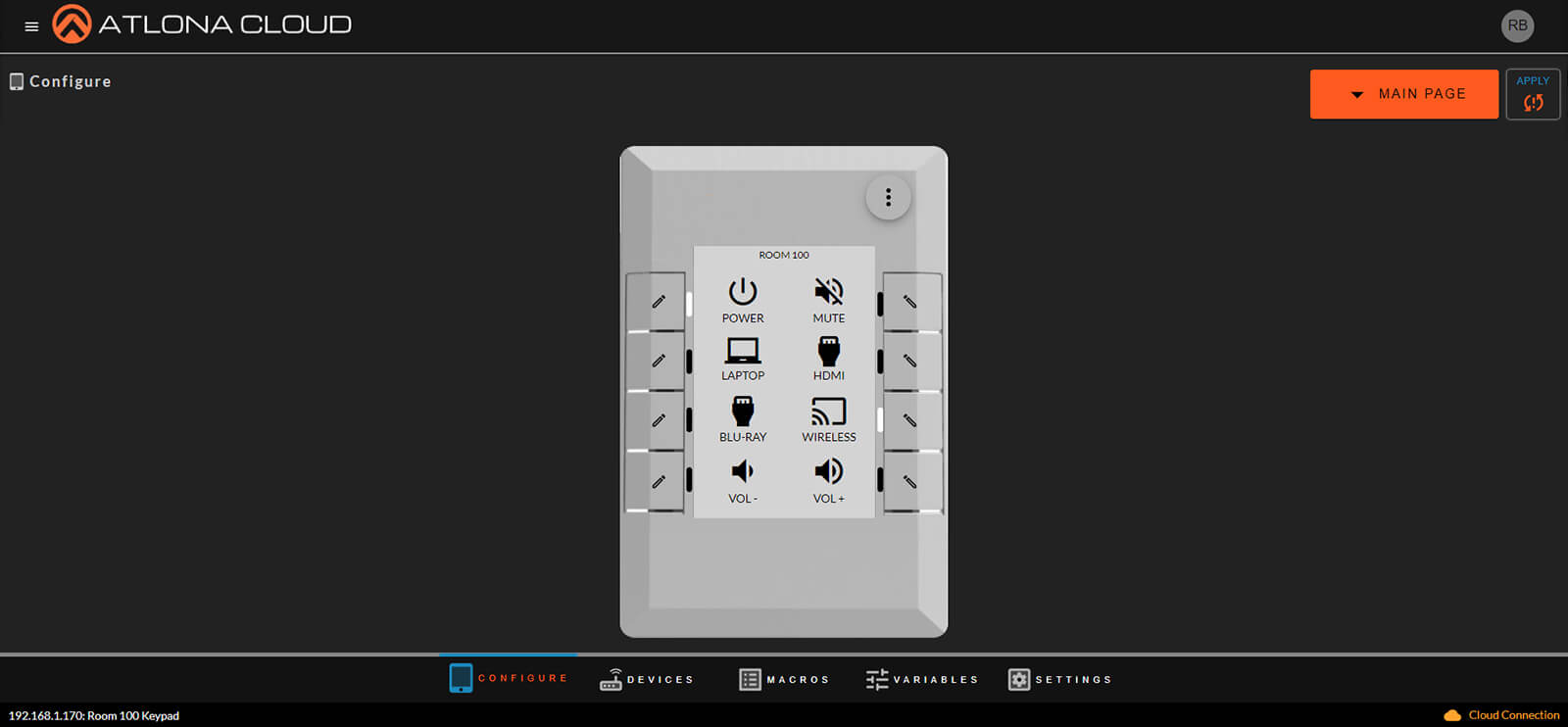

• Atlona Cloud Configuration: Intuitive online platform for configuring buttons and managing projects, with the ability to upload configuration files.

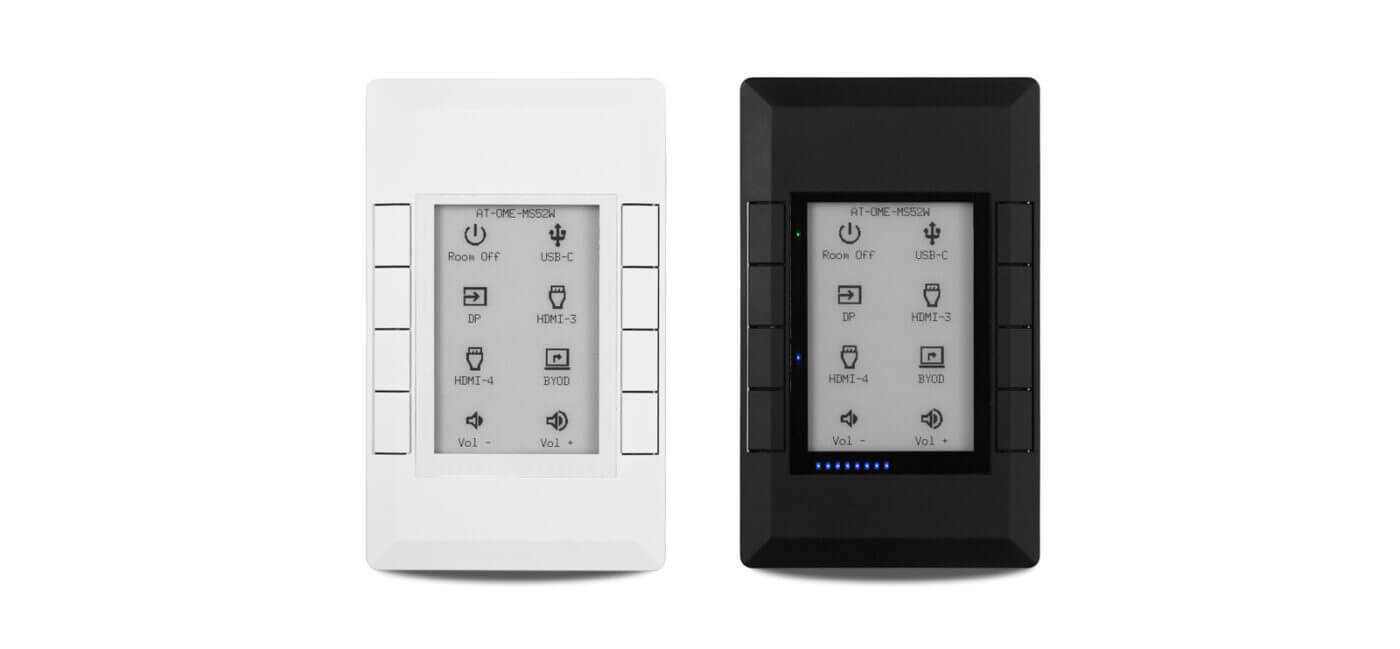

• Multiple Faceplate Options: Comes with both black and white faceplates that attach magnetically.

Specifications

• CPU: i.MX6 with Cortex A7 @900 MHz
• Operating System: Linux
• RAM: LVDDR3 512Mb
• Flash Memory: EMMC 4GB
• Display: 2.7" e-ink, 264 x 172 pixels, black and white
• Ethernet Port: 1 x RJ45, 10/100 Mbps
• Temperature Operating Range: 32 to 122°F (0 to 50°C)
• Storage Temperature: -25 to 158°F (-32 to 70°C)
• Humidity: 10% to 90%, non-condensing
• Dimensions: 114 x 69.8 x 11.4 mm
• Weight: 0.15 kg
• Certifications: CE, FCC, RCM, China RoHS, UKCA, ICES
