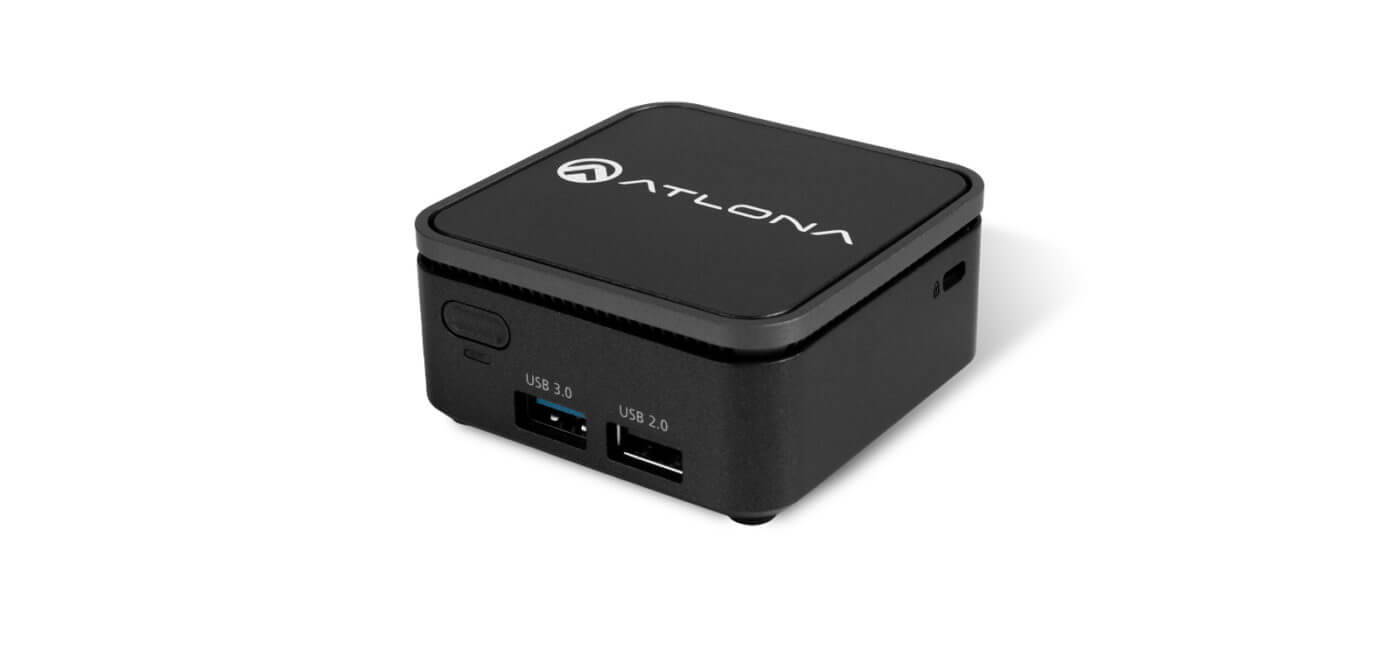

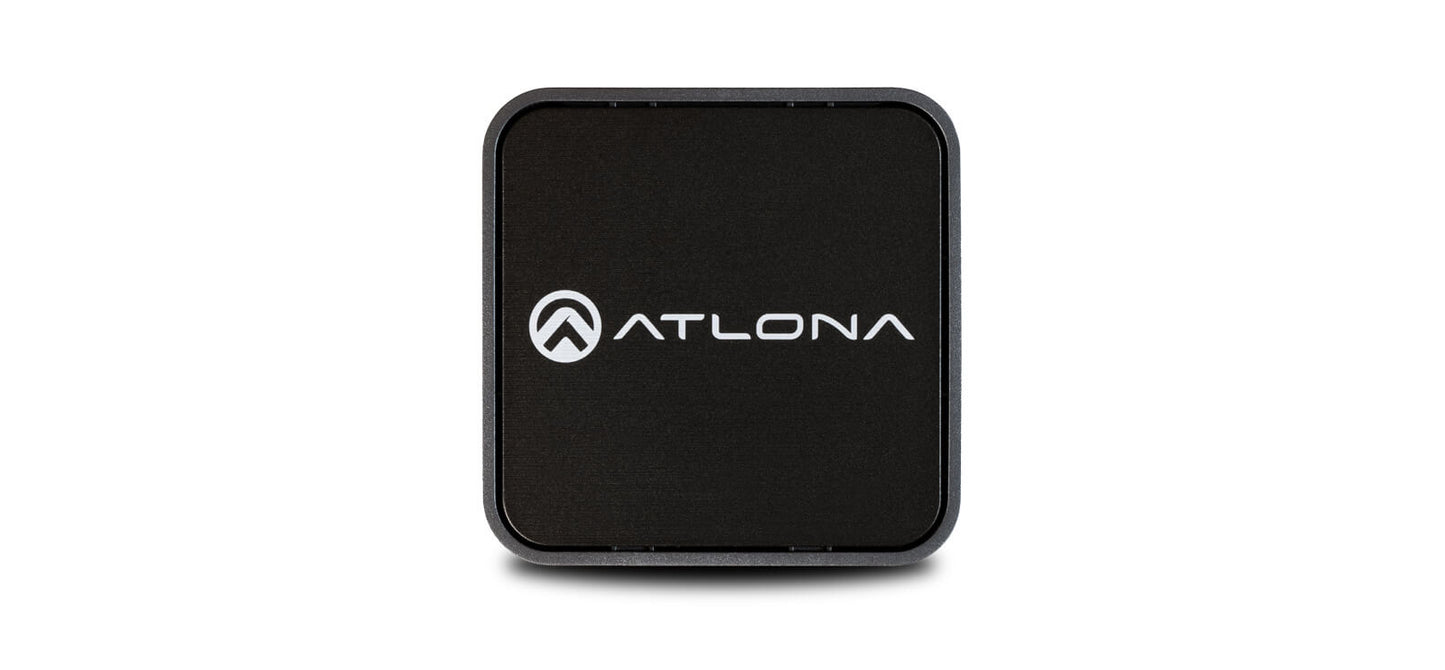

Atlona Ultra-small form factor wireless presentation receiver

The Atlona AT-WAVE-101 is a cutting-edge wireless presentation system designed for seamless content sharing from multiple devices. With support for iOS, Android, Mac, Chromebook, and Windows, it enables up to four users to present simultaneously, making it ideal for collaborative environments such as classrooms and meeting spaces. Its innovative features like Dynamic Layout Mode and Instructor Mode enhance user experience, allowing for easy management of presentations and content playback.

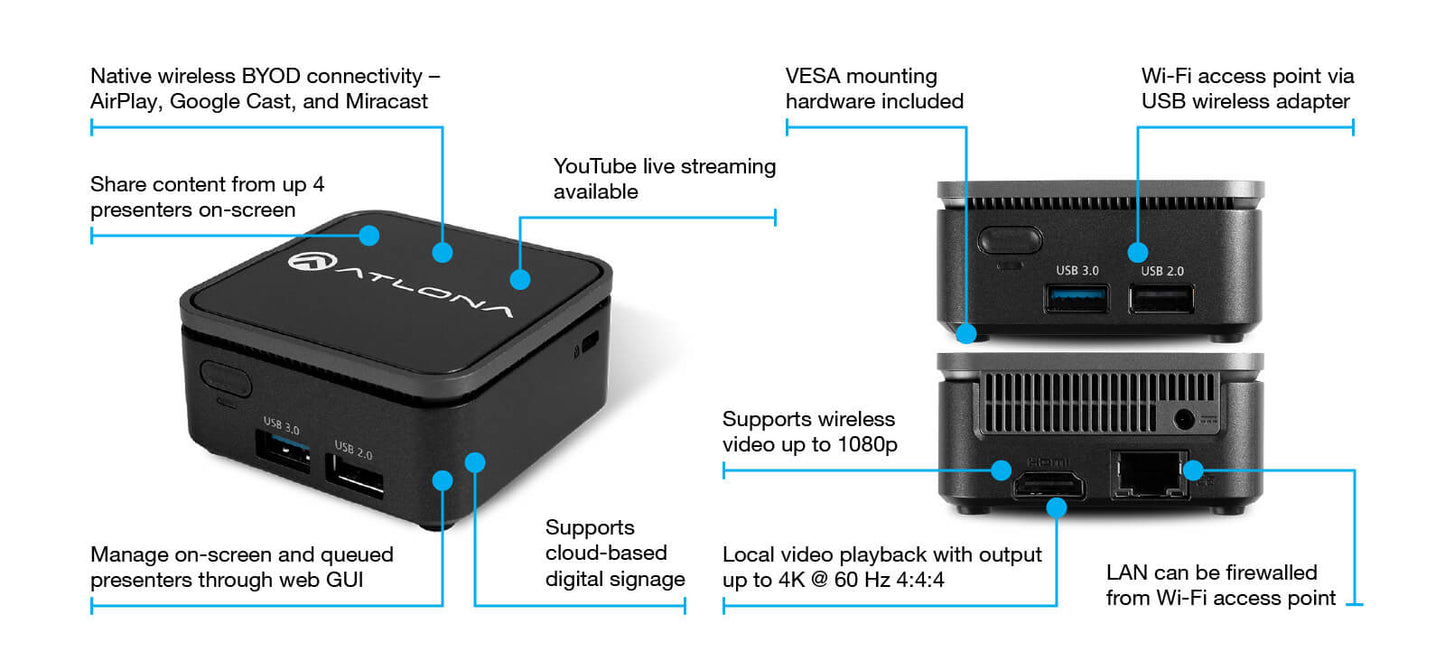

Features

• Simultaneous Presentations: Allows up to four presenters to share content on-screen at the same time.
• Dynamic Layout Mode: Automatically adjusts the on-screen layout based on incoming or disconnected content, optimizing the viewing experience.
• Instructor Mode: Enables the instructor to manage presentations, control audio, and queue content from multiple student devices.
• Wireless Connectivity: Supports native casting protocols such as AirPlay, Google Cast, and Miracast without requiring additional apps.
• High-Quality Media Playback: Capable of playing user-uploaded images and videos up to 4K resolution, as well as streaming from YouTube.
• Cloud-Based Digital Signage Support: Integrates with platforms like DAKboard for digital signage applications.
• Security Features: Randomly generated PIN access codes and configurable firewall for secure wireless connections.
• Built-in Wireless Access Point: Functions as a dual-band access point for direct device connections.

Specifications

• Operating System: Linux
• Processor: Intel® Celeron N4120
• Memory: 4 GB LPDDR4 (2400)
• Storage: 64 GB eMMC
• Video Output: HDMI
• Maximum Video Resolution: 3840×2160@60Hz for UHD
• Audio Format: HDMI Pass-Through Formats PCM 2.0

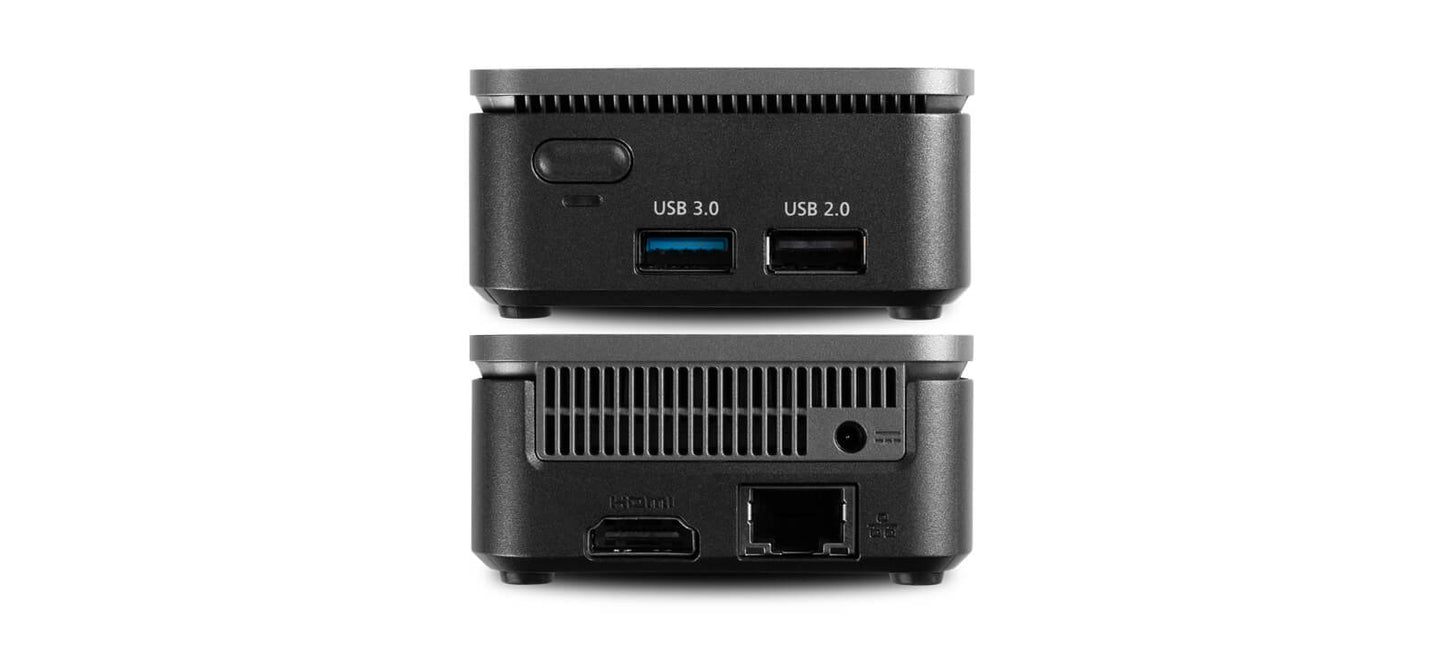

• USB Ports: 2 x Type A (1 x USB 2.0, 1 x USB 3.0)
• Network Port: 1 x RJ45 (1000Base-T)
• Wireless Standards: 802.11 b/g/n/ac (dual band)
• Power Supply: 12V DC, 2A
• Power Consumption: General Load: 10.2 W, Max Load: 17 W

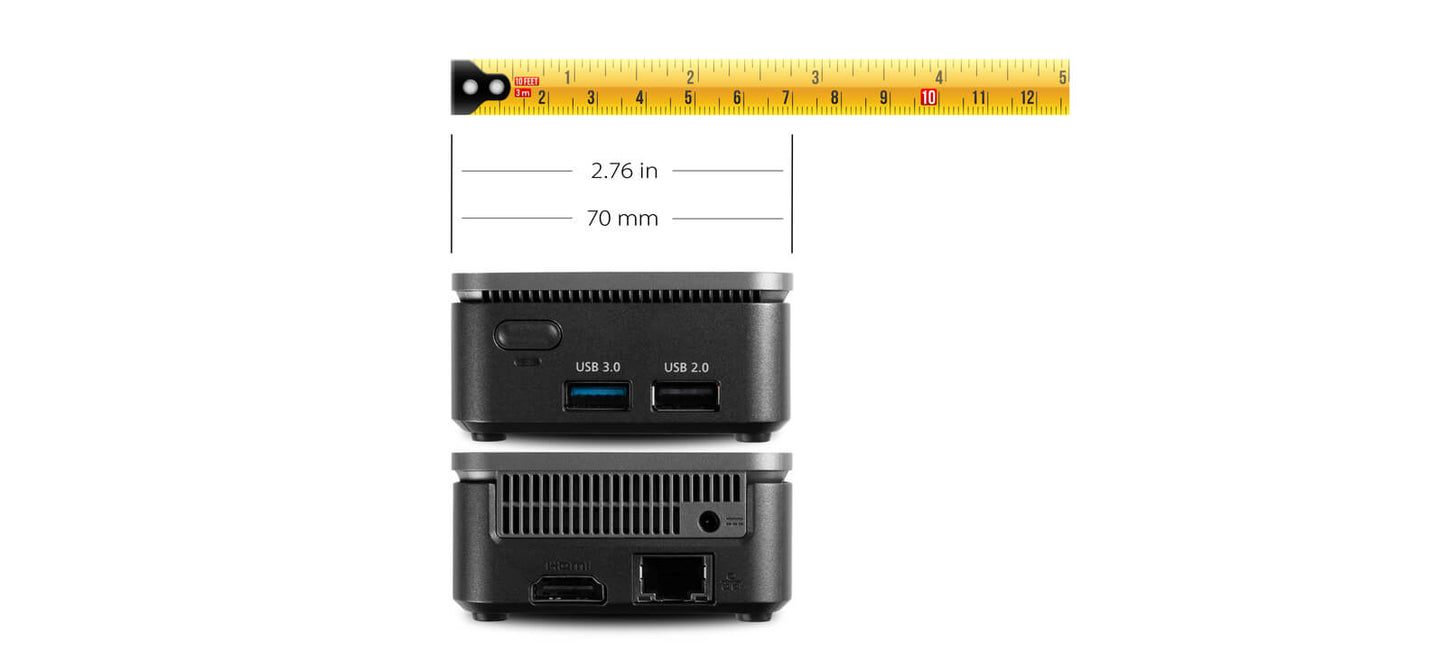

• Dimensions (H x W x D): 1.32 x 2.76 x 2.76 inches
• Weight: 0.57 lbs (0.26 kg)
• Certifications: CE, FCC, UKCA, RCM, China RoHS
