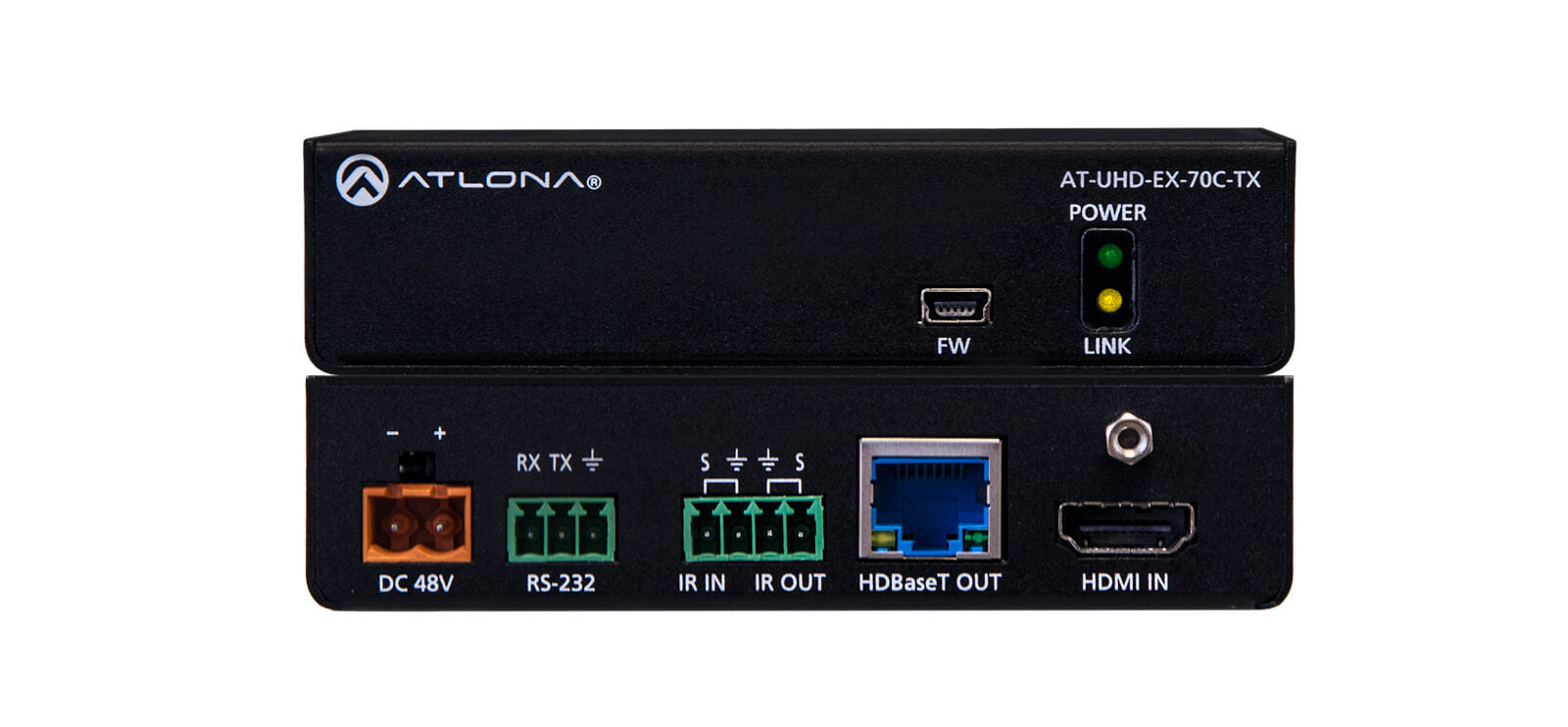

Atlona (Tx Only) 4K/UHD HDMI Over HDBaseT Transmitter with Control and PoE

The Atlona AT-UHD-EX-70C-TX is a powerful HDBaseT transmitter designed for seamless HDMI transmission over long distances. With support for 4K/UHD video at 60 Hz and advanced control options, this device is ideal for both residential and commercial AV installations.

Features

• 4K/UHD Video Transmission: Supports resolutions up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling for stunning picture quality.
• Long Distance Capability: Transmits HDMI signals up to 230 feet (70 meters) over category cable, ensuring flexibility in installation.
• Control and PoE: Facilitates RS-232 and IR control pass-through, along with Power over Ethernet (PoE) for simplified cabling.
• HDCP 2.2 Compliance: Ensures compatibility with the latest content protection standards.
• Compact Design: Features a low-profile, quarter rack-width metal enclosure for easy installation in tight spaces.
• Multi-Channel Audio: Supports embedded multi-channel audio, compatible with various formats including PCM, Dolby, and DTS.
• Field-Updatable Firmware: Allows for easy updates to ensure the device remains current with the latest features and improvements.

Specifications

• Video Resolution: 4K/UHD @ 60 Hz (4:2:0)
• Transmission Distance: Up to 230 feet (70 meters)
• Control Signals: RS-232, IR, CEC
• Power Supply: DC 48V, 0.83A (included)
• Dimensions: 0.93 x 4.2 x 2.95 inches (23.7 x 106.8 x 75 mm)
• Weight: 0.55 lbs (0.25 kg)
• Environmental Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Humidity: 20% to 60%, non-condensing
• Compliance: CE, FCC, RoHS
