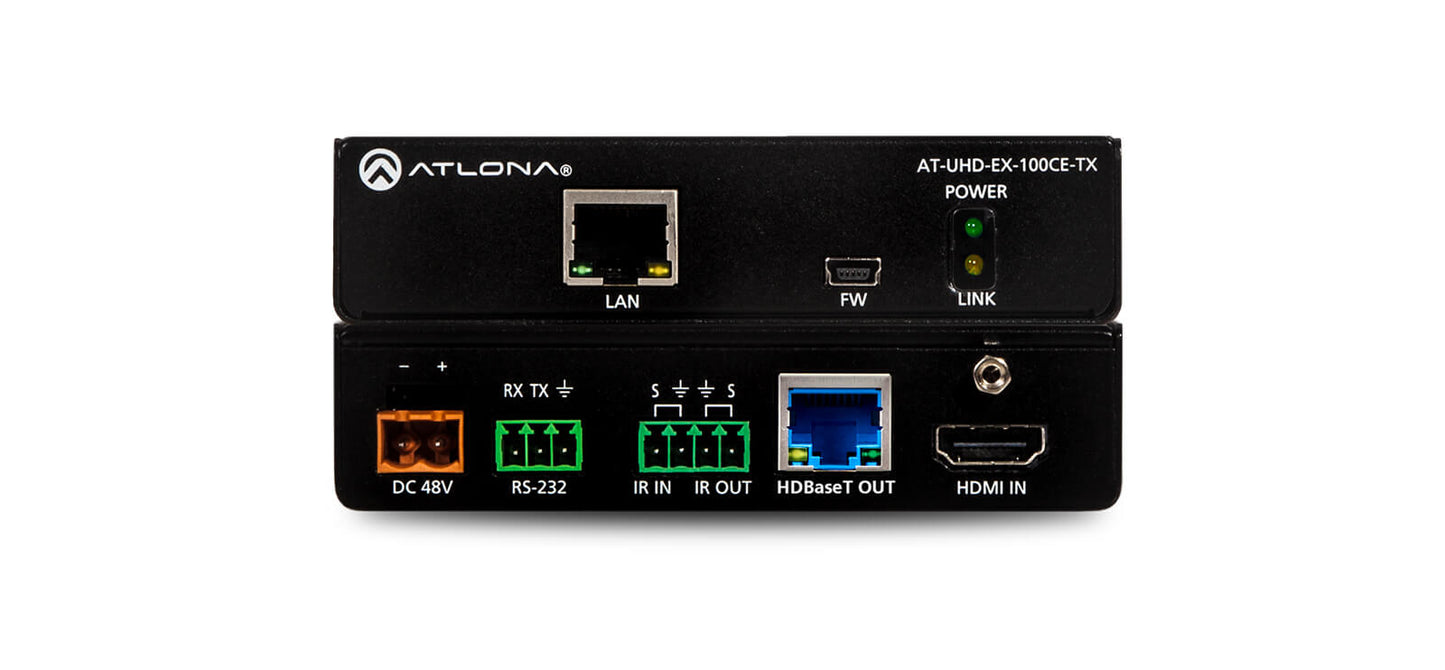

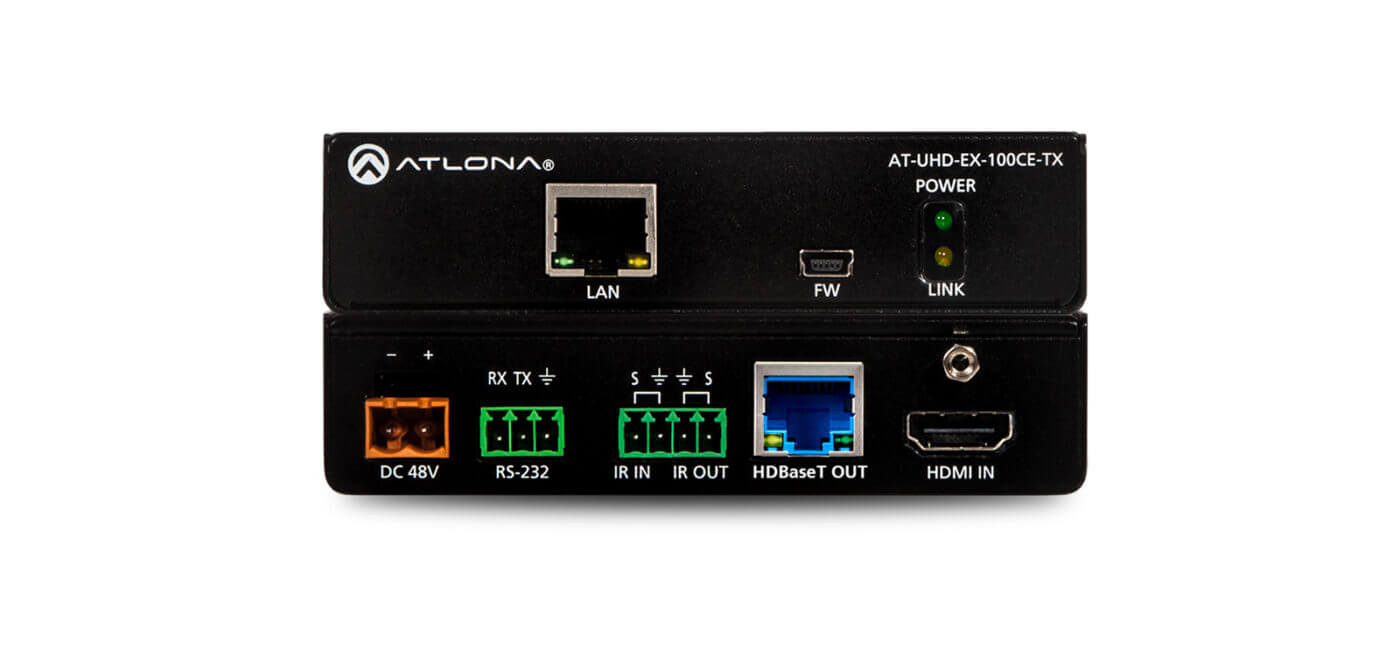

Atlona (Tx Only) 4K/UHD 100M HDBaseT Transmitter (Power Device)

The Atlona AT-UHD-EX-100CE-TX is a powerful HDBaseT transmitter designed for seamless HDMI transmission over long distances. Capable of sending 4K/UHD signals up to 100 meters (330 feet), it supports advanced audio/video formats and control signals, making it ideal for both residential and commercial applications.

Features

• 4K/UHD Capability: Transmits video signals up to 4K @ 60Hz with 4:2:0 chroma subsampling.
• Extended Range: Supports HDMI transmission over distances up to 100 meters (330 feet) using CAT6a/7 cables.
• Power over Ethernet (PoE): Provides power to compatible receivers, simplifying installation.
• Multi-channel Audio Support: Compatible with PCM, Dolby, and DTS audio formats, ensuring high-quality sound.
• Built-in Control: Extends RS-232 and IR control signals, allowing for easy integration with control systems.
• HDCP 2.2 Compliance: Ensures compatibility with the latest content protection standards.
• Field Updatable Firmware: Allows for easy updates to enhance functionality and performance.
• Rack-Mountable Design: Compact, quarter-rack width for efficient space management in AV setups.

Specifications

• Video Resolution: 4096x2160 @ 60Hz, 3840x2160 @ 60Hz
• Distance: Up to 100 meters (330 feet) over CAT6a/7
• Audio Formats: PCM 2Ch, LPCM 5.1, Dolby Digital, DTS 5.1, Dolby TrueHD
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Power Supply: AC100~240V, Output: DC 48V/0.83A
• Dimensions: 25 x 109 x 89 mm (0.98 x 4.29 x 3.50 inches)
• Weight: 0.39 kg (0.86 lbs)
