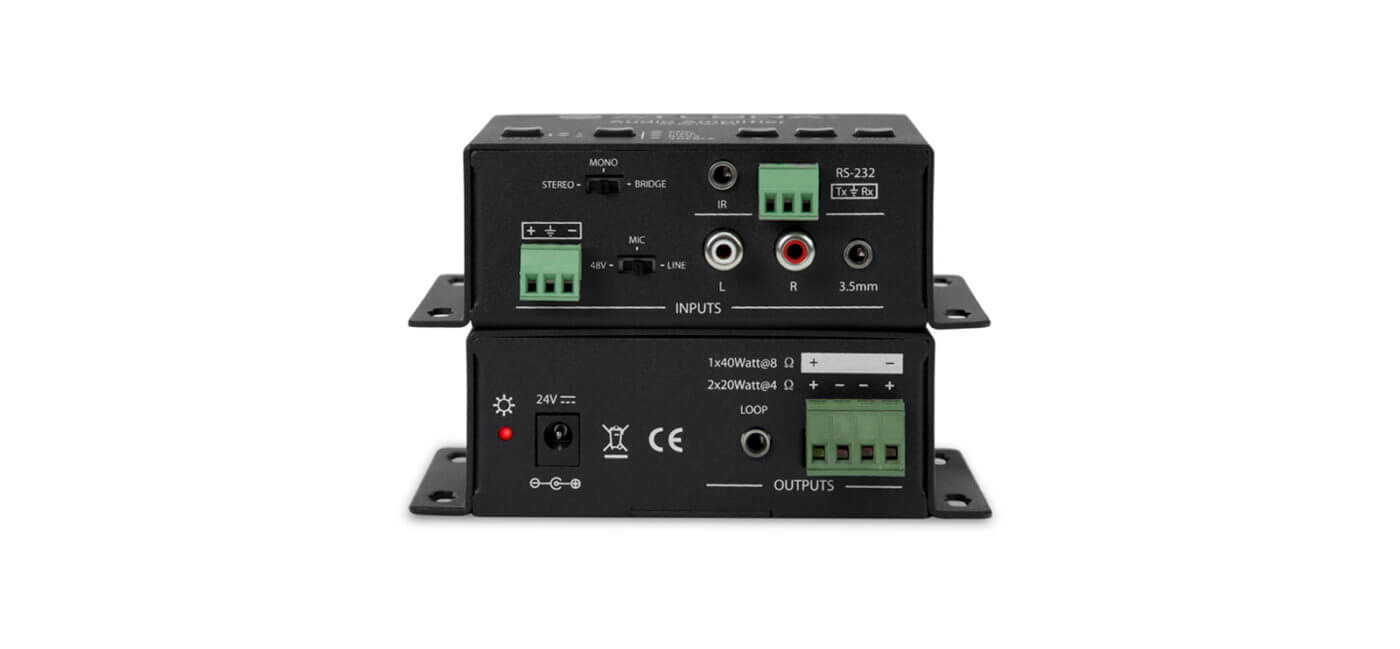

The Atlona AT-PA100-G2 is a compact and efficient power amplifier designed for low impedance applications. It supports selectable stereo, dual mono, and bridged output modes, making it ideal for driving speakers in classrooms, conference rooms, and meeting spaces. With a robust design and energy-efficient Class D technology, this amplifier ensures high-quality audio performance.

Features

• Compact Design: Space-saving dimensions make it easy to integrate into various environments.
• Selectable Output Modes: Choose between stereo (2 x 20W @ 4 ohms), dual mono, or bridged mono (1 x 40W @ 8 ohms) to suit your audio needs.
• Balanced and Unbalanced Inputs: Features balanced mic/line level inputs with selectable 48V phantom power and unbalanced stereo audio inputs via RCA or 3.5 mm connections.
• Independent Control: Each audio input has independent gain and mute controls for precise audio management.
• Energy Efficient: Class D amplifier technology and convection cooling eliminate the need for fans, ensuring quiet operation.
• Versatile Control Options: Control the amplifier via RS-232 or IR with optional remote control for seamless integration into existing systems.
• Line Level Output: Allows for audio pass-through to additional amplifiers or audio systems.

Specifications

• Rated Output: 20 W x 2 @ 4 ohms (stereo), 40 W @ 8 ohms (bridged)
• Gain: 32 dB
• Frequency Range: 20 Hz to 20 kHz
• Signal-to-Noise Ratio: 80 dB (at max output)
• Total Harmonic Distortion (THD): 1% @ 1 kHz, 0.3% @ 20 kHz (nominal)
• Input Impedance: > 10 kΩ
• Output Impedance: 4 to 8 Ω (speaker output), 50 Ω (3.5 mm loop out)
• Operating Temperature: 0 to +50 °C (32 to +122 °F)
• Dimensions: 38 mm (H) x 96 mm (W) x 87 mm (D)
• Weight: 0.3 kg
