Atlona Rondo™ 442 - 4K HDR 2-Output HDMI Distribution Amplifier

The Atlona Rondo™ 442 (AT-RON-442) is a high-performance 1x2 HDMI distribution amplifier designed for 4K HDR formats. It supports 4K/UHD video at 60 Hz with 4:4:4 chroma sampling and HDMI data rates up to 18 Gbps. This amplifier is ideal for both commercial and residential applications, ensuring reliable signal distribution for the latest UHD and HDR sources and displays.

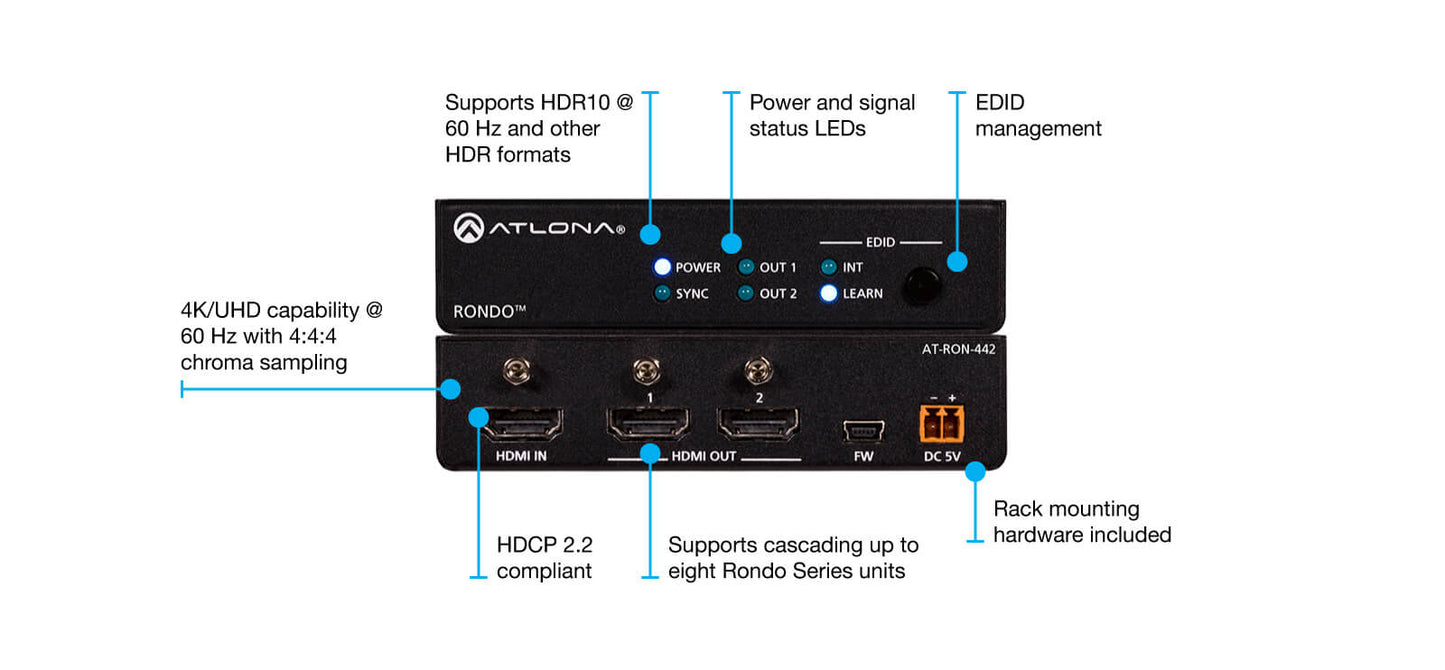

Features

• 4K/UHD Capability: Supports 4K video at 60 Hz with 4:4:4 chroma sampling.
• HDCP 2.2 Compliant: Ensures compatibility with protected content.
• EDID Management: Manages EDID communications to ensure correct audio formats and video resolutions.
• Cascading Support: Allows cascading of up to eight units without performance compromise.
• Multi-channel Audio Support: Passes through various audio formats, including Dolby Atmos and DTS:X.
• Field-updatable Firmware: Keeps the device updated with the latest enhancements.
• LED Indicators: Front panel LEDs indicate power and HDMI input/output signal status.
• Low-profile Design: Compact 1 inch (25 mm) high enclosure for easy installation.

Specifications

• Video Resolution Support: 4096×2160@60Hz, 3840×2160@60Hz, and more.
• Audio Formats Supported: PCM 2Ch, LPCM 5.1, Dolby Digital, DTS, Dolby Atmos, and more.
• Bandwidth: 18 Gbps.
• Operating Temperature: 0°C to 50°C.
• Storage Temperature: -20°C to 60°C.
• Power Consumption: 6W.
• Dimensions (H x W x D): 26 x 109 x 89 mm (1.02 x 4.29 x 3.5 inches).
• Weight: 0.2 kg (0.4 lbs).
