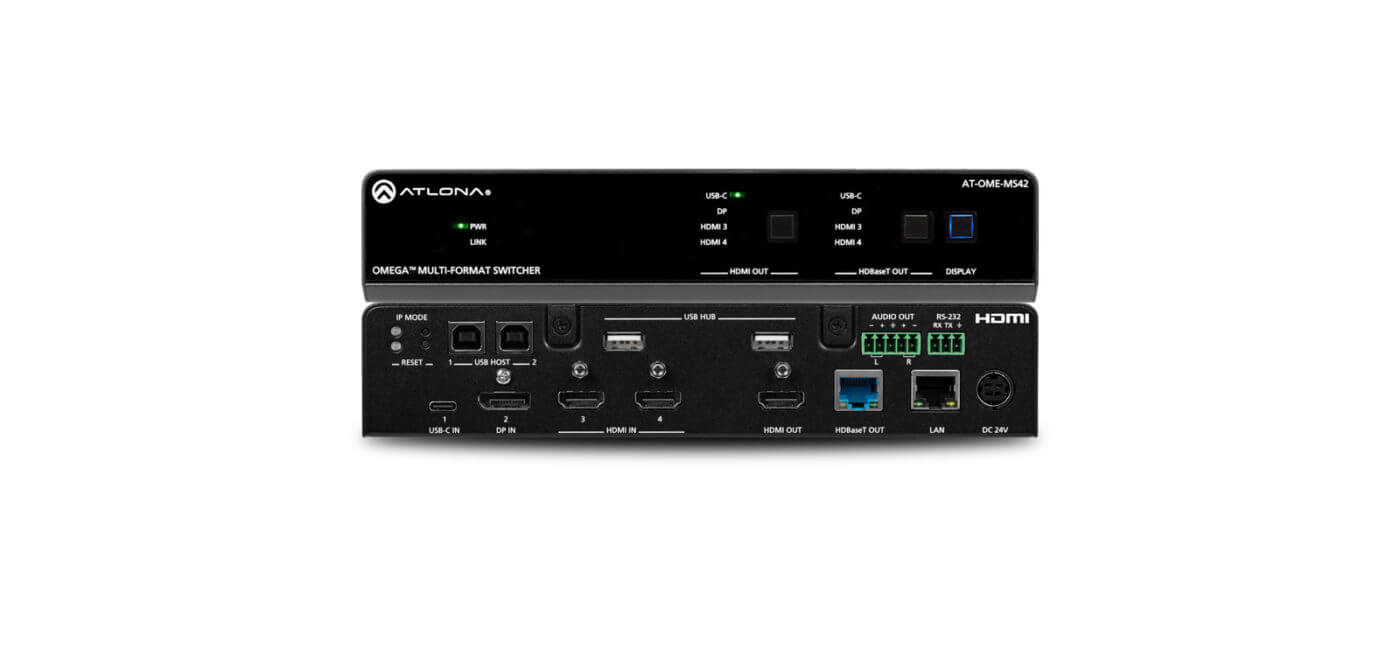

Atlona Omega Switcher/Extender TX/RX Kit for Soft Teleconference Systems with USB pass through

The Atlona Omega Switcher/Extender TX/RX Kit is a versatile 4x2 matrix switcher designed for modern AV communications, offering seamless integration for video conferencing and collaboration. With support for USB-C, DisplayPort, and HDMI inputs, this kit enables easy connection and management of multiple devices, making it ideal for soft teleconference systems. It features advanced capabilities such as HDBaseT extension, automatic display control, and USB interfacing, ensuring high-quality video and audio transmission over long distances.

Features

• 4x2 Matrix Switching: Allows for flexible routing of multiple video sources to two displays.
• USB-C, DisplayPort, and HDMI Inputs: Supports a variety of modern devices for seamless connectivity.
• HDBaseT Extension: Transmits video, audio, power, and control signals up to 330 feet (100 meters) over a single cable.
• Integrated USB Hub: Connects up to three host PCs and two peripheral devices such as cameras and microphones.
• Automatic Display Control: Powers displays on and off based on device connection for ease of use.
• 4K/UHD Capability: Supports resolutions up to 4K at 60 Hz with 4:4:4 chroma sampling.
• Selectable 4K to 1080p Downscaling: Ensures compatibility with various display resolutions.
• Remote Powering Options: Can be powered remotely via HDBaseT receiver or locally with included power supply.

Specifications

• Input Formats: HDMI, DisplayPort, USB-C
• Output Formats: HDMI, HDBaseT
• Video Resolution: Up to 4096x2160 @ 60Hz
• Audio Formats: LPCM, Dolby Digital, DTS
• USB Support: USB 2.0 and USB-C up to 60W power charging
• Control: TCP/IP, RS-232, CEC
• Power Consumption: 8.6 W (unit only), 104 W (full load)
• Dimensions (H x W x D): 44 x 219.5 x 254 mm
• Weight: 1.57 kg
